Schneider

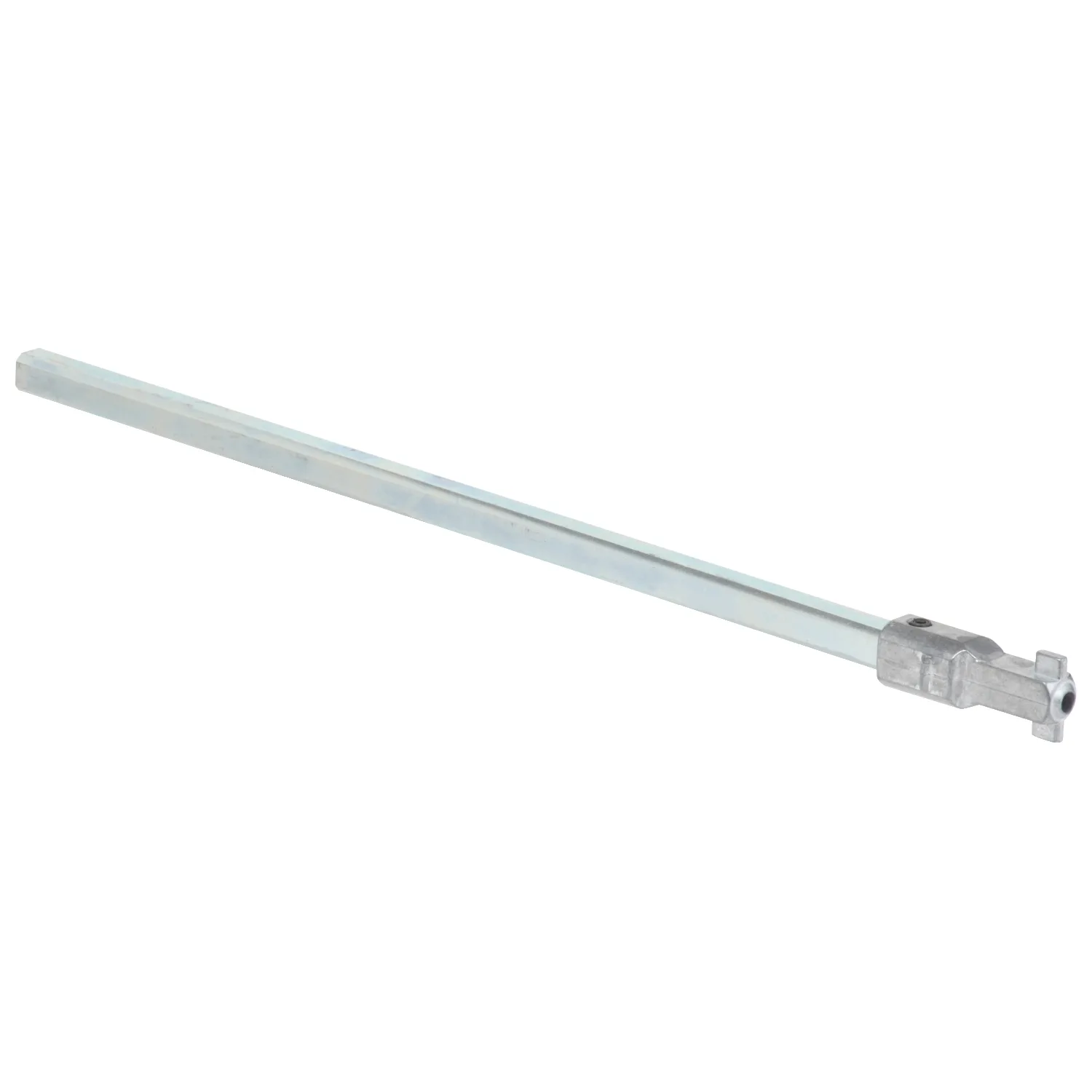

GS2AE22 - TeSys GS Shaft Extension 50..400A 10X10 200MM
Schneider GS2AE22, TeSys GS Shaft Extension 50..400A 10X10 200MM. Category: TeSys GS. Request a quote for price and lead time.
- Reference:GS2AE22
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:55.90 EUR (Request a quote)
Key Specifications
- Range
- TeSys
- Device Short Name
- GS2AE
- Product Or Component Type
- Shaft extension
- Accessory / Separate Part Category
- Control accessory
Product Description
- TeSys GS accessory, shaft extension for external operating handle, to be used with 3-pole and 4-pole 30A-400A IEC/UL fuse switch-disconnectors GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2Q.
- Shaft length 200mm, cross section 10x10mm.
- compliant (RoHS/REACh)
Key Features
- "shaft extension for external operating handle for fuse switch-disconnectors GS2"
- "Shaft length 200mm, cross section 10x10mm"
- "High short circuit performance up to 100 KA"
- "Robust and compact handles"
- "Effective protection thanks to fuse speed fusion"
Technical Specifications
Main6
| Range | TeSys |
|---|---|
| Device Short Name | GS2AE |
| Product Or Component Type | Shaft extension |
| Accessory / Separate Part Category | Control accessory |
| Range Compatibility | TeSys TeSys GS GS2F; TeSys TeSys GS GS2G; TeSys TeSys GS GS2J; TeSys TeSys GS GS2K; TeSys TeSys GS GS2L; TeSys TeSys GS GS2M; TeSys TeSys GS GS2N; TeSys TeSys GS GS2P; TeSys TeSys GS GS2Q; FuPact FuPacT GS GSC50; FuPact FuPacT GS GSB63; FuPact FuPacT GS GSD63; FuPact FuPacT GS GSB100; FuPact FuPacT GS GSC125; FuPact FuPacT GS GSD125; FuPact FuPacT GS GSD160; FuPact FuPacT GS GSB200; FuPact FuPacT |
| Switch Rated Current | 50 A; 60 A; 63 A; 100 A; 125 A; 160 A; 200 A; 250 A; 315 A; 400 A |
Complementary3
| Length | 200 mm |
|---|---|
| Shaft Cross Section | 10 x 10 mm |
| Net Weight | 0.16 kg |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 5.500 cm |
| Package 1 Length | 20.500 cm |
| Package 1 Weight | 161.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 25 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.300 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
