Schneider

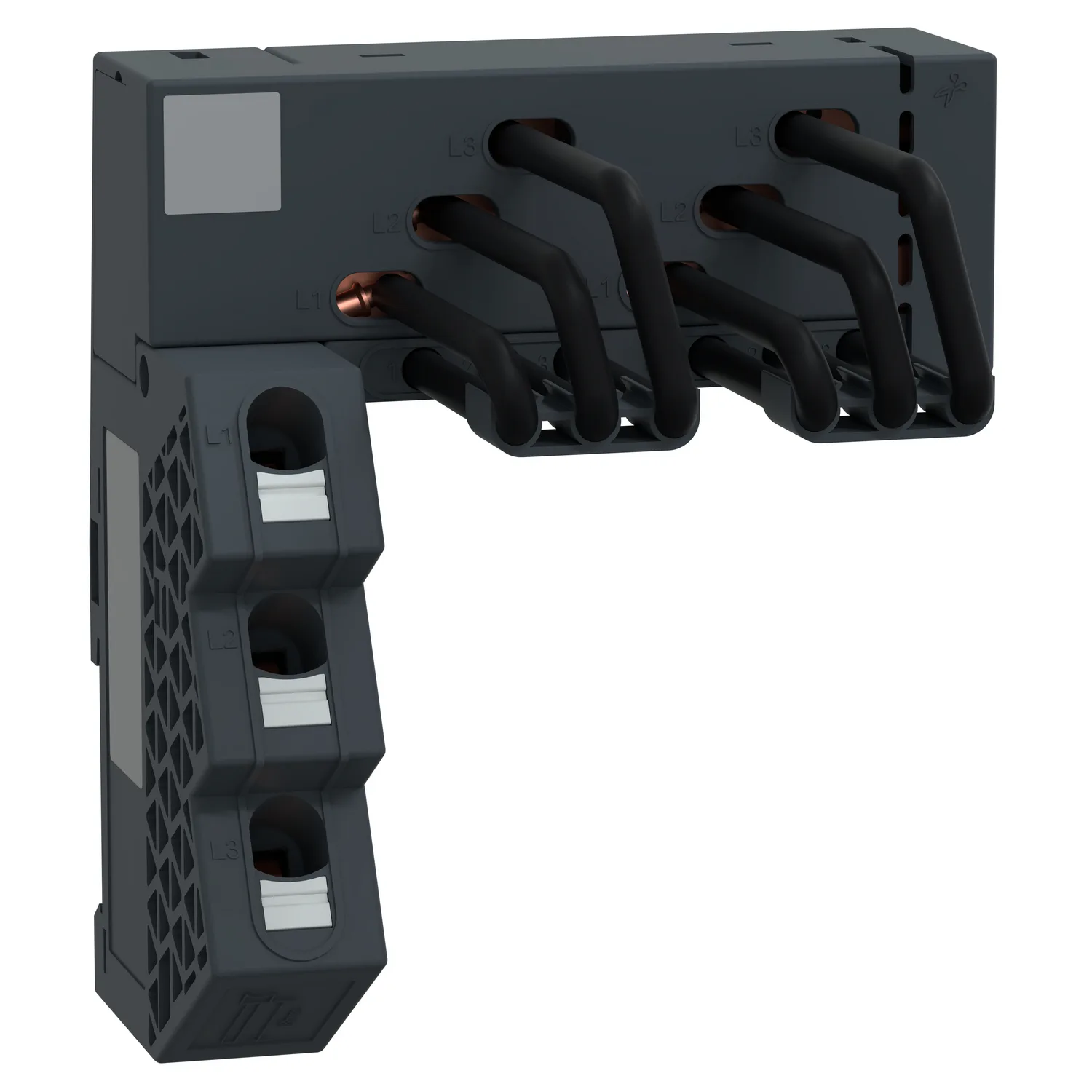

GV2G2LA - 2 Pcs LF Busbar GV2 63A Connecting Part Snap-in
Schneider GV2G2LA, 2 Pcs LF Busbar GV2 63A Connecting Part Snap-in. Category: TeSys Deca - frame 2. Request a quote for price and lead time.
- Reference:GV2G2LA
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:67.50 EUR (Request a quote)
Key Specifications
- Range
- Linergy
- Product Name
- FT
- Device Short Name
- GV2G
- Product Or Component Type
- Comb busbar
Product Description
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers. For use with SNAP IN terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices, and an integrated infeed module on the left side.
Key Features
- Simple wiring kits for GV
- New modern look & feel of all machines
- Easier to install.
- Digital customer experience for technical documents
Technical Specifications
Main12
| Range | Linergy |
|---|---|
| Product Name | FT |
| Device Short Name | GV2G |
| Product Or Component Type | Comb busbar |
| Accessory / Separate Part Category | Connection accessory |
| Poles Description | 3P |
| Range Compatibility | TeSys Deca; TeSys GV2 |
| Product Compatibility | GV2ME...A |
| Fixing Mode | 35 mm symmetrical DIN rail: clipped |
| Number Of Tap-offs | 2 |
| Connections - Terminals | Push-in terminals: 1 cable(s) 1.5…16 mm² - solid; Push-in terminals: 1 cable(s) 1.5…25 mm² - flexible without cable end; Push-in terminals: 1 cable(s) 1.5…16 mm² - flexible with cable end; Push-in terminals: 1 cable(s) (16 AWG...10 AWG) - solid; Push-in terminals: 1 cable(s) (16 AWG...6 AWG) - stranded |
| [Ith] Conventional Free Air Thermal Current | 63 A |
Complementary5
| Product Certifications | CE; cULus |
|---|---|
| [Ui] Rated Insulation Voltage | 690 V |
| Connection Pitch | 45 mm |
| Width | 113 mm |
| Net Weight | 0.41 kg |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 10.500 cm |
| Package 1 Width | 12.500 cm |
| Package 1 Length | 13.000 cm |
| Package 1 Weight | 367.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 6 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.565 kg |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
