Motor circuit breaker, TeSys GV2, 3P, 0.4 A, magnetic, toggle control, screw clamp terminals

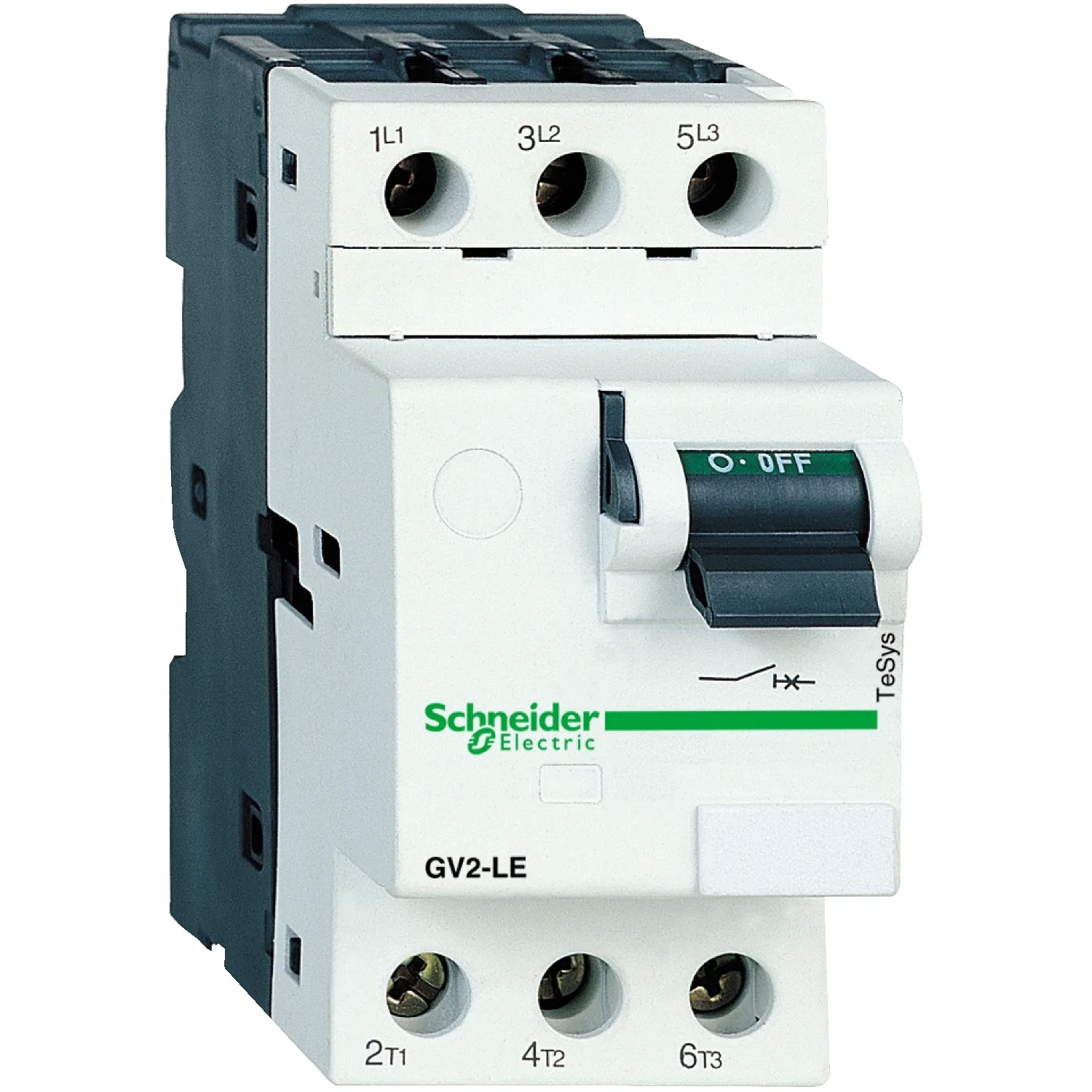

Schneider GV2LE03, Motor circuit breaker, TeSys GV2, 3P, 0.4 A, magnetic, toggle control, screw clamp terminals. Category: TeSys Deca - frame 2. In stock.
- Reference:GV2LE03
- Manufacturer / Brand:Schneider
- Availability:In stock (2 pcs) ✅
- Price:68.50 EUR (Request a quote)
Key Specifications
- Range
- TeSys Deca
- Product Name
- TeSys GV2
- Product Or Component Type
- Motor circuit breaker
- Device Short Name
- GV2LE
Product Description
- TeSys GV motor circuit breaker, 3 poles (3P), 0.4A/690V, for 3-phase motor applications 0.06-0.09kW@400V.
- It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA.
- Connection by screw clamp terminals.
- Start-stop control by toggle guaranteed for 100 000 cycles AC-3.
- To complete motor protection, use in association with a thermal overload relay LRD03 (to be ordered separately).
- Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),
Key Features
- "New modern look & feel of all machines"
- "Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)"
- "Easier to install and operate with multi-standard screws"
- "Sturdy and long-lasting power connection with EverLink terminals"
- "Digital customer experience for technical documents"
Technical Specifications
Main6
| Range | TeSys Deca |
|---|---|
| Product Name | TeSys GV2 |
| Product Or Component Type | Motor circuit breaker |
| Device Short Name | GV2LE |
| Device Application | Motor protection |
| Trip Unit Technology | Magnetic |
Complementary28
| Poles Description | 3P |
|---|---|
| Network Type | AC |
| Utilisation Category | Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1; AC-3e conforming to IEC 60947-4-1 |
| Network Frequency | 50/60 Hz conforming to IEC 60947-2 |
| Motor Power KW | 0.09 kW at 400/415 V AC 50/60 Hz; 0.06 kW at 400/415 V AC 50/60 Hz |
| Breaking Capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] Rated Service Short-circuit Breaking Capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control Type | Toggle |
| [In] Rated Current | 0.4 A |
| Magnetic Tripping Current | 5.8 A |
| [Ith] Conventional Free Air Thermal Current | 0.4 A conforming to IEC 60947-2 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-2 |
| Suitability For Isolation | Yes conforming to IEC 60947-1 |
| Power Dissipation Per Pole | 1.8 W |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles for AC-3 at 415 V In; 100000 cycles for AC-3e at 415 V In |
| Rated Duty | Uninterrupted conforming to IEC 60947-4-1 |
| Connections - Terminals | Power circuit: screw clamp terminal 2 cable(s) 1…6 mm² - solid; Power circuit: screw clamp terminal 2 cable(s) 1.5…6 mm² - flexible without cable end; Power circuit: screw clamp terminal 2 cable(s) 1…4 mm² - flexible with cable end |
| Tightening Torque | 1.7 N.m - on screw clamp terminal |
| Fixing Mode | 35 mm symmetrical DIN rail: clipped; Panel: screwed (with adaptor plate) |
| Mounting Position | Horizontal; Vertical |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 78.5 mm |
| Net Weight | 0.33 kg |
| Colour | Dark grey |
Environment10
| Standards | EN/IEC 60947-2; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-2-40:Annex JJ |
|---|---|
| Product Certifications | CB Scheme; CE; UKCA; CCC; cULus; EAC; LROS (Lloyds register of shipping); BV; RINA; DNV-GL |
| IK Degree Of Protection | IK04 |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Climatic Withstand | conforming to IACS E10 |
| Ambient Air Temperature For Storage | -40…80 °C |
| Fire Resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient Air Temperature For Operation | -20…60 °C |
| Mechanical Robustness | Shocks: 30 Gn for 11 ms; Vibrations: 5 Gn, 5...150 Hz |
| Operating Altitude | <= 2000 m |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 9.3 cm |
| Package 1 Length | 4.8 cm |
| Package 1 Weight | 223.0 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 24 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.651 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
