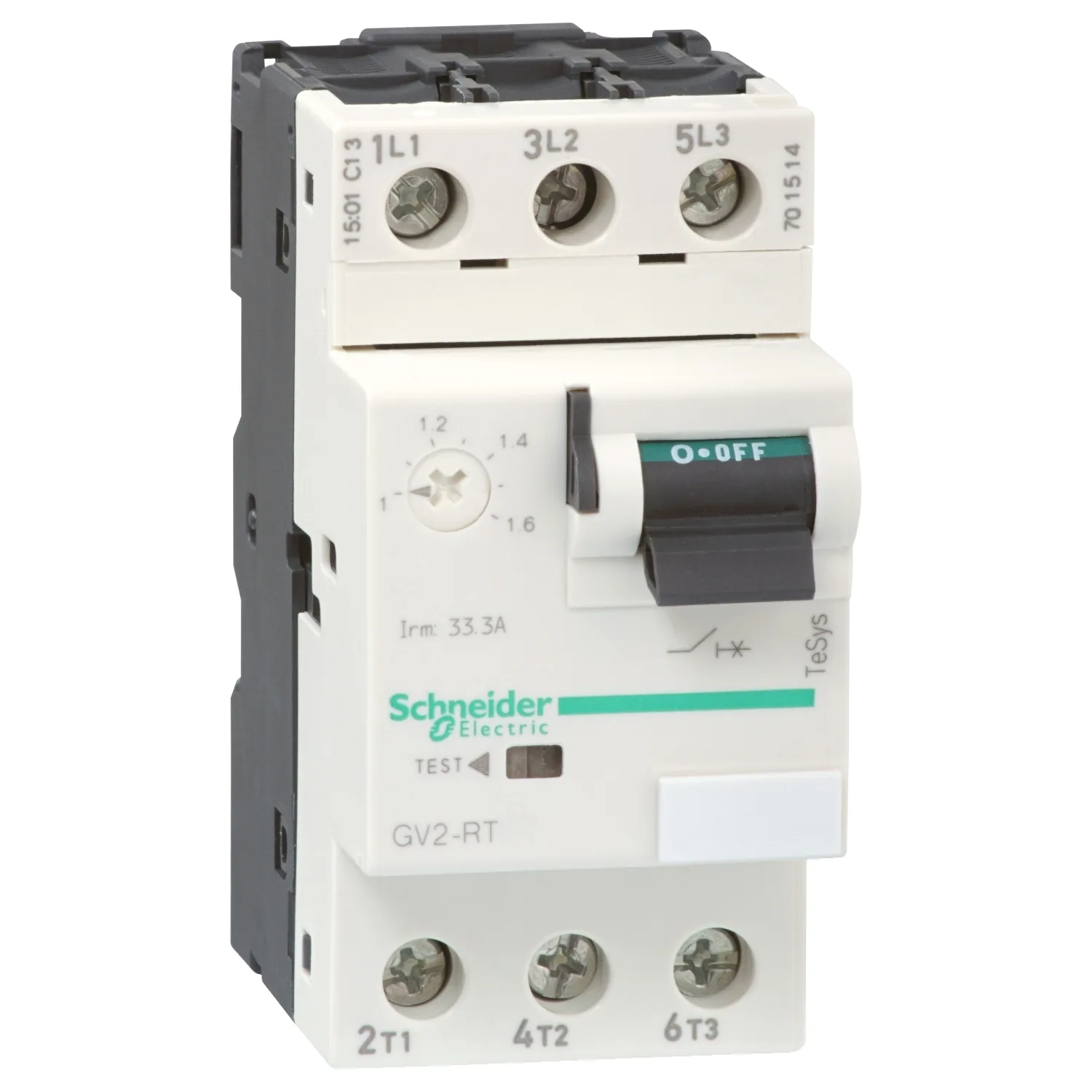

GV2RT08 - TeSys GV2 Thermal-Magnetic Motor Circuit Breaker 2.5-4A
Schneider GV2RT08, TeSys GV2 Thermal-Magnetic Motor Circuit Breaker 2.5-4A. Category: TeSys Deca - frame 2. Request a quote for price and lead time.
- Reference:GV2RT08
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:85.80 EUR (Request a quote)
Key Specifications
- Range
- TeSys Deca
- Product Name
- TeSys GV2
- Product Or Component Type
- Motor circuit breaker
- Device Short Name
- GV2RT
Product Description
- TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for high starting current peak motor applications 1.1-1.5kW@400V.
- It provides a thermal-magnetic protection with a thermal setting range 2.5-4A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA@400V.
- Connection by screw clamp terminals.
- Start-stop control by toggle guaranteed for 100 000 cycles AC-3.
- It can be used for protection of 3-phase transformer applications.
- Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX),
Key Features
- "New modern look & feel of all machines"
- "Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)"
- "Easier to install and operate with multi-standard screws"
- "Sturdy and long-lasting power connection with EverLink terminals"
- "Digital customer experience for technical documents"
Technical Specifications
Main6
| Range | TeSys Deca |
|---|---|
| Product Name | TeSys GV2 |
| Product Or Component Type | Motor circuit breaker |
| Device Short Name | GV2RT |
| Device Application | Motor protection; Transformer |
| Trip Unit Technology | Thermal-magnetic |
Complementary26
| Poles Description | 3P |
|---|---|
| Network Type | AC |
| Utilisation Category | Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1; AC-3e conforming to IEC 60947-4-1 |
| Network Frequency | 50/60 Hz conforming to IEC 60947-2 |
| Motor Power KW | 0.55 kW at 220/230 V AC 50/60 Hz motor protection high peak current; 0.75 kW at 220/230 V AC 50/60 Hz motor protection high peak current; 1.1 kW at 400/415 V AC 50/60 Hz motor protection high peak current; 1.5 kW at 400/415 V AC 50/60 Hz motor protection high peak current; 1.5 kW at 440 V AC 50/60 Hz motor protection high peak current; 1.5 kW at 500 V AC 50/60 Hz motor protection high peak current |
| Breaking Capacity | 100 kA Icu at 220/230 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control Type | Toggle |
| [In] Rated Current | 4 A |
| Thermal Protection Adjustment Range | 2.5…4 A conforming to IEC 60947-2 |
| Magnetic Tripping Current | 78 A |
| [Ith] Conventional Free Air Thermal Current | 4 A conforming to IEC 60947-2 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-2 |
| Suitability For Isolation | Yes conforming to IEC 60947-1 |
| Power Dissipation Per Pole | 2.5 W |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles for AC-3 at 415 V In; 100000 cycles for AC-3e at 415 V In |
| Rated Duty | Uninterrupted conforming to IEC 60947-4-1 |
| Connections - Terminals | Power circuit: screw clamp terminal 2 cable(s) 1…6 mm² - solid; Power circuit: screw clamp terminal 2 cable(s) 1.5…6 mm² - flexible without cable end; Power circuit: screw clamp terminal 2 cable(s) 1…4 mm² - flexible with cable end |
| Tightening Torque | 1.7 N.m - on screw clamp terminal |
| Fixing Mode | 35 mm symmetrical DIN rail: clipped; Panel: screwed (with adaptor plate) |
| Mounting Position | Horizontal; Vertical |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 78.5 mm |
Environment10
| Standards | EN/IEC 60947-2; EN/IEC 60947-4-1 |
|---|---|
| Product Certifications | CB Scheme; CE; UKCA; CCC; cULus; EAC; LROS (Lloyds register of shipping); BV |
| IK Degree Of Protection | IK04 |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Climatic Withstand | conforming to IACS E10 |
| Ambient Air Temperature For Storage | -40…80 °C |
| Fire Resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient Air Temperature For Operation | -20…60 °C |
| Mechanical Robustness | Shocks: 30 Gn for 11 ms; Vibrations: 5 Gn, 5...150 Hz |
| Operating Altitude | <= 2000 m |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 9.400 cm |
| Package 1 Length | 4.800 cm |
| Package 1 Weight | 250.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.330 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 111.780 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
