Schneider

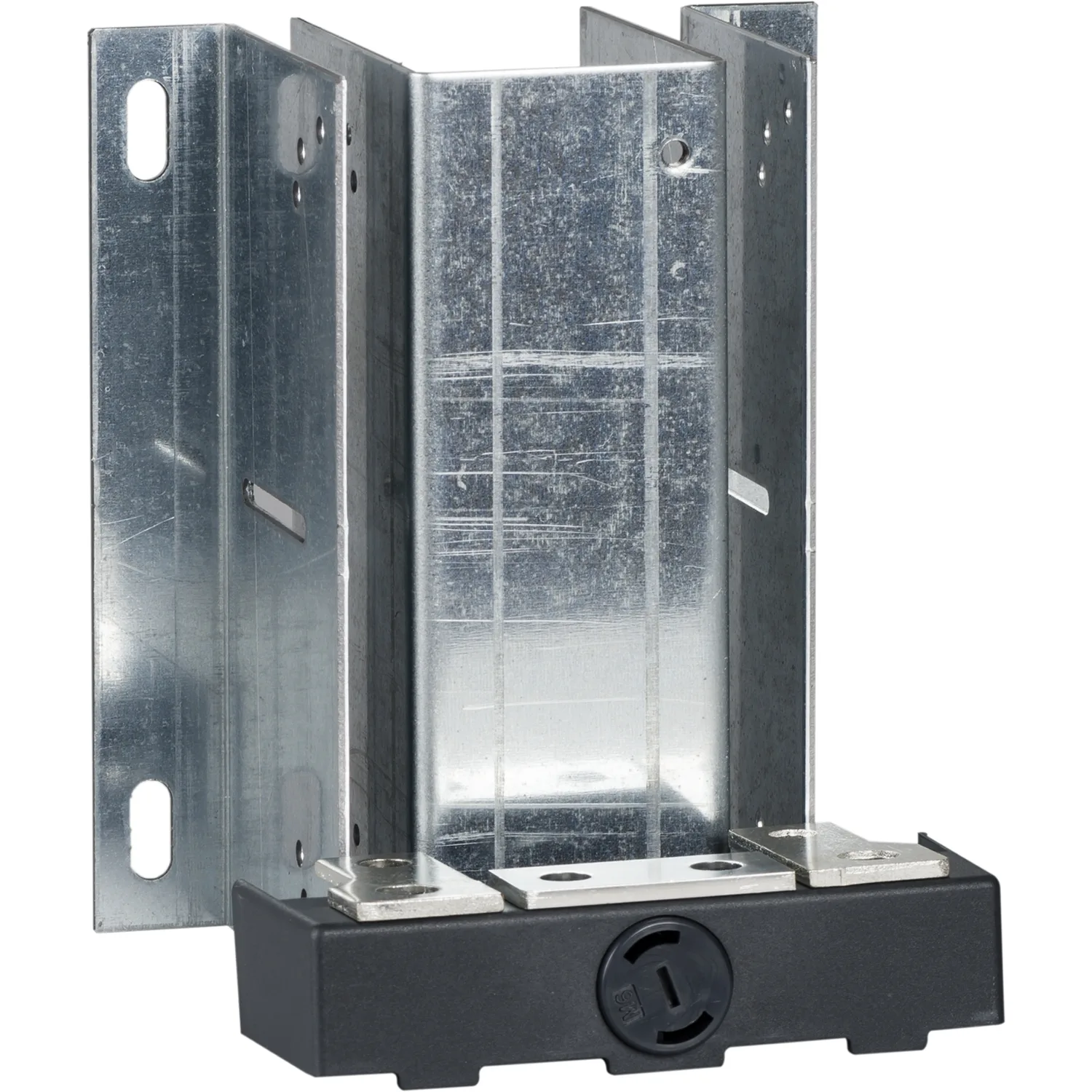

TeSys GV7 - kit for combination with contactor LC1-F115...185
Schneider GV7AC06, TeSys GV7 - kit for combination with contactor LC1-F115...185. Category: TeSys GV7. Request a quote for price and lead time.
- Reference:GV7AC06
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:138.10 EUR (Request a quote)
Key Specifications
- Range
- TeSys
- Product Or Component Type
- Kit for combination with connector
- Device Short Name
- GV7AC
- Accessory / Separate Part Category
- Connection accessory
Product Description
TeSys GV combination kit for circuit breaker and contactor association, for motor circuit breakers GV5, GV7. The kit comprises a depth adjustable metal bracket for mounting the breaker, links for the connection between circuit breaker and contactor, a cover on the links for protection against direct contact. For use with 3-pole contactors LC1F115, F150, F185. Green Premium compliant (RoHS/REACh).
Key Features
- Combination kit for breaker and contactor association with motor circuit breakers GV5, GV7
- Creates a connection links between circuit breaker and contactor
- Easy installation thanks to universal fixing arrangement Screw fixing or clip-on mounting
- Wide range of accessories and auxiliaries provide flexibility
- Suitable for isolation, provides user safety
Technical Specifications
Main6
| Range | TeSys |
|---|---|
| Product Or Component Type | Kit for combination with connector |
| Device Short Name | GV7AC |
| Range Compatibility | TeSys TeSys GV5 motor circuit breaker; TeSys TeSys GV7 motor circuit breaker; TeSys TeSys F contactor |
| Accessory / Separate Part Category | Connection accessory |
| Product Compatibility | LC1F115...LC1F185 |
Complementary3
| Kit Composition | Short terminal shield; Adjustable mounting bracket(s); Terminal screw type connector |
|---|---|
| Quantity Per Set | Set of 1 |
| Net Weight | 0.55 kg |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 9.200 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 18.700 cm |
| Package 1 Weight | 1.070 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 4 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.794 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
