Schneider

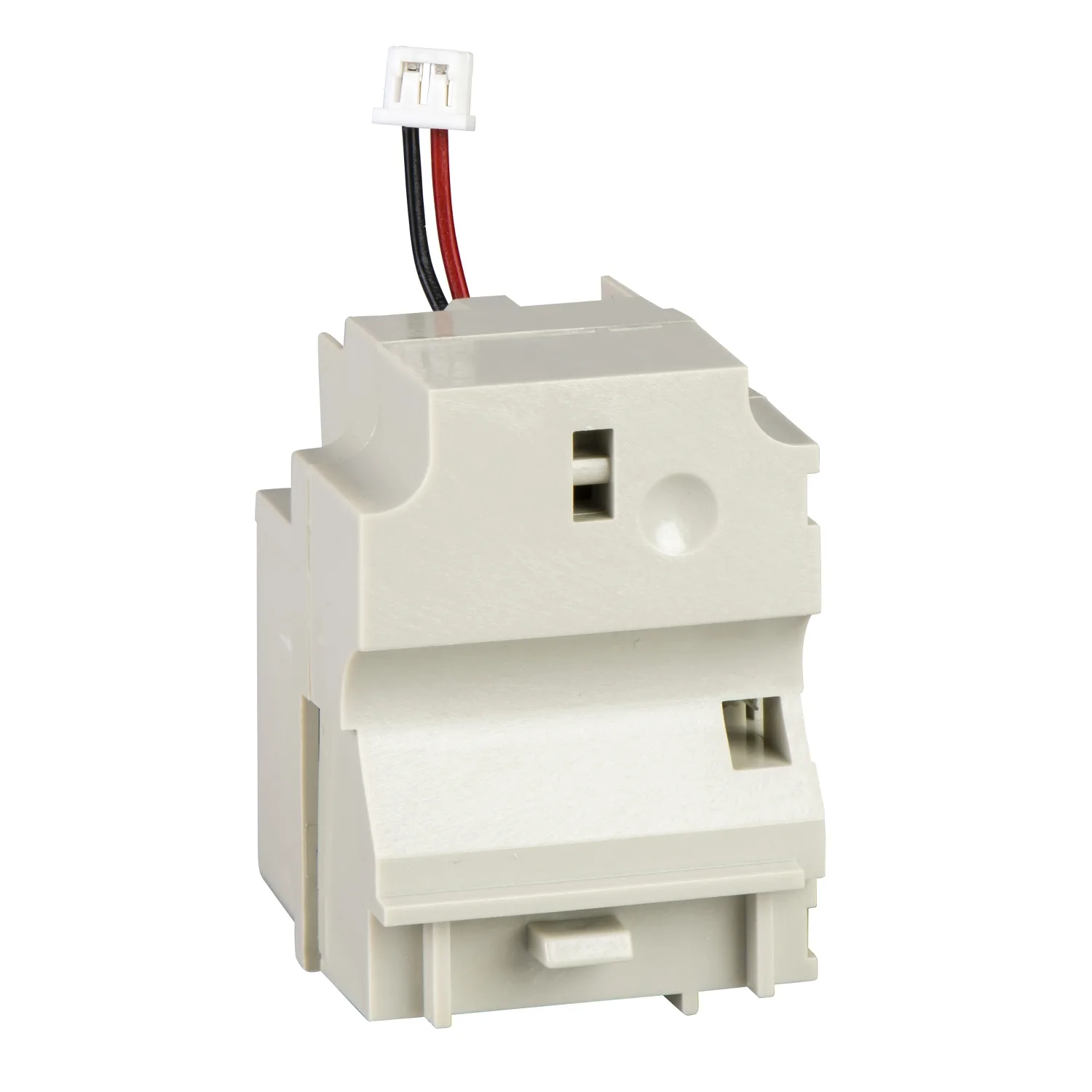

TeSys GV7 - fault discrimination device - 110-240 V AC
Not for sale
Schneider GV7AD112, TeSys GV7 - fault discrimination device - 110-240 V AC. Category: TeSys GV7. Not for sale; no price or quote is offered for this product.
- Reference:GV7AD112
- Manufacturer / Brand:Schneider
Key Specifications
- Range
- TeSys
- Product Or Component Type
- Fault discrimination device
- Range Compatibility
- TeSys TeSys GV7
Product Description
TeSys GV fault discrimination device, for motor circuit breakers GV7. It makes possible to differentiate between a thermal fault and a magnetic fault. Electronic module to be supplied in 110-240V AC 50/60Hz. To be plugged inside the circuit breaker, it takes the same cavity as the one used for the trip unit, connection by screw terminals. Green Premium compliant (RoHS/REACh). • Fault discrimination device for motor circuit breakers GV7
Key Features
- Takes the same cavity as the one used for the trip unit
- Easy installation thanks to universal fixing arrangement Screw fixing or clip-on mounting
- Wide range of accessories and auxiliaries provide flexibility
- Suitable for isolation, provides user safety
Technical Specifications
Main3
| Range | TeSys |
|---|---|
| Product Or Component Type | Fault discrimination device |
| Range Compatibility | TeSys TeSys GV7 |
Complementary6
| Function Available | Differentiation of thermal overload and magnetic fault |
|---|---|
| Mounting Location | Inside of the front panel |
| Auxiliary Contacts Operation | Fault signal |
| [Ue] Rated Operational Voltage | 110 V DC for control circuit; 240 V DC for control circuit; 110 V AC 50/60 Hz for control circuit; 240 V AC 50/60 Hz for control circuit |
| Net Weight | 0.1 kg |
| Quantity Per Set | Set of 10 |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 4.8 cm |
| Package 1 Length | 5.3 cm |
| Package 1 Weight | 36.0 g |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
