cam changeover switch - 2-pole - 60° - 32 A - screw mounting

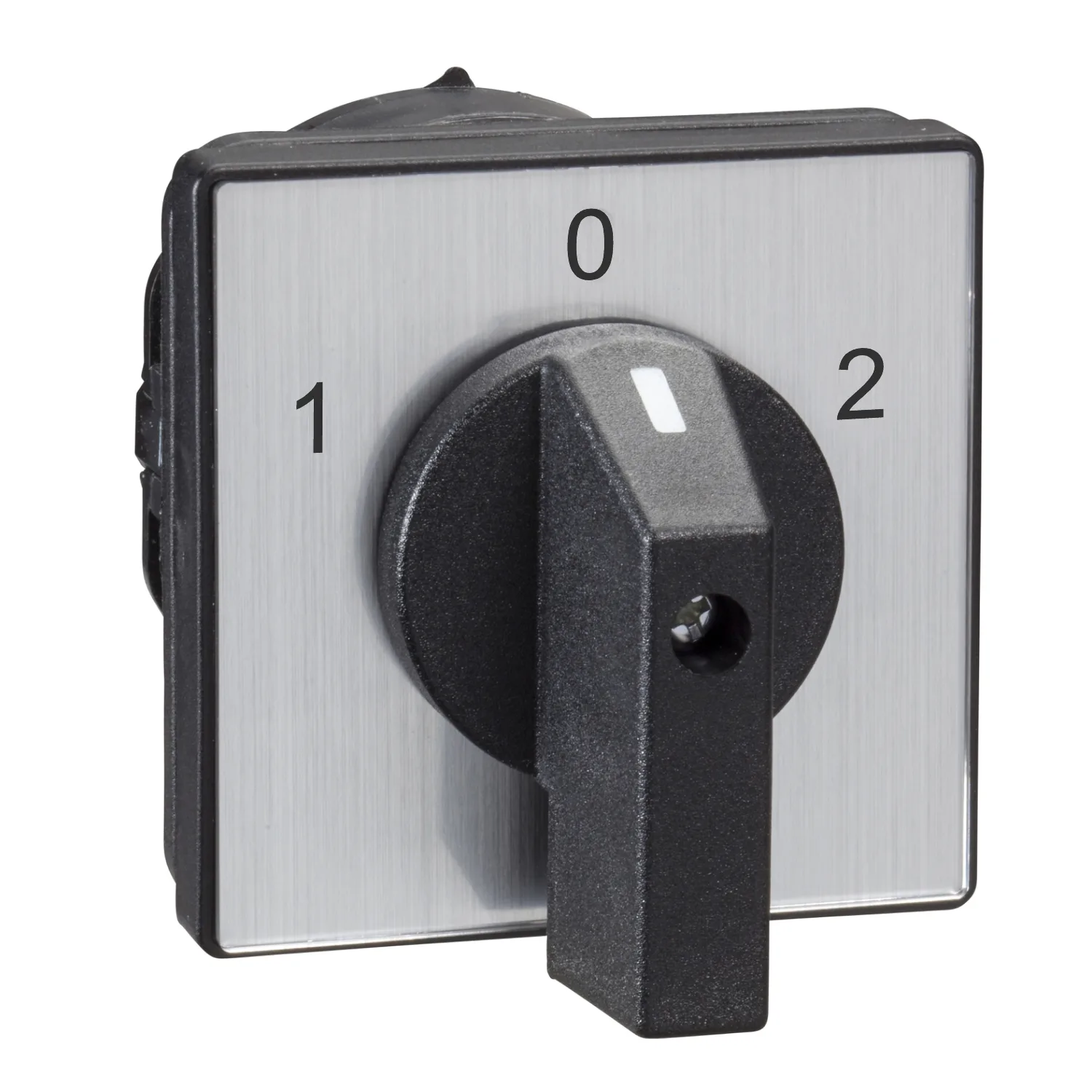

Schneider K30D002UP, cam changeover switch - 2-pole - 60° - 32 A - screw mounting. Category: Harmony K. Request a quote for price and lead time.
- Reference:K30D002UP
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:172.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony K
- Product Or Component Type
- Complete cam switch
- Component Name
- K30
- Mounting Location
- Front
Product Description
Schneider's K30D002UP reference cam changeover switch - 2-pole - 60° - 32 A - screw mounting product belongs to the Harmony K series and features Cam Enversör Anahtarı - 2 Kutup - 60° - 32 A - Vida Montajı. You can request a quote from UC-EL Electric.
Technical Specifications
Main16
| Range Of Product | Harmony K |
|---|---|
| Product Or Component Type | Complete cam switch |
| Component Name | K30 |
| [Ith] Conventional Free Air Thermal Current | 32 A |
| Mounting Location | Front |
| Fixing Mode | 4 holes |
| Cam Switch Head Type | With front plate 64 x 64 mm |
| Type Of Operator | Black handle |
| Rotary Handle Padlocking | Without |
| Presentation Of Legend | With metallic legend, 1 - 0 - 2 black marking |
| Cam Switch Function | Changeover switch |
| Return | Without |
| Off Position | With Off position |
| Poles Description | 2P |
| Switching Positions | Right: 0° - 60°; Left: 0° - 300° |
| IP Degree Of Protection | IP40 conforming to IEC 60529 |
Complementary15
| Switching Angle | 60 ° |
|---|---|
| [Ui] Rated Insulation Voltage | 690 V (pollution degree 3) conforming to IEC 60947-1 |
| Short-circuit Current | 5000 A |
| Short-circuit Protection | 50 A cartridge fuse, type gG |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to EN 947-1; 6 kV conforming to IEC 947-1 |
| Contact Operation | Slow-break |
| Positive Opening | With |
| Electrical Connection | Captive screw clamp terminals flexible, clamping capacity: 2 x 4 mm²; Captive screw clamp terminals solid, clamping capacity: 2 x 6 mm² |
| Tightening Torque | 1.2 N.m |
| Switching Capacity In MA | 11000 mA DC at 120 V 2 contact(s) for inductive load (T = 50 ms); 11000 mA DC at 180 V 3 contact(s) for inductive load (T = 50 ms); 11000 mA DC at 60 V 1 contact(s) for inductive load (T = 50 ms); 1200 mA DC at 220 V 1 contact(s) for resistive load (T = 1 ms); 1200 mA DC at 440 V 2 contact(s) for resistive load (T = 1 ms); 1200 mA DC at 660 V 3 contact(s) for resistive load (T = 1 ms); 16000 mA DC |
| Mechanical Durability | 300000 cycles |
| CAD Overall Width | 64 mm |
| CAD Overall Height | 64 mm |
| CAD Overall Depth | 93 mm |
| Net Weight | 0.25 kg |
Environment6
| Standards | IEC 60947-3 |
|---|---|
| Product Certifications | CULus 120 V 2 hp 1 phase; CULus 240 V 5 hp 1 phase; CULus 240 V 5 hp 3 phases; CULus 480 V 20 hp 3 phases |
| Protective Treatment | TC |
| Ambient Air Temperature For Operation | -25…55 °C |
| Ambient Air Temperature For Storage | -40…70 °C |
| Overvoltage Category | Class II conforming to IEC 60536; Class II conforming to NF C 20-030 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 11.500 cm |
| Package 1 Width | 7.200 cm |
| Package 1 Length | 7.200 cm |
| Package 1 Weight | 235.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 30 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7.722 kg |
Logistical informations1
| Country Of Origin | AT |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
