Switch: cam switch; Stabl.pos: 3; 50A; 1-0-2; for building in

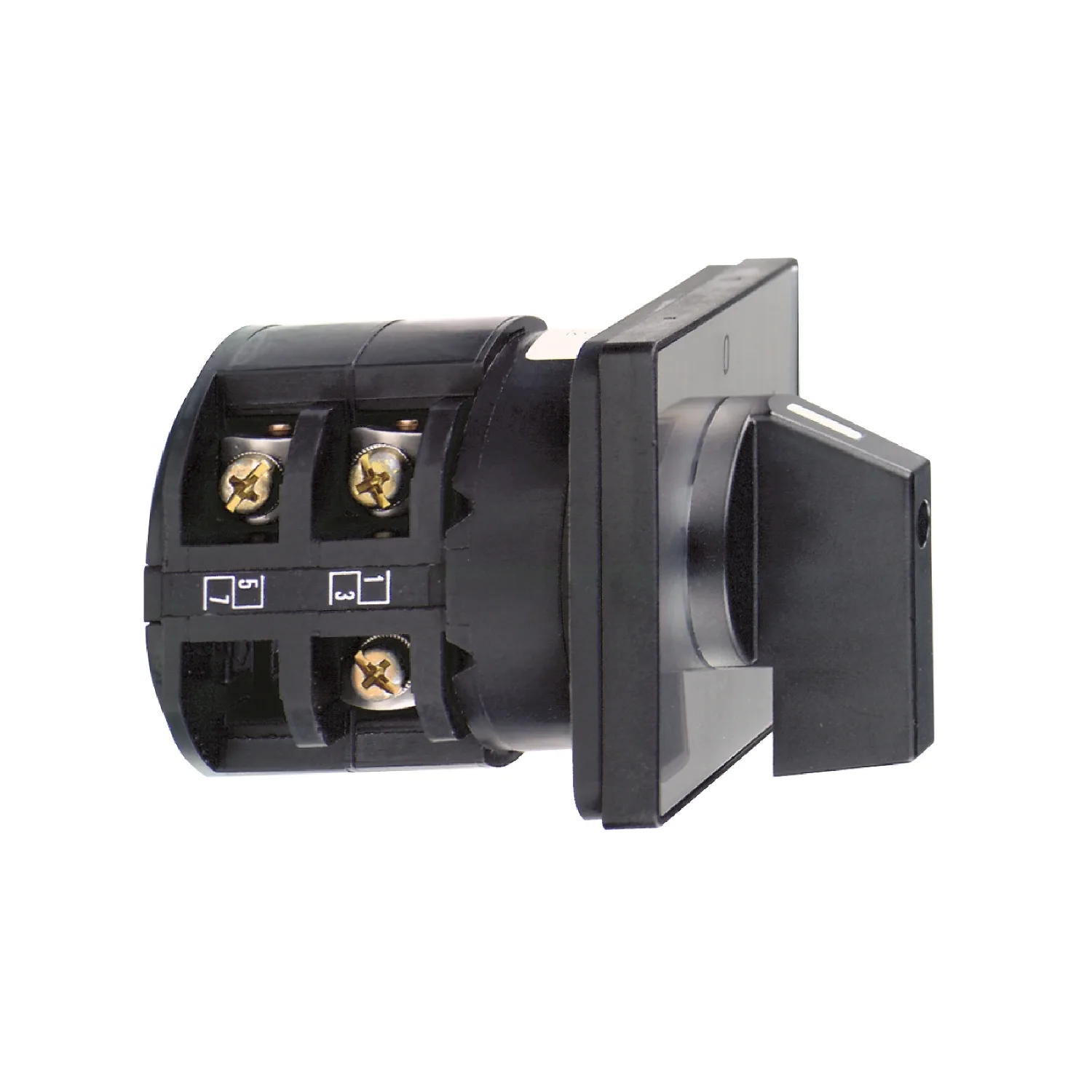

Schneider K50F003UP, Switch: cam switch; Stabl.pos: 3; 50A; 1-0-2; for building in. Category: Harmony K. Request a quote for price and lead time.
- Reference:K50F003UP
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:324.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony K
- Product Or Component Type
- Complete cam switch
- Component Name
- K50
- Mounting Location
- Front
Product Description
This Harmony K50 complete cam switch/selector switch has 3 poles (3P). It also has a rating of 50A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 0 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions.
Technical Specifications
Main16
| Range Of Product | Harmony K |
|---|---|
| Product Or Component Type | Complete cam switch |
| Component Name | K50 |
| [Ith] Conventional Free Air Thermal Current | 50 A |
| Mounting Location | Front |
| Fixing Mode | 4 holes |
| Cam Switch Head Type | With front plate 64 x 64 mm |
| Type Of Operator | Black handle |
| Rotary Handle Padlocking | Without |
| Presentation Of Legend | With metallic legend, 1 - 0 - 2 black marking |
| Cam Switch Function | Changeover switch |
| Return | Without |
| Off Position | With Off position |
| Poles Description | 3P |
| Switching Positions | Right: 0° - 60°; Left: 0° - 300° |
| IP Degree Of Protection | IP40 conforming to IEC 60529 |
Complementary15
| Switching Angle | 60 ° |
|---|---|
| [Ui] Rated Insulation Voltage | 690 V (pollution degree 3) conforming to IEC 60947-1 |
| Short-circuit Current | 5000 A |
| Short-circuit Protection | 63 A cartridge fuse, type gG |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to EN 947-1; 6 kV conforming to IEC 947-1 |
| Contact Operation | Slow-break |
| Positive Opening | With |
| Electrical Connection | Captive screw clamp terminals flexible, clamping capacity: 2 x 6 mm²; Captive screw clamp terminals solid, clamping capacity: 2 x 10 mm² |
| Tightening Torque | 2 N.m |
| Switching Capacity In MA | 15000 mA DC at 120 V 2 contact(s) for inductive load (T = 50 ms); 15000 mA DC at 180 V 3 contact(s) for inductive load (T = 50 ms); 15000 mA DC at 60 V 1 contact(s) for inductive load (T = 50 ms); 20000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms); 20000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms); 20000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms); 30000 m |
| Mechanical Durability | 300000 cycles |
| CAD Overall Width | 64 mm |
| CAD Overall Height | 64 mm |
| CAD Overall Depth | 120 mm |
| Net Weight | 0.53 kg |
Environment6
| Standards | IEC 60947-3 |
|---|---|
| Product Certifications | CULus 120 V 3 hp 1 phase; CULus 480 V 25 hp 3 phases; CULus 240 V 7.5 hp 1 phase; CULus 240 V 7.5 hp 3 phases |
| Protective Treatment | TC |
| Ambient Air Temperature For Operation | -25…55 °C |
| Ambient Air Temperature For Storage | -40…70 °C |
| Overvoltage Category | Class II conforming to IEC 60536; Class II conforming to NF C 20-030 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 13.7 cm |
| Package 1 Width | 7.2 cm |
| Package 1 Length | 7.2 cm |
| Package 1 Weight | 383.0 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 30 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 12.034 kg |
Logistical informations1
| Country Of Origin | AT |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
