Schneider

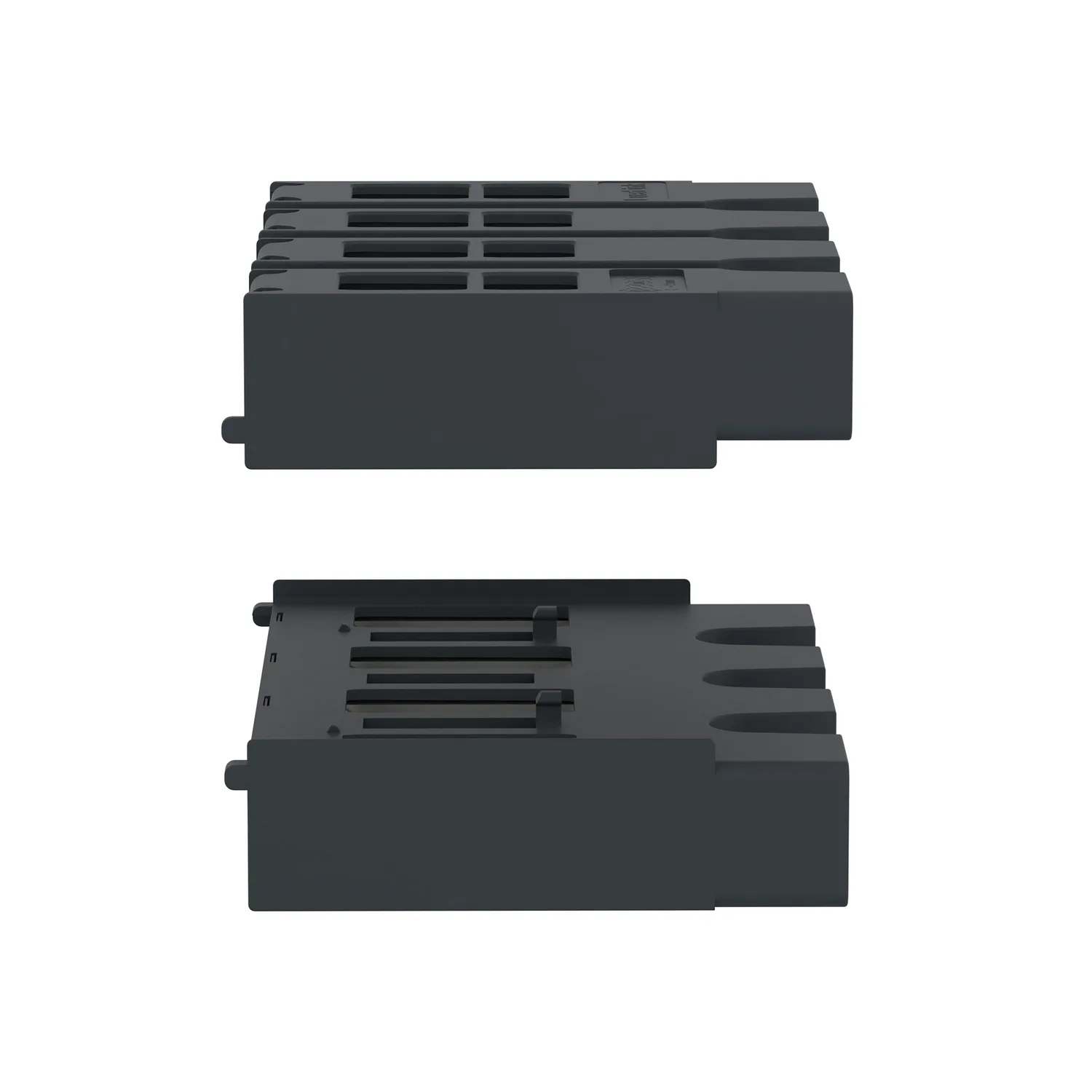

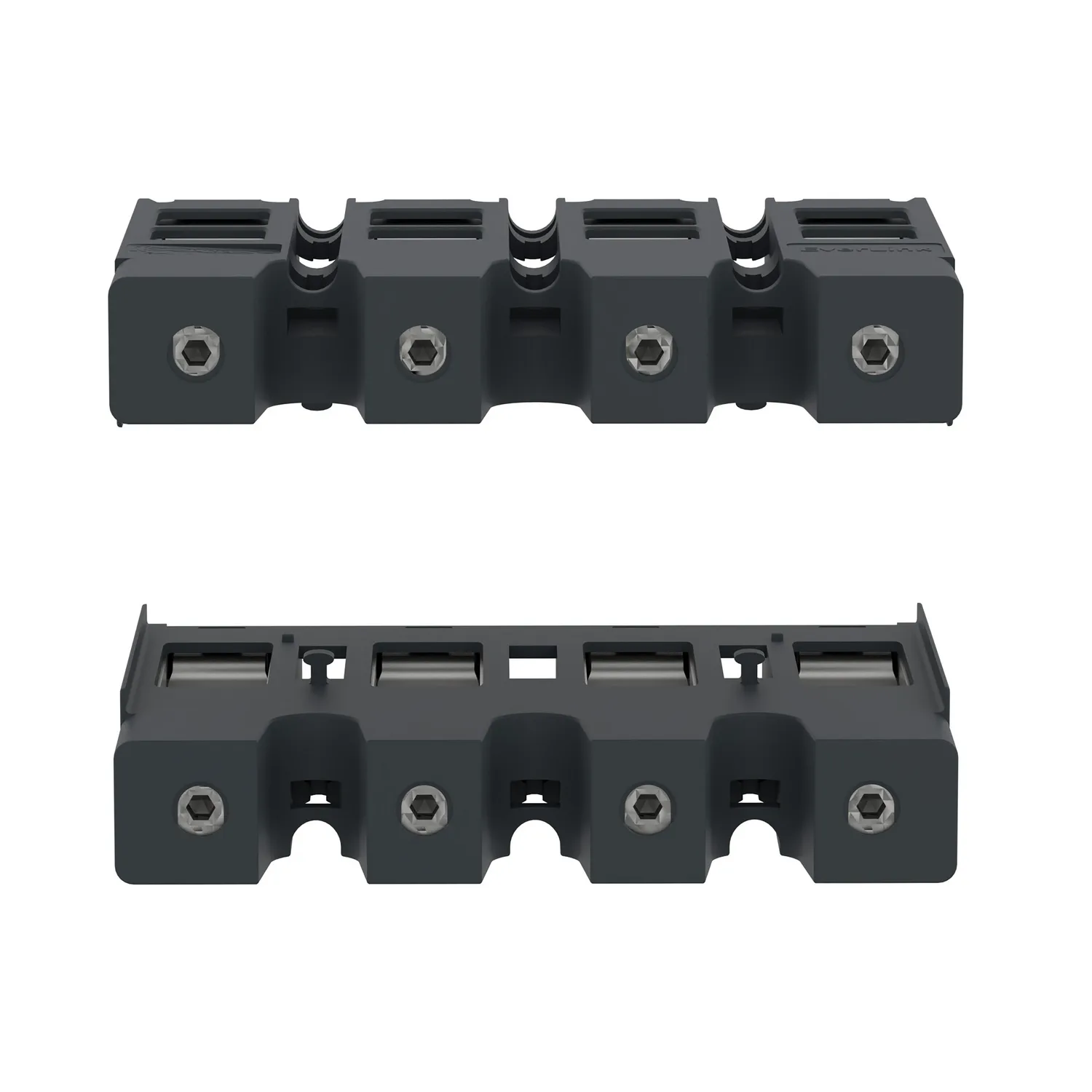

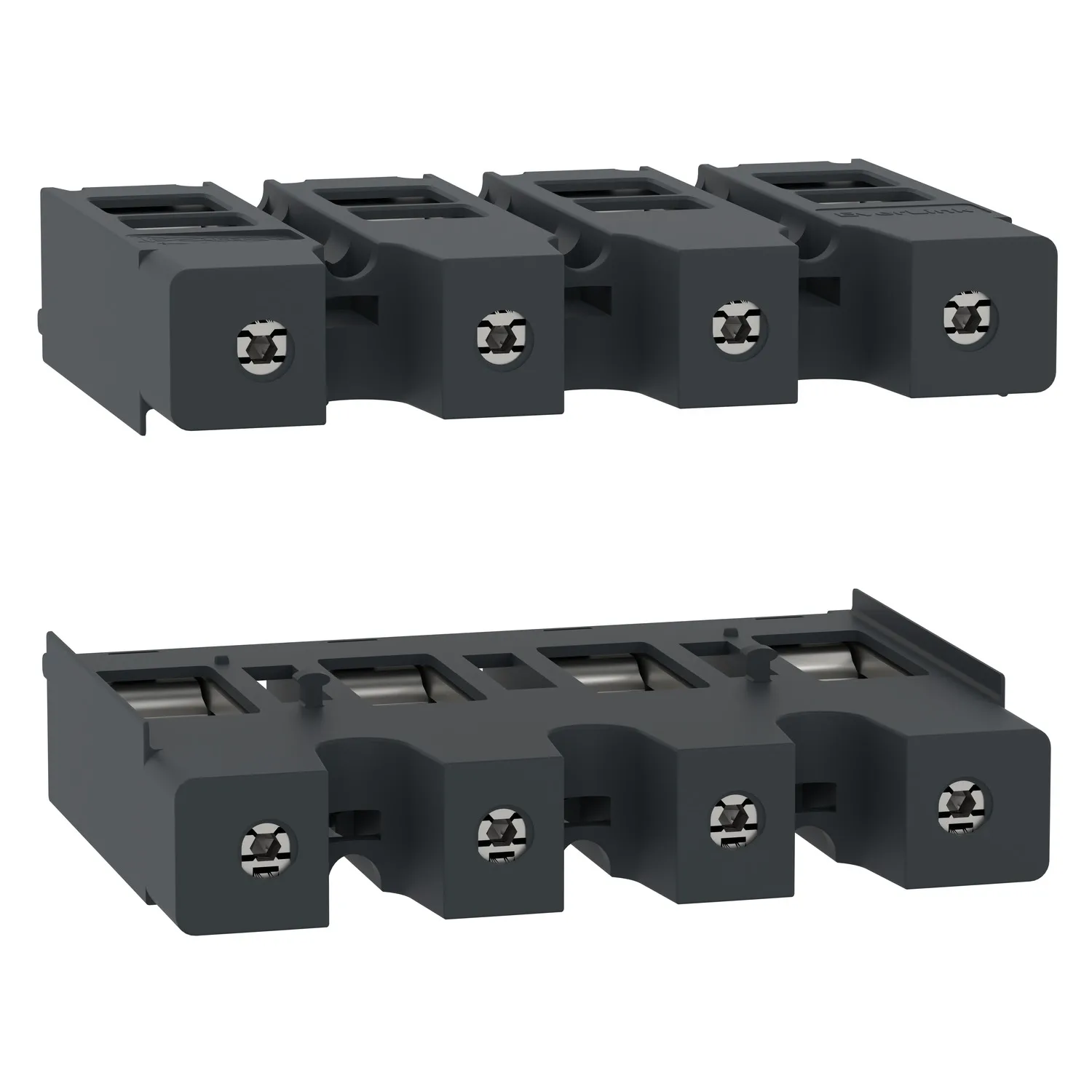

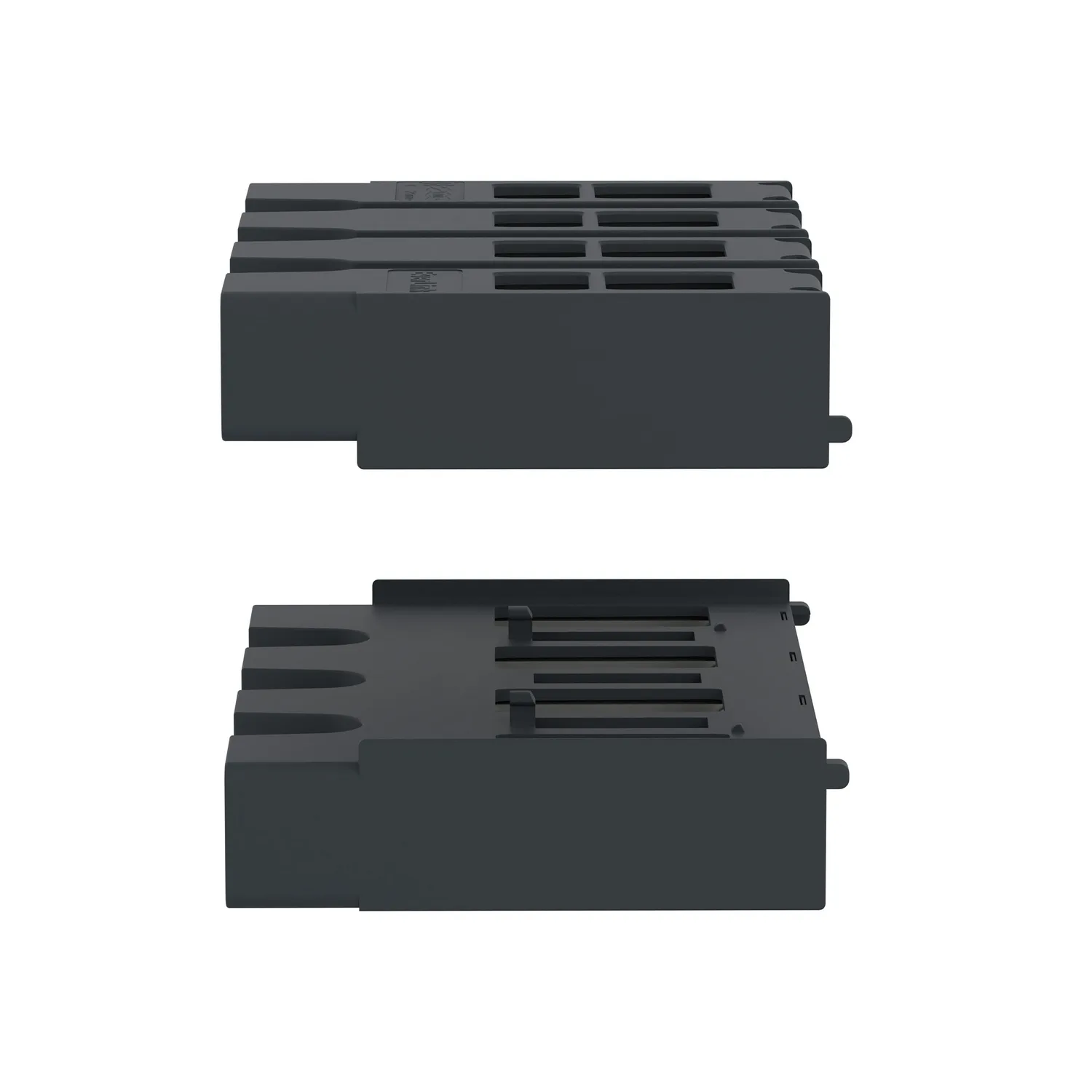

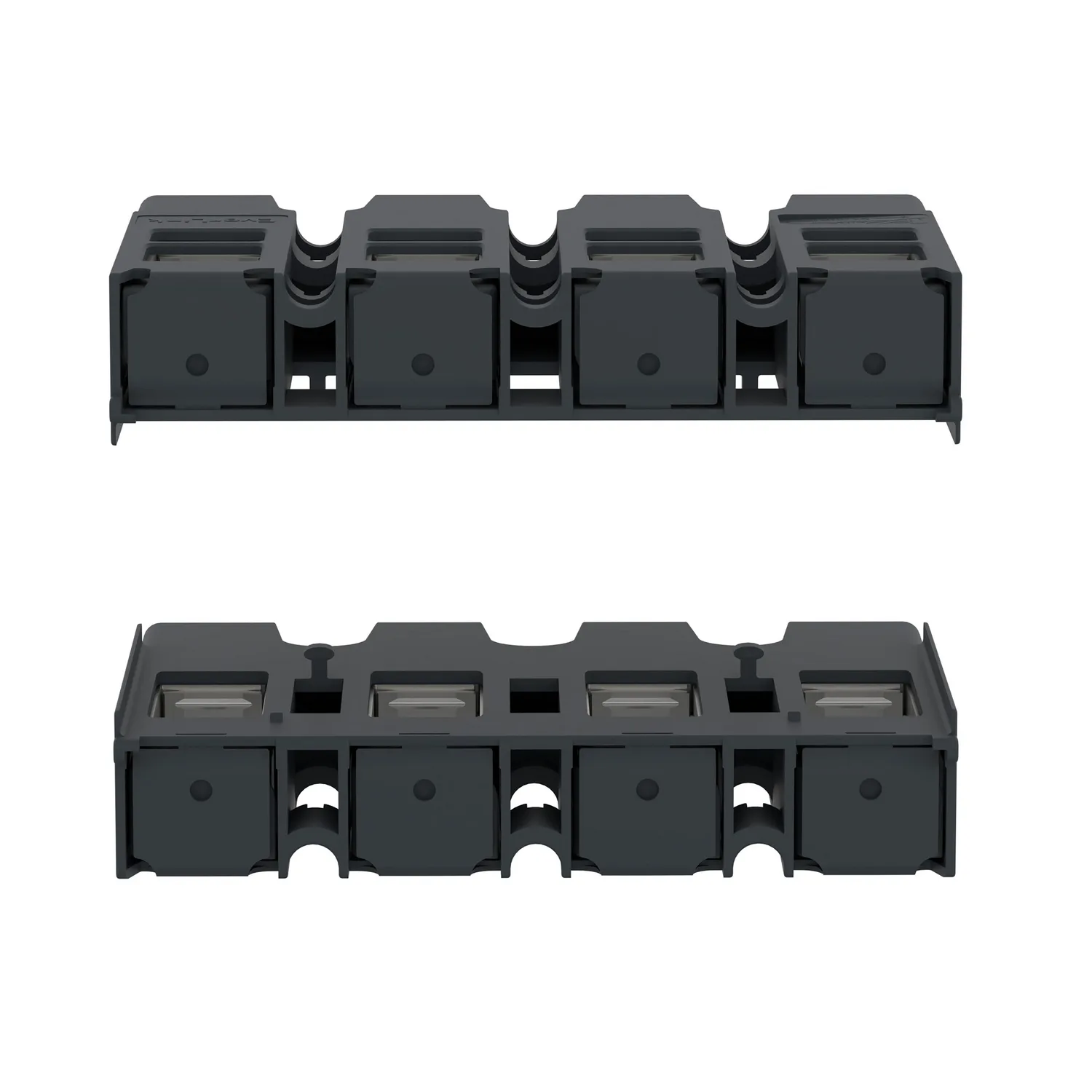

LAD91154A - EverLink cable connectors block for LC1DT200A (4-pole)
Schneider LAD91154A, EverLink cable connectors block for LC1DT200A (4-pole). Category: TeSys Deca Advanced. Request a quote for price and lead time.
- Reference:LAD91154A
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:98.40 EUR (Request a quote)
Key Specifications
- Range
- TeSys
- Device Short Name
- LAD9
- Product Or Component Type
- EverLink cable block
- Accessory / Separate Part Category
- Connection accessory
Product Description
These are EverLink cable connectors designed for TeSys Deca Advanced contactors 4 poles 200A. They are suitable for connecting cables with a maximum capacity of 120mm² + 50mm² flexible or solid, with or without cable ends. These EverLink connectors embed a creep-compensating technology which ensures a reliable and long-lasting connection. They operate within a temperature range of -40°C to 70°C and can be used at altitudes of up to 3000m without derating. Unique QR code provides quick access to complete product data.
Key Features
- EverLink connectors for solid and flexible cables designed for LC1DT200A
- Embed a creep-compensating technology ensuring reliable and long-lasting connection
- Operate within a temperature range of -40°C to 70°C
- RoHs and Reach compliant
Technical Specifications
Main6
| Range | TeSys |
|---|---|
| Device Short Name | LAD9 |
| Product Or Component Type | EverLink cable block |
| Accessory / Separate Part Category | Connection accessory |
| Poles Description | 4P |
| Product Compatibility | LC1DT200... |
Complementary4
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
|---|---|
| Connections - Terminals | EverLink BTR screw connectors |
| Net Weight | 0.67 kg |
| Quantity Per Set | 2 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 12.800 cm |
| Package 1 Width | 21.200 cm |
| Package 1 Length | 14.100 cm |
| Package 1 Weight | 898.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.704 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
