Schneider

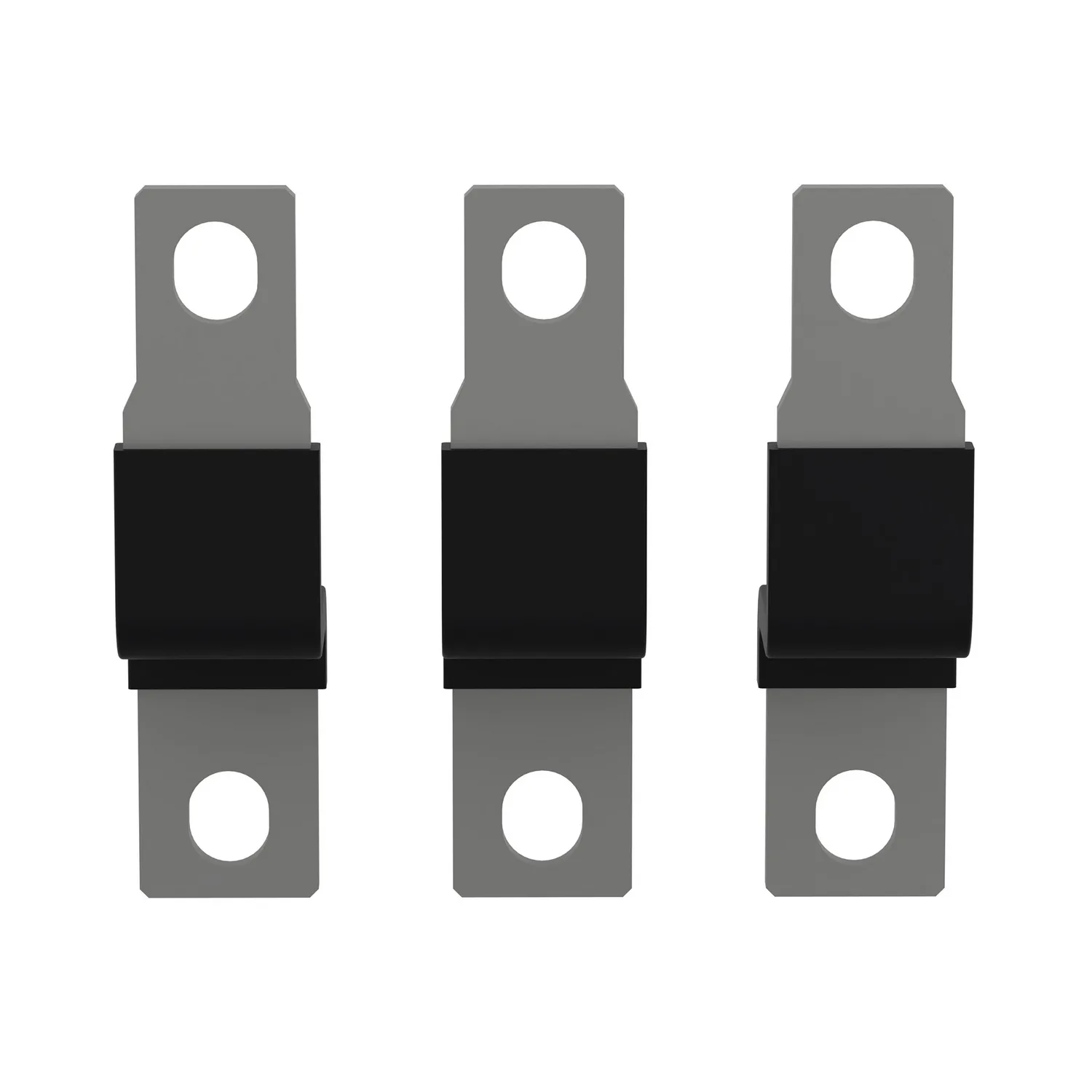

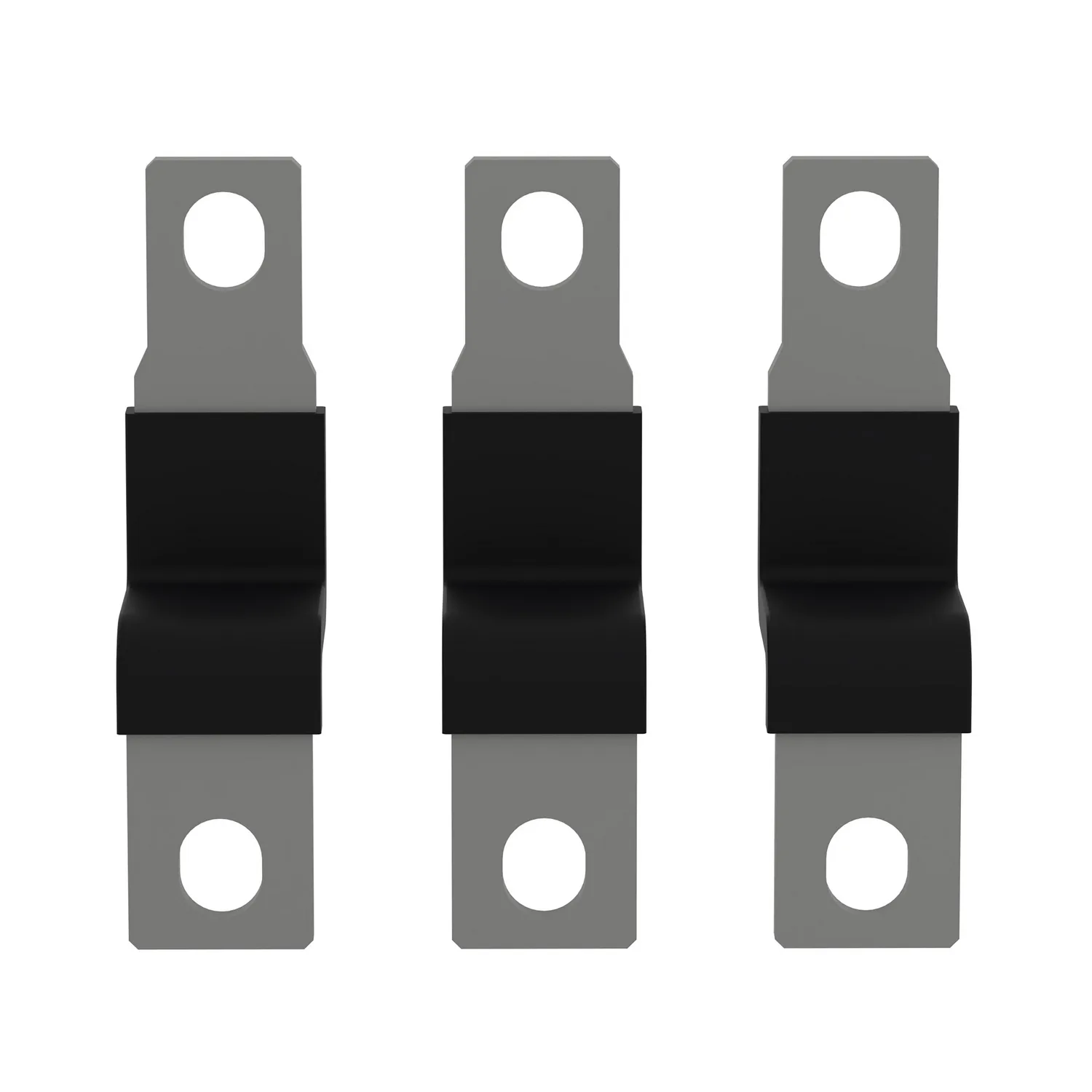

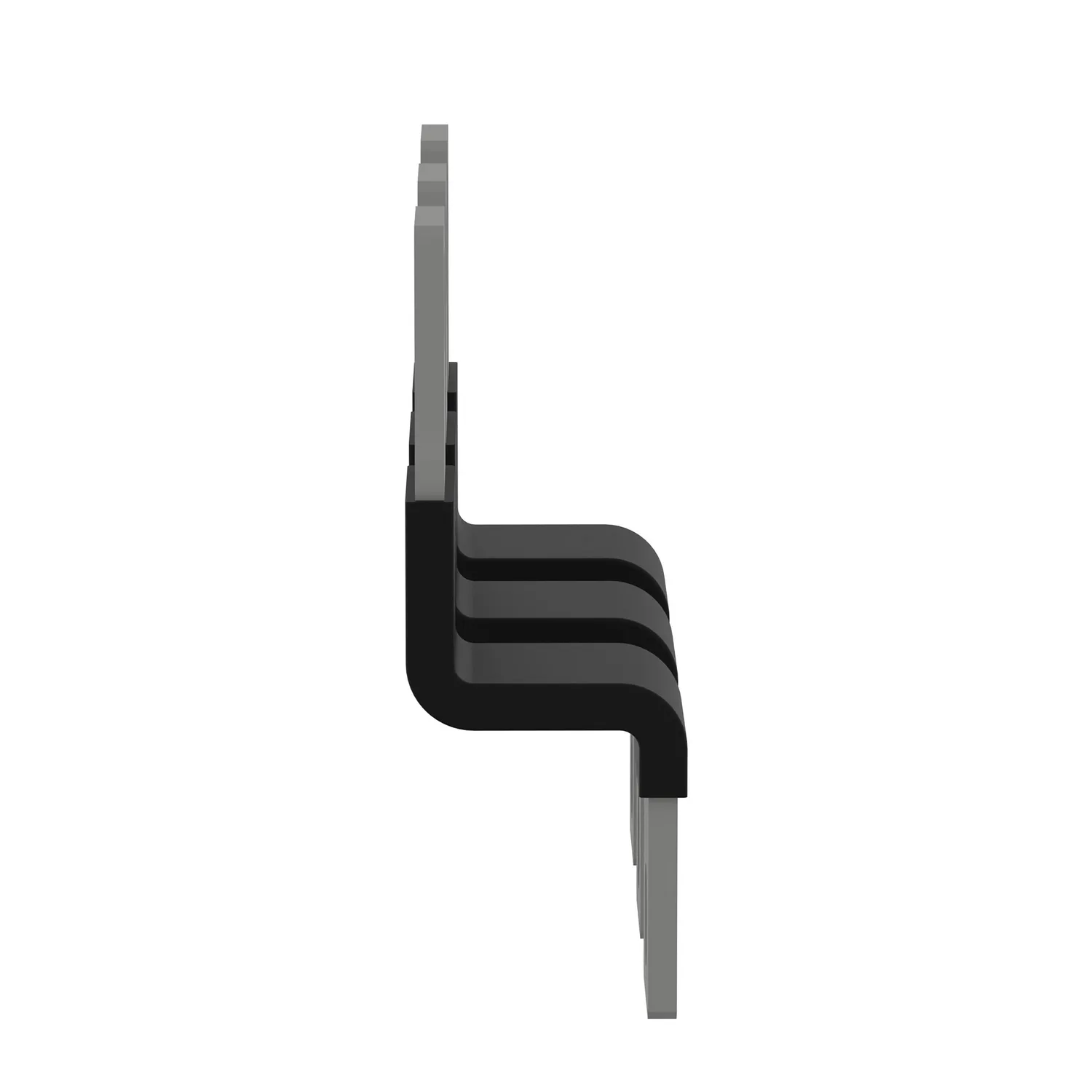

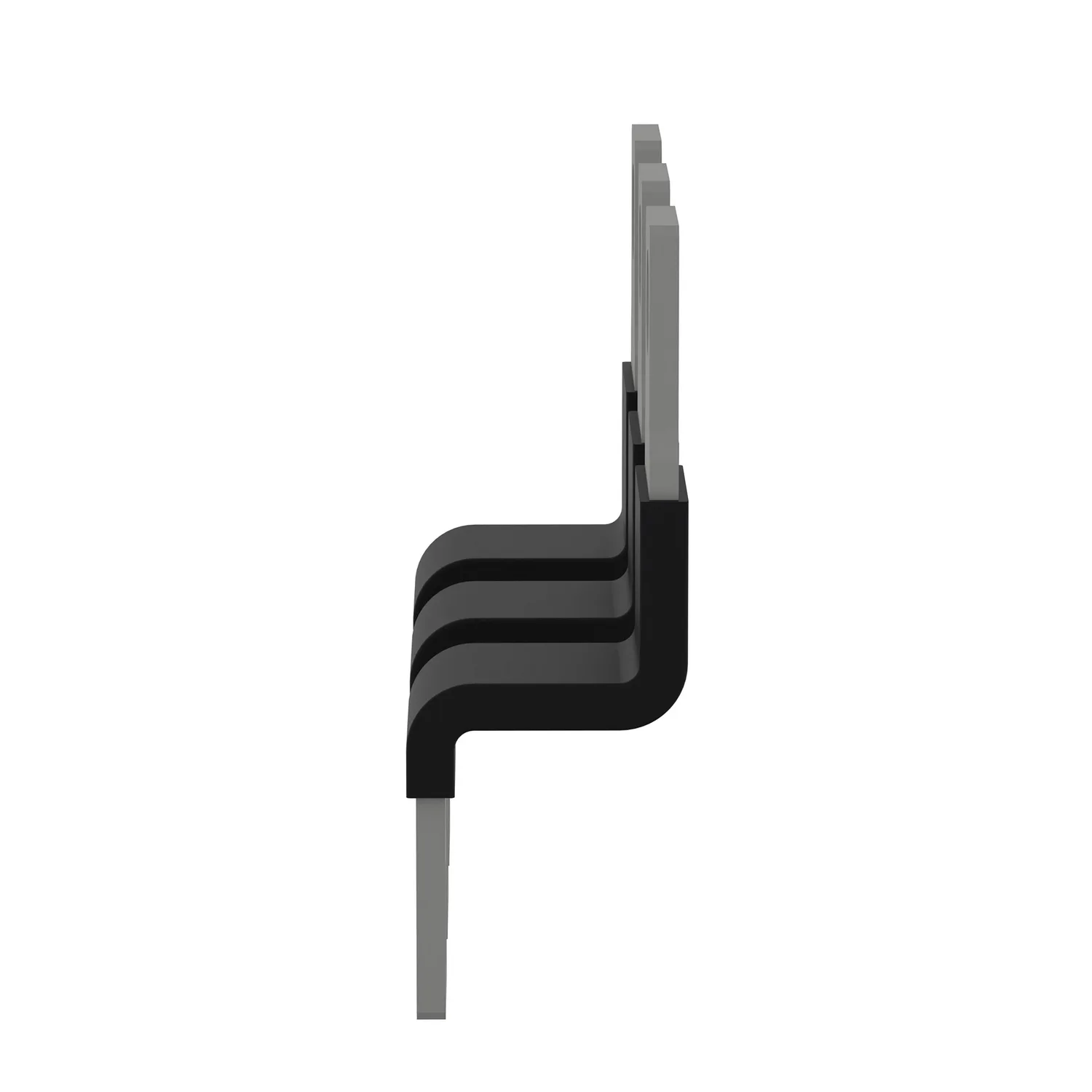

LAD91503211 - Flexible extension links kit from LC1D115A6-150A6 to LR9G115-225 (3-pole)
Schneider LAD91503211, Flexible extension links kit from LC1D115A6-150A6 to LR9G115-225 (3-pole). Category: TeSys Deca Advanced. Request a quote for price and lead time.
- Reference:LAD91503211
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:252.28 EUR (Request a quote)
Key Specifications
- Range Of Product
- TeSys Deca
- Range
- TeSys
- Device Short Name
- LAD9
- Product Or Component Type
- Terminal extension
Product Description
These accessories are flexible link bars for TeSys Deca Advanced contactors 3 poles 115A to 150A to align with LR9G overload relay. These busbars are designed to be attached on the contactor connectors to assemble a motor starter solution faster and easier. They operate within a temperature range of -40°C to 70°C and can be used at altitudes of up to 3000 meters without derating. Unique QR code provides quick access to complete product data.
Key Features
- Flexible link bars for LC1D115A-150A to align with LR9G
- Attached on the contactor connectors to assemble a motor starter solution
- Operate within a temperature range of -40°C to 70°C
- RoHs and Reach compliant
Technical Specifications
Main7
| Range Of Product | TeSys Deca |
|---|---|
| Range | TeSys |
| Device Short Name | LAD9 |
| Product Or Component Type | Terminal extension |
| Poles Description | 3P |
| Product Compatibility | LC1D115; LC1D150 |
| Quantity Per Set | 4 |
Complementary2
| Net Weight | 0.17 kg |
|---|---|
| Standards | EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; GB/T 14048.4 |
Environmental2
| Ambient Air Temperature For Operation | -25…60 °C |
|---|---|
| Ambient Air Temperature For Storage | -60…80 °C |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 10.8 cm |
| Package 1 Length | 11.9 cm |
| Package 1 Weight | 350 g |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 9 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.5 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
