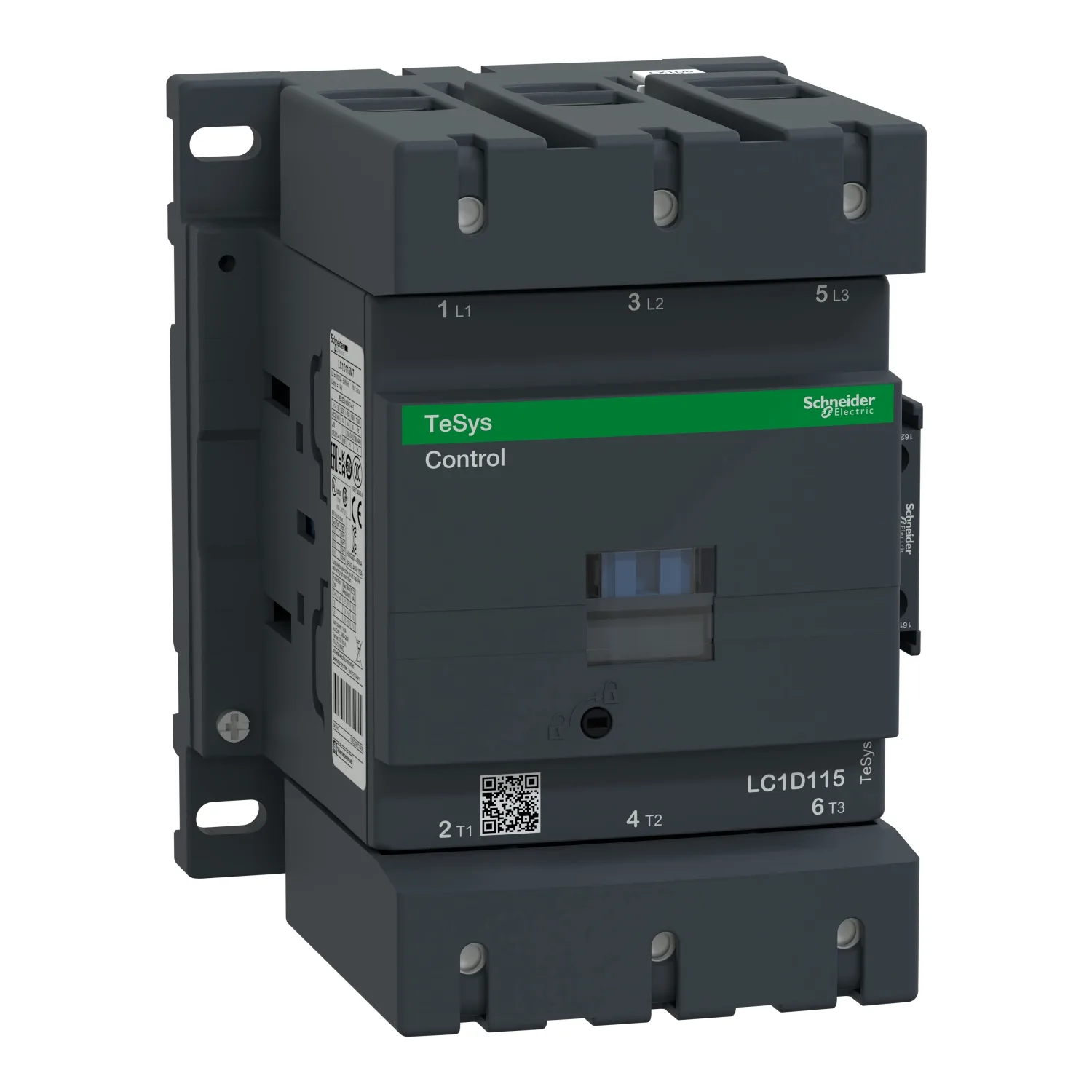

Schneider LC1D115D7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coil
Schneider

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coil

Not for sale

Schneider LC1D115D7, TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coil. Category: TeSys Deca Advanced. Not for sale; no price or quote is offered for this product.

Key Specifications

Range
TeSys
Range Of Product
TeSys Deca Advanced
Product Or Component Type
Contactor
Device Short Name
LC1D

Product Description

  • "TeSys Deca contactor, 3 poles(3NO) for category AC-3 applications up to 115A @440V."
  • "It provides with 42V 50/60 Hz coil, with 1NO+1NC auxiliary contacts, power and control connections by screw clamp terminals."
  • It procures high reliability and durability with 8 Mcycles mechanical durability and 0.95 Mcycles electrical durability. • It provides IP20 protection on front face conforming to IEC 60529. • It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. • "Designed for demanding applications with maximum operating rates up to 1200 cycles per hour under maximum 60°C."
  • The dimension is 158mm x 120mm x 136mm (H x W x D), mounting on rail or plate. • Multi standards certified(CCC,DNV,GL,CSA,GOST,BV,UL,LROS,RINA,UKCA). • "Designed to meet needs of demanding applications"
  • "Wide range of accessaries to satisfy different customer usage"
  • "Digital customer experience for technical documents"
  • "IEC 60335-1 (Clause 30.2) certificate by authorized"
  • "Easier to install and operate with multi-standard screws"

Technical Specifications

Main10
RangeTeSys
Range Of ProductTeSys Deca Advanced
Product Or Component TypeContactor
Device Short NameLC1D
Contactor ApplicationMotor control; Resistive load
Utilisation CategoryAC-3; AC-3e; AC-1; AC-4
Poles Description3P
[Ue] Rated Operational VoltagePower circuit: <= 1000 V AC 25...400 Hz; Power circuit: <= 300 V DC
[Ie] Rated Operational Current200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Uc] Control Circuit Voltage42 V AC 50/60 Hz
Complementary37
Motor Power KW30 kW at 220/230 V AC 50/60 Hz (AC-3); 55 kW at 380/400 V AC 50/60 Hz (AC-3); 59 kW at 415/440 V AC 50/60 Hz (AC-3); 75 kW at 500 V AC 50/60 Hz (AC-3); 80 kW at 660/690 V AC 50/60 Hz (AC-3); 65 kW at 1000 V AC 50/60 Hz (AC-3); 30 kW at 220/230 V AC 50/60 Hz (AC-3e); 55 kW at 380/400 V AC 50/60 Hz (AC-3e); 59 kW at 415/440 V AC 50/60 Hz (AC-3e); 75 kW at 500 V AC 50/60 Hz (AC-3e); 80 kW at 660/690
Motor Power Hp30 hp at 200/208 V AC 50/60 Hz for 3 phases motors; 40 hp at 230/240 V AC 50/60 Hz for 3 phases motors; 75 hp at 460/480 V AC 50/60 Hz for 3 phases motors; 100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Compatibility CodeLC1D
Pole Contact Composition3 NO
Protective CoverWith
[Ith] Conventional Free Air Thermal Current200 A (at 60 °C) for power circuit
Irms Rated Making Capacity1260 A at 440 V for power circuit conforming to IEC 60947; 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated Breaking Capacity1100 A at 440 V for power circuit conforming to IEC 60947
[Icw] Rated Short-time Withstand Current250 A 40 °C - 10 min for power circuit; 550 A 40 °C - 1 min for power circuit; 950 A 40 °C - 10 s for power circuit; 1100 A 40 °C - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit
Associated Fuse Rating250 A gG at <= 690 V coordination type 1 for power circuit; 200 A gG at <= 690 V coordination type 2 for power circuit; 10 A gG for signalling circuit
Average Impedance0.6 mOhm - Ith 200 A 50 Hz for power circuit
Power Dissipation Per Pole24 W AC-1; 7.9 W AC-3; 7.9 W AC-3e
[Ui] Rated Insulation VoltagePower circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Power circuit: 1000 V conforming to IEC 60947-4-1; Signalling circuit: 690 V conforming to IEC 60947-1; Signalling circuit: 600 V CSA certified; Signalling circuit: 600 V UL certified
Overvoltage CategoryIII
Pollution Degree3
[Uimp] Rated Impulse Withstand Voltage8 kV conforming to IEC 60947
Safety Reliability LevelB10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical Durability8 Mcycles
Electrical Durability0.8 Mcycles 200 A AC-1 at Ue <= 440 V; 0.95 Mcycles 115 A AC-3 at Ue <= 440 V; 0.95 Mcycles 115 A AC-3e at Ue <= 440 V
Control Circuit TypeAC at 50/60 Hz
Coil TechnologyBuilt-in bidirectional peak limiting diode suppressor
Control Circuit Voltage Limits0.3...0.5 Uc (-40…70 °C):drop-out AC 50/60 Hz; 0.8...1.15 Uc (-40…55 °C):operational AC 50/60 Hz; 1...1.15 Uc (55…70 °C):operational AC 50/60 Hz
Inrush Power In VA280…350 VA 60 Hz cos phi 0.8 (at 20 °C); 280…350 VA 50 Hz cos phi 0.8 (at 20 °C)
Hold-in Power Consumption In VA2…18 VA 60 Hz cos phi 0.3 (at 20 °C); 2…18 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat Dissipation3…8 W at 50/60 Hz
Operating Time6...20 ms opening; 20...50 ms closing
Maximum Operating Rate2400 cyc/h at 60 °C
Connections - TerminalsControl circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end; Control circui
Tightening TorqueControl circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 12 N.m - on connector hexagonal screw head 4 mm; Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Auxiliary Contact Composition1 NO + 1 NC
Auxiliary Contacts Typetype mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1; type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling Circuit Frequency25...400 Hz
Minimum Switching Voltage17 V for signalling circuit
Minimum Switching Current5 mA for signalling circuit
Insulation Resistance> 10 MOhm for signalling circuit
Non-overlap Time1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact
Mounting SupportPlate; Rail
Environment14
StandardsCSA C22.2 No 14; EN 60947-4-1; IEC 60947-4-1; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ; UL 60335-2-40:Annex JJ; UL 60947-4-1; CSA C22.2 No 60947-4-1; JIS C8201-4-1
Product CertificationsUL; CSA; CCC; UKCA; CE; EAC; Marine
IP Degree Of ProtectionIP20 front face conforming to IEC 60529
Protective TreatmentTH conforming to IEC 60068-2-30
Climatic Withstandconforming to IACS E10 exposure to damp heat; conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Permissible Ambient Air Temperature Around The Device-40…60 °C; 60…70 °C with derating
Operating Altitude0...3000 m
Fire Resistance850 °C conforming to IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Mechanical RobustnessVibrations contactor open (2 Gn, 5...300 Hz); Vibrations contactor closed (4 Gn, 5...300 Hz); Shocks contactor closed (15 Gn for 11 ms); Shocks contactor open (6 Gn for 11 ms)
Height158 mm
Width120 mm
Depth136 mm
Net Weight2.5 kg
Packing Units6
Unit Type Of Package 1PCE
Number Of Units In Package 11
Package 1 Height17.500 cm
Package 1 Width19.600 cm
Package 1 Length20.800 cm
Package 1 Weight2.488 kg
Logistical informations1
Country Of OriginCZ
Contractual warranty1
Warranty (in Months)18
