TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 780 A - coil 110 V AC
Not for sale

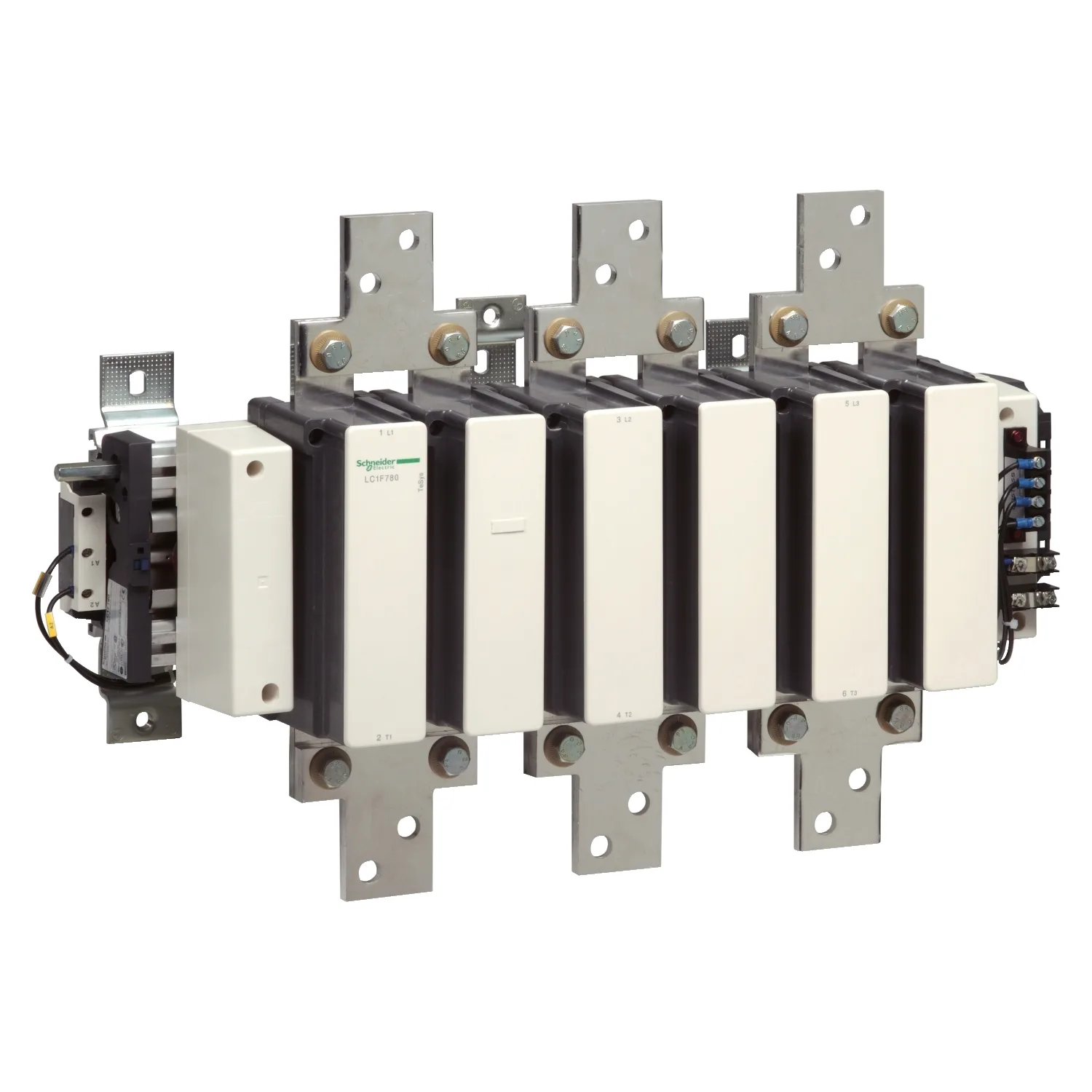

Schneider LC1F780F7, TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 780 A - coil 110 V AC. Category: TeSys F. Not for sale; no price or quote is offered for this product.
- Reference:LC1F780F7
- Manufacturer / Brand:Schneider
Key Specifications
- Range
- TeSys
- Range Of Product
- TeSys F
- Product Or Component Type
- Contactor
- Device Short Name
- LC1F
Product Description
TeSys F contactor, 3 poles (3NO), 780A/1000V AC-3, for motor applications up to 400kW@400V. Two coils model, it provides low sealed consumption 110V 40-400Hz AC coils, bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). • High durability: 600 cycles/hour for operating rate
Key Features
- High reliability: environments tolerance up to 55°C
- Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks
- Various fields of application with multiple standards certifications
- Green Premium product
Technical Specifications
Main10
| Range | TeSys |
|---|---|
| Range Of Product | TeSys F |
| Product Or Component Type | Contactor |
| Device Short Name | LC1F |
| Contactor Application | Resistive load; Motor control |
| Utilisation Category | AC-4; AC-1; AC-3 |
| Poles Description | 3P |
| [Ue] Rated Operational Voltage | <= 1000 V AC 50/60 Hz; <= 460 V DC |
| [Uc] Control Circuit Voltage | 110 V AC 40...400 Hz |
| [Ie] Rated Operational Current | 1600 A (at <40 °C) at <= 440 V AC AC-1; 780 A (at <55 °C) at <= 440 V AC AC-3 |
Complementary28
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
|---|---|
| [Ith] Conventional Free Air Thermal Current | 1600 A (at 40 °C) |
| Rated Breaking Capacity | 6240 A conforming to IEC 60947-4-1 |
| [Icw] Rated Short-time Withstand Current | 3000 A 40 °C - 3 min; 6250 A 40 °C - 10 s; 5600 A 40 °C - 30 s; 4600 A 40 °C - 1 min; 2200 A 40 °C - 10 min |
| Associated Fuse Rating | 1600 A gG at <= 440 V; 800 A aM at <= 440 V |
| Average Impedance | 0.1 mOhm - Ith 1600 A 50 Hz |
| [Ui] Rated Insulation Voltage | 1000 V conforming to IEC 60947-4-1; 1500 V conforming to VDE 0110 group C |
| Power Dissipation Per Pole | 250 W AC-1; 60 W AC-3 |
| Overvoltage Category | III |
| Power Pole Contact Composition | 3 NO |
| Motor Power KW | 450 kW at 1000 V AC 50/60 Hz (AC-3); 400 kW at 380...400 V AC 50/60 Hz (AC-3); 425 kW at 415 V AC 50/60 Hz (AC-3); 425 kW at 440 V AC 50/60 Hz (AC-3); 450 kW at 500 V AC 50/60 Hz (AC-3); 475 kW at 660...690 V AC 50/60 Hz (AC-3); 220 kW at 220...230 V AC 50/60 Hz (AC-3); 110 kW at 400 V AC 50/60 Hz (AC-4) |
| Control Circuit Voltage Limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C); Drop-out: 0.2...0.4 Uc 40...400 Hz (at 55 °C) |
| Mechanical Durability | 5 Mcycles |
| Inrush Power In VA | 2100 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in Power Consumption In VA | 50 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum Operating Rate | 600 cyc/h 55 °C |
| Operating Time | 40...80 ms closing; 130...230 ms opening |
| Connections - Terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end; Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end; Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end; Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end; Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid w |
| Tightening Torque | Control circuit: 1.2 N.m; Power circuit: 58 N.m |
| Mounting Support | Plate |
| Heat Dissipation | 44 W |
| Motor Power Range | 250…500 kW at 380…440 V 3 phases; 110…220 kW at 200…240 V 3 phases; 250…500 kW at 480…500 V 3 phases |
| Motor Starter Type | Direct on-line contactor |
| Contactor Coil Voltage | 110 V AC standard; 120 V AC standard |
| Standards | EN 60947-1; JIS C8201-4-1; IEC 60947-4-1; IEC 60947-1; EN 60947-4-1 |
| Product Certifications | UL; RINA; ABS; CB; RMRoS; CSA; LROS (Lloyds register of shipping); DNV; BV; UKCA |
| Compatibility Code | LC1F |
| Control Circuit Type | AC at 40...400 Hz |
Environment10
| IP Degree Of Protection | IP20 front face with shrouds conforming to IEC 60529; IP20 front face with shrouds conforming to VDE 0106 |
|---|---|
| Protective Treatment | TH |
| Ambient Air Temperature For Operation | -5…55 °C |
| Ambient Air Temperature For Storage | -60…80 °C |
| Permissible Ambient Air Temperature Around The Device | -40…70 °C |
| Height | 434 mm |
| Width | 702 mm |
| Depth | 255 mm |
| Operating Altitude | 3000 m without derating |
| Net Weight | 39.5 kg |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 40.0 cm |
| Package 1 Width | 44.5 cm |
| Package 1 Length | 95.0 cm |
| Package 1 Weight | 57.0 kg |
| Unit Type Of Package 2 | PAL |
| Number Of Units In Package 2 | 2 |
| Package 2 Height | 195.0 cm |
| Package 2 Width | 120.0 cm |
| Package 2 Length | 80.0 cm |
| Package 2 Weight | 141.0 kg |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
