LGYN12515 - ADDITIONAL NEUTRAL BAR SBL N 125A 15

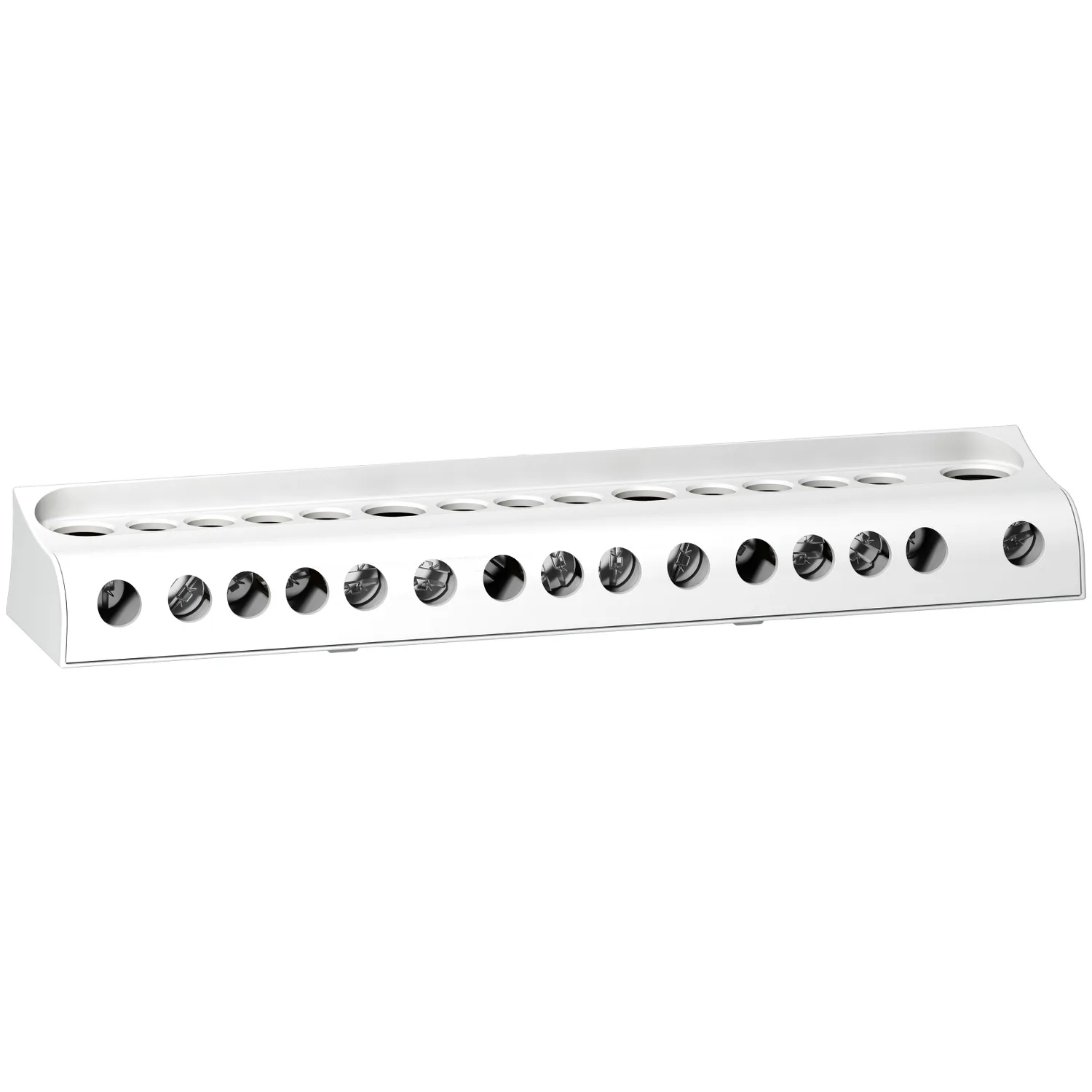

Schneider LGYN12515, ADDITIONAL NEUTRAL BAR SBL N 125A 15. Category: Prisma Plus G. Request a quote for price and lead time.
- Reference:LGYN12515
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:33.10 EUR (Request a quote)
Key Specifications
- Range
- Linergy
- Product Name
- Linergy DS
- Product Or Component Type
- Extension module
- Poles Description
- 1N
Product Description
This Linergy DS accessory is an additional neural bar for screw distribution block. The In rated current is 125A and the Ue rated operational voltage is 230VAC between phase and neutral. It has 15 connections.
Key Features
- Enables neat and efficient termination of multiple neutral wires in one location
- Keeps control panels and distribution boards clean, tidy, and well-structured
- Ensures firm terminations that reduce electrical faults and overheating risks
Technical Specifications
Main6
| Range | Linergy |
|---|---|
| Product Name | Linergy DS |
| Product Or Component Type | Extension module |
| Comb Busbar, Distribution Terminal Block Accessory Type | Neutral bar |
| Poles Description | 1N |
| Accessory / Separate Part Category | Connection accessories |
Complementary19
| Distribution Block Outgoers | 15 holes |
|---|---|
| Mounting Support | Direct mounting on rear |
| Mounting Mode | By screws |
| [Ue] Rated Operational Voltage | 230 V AC Ph/N |
| [Ie] Rated Operational Current | 125 A at 40 °C |
| [Ui] Rated Insulation Voltage | 500 V AC |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV conforming to EN/IEC 61439-1 |
| [Icw] Rated Short-time Withstand Current | 3.5 kA for 1 s |
| [Ipk] Rated Peak Withstand Current | 20 kA |
| Busbar Length | 155 mm |
| 9 Mm Pitches | 17 |
| 18 Mm Pitches | 8.5 |
| Height | 20 mm |
| Width | 155 mm |
| Depth | 35 mm |
| Net Weight | 149 g |
| Connections - Terminals | Supply: screw terminal 1 cable(s) 10…35 mm² rigid; Supply: screw terminal 1 cable(s) 6…35 mm² flexible with cable end; Distribution: screw terminal 3 cable(s) 10…35 mm² rigid; Distribution: screw terminal 3 cable(s) 4…25 mm² flexible with cable end; Distribution: screw terminal 11 cable(s) 1.5…16 mm² rigid; Distribution: screw terminal 11 cable(s) 1.5…10 mm² flexible with cable end |
| Tightening Torque | Distribution: 2 N.m PZ2 screwdriver 6.5 mm; Distribution: 2 N.m flat screwdriver 6.5 mm; Supply: 2.5 N.m PZ2 screwdriver 9.5 mm; Supply: 2.5 N.m flat screwdriver 9.5 mm; Distribution: 2 N.m PZ2 screwdriver 8.5 mm; Distribution: 2 N.m flat screwdriver 8.5 mm |
| Range Compatibility | ComPact |
Environment6
| Standards | IEC 60947-7-1; EN/IEC 61439-1; IEC 61439-2 |
|---|---|
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Dielectric Strength | 2500 V |
| Ambient Air Temperature For Operation | -25…55 °C |
| Colour | White (RAL 9003) |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 2.5 cm |
| Package 1 Width | 8.0 cm |
| Package 1 Length | 16.0 cm |
| Package 1 Weight | 155.0 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 70 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 11.252 kg |
Logistical informations1
| Country Of Origin | TN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
