Schneider

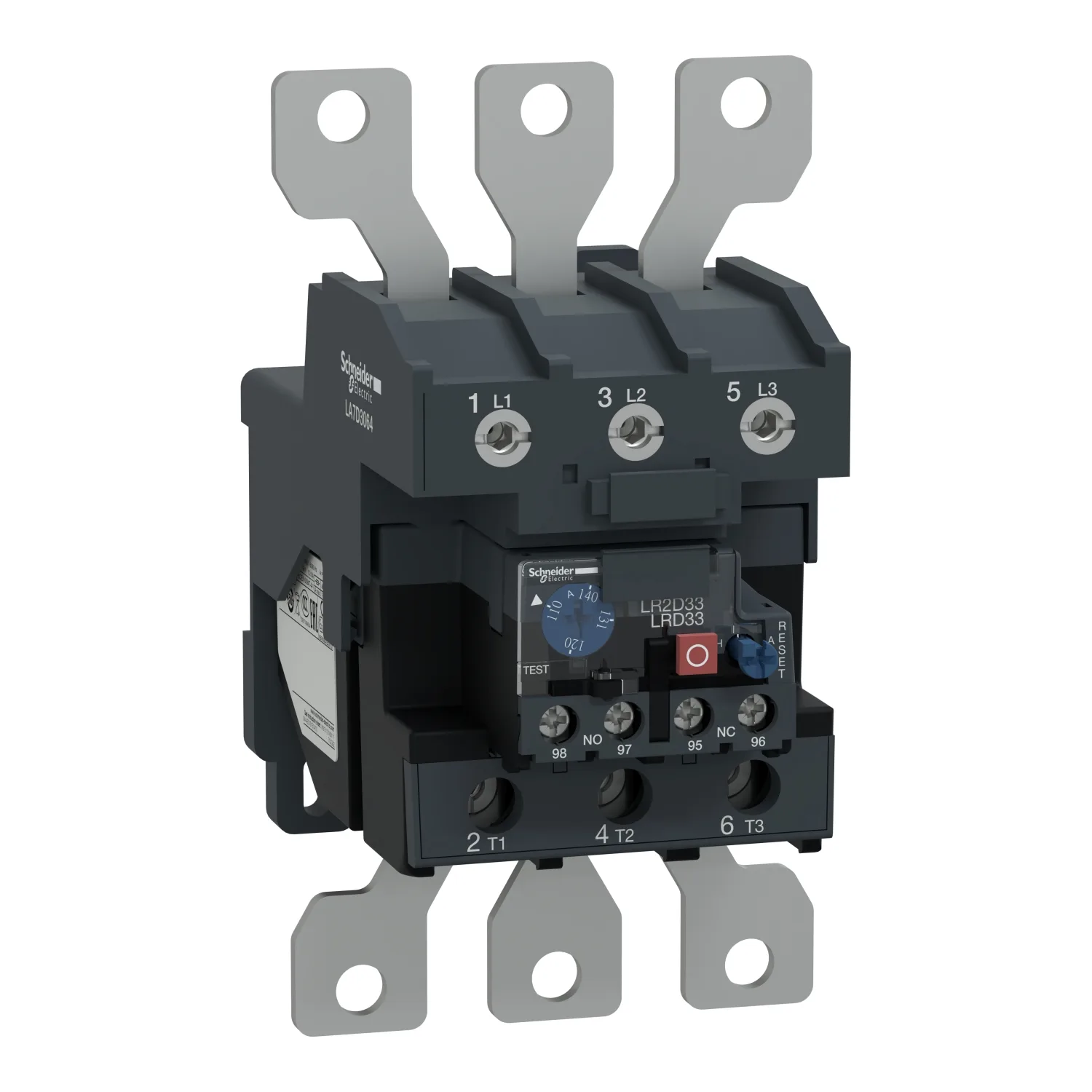

TeSys LRD thermal overload relays - 110...140 A - class 10A
Not for sale
Schneider LRD33696, TeSys LRD thermal overload relays - 110...140 A - class 10A. Category: TeSys Deca overload relays. Not for sale; no price or quote is offered for this product.
- Reference:LRD33696
- Manufacturer / Brand:Schneider
Key Specifications
- Range
- TeSys
- Product Name
- TeSys LRD; TeSys Deca
- Product Or Component Type
- Differential thermal overload relay
- Device Short Name
- LRD
Product Description
- "TeSys Deca LRD thermal overload relay, 140A/1000V, thermal setting range 110-140A, tripping class 10A, for protection of 3-phase motors."
- "Differential device with phase failure (loss)."
- "It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling."
- "Settings are protected by a transparent cover lockable by sealing."
- "Connection by screw clamp/ lugs-ring terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95."
- "Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately)."
- "Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX),
Key Features
- Easy to separate or direct mounting of OLR with CTR, save installation and assembly of panel components
- Remote reset of relay without opening of panel doors
- With relay trip indicator to facilitate motor status monitoring
- Simple mounting on DIN rail or screw fixing
- Sustainability compliant
Technical Specifications
Main10
| Range | TeSys |
|---|---|
| Product Name | TeSys LRD; TeSys Deca |
| Product Or Component Type | Differential thermal overload relay |
| Device Short Name | LRD |
| Relay Application | Motor protection |
| Product Compatibility | LC1D150 |
| Network Type | AC; DC |
| Thermal Overload Class | Class 10A conforming to IEC 60947-4-1 |
| Thermal Protection Adjustment Range | 110…140 A |
| [Ui] Rated Insulation Voltage | Power circuit: 750 V conforming to IEC 60947-4-1; Power circuit: 600 V conforming to CSA; Power circuit: 600 V conforming to UL |
Complementary16
| Network Frequency | 0...400 Hz |
|---|---|
| Mounting Support | Plate; Rail |
| Tripping Threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| [Ith] Conventional Free Air Thermal Current | 5 A for signalling circuit |
| Permissible Current | 0.72 A at 500 V AC-15 for signalling circuit; 0.06 A at 440 V DC-13 for signalling circuit |
| [Ue] Rated Operational Voltage | 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated Fuse Rating | 4 A gG for signalling circuit; 4 A BS for signalling circuit |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Phase Failure Sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 |
| Control Type | Red push-button: stop; Blue push-button: reset |
| Temperature Compensation | -20…60 °C |
| Connections - Terminals | Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end; Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end; Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end; Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end; Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² fle |
| Tightening Torque | Control circuit: 1.7 N.m - on screw clamp terminals; Power circuit: 9 N.m - on screw clamp terminals |
| Height | 123 mm |
| Net Weight | 1 kg |
Environment9
| Climatic Withstand | conforming to IACS E10 |
|---|---|
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Ambient Air Temperature For Operation | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Ambient Air Temperature For Storage | -60…70 °C |
| Flame Retardance | V1 conforming to UL 94 |
| Mechanical Robustness | Vibrations: 6 Gn conforming to IEC 60068-2-6; Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 |
| Dielectric Strength | 2.2 kV at 50 Hz conforming to IEC 60947-1 |
| Standards | EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; GB/T 14048.4; GB/T 14048.5; EN 50495 |
| Product Certifications | IEC; UL; CSA; CCC; EAC; ATEX INERIS; UKCA |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 11.300 cm |
| Package 1 Width | 14.600 cm |
| Package 1 Length | 21.300 cm |
| Package 1 Weight | 1.018 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
