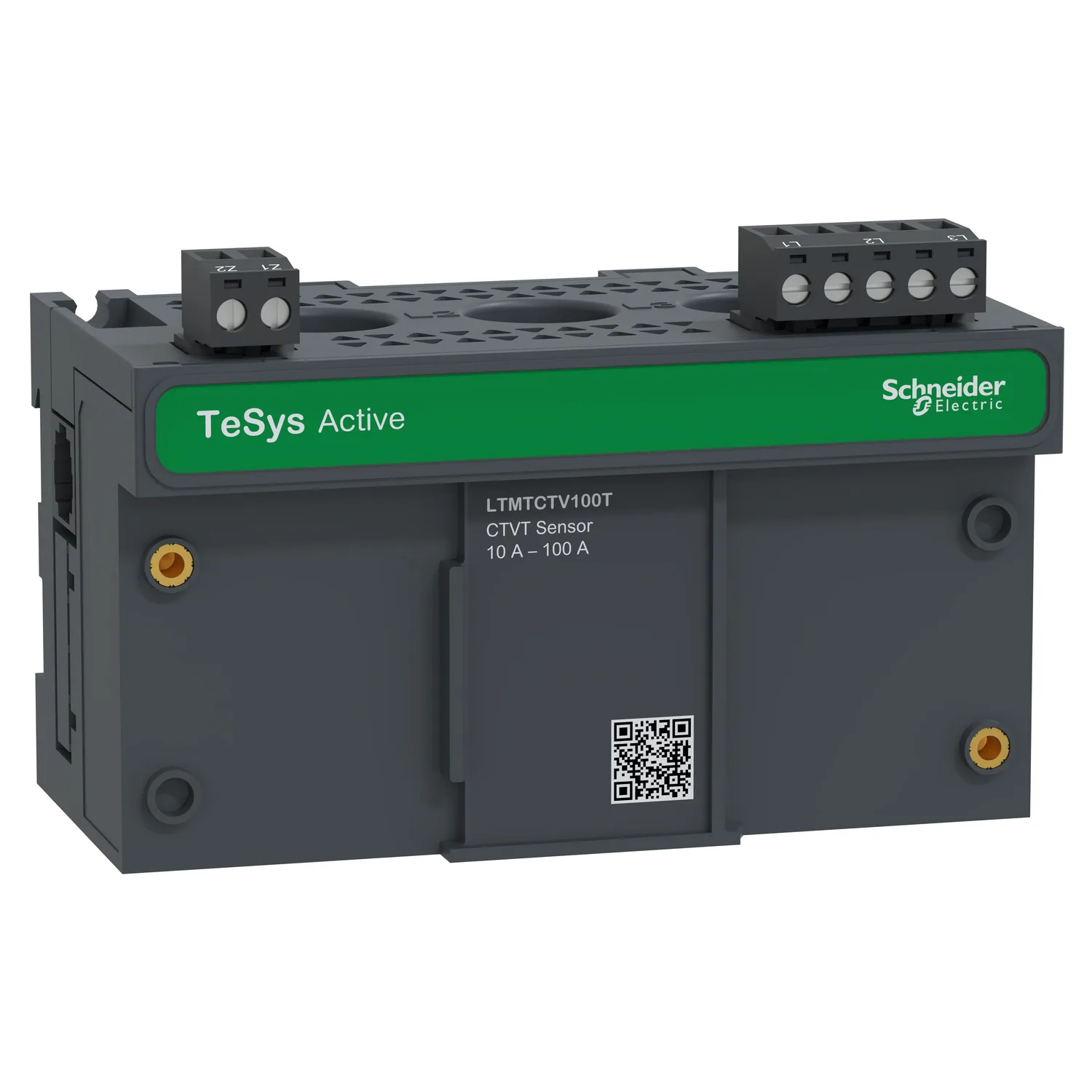

LTMTCTV100T - TeSys Tera Current+Voltage Measuring Horizontal Sensor Module 10-100A
Schneider LTMTCTV100T, TeSys Tera Current+Voltage Measuring Horizontal Sensor Module 10-100A. Category: TeSys Tera. Request a quote for price and lead time.
- Reference:LTMTCTV100T
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:371.70 EUR (Request a quote)
Key Specifications
- Range
- TeSys
- Product Name
- TeSys Tera
- Device Short Name
- LTMT
- Product Or Component Type
- Sensor
Product Description
- Tera Motor Management System - LTMT Sensor Modules.
- The LTMTCT or LTMTCTV Sensor Module measures the electrical parameters of the energy feeding a motor.
- TeSys Tera is a flexible system that integrates seamlessly into your automation system through five major communication protocols.
- Phase loss and phase reversal detection based on current
- TeSys Tera LTMTCTV Sensor Module with Current range from10 to 100A, 690VAC and Frequency range 45 to 65Hz
- sensor Modules with current transformers for horizontal mounting.
- Phase loss and phase reversal detection based on current
- The LTMTCTV Sensor Module features like Phase current imbalance calculation and Ground current calculation.
- sensor has the following certifications: IEC, UL, cUL.
Key Features
- Phase current measurement
- Phase current imbalance calculation
- Ground current calculation
Technical Specifications
Main5
| Range | TeSys |
|---|---|
| Product Name | TeSys Tera |
| Device Short Name | LTMT |
| Product Or Component Type | Sensor |
| Device Application | Motor protection |
Complementary18
| [Ui] Rated Insulation Voltage | 690 V conforming to EN/IEC 60947-1 |
|---|---|
| Overvoltage Category | III |
| Pollution Degree | 3 |
| [In] Rated Current | 10…100 A at 60...690 V, AC 45...65 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV current or voltage measurement circuit |
| Protection Type | Overload protection; Stalled rotor; Locked rotor; Short-circuit; Undercurrent; Overcurrent; Current unbalance; Phase reversal; Phase loss; Earth fault protection internal; Earth fault protection external; Excessive starting time; Max number of start; Undervoltage; Overvoltage; Voltage unbalance; Underfrequency; Overfrequency; Reacceleration; Communication failure; Fail to stop; Under power; Over p |
| Short-circuit Withstand | 100 kA conforming to EN/IEC 60947-4-1 |
| Measurement Accuracy | +/- 3 % voltage; +/- 3 % current |
| Mounting Mode | Horizontal |
| Connection Pitch | 5.0 mm |
| Connections - Terminals | Voltage circuit: connector0.2…2.5 mm² (12 AWG...24 AWG) |
| Input Type | Analog |
| Sensor Type | Current sensor; Voltage sensor |
| Electromagnetic Compatibility | Immunity to radiated electromagnetic interference (in open air), level 3, 10 Vrms, conforming to EN/IEC 61000-4-3; Resistance to electrostatic discharge (in open air), level 3, 8 kV, conforming to EN/IEC 61000-4-2; Digital output: resistance to electrostatic discharge (on contact), level 3, 6 kV, conforming to EN/IEC 61000-4-2; Digital output: immunity to shock waves (common mode), 4 kV, conformin |
| Depth | 60.5 mm |
| Height | 74.7 mm |
| Width | 110.3 mm |
| Tightening Torque | Control circuit: 0.5 N.m - with screwdriver flat 3 mm |
Environment8
| Product Certifications | IEC; UL; cUL |
|---|---|
| Standards | EN/IEC 60947-4-1; UL/CSA 60947-4-1 |
| Fire Resistance | 650 °C conforming to EN/IEC 60695-2-12; 960 °C conforming to UL 94 |
| Protective Treatment | 12 x 24 hour cycles conforming to EN/IEC 60068-2-30 |
| Ambient Air Temperature For Storage | -40…80 °C |
| Operating Altitude | <= 2000 m without derating |
| Mechanical Robustness | Shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27; Vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6; Vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -20…70 °C |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 14.000 cm |
| Package 1 Weight | 355.000 g |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 2 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 963.000 g |
Logistical informations1
| Country Of Origin | IN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
