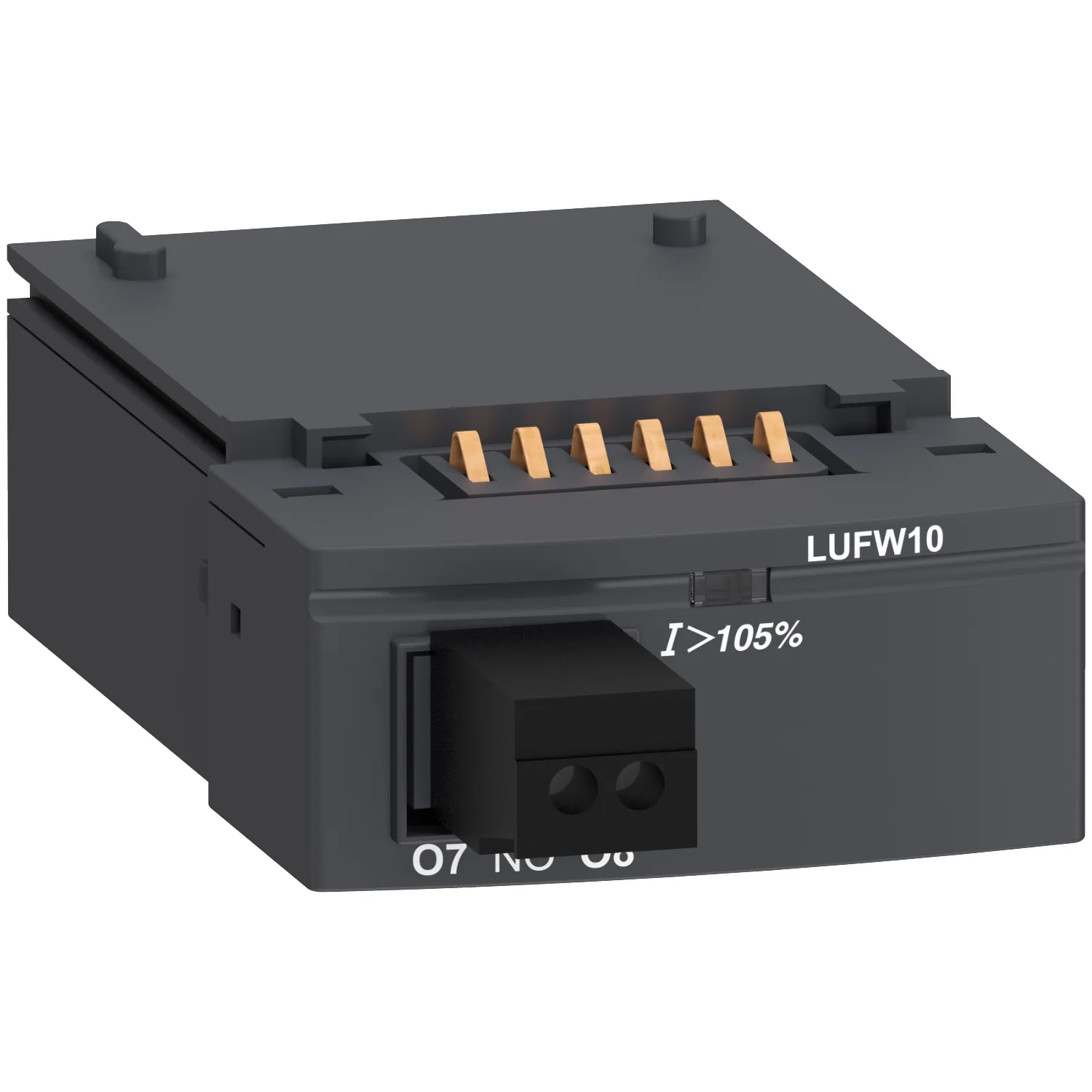

LUFW10 - TeSys U LUF Function Block Thermal Alarm
Schneider LUFW10, TeSys U LUF Function Block Thermal Alarm. Category: TeSys Ultra. Request a quote for price and lead time.
- Reference:LUFW10
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:311.65 EUR (Request a quote)
Key Specifications
- Range
- TeSys
- Device Short Name
- LUF
- Product Or Component Type
- Function module
- Product Compatibility
- LUCC; LUCB; LUCD
Product Description
- TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload alarm.
- It provides 1NO instantaneous contact rated 2A 230V AC / 24V DC, a LED status on front panel.
- The alarm is activated when the thermal overload state exceeds 88% of thermal tripping state, with an hysteresis of 5% between activation and deactivation.
- It is powered by the control unit.
- Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Key Features
- "LED status on thefront panel"
- "It is powered by the control unit"
- "Modular, plug & play structure helps you to perform quick maintenance"
- "Direct access to detailed information for every motor starter of your installation"
- "Advanced motor management system"
Technical Specifications
Main4
| Range | TeSys |
|---|---|
| Device Short Name | LUF |
| Product Or Component Type | Function module |
| Product Compatibility | LUCC; LUCB; LUCD |
Complementary13
| Mounting Mode | Plug-in |
|---|---|
| Mounting Location | Front side |
| Main Function Available | Thermal overload alarm |
| Auxiliary Contact Composition | 1 NO |
| Communication Of Faults | LED front panel |
| Discrete Output Function | 1 NO (AC-15) at 230 V - power: 400 VA - electrical service life: 100000 cycles; 1 NO (DC-13) at 24 V - power: 50 W - electrical service life: 100000 cycles |
| [Ith] Conventional Free Air Thermal Current | 2 A 70 °C |
| Short-circuit Protection | 2 A fuse gG conforming to IEC 60947-5-1 |
| Connection Pitch | 5.08 mm |
| Connections - Terminals | Screw clamp terminals 2 cable(s) 0.2…1 mm² rigid without cable end; Screw clamp terminals 2 cable(s) 0.25…1 mm² flexible with cable end; Screw clamp terminals 2 cable(s) 0.5…1 mm² flexible with cable end; Screw clamp terminals 1 cable(s) 0.2…1.5 mm² flexible without cable end; Screw clamp terminals 1 cable(s) 0.2…1.5 mm² rigid without cable end; Screw clamp terminals 1 cable(s) 0.25…1.5 mm² flexib |
| Associated Cable Type | AWG24...AWG16 |
| Tightening Torque | 0.5…0.6 N.m - with screwdriver 3.5 mm flat |
| Net Weight | 0.055 kg |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 10.4 cm |
| Package 1 Length | 5.0 cm |
| Package 1 Weight | 54.0 g |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 20 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.234 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
