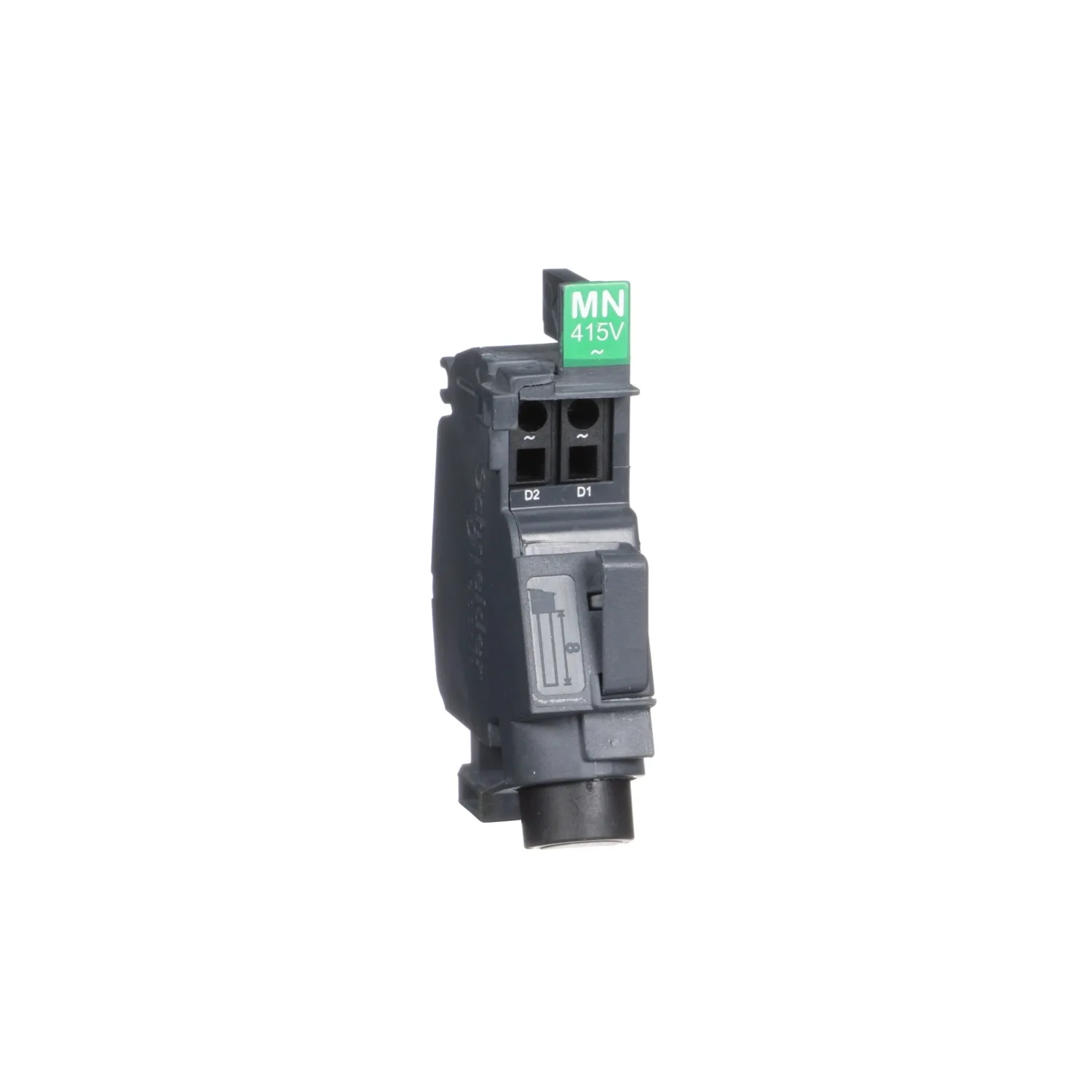

LV426806 - ComPacT NSXm Undervoltage Release MN 380-415V AC
Schneider LV426806, ComPacT NSXm Undervoltage Release MN 380-415V AC. Category: ComPacT NSXm, new generation. Request a quote for price and lead time.
- Reference:LV426806
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:116.90 EUR (Request a quote)
Key Specifications
- Range
- ComPact
- Range Of Product
- ComPacT NSXm
- Device Short Name
- MN
- Product Or Component Type
- Voltage release
Product Description
This standard MN undervoltage release is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote tripping applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MN auxiliary has a 380/415 VAC 50 Hz rated voltage. It trips the circuit breaker when the control voltage drops below 35% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Key Features
- "ComPacT NSXm has smaller frame size, incorporating new features and innovations"
- "ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations"
- "Gain up to 40% in space when using with integrated earth leakage protection"
- "Reduce up to 40% mounting and cabling time"
- "Select, configure and commission easily with EcoStruxure Customer Lifecycle Software"
Technical Specifications
Main9
| Range | ComPact |
|---|---|
| Range Of Product | ComPacT NSXm |
| Device Short Name | MN |
| Product Or Component Type | Voltage release |
| Device Application | Control |
| Voltage Release Type | Opening coil; Undervoltage release |
| Control Type | Standard |
| [Uc] Control Circuit Voltage | 380...415 V AC 50 Hz |
| Range Compatibility | ComPact ComPacT NSXm; ComPact ComPact NSXm; PowerPact PowerPact B |
Complementary3
| Operating Threshold | 0.35...0.7 x Un opening; 0.85 x Un closing |
|---|---|
| Response Time | < 50 ms |
| Auxiliary Connection Terminal | Spring |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 6 cm |
| Package 1 Length | 8.3 cm |
| Package 1 Weight | 62 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 20 |
| Package 2 Height | 8.5 cm |
| Package 2 Width | 13 cm |
| Package 2 Length | 18.5 cm |
| Package 2 Weight | 1.3 kg |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 120 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 8.2 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
