LV429388 - MX release for CVS100-630
Schneider LV429388, MX release for CVS100-630. Category: ComPacT NSX, new generation. Request a quote for price and lead time.
- Reference:LV429388
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:89.60 EUR (Request a quote)
Key Specifications
- Range
- ComPacT
- Device Short Name
- MX
- Product Or Component Type
- Voltage release
- Device Application
- Control
Product Description

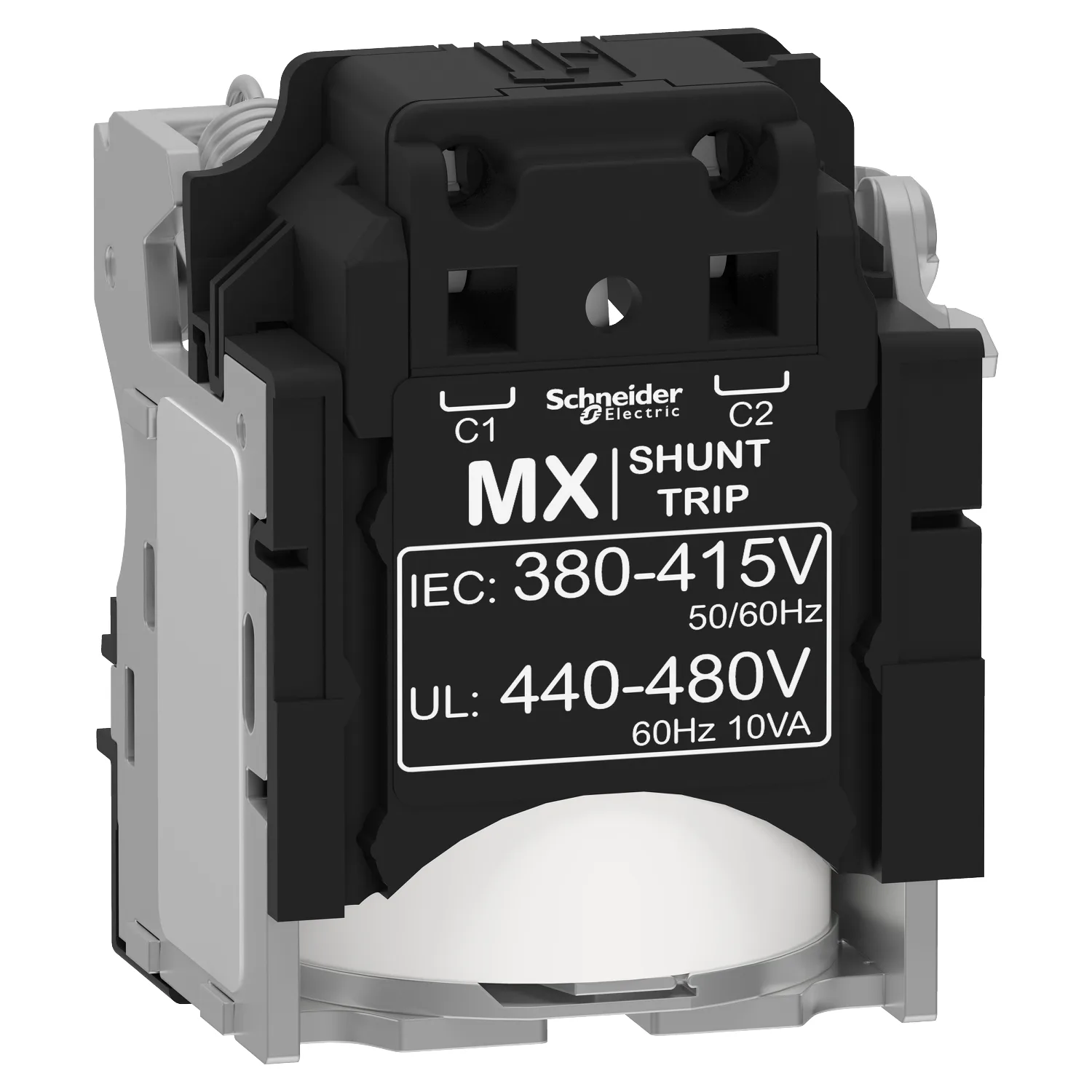

This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 380 to 415 VAC 50/60 Hz, or 440 to 480 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Key Features
- "Schneider Electric green signature style for the entire ComPacT range"
- "Estimated 40% reduction of wiring time for panel builders"
- "Experience easier installation thanks to a new ergonomic front-plate design"
- "Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating"
- "Ergonomic new toggle for easier breaker manual operation"
Technical Specifications
Main8
| Range | ComPacT |
|---|---|
| Range Of Product | ComPact NSX100...250; ComPacT NSX100...250; ComPact NSX400...630; ComPacT NSX400...630; ComPact NSX100...250 DC; ComPacT NSX100...250 DC; ComPact NSX100...250 DC PV; ComPacT NSX100...250 DC PV; ComPact NSX400...630 DC; ComPacT NSX400...630 DC; ComPact NSX400...630 DC PV; ComPacT NSX400...630 DC PV |
| Device Short Name | MX |
| Product Or Component Type | Voltage release |
| Device Application | Control |
| Voltage Release Type | Opening coil; Shunt trip release |
| [Uc] Control Circuit Voltage | 380...415 V AC 50 Hz; 440...480 V AC 60 Hz |
| Range Compatibility | ComPacT ComPacT NSX; ComPacT ComPacT NSX DC; ComPact ComPact NSX; ComPact ComPact NSX DC; EasyPact EasyPact CVS; PowerPact PowerPact Multistandard |
Complementary7
| Operating Threshold | 0.7...1.1 x Un opening |
|---|---|
| Response Time | 50 ms |
| Control Signal Type | Maintained; Impulse |
| Impulse Duration | >= 20 ms |
| Supply Inrush Power | 10 VA |
| Auxiliary Connection Terminal | Spring 0.5…1.5 mm² (20 AWG...16 AWG) |
| Wire Stripping Length | 7 mm |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 4.6 cm |
| Package 1 Length | 6.0 cm |
| Package 1 Weight | 114.0 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 7.0 cm |
| Package 2 Width | 10.5 cm |
| Package 2 Length | 23.6 cm |
| Package 2 Weight | 1.189 kg |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 60 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 7.515 kg |
Logistical informations1
| Country Of Origin | PL |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
