LV429515 - CVS100/160/250B/F, 3P one short terminal shield
Schneider LV429515, CVS100/160/250B/F, 3P one short terminal shield. Category: ComPacT NSX, new generation. Request a quote for price and lead time.
- Reference:LV429515
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:30.00 EUR (Request a quote)
Key Specifications
- Product Or Component Type
- Short terminal shield
- Accessory / Separate Part Type
- Insulation accessories
- Poles Description
- 3P
- Quantity Per Set
- 1
Product Description

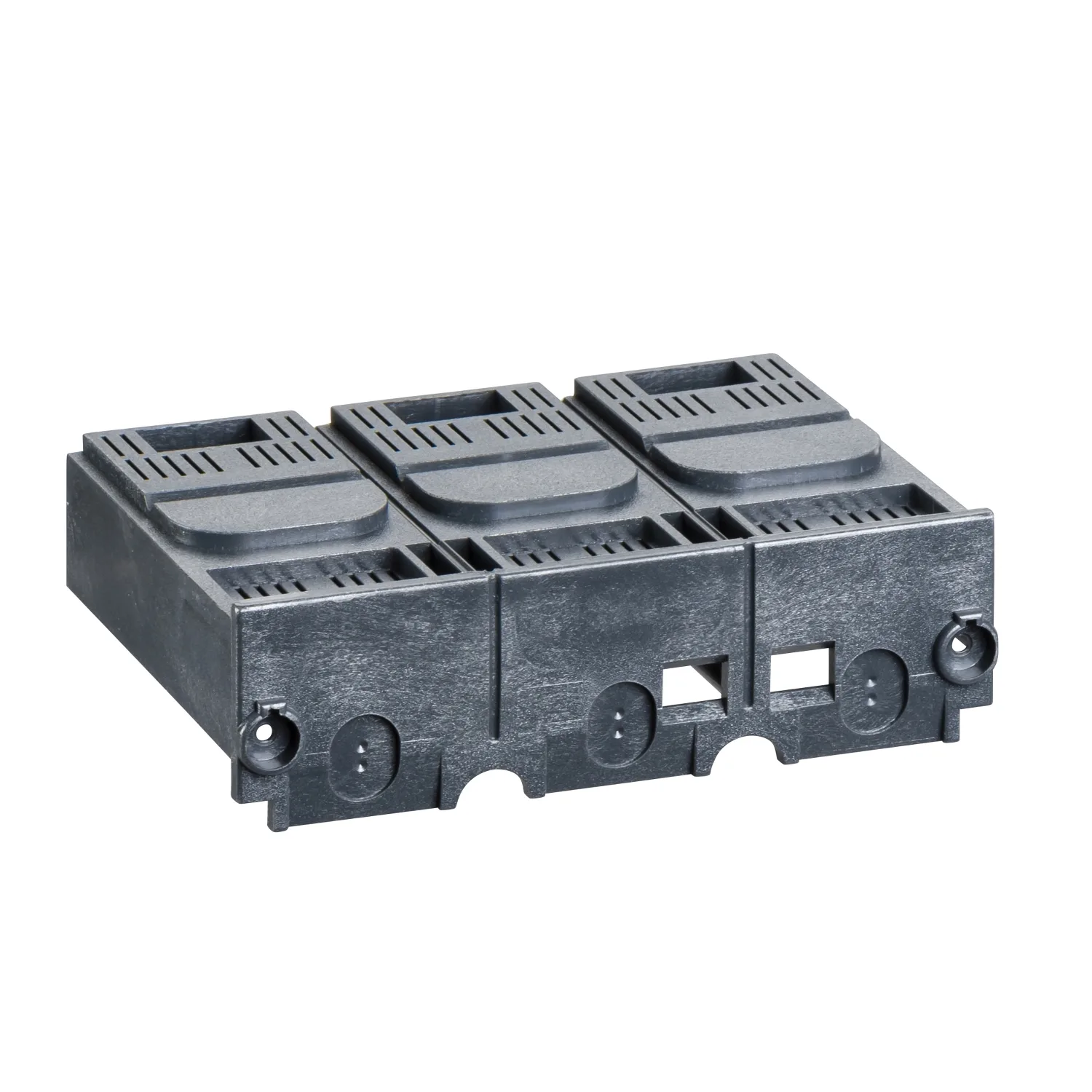

This is an insulation accessory for 3 poles Compact NSX 100/160/250 or EasyPact CVS 100/160/250. This short terminal shield protects against direct contact with power circuit. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 35mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Key Features
- Schneider Electric green signature style for the entire ComPacT range
- Estimated 40% reduction of wiring time for panel builders
- Experience easier installation thanks to a new ergonomic front-plate design
- Gain the confidence that all auxiliaries are on the right spot
- Ergonomic new toggle for easier breaker manual operation
Technical Specifications
Main5
| Product Or Component Type | Short terminal shield |
|---|---|
| Range Compatibility | ComPacT ComPacT NSX100; ComPacT ComPacT NSX160; ComPacT ComPacT NSX250; ComPact ComPact NSX100; ComPact ComPact NSX160; ComPact ComPact NSX250; ComPacT ComPacT NSX DC NSX100 DC; ComPacT ComPacT NSX DC NSX160 DC; ComPacT ComPacT NSX DC NSX250 DC; ComPact Compact NSX100 DC; ComPact Compact NSX160 DC; ComPact Compact NSX250 DC; EasyPact EasyPact CVS100; EasyPact EasyPact CVS160; EasyPact EasyPact CVS |
| Accessory / Separate Part Type | Insulation accessories |
| Poles Description | 3P |
| Quantity Per Set | 1 |
Complementary3
| Connection Pitch | 35 mm |
|---|---|
| IP Degree Of Protection | IP40 conforming to IEC 60529 |
| Product Compatibility | Circuit-breaker; Plug-in base |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 2.500 cm |
| Package 1 Width | 16.500 cm |
| Package 1 Length | 17.000 cm |
| Package 1 Weight | 51.900 g |
| Unit Type Of Package 2 | S04 |
| Number Of Units In Package 2 | 60 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 3.819 kg |
| Unit Type Of Package 3 | P12 |
| Number Of Units In Package 3 | 240 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 27.229 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
