Schneider

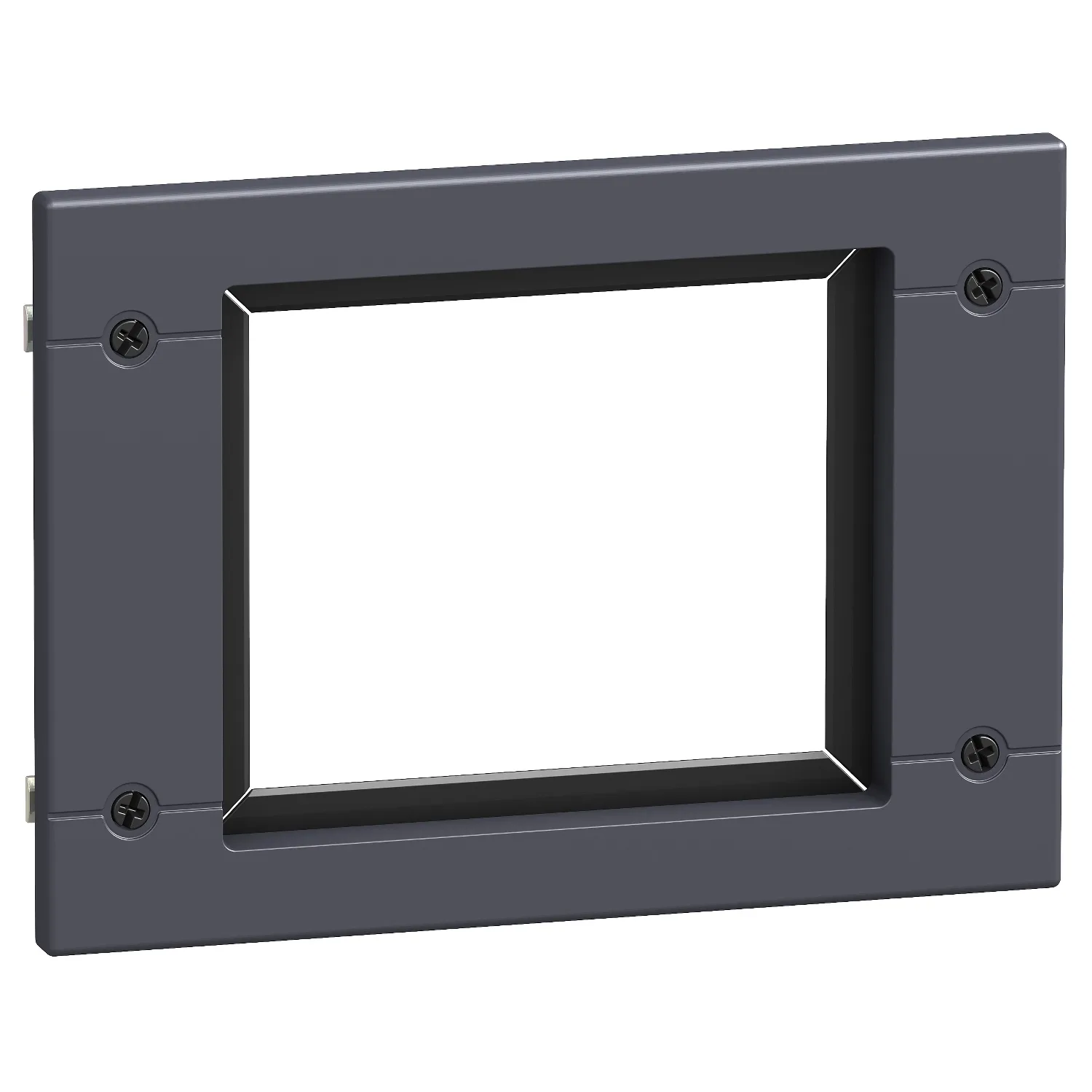

LV432558 - Front face panel mounting frame with escutcheon for CVS 400/630
Schneider LV432558, Front face panel mounting frame with escutcheon for CVS 400/630. Category: ComPacT NSX, new generation. Request a quote for price and lead time.
- Reference:LV432558
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:35.10 EUR (Request a quote)
Key Specifications
- Product Or Component Type
- Escutcheon
- Accessory / Separate Part Category
- Insulation accessory
- Control Type
- Rotary handle; Toggle; Motor mechanism
Product Description
This is a front panel escutcheon for Compact NSX 400/630 and EasyPact CVS 400/630. Escutcheons are mounted on the switchboard door. They increase the degree of protection to IP40, IK07.
Key Features
- Schneider Electric green signature style for the entire ComPacT range
- Estimated 40% reduction of wiring time for panel builders
- Experience easier installation thanks to a new ergonomic front-plate design
- Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
- Ergonomic new toggle for easier breaker manual operation
Technical Specifications
Main4
| Product Or Component Type | Escutcheon |
|---|---|
| Accessory / Separate Part Category | Insulation accessory |
| Range Compatibility | ComPact ComPact NSX400; ComPact ComPact NSX630; ComPact Compact NSX400 DC; ComPact Compact NSX630 DC; EasyPact EasyPact CVS400; EasyPact EasyPact CVS630; PowerPact PowerPact L |
| Control Type | Rotary handle; Toggle; Motor mechanism |
Complementary1
| Mounting Mode | Fixed |
|---|
Environment1
| IP Degree Of Protection | IP40 conforming to IEC 60529 |
|---|
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 1.000 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 19.000 cm |
| Package 1 Weight | 139.400 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 20 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.188 kg |
Logistical informations1
| Country Of Origin | PL |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
