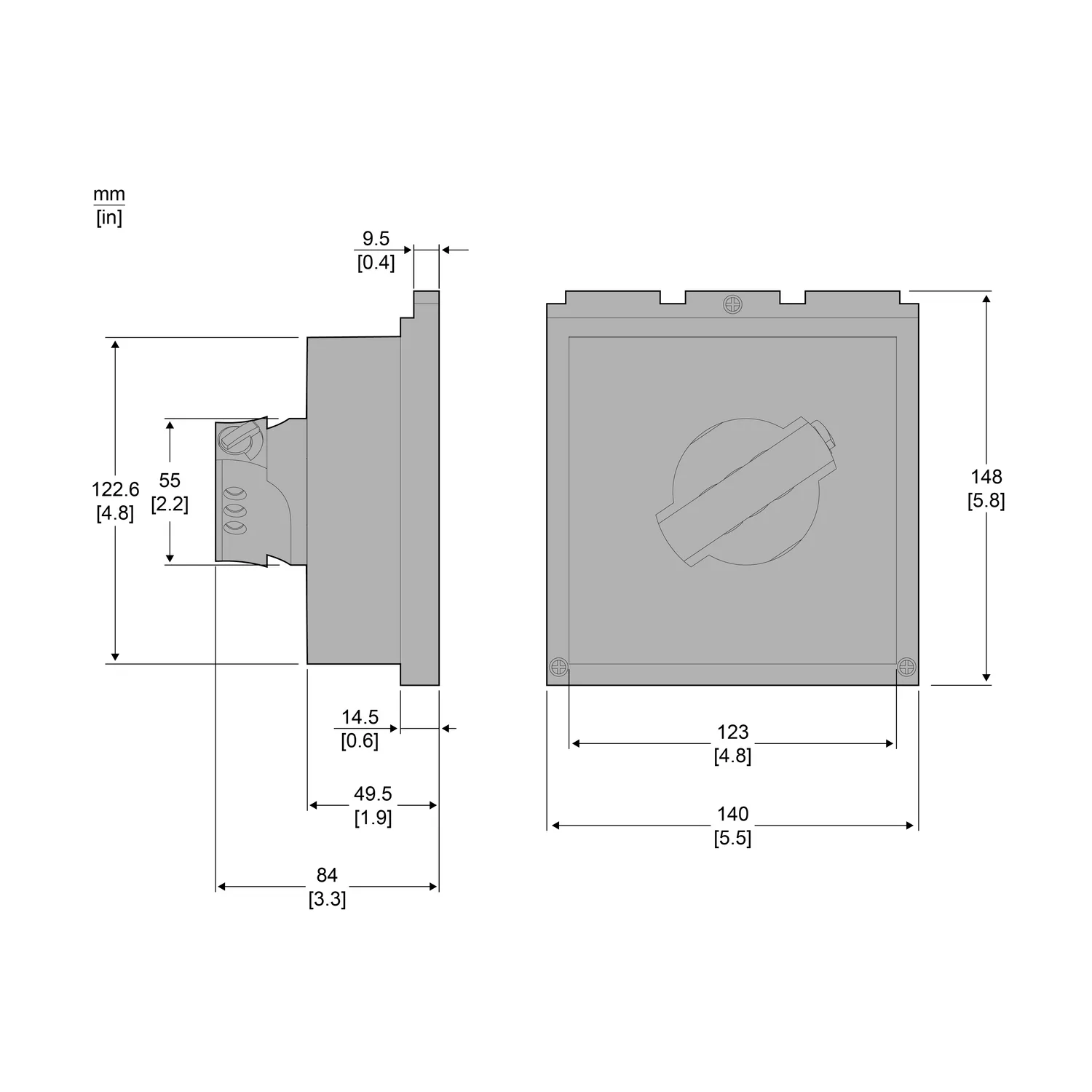

LV432597 - Direct rotary handle for CVS400/630
Schneider LV432597, Direct rotary handle for CVS400/630. Category: ComPacT for DC networks, new generation. Request a quote for price and lead time.
- Reference:LV432597
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:58.50 EUR (Request a quote)
Key Specifications
- Range Of Product
- EasyPact CVS400...630
- Product Or Component Type
- Rotary handle
- Range Compatibility
- EasyPact CVS400...630
- Accessory / Separate Part Type
- Control accessories
Product Description
It is a direct rotary handle for Compact NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
Key Features
- "Equipped with a standard black handle"
- "The degrees of protection are IP40 and IK07"
- "As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle"
- "direct rotary handle for Compact NSX 400/630"
Technical Specifications
Main7
| Range Of Product | EasyPact CVS400...630 |
|---|---|
| Product Or Component Type | Rotary handle |
| Range Compatibility | EasyPact CVS400...630 |
| Accessory / Separate Part Type | Control accessories |
| Handle Front Plate Colour | Black |
| Handle Colour | Black |
| Rotary Handle Mounting Style | Direct |
Complementary3
| Range Compatibility | Compact NS < 630A |
|---|---|
| Rotary Handle Padlocking | 1 to 3 padlocks; Padlock in OFF position |
| Rotary Handle Mounting Location | Front |
Environment1
| IP Degree Of Protection | IP40 |
|---|
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 10.400 cm |
| Package 1 Width | 15.000 cm |
| Package 1 Length | 15.400 cm |
| Package 1 Weight | 492.000 g |
| Unit Type Of Package 2 | S04 |
| Number Of Units In Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 8.638 kg |
| Unit Type Of Package 3 | P12 |
| Number Of Units In Package 3 | 64 |
| Package 3 Height | 50.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 47.064 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
