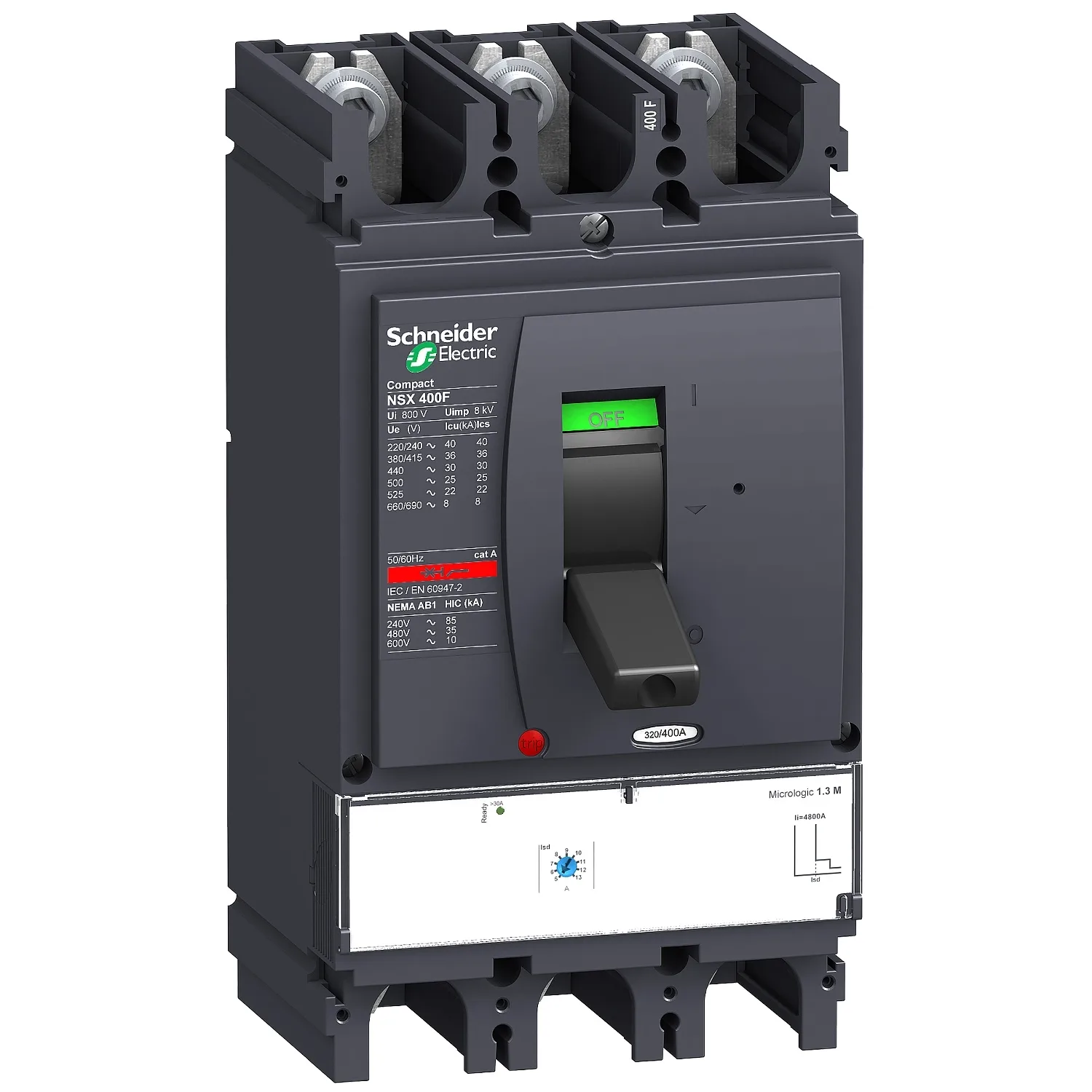

Circuit breaker, ComPact NSX400N, 50kA/415VAC, MicroLogic 1.3M trip unit 320A, 3 poles 3d
Schneider LV432749, Circuit breaker, ComPact NSX400N, 50kA/415VAC, MicroLogic 1.3M trip unit 320A, 3 poles 3d. Category: ComPact NSX <630A. Not for sale; no price or quote is offered for this product.
- Reference:LV432749
- Manufacturer / Brand:Schneider
Key Specifications
- Range
- ComPact
- Product Name
- ComPact NSX
- Range Of Product
- ComPact NSX400...630
- Device Short Name
- NSX400N
Product Description
This Compact NSX400N is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic Micrologic 1.3 M trip unit, with 320A rating. Micrologic 1.3 M trip unit provides an adjustable short time protection and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX400N is part of Schneider Electric EcoStruxure Power architecture.
Technical Specifications
Main21
| Range | ComPact |
|---|---|
| Product Name | ComPact NSX |
| Range Of Product | ComPact NSX400...630 |
| Device Short Name | NSX400N |
| Product Or Component Type | Circuit breaker |
| Device Application | Motor |
| Number Of Poles | 3P |
| Protected Poles Description | 3t |
| [In] Rated Current | 320 A at 65 °C |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Network Type | AC |
| Network Frequency | 50/60 Hz |
| Suitability For Isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation Category | Category A |
| [Icu] Rated Ultimate Short-circuit Breaking Capacity | 85 kA at 240 V AC 50/60 Hz conforming to UL 508; 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2; 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2; 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 20 kA at 600 V AC 50/60 Hz conforming to UL 508; 50 kA at 480 V AC 50/60 Hz conforming to UL 508; 50 kA Icu at |
| Performance Level | N 50 kA 415 V AC |
| Trip Unit Name | MicroLogic 1.3 M |
| Trip Unit Technology | Electronic |
| Trip Unit Protection Functions | I |
| Control Type | Toggle |
| Circuit Breaker Mounting Mode | Fixed |
Complementary24
| [Ui] Rated Insulation Voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| [Ics] Rated Service Short-circuit Breaking Capacity | 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2; 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2; 42 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical Durability | 15000 cycles |
| Electrical Durability | 3000 cycles at 690 V In; 6000 cycles at 690 V In/2; 6000 cycles at 440 V In; 12000 cycles at 440 V In/2 |
| Mounting Support | Backplate |
| Upside Connection | Front |
| Downside Connection | Front |
| Connection Pitch | 45 mm |
| Protection Type | I : for short-circuit protection (magnetic) |
| Trip Unit Rating | 320 A at 65 °C |
| Short-time Protection Pick-up Adjustment Type Isd | Adjustable 9 settings |
| [Isd] Short-time Protection Pick-up Adjustment Range | 3840 A; 3200 A; 2880 A; 2560 A; 1600 A; 4160 A; 3520 A; 1920 A; 2440 A |
| Short-time Protection Delay Adjustment Type Tsd | Fixed |
| Instantaneous Protection Pick-up Adjustment Type Ii | Fixed |
| [Ii] Instantaneous Protection Pick-up Adjustment Range | 4800 A |
| Earth-leakage Protection | Without |
| Zone Selective Interlocking ZSI | Without |
| Number Of Slots For Electrical Auxiliaries | 6 slot(s) |
| Local Signalling | Flashing LED (green) for ready to operate |
| Width (W) | 140 mm |
| Height (H) | 255 mm |
| Depth (D) | 110 mm |
| Net Weight | 6.05 kg |
Environment11
| Standards | EN/IEC 60947 |
|---|---|
| Product Certifications | CCC; EAC; Marine |
| Overvoltage Category | Class II |
| Electrical Shock Protection Class | Class II |
| Pollution Degree | 3 conforming to IEC 60664-1 |
| IP Degree Of Protection | IP40 conforming to IEC 60529 |
| IK Degree Of Protection | IK07 conforming to IEC 62262 |
| Ambient Air Temperature For Operation | -25…70 °C |
| Ambient Air Temperature For Storage | -50…85 °C |
| Relative Humidity | 0…95 % |
| Operating Altitude | 0...2000 m without derating; 2000 m...5000 m with derating |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 32.000 cm |
| Package 1 Width | 32.000 cm |
| Package 1 Length | 32.000 cm |
| Package 1 Weight | 5.643 kg |
| Unit Type Of Package 2 | S04 |
| Number Of Units In Package 2 | 3 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 18.124 kg |
| Unit Type Of Package 3 | P12 |
| Number Of Units In Package 3 | 12 |
| Package 3 Height | 50.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 84.496 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
