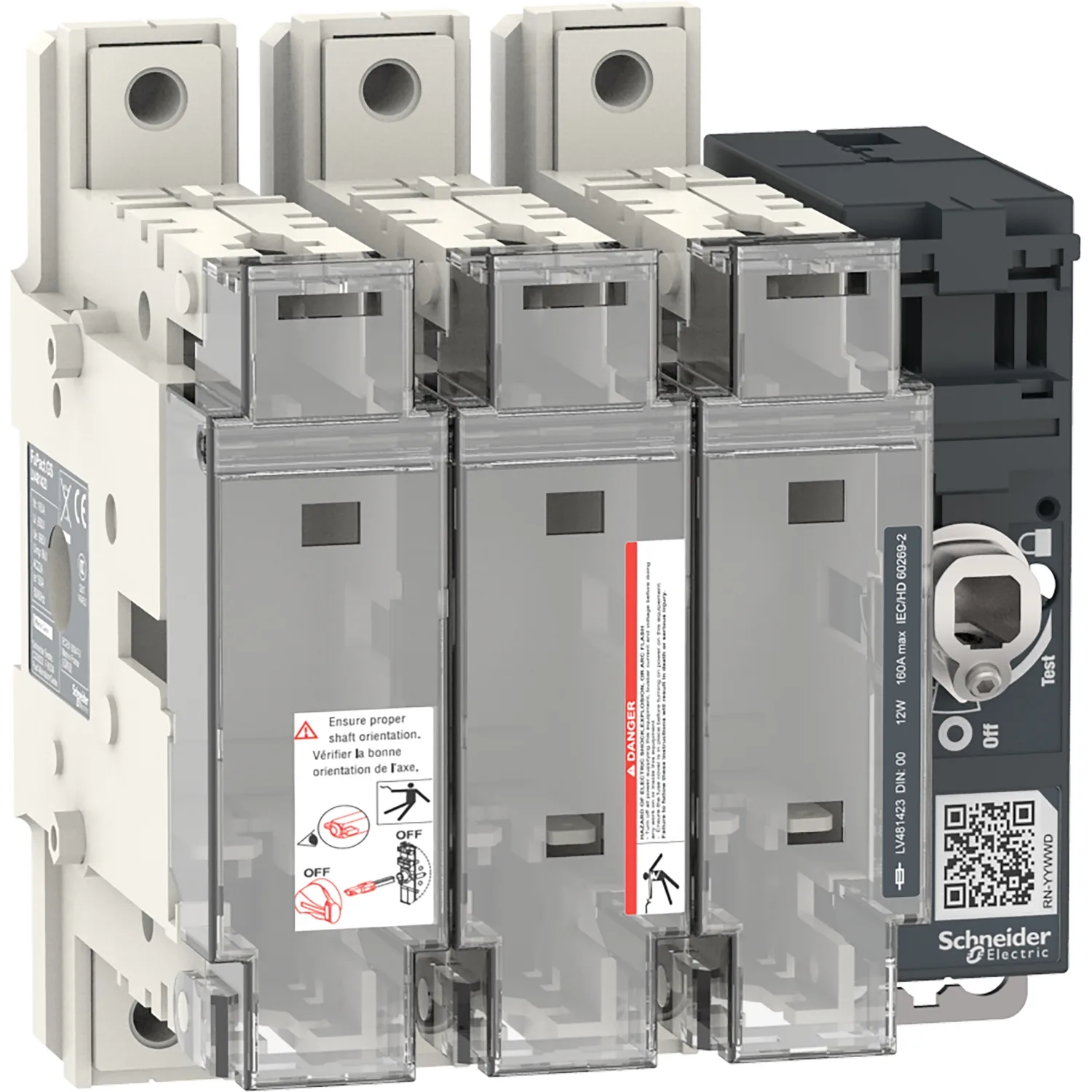

LV481423 - FuPact GS Load Break Switch 3P 125A DIN0
Schneider LV481423, FuPact GS Load Break Switch 3P 125A DIN0. Category: Fupact INF, ISFL, ISFT. Request a quote for price and lead time.
- Reference:LV481423
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:311.00 EUR (Request a quote)
Key Specifications
- Range
- FuPacT
- Product Name
- FuPacT GS
- Device Short Name
- GSD160
- Product Or Component Type
- Switch-disconnector-fuse
Product Description
This device FuPacT GSD160 is a 3 poles switch disconnector fuse with front and right side control. It is dedicated to buildings, infrastructure and Industrial plants. It protects against short-circuits and overloads on distribution circuits. For AC22A utilisation categories, the rated operational current is 160A at 690VAC. For AC23A utilisation categories, the rated operational current is 160A at 415VAC. FuPacT GSD160 has to be used with DIN fuses with blade size 00. It can be equipped with a direct frontal handle, or with an external front or right side mounting rotary handle. Extended rotary handles can be used with different shaft dimensions (200mm, 320mm or 400mm). FuPacT GSD160 in 3 poles version can also be equipped with a variety of accessories and auxiliaries such as auxiliary contacts, external neutral modules, connection accessories and terminal shields. It complies with IEC 60947-1 and IEC 60947-3 standards.
Key Features
- "Double breaking offer for high level safety and performance"
- "Fast opening and closing occurs independently of operator’s action"
- "Compatible with fuse-links BS, NFC and DIN fuses"
- "Easy to install, use and maintain"
- "Multiple mounting and cable connector options"
Technical Specifications
Main19
| Range | FuPacT |
|---|---|
| Product Name | FuPacT GS |
| Device Short Name | GSD160 |
| Product Or Component Type | Switch-disconnector-fuse |
| Device Application | Equipment protection, monitoring and control; Distribution |
| Poles Description | 3P |
| Number Of Fuse Carriers | 3 |
| Fuse Type | DIN |
| Fuse Size | NH00 |
| Suitability For Isolation | Yes conforming to EN/IEC 60947-3 |
| Visible Break | No |
| Contact Position Indicator | Yes |
| [Ith] Conventional Free Air Thermal Current | 160 A ( 35 °C ) power dissipation per fuse: 12 W |
| [Ithe] Conventional Enclosed Thermal Current | 160 A at 35 °C, Power dissipation per fuse: 12 W |
| Maximum Power Dissipation Per Pole | 10.4 W |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz; 800 V AC 50/60 Hz AC-20 |
| [Ui] Rated Insulation Voltage | 800 V AC 50/60 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| [Ie] Rated Operational Current | AC-22A: 160 A at 220/240 V AC 50/60 Hz; AC-23A: 160 A at 220/240 V AC 50/60 Hz; AC-22B: 160 A at 220/240 V AC 50/60 Hz; AC-23B: 160 A at 220/240 V AC 50/60 Hz; AC-22A: 160 A at 380/415 V AC 50/60 Hz; AC-23A: 160 A at 380/415 V AC 50/60 Hz; AC-22B: 160 A at 380/415 V AC 50/60 Hz; AC-23B: 160 A at 380/415 V AC 50/60 Hz; AC-22A: 160 A at 660/690 V AC 50/60 Hz; AC-22B: 160 A at 660/690 V AC 50/60 Hz |
Complementary18
| [Iq] Breaking Capacity With Fuses (kA RMS) | 80 kA at 415 V (AC); 50 kA at 690 V (AC) |
|---|---|
| Rated Operational Power In W | 80 kW at 380/400 V; 110 kW at 660/690 V |
| Contacts Type And Composition | 3 NO |
| Type Of Operating Handle | Direct frontal; External frontal; External right side |
| Provision For Padlocking | 3 padlocks |
| Mounting Position | Vertical |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Mechanical Durability | 10000 cycles |
| Electrical Durability | AC-22A: 1000 cycles 415 V AC 50/60 Hz; AC-23A: 1000 cycles 415 V AC 50/60 Hz; AC-22A: 1000 cycles 690 V AC 50/60 Hz; AC-23A: 1000 cycles 690 V AC 50/60 Hz |
| Connections - Terminals | Power circuit: bare cable connectors 20 mm²; Power circuit: lugs-ring terminals 50…95 mm² |
| Tightening Torque | Power circuit: 12 N.m |
| Width | 148 mm |
| Height | 162 mm |
| Depth | 116 mm |
| Net Weight | 1.8 kg |
| Standards | EN/IEC 60947-1; EN/IEC 60947-3 |
| Product Certifications | CE; CCC; EAC |
Environment7
| Electrical Shock Protection Class | Class II front face |
|---|---|
| IP Degree Of Protection | IP20 conforming to IEC 60529 (with terminal cover) |
| IK Degree Of Protection | IK07 conforming to EN 50102 |
| Pollution Degree | 3 conforming to IEC 60947 |
| Ambient Air Temperature For Operation | -20…70 °C |
| Ambient Air Temperature For Storage | -40…80 °C |
| Flame Resistance | 850 °C fuse cover conforming to IEC 60695-2-1; 960 °C body conforming to IEC 60695-2-1 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 15.5 cm |
| Package 1 Width | 17.0 cm |
| Package 1 Length | 21.0 cm |
| Package 1 Weight | 1.84 kg |
| Unit Type Of Package 2 | S06 |
| Number Of Units In Package 2 | 20 |
| Package 2 Height | 73.5 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 48.5 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
