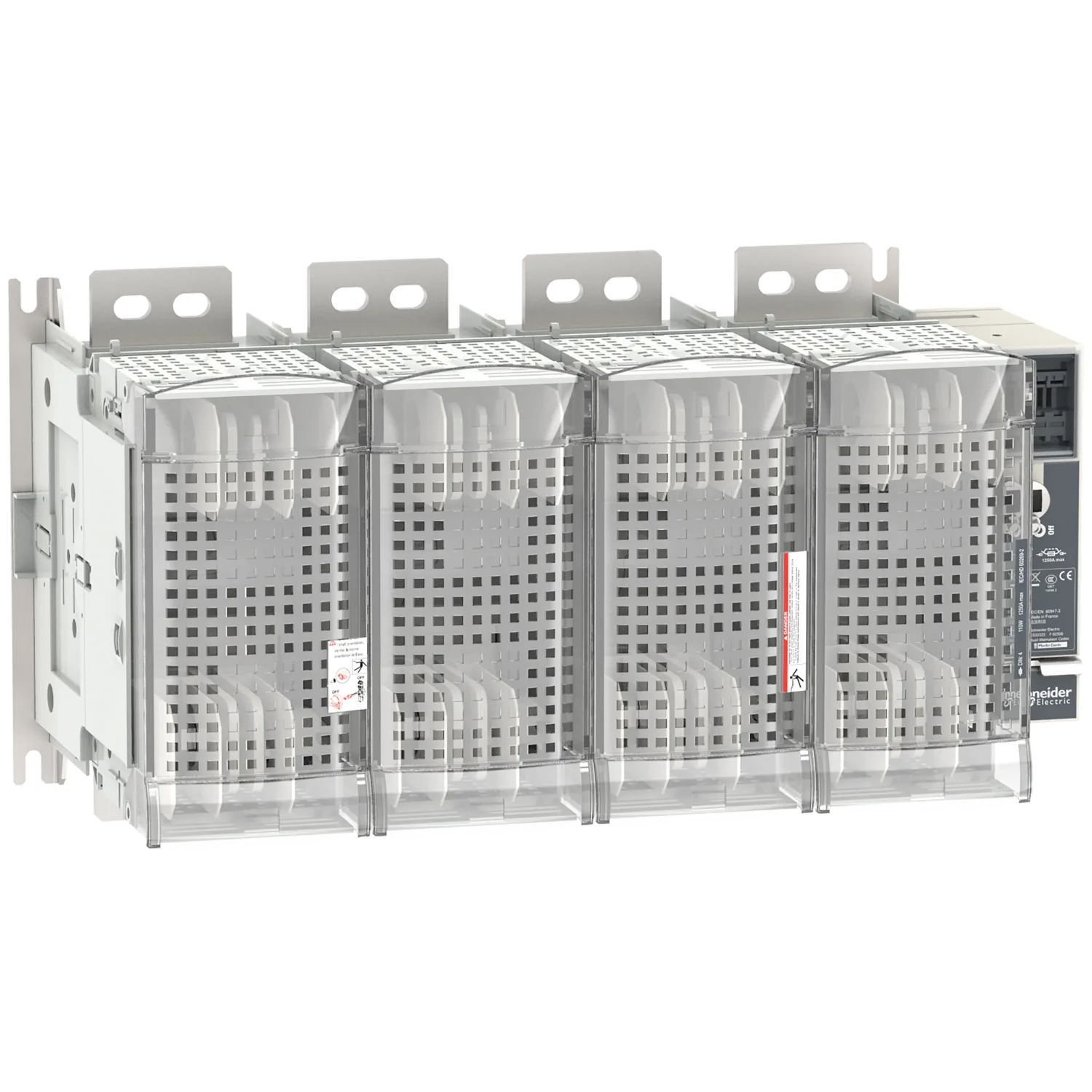

LV481474 - FuPact GS Fuse Switch Disconnector 4P 1250A DIN4
Schneider LV481474, FuPact GS Fuse Switch Disconnector 4P 1250A DIN4. Category: Fupact INF, ISFL, ISFT. Request a quote for price and lead time.
- Reference:LV481474
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:4,853.00 EUR (Request a quote)
Key Specifications
- Range
- FuPacT
- Product Name
- FuPacT GS
- Device Short Name
- GSD1250
- Product Or Component Type
- Switch-disconnector-fuse
Product Description
This device FuPacT GSD1250 is a 4 poles switch disconnector fuse with front and right side control. It is dedicated to buildings, infrastructure and Industrial plants. It protects against short-circuits and overloads on distribution circuits. For AC22B utilisation categories, the rated operational current is 1250A at 690VAC. For AC23B utilisation categories, the rated operational current is 1250A at 415VAC. FuPacT GSD1250 has to be used with DIN fuses with blade size 4. It can be equipped with an external front or right side mounting rotary handle. Extended rotary handles can be used with different shaft dimensions (200mm, 320mm or 400mm). FuPacT GSD1250 in 4 poles version can also be equipped with a variety of accessories and auxiliaries such as auxiliary contacts, internal neutral links and terminal shields. It complies with IEC 60947-1 and IEC 60947-3 standards.
Key Features
- "Double breaking offer for high level safety and performance"
- "Fast opening and closing occurs independently of operator’s action"
- "Compatible with fuse-links BS, NFC and DIN fuses"
- "Easy to install, use and maintain"
- "Multiple mounting and cable connector options"
Technical Specifications
Main19
| Range | FuPacT |
|---|---|
| Product Name | FuPacT GS |
| Device Short Name | GSD1250 |
| Product Or Component Type | Switch-disconnector-fuse |
| Device Application | Equipment protection, monitoring and control; Distribution |
| Poles Description | 4P |
| Number Of Fuse Carriers | 4 |
| Fuse Type | DIN |
| Fuse Size | NH4 |
| Suitability For Isolation | Yes conforming to EN/IEC 60947-3 |
| Visible Break | No |
| Contact Position Indicator | Yes |
| [Ith] Conventional Free Air Thermal Current | 1250 A ( 35 °C ) power dissipation per fuse: 110 W |
| [Ithe] Conventional Enclosed Thermal Current | 1250 A at 35 °C, Power dissipation per fuse: 110 W |
| Maximum Power Dissipation Per Pole | 154 W |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz; 1000 V AC 50/60 Hz AC-20 |
| [Ui] Rated Insulation Voltage | 1000 V AC 50/60 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 12 kV |
| [Ie] Rated Operational Current | AC-22A: 1250 A at 220/240 V AC 50/60 Hz; AC-23A: 1250 A at 220/240 V AC 50/60 Hz; AC-22B: 1250 A at 220/240 V AC 50/60 Hz; AC-23B: 1250 A at 220/240 V AC 50/60 Hz; AC-22A: 1250 A at 380/415 V AC 50/60 Hz; AC-23A: 1250 A at 380/415 V AC 50/60 Hz; AC-22B: 1250 A at 380/415 V AC 50/60 Hz; AC-23B: 1250 A at 380/415 V AC 50/60 Hz |
Complementary18
| [Iq] Breaking Capacity With Fuses (kA RMS) | 100 kA at 415 V (AC); 100 kA at 690 V (AC) |
|---|---|
| Rated Operational Power In W | 750 kW at 380/400 V; 900 kW at 660/690 V |
| Contacts Type And Composition | 4 NO |
| Type Of Operating Handle | External frontal; External right side |
| Provision For Padlocking | 3 padlocks |
| Mounting Position | Vertical |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Mechanical Durability | 5000 cycles |
| Electrical Durability | AC-22A: 100 cycles 415 V AC 50/60 Hz; AC-22A: 100 cycles 690 V AC 50/60 Hz; AC-23A: 100 cycles 415 V AC 50/60 Hz |
| Connections - Terminals | Power circuit: bare cable connectors 80 mm²; Power circuit: lugs-ring terminals 4 cable(s) 185 mm² |
| Tightening Torque | Power circuit: 44 N.m |
| Width | 562 mm |
| Height | 300 mm |
| Depth | 289 mm |
| Net Weight | 30 kg |
| Standards | EN/IEC 60947-1; EN/IEC 60947-3 |
| Product Certifications | CE; CCC; EAC |
Environment7
| Electrical Shock Protection Class | Class II front face |
|---|---|
| IP Degree Of Protection | IP20 conforming to IEC 60529 (with terminal cover) |
| IK Degree Of Protection | IK07 conforming to EN 50102 |
| Pollution Degree | 3 conforming to IEC 60947 |
| Ambient Air Temperature For Operation | -20…70 °C |
| Ambient Air Temperature For Storage | -40…80 °C |
| Flame Resistance | 850 °C fuse cover conforming to IEC 60695-2-1; 960 °C body conforming to IEC 60695-2-1 |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 53.0 cm |
| Package 1 Width | 60.0 cm |
| Package 1 Length | 80.0 cm |
| Package 1 Weight | 47.5 kg |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
