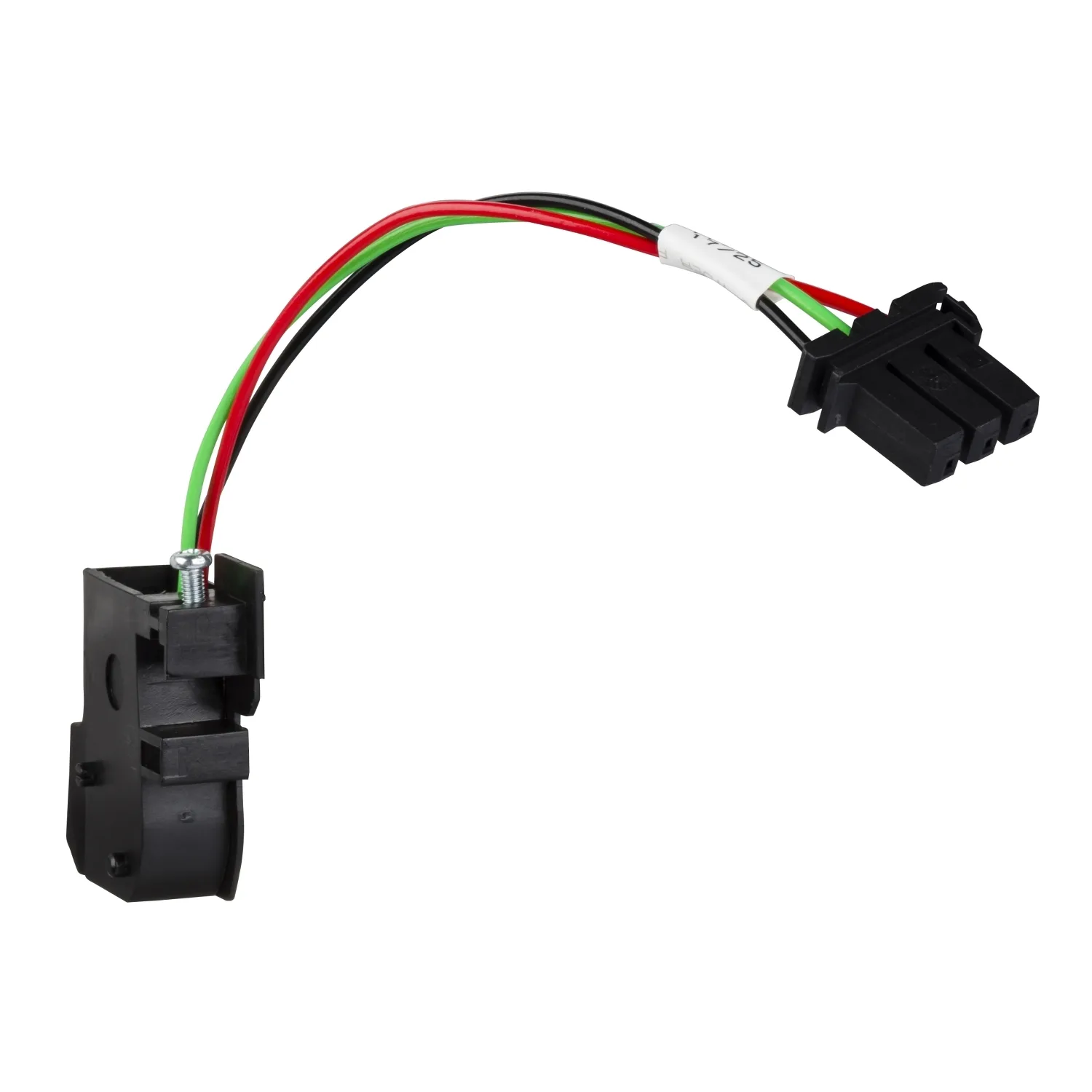

LV847080SP - PF ready-to-close contact (MTZ1/2/3)
Schneider LV847080SP, PF ready-to-close contact (MTZ1/2/3). Category: MasterPact MTZ. Request a quote for price and lead time.
- Reference:LV847080SP
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:106.20 EUR (Request a quote)
Key Specifications
- Range
- MasterPact
- Device Short Name
- PF
- Product Or Component Type
- Auxiliary contact
- Device Application
- Control
Product Description
The -ready to close- auxiliary contact ensures that the circuit breaker only closes when all criteria are met. It checks whether the conditions for closing the circuit breaker are met and signals when it is ready to close. It consists of a mechanical indicator and a PF changeover contact.
Technical Specifications
Main5
| Range | MasterPact |
|---|---|
| Device Short Name | PF |
| Product Or Component Type | Auxiliary contact |
| Device Application | Control |
| Range Compatibility | Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker |
Complementary5
| Auxiliary Contacts Type | Standard |
|---|---|
| Breaking Capacity | 2 A AC-12 480 V AC 50/60 Hz; 3 A DC-12 24/48 V DC; 0.3 A DC-12 125 V DC; 0.15 A DC-12 250 V DC; 5 A AC-12 240/380 V AC 50/60 Hz |
| Minimum Load | 100 mA at 24 V |
| Provided Equipment | 1 instruction sheet |
| Offer Type | Spare part |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 1.300 cm |
| Package 1 Width | 4.700 cm |
| Package 1 Length | 6.500 cm |
| Package 1 Weight | 39.400 g |
| Unit Type Of Package 2 | S04 |
| Number Of Units In Package 2 | 80 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 3.852 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
