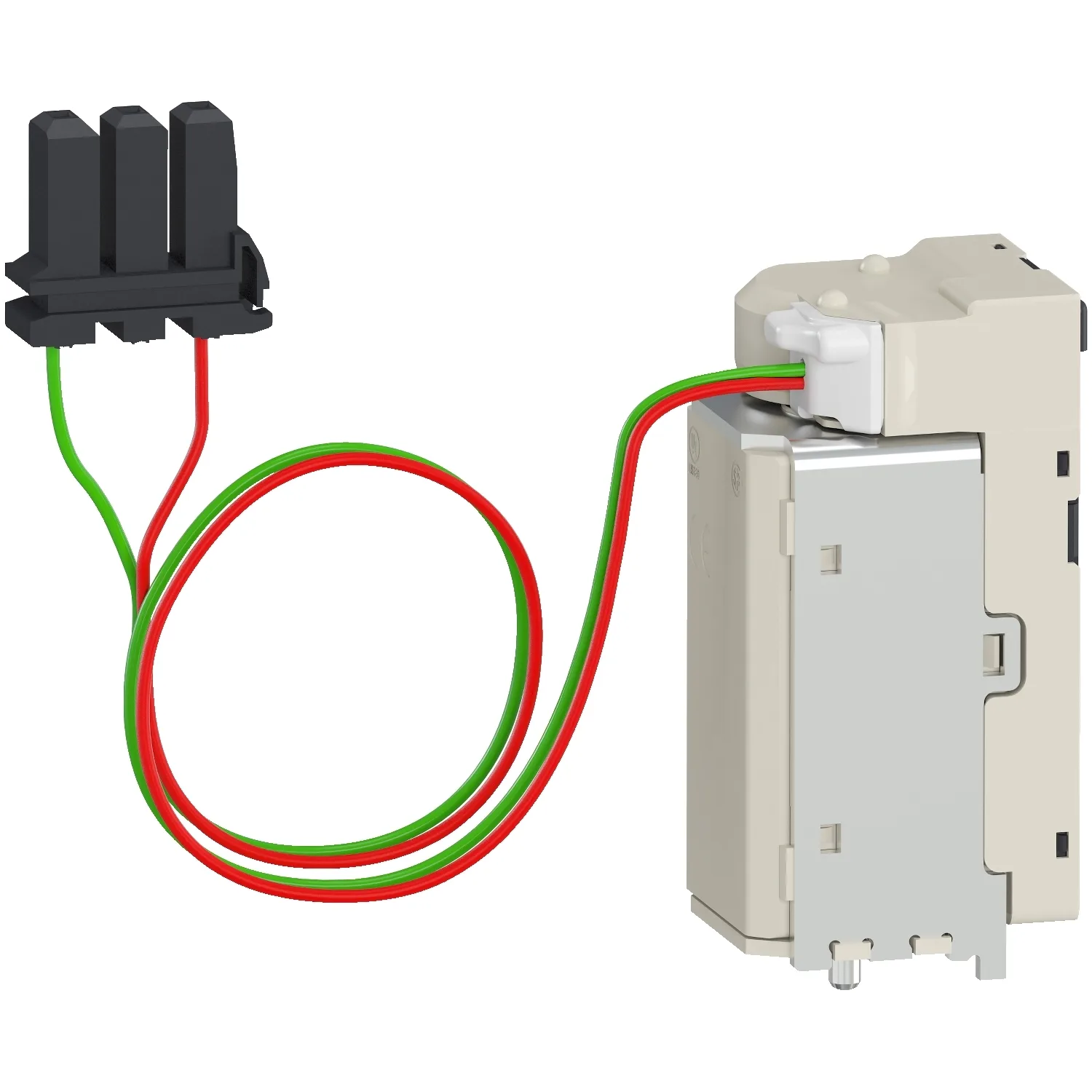

LV847382 - COIL MN 100/130VDC AC FOR FIXED MTZ
Schneider LV847382, COIL MN 100/130VDC AC FOR FIXED MTZ. Category: MasterPact MTZ. Request a quote for price and lead time.
- Reference:LV847382
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:330.00 EUR (Request a quote)
Key Specifications
- Range
- MasterPact
- Device Short Name
- MN
- Product Or Component Type
- Undervoltage release
- Device Application
- Safety
Product Description
This shunt trip is used for the instantaneous remote tripping of the MasterPact MTZ circuit breaker. Tripping is instantaneous as soon as the supply voltage drops to a value of 0.7x nominal voltage. Instantaneous MN undervoltage release 100/130V AC/DC MTZ fixed type. This release can only be ordered in conjunction with a configured circuit breaker.
Technical Specifications
Main7
| Maximum Response Time | 45 ms on opening for MasterPact MTZ1; 95 ms on opening for MasterPact MTZ2; 95 ms on opening for MasterPact MTZ3 |
|---|---|
| Range | MasterPact |
| Device Short Name | MN |
| Product Or Component Type | Undervoltage release |
| Device Application | Safety |
| Range Compatibility | Masterpact MasterPact MTZ1 circuit breaker; Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker |
| Voltage Release Type | Instantaneous |
Complementary5
| Control Type | Standard |
|---|---|
| [Un] Voltage Power Supply | 100...130 V AC 50/60 Hz; 100...130 V DC |
| Threshold Tripping Voltage | 0.35...0.7 Un opening; 0.85 Un closing |
| Holding Power Consumption | 4.5 W |
| Circuit Breaker Mounting Mode | Fixed |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 8.0 cm |
| Package 1 Length | 6.0 cm |
| Package 1 Weight | 174.0 g |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
