TeSys D - contactor coil - LX1D6 - 48 V AC 50/60 Hz for 80 & 95 A contactor

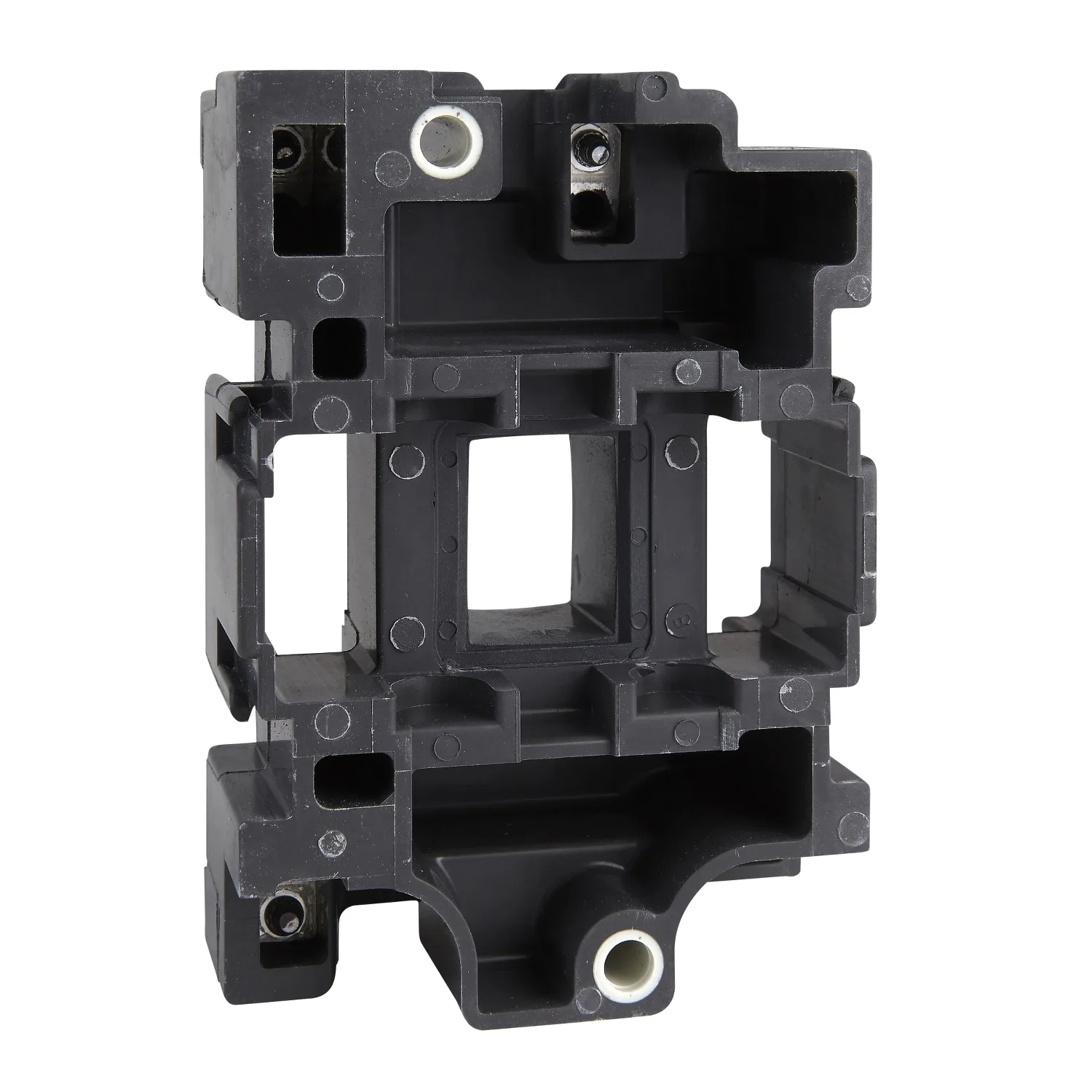

Schneider LX1D6E7, TeSys D - contactor coil - LX1D6 - 48 V AC 50/60 Hz for 80 & 95 A contactor. Category: TeSys Deca Advanced. Request a quote for price and lead time.
- Reference:LX1D6E7
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:61.70 EUR (Request a quote)
Key Specifications
- Range
- TeSys
- Product Or Component Type
- Contactor coil
- Device Short Name
- LX1D6
- Control Circuit Type
- AC at 50/60 Hz
Product Description
This is a contact coil of Tesys Deca contactors. It's multiple certified and sustainability compliant.
Key Features
- New modern look & feel of all machines
- Easier to install.
- Digital customer experience for technical documents
- Sustainability compliant
Technical Specifications
Main10
| Range | TeSys |
|---|---|
| Product Or Component Type | Contactor coil |
| Device Short Name | LX1D6 |
| Control Circuit Type | AC at 50/60 Hz |
| [Uc] Control Circuit Voltage | 48 V AC 50/60 Hz |
| Average Resistance | 5 Ohm at 20 °C |
| Inductance Of Closed Circuit | 0.32 H |
| Product Compatibility | LC1D40; LC1D50; LC1D65...D95 |
| Mechanical Durability | 4 Mcycles |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
Complementary5
| Coil Technology | Without built-in suppressor module |
|---|---|
| Control Circuit Voltage Limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <55 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <55 °C) |
| Inrush Power In VA | 245 VA 60 Hz cos phi 0.75 (at 20 °C); 245 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in Power Consumption In VA | 26 VA 60 Hz cos phi 0.3 (at 20 °C); 26 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat Dissipation | 6…10 W at 50/60 Hz |
Environment2
| Ambient Air Temperature For Operation | -5…60 °C |
|---|---|
| Net Weight | 0.28 kg |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 12.500 cm |
| Package 1 Weight | 313.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 16 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.280 kg |
Logistical informations1
| Country Of Origin | CZ |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
