TeSys F - contactor coil - LX1FX - 110...120 V AC 40...400 Hz
Not for sale
Schneider LX1FX110, TeSys F - contactor coil - LX1FX - 110...120 V AC 40...400 Hz. Category: TeSys F. Not for sale; no price or quote is offered for this product.
- Reference:LX1FX110
- Manufacturer / Brand:Schneider
Key Specifications
- Range
- TeSys
- Product Or Component Type
- Contactor coil
- Device Short Name
- LX1FX
- Range Compatibility
- TeSys TeSys F LC1F contactor
Product Description
- TeSys F AC coil 110/115V 40-400Hz (voltage code F7/FE7), low sealed consumption,

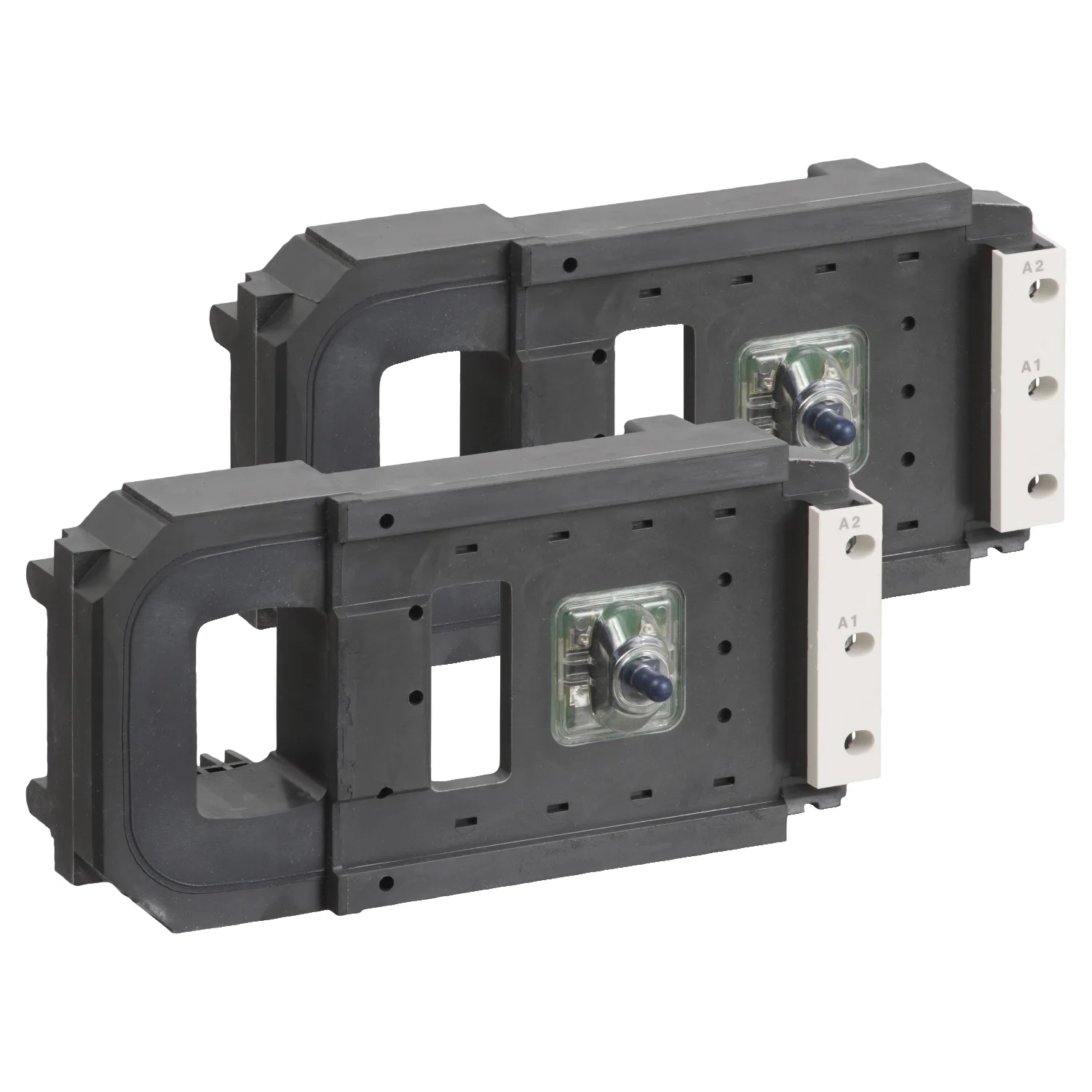

- for TeSys F 3-pole and 4-pole contactors LC1F780. • Set of 2 identical coils, to be connected in series. • It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. • It provides to the contactor high operating rates until 600 cycles/hour. • compliant (RoHS/REACh). • "Stable performance: can operate on networks with harmonic numbers within 7"
- "Energy saving: low inrush consumption"
- "Excellent durability with high operating rates up to 600 cycles/hour"
- "Reliable performance under high temperature up to 55°C"
- "Green Premium compliant"
Technical Specifications
Main12
| Range | TeSys |
|---|---|
| Product Or Component Type | Contactor coil |
| Device Short Name | LX1FX |
| Range Compatibility | TeSys TeSys F LC1F contactor |
| Product Compatibility | LC1F780 |
| Control Circuit Type | AC at 40...400 Hz |
| [Uc] Control Circuit Voltage | 110...120 V AC 40...400 Hz |
| Inductance Of Closed Circuit | 0.21 H |
| Average Resistance | 230 Ohm holding at 20 °C; 4.95 Ohm inrush at 20 °C |
| Operating Time | 130...230 ms opening; 40...80 ms closing |
| Mechanical Durability | 5 Mcycles |
| Maximum Operating Rate | 600 cyc/h 55 °C |
Complementary5
| Coil Technology | Without built-in suppressor module |
|---|---|
| Control Circuit Voltage Limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C); Drop-out: 0.2...0.4 Uc 40...400 Hz (at 55 °C) |
| Inrush Power In VA | 2100 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in Power Consumption In VA | 50 VA 40...400 Hz cos phi 0.3 (at 20 °C) |
| Heat Dissipation | 44 W at 40...400 Hz |
Environment2
| Ambient Air Temperature For Operation | -5…55 °C |
|---|---|
| Net Weight | 3 kg |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 25.0 cm |
| Package 1 Width | 18.5 cm |
| Package 1 Length | 18.5 cm |
| Package 1 Weight | 3.122 kg |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 2 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 6.338 kg |
Logistical informations1
| Country Of Origin | CZ |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
