Schneider

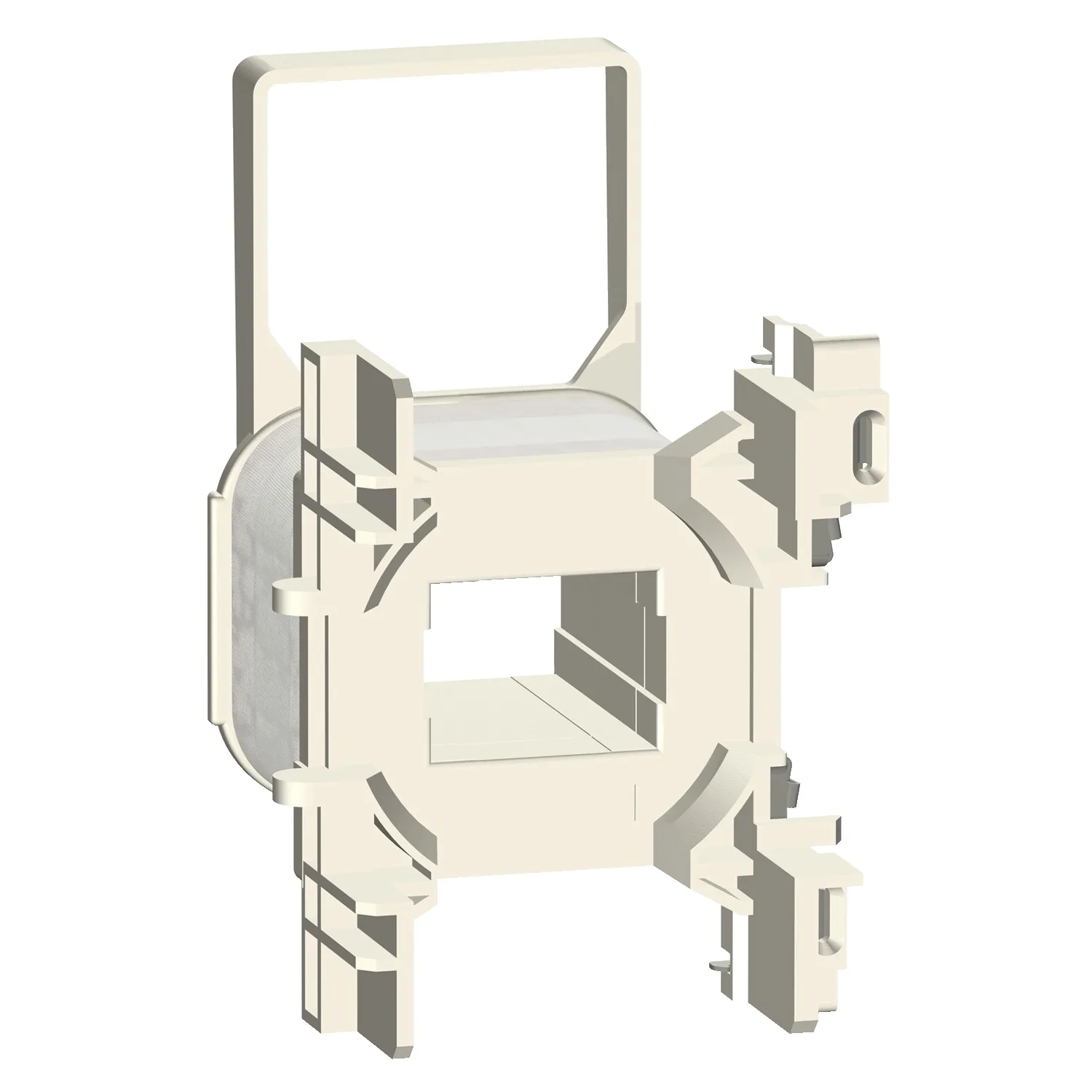

LXD3E7 - TeSys Deca Contactor Coil 40-65A 48VAC
Schneider LXD3E7, TeSys Deca Contactor Coil 40-65A 48VAC. Category: TeSys Deca Advanced. Request a quote for price and lead time.
- Reference:LXD3E7
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:60.90 EUR (Request a quote)
Key Specifications
- Range
- TeSys
- Product Or Component Type
- Contactor coil
- Device Short Name
- LXD3
- Control Circuit Type
- AC at 50/60 Hz
Product Description
- TeSys D replacement coil 48V AC 50/60Hz, for TeSys D contactors.
- To be used with 3 and 4-pole contactors LC1 D40A to D65A and LC1 DT60A, DT80A.
- It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C
- Green Premium compliant (RoHS/REACh).
Key Features
- "Spare coil for Deca contactor"
- "New modern look & feel of all machines"
- "Easier to install."
- "Digital customer experience for technical documents"
Technical Specifications
Main10
| Range | TeSys |
|---|---|
| Product Or Component Type | Contactor coil |
| Device Short Name | LXD3 |
| Control Circuit Type | AC at 50/60 Hz |
| [Uc] Control Circuit Voltage | 48 V AC 50/60 Hz |
| Average Resistance | 7.97 Ohm at 20 °C |
| Inductance Of Closed Circuit | 0.48 H |
| Product Compatibility | LC1DT60A; LC1D40A...D65A; LC1DT80A |
| Mechanical Durability | 6 Mcycles |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
Complementary5
| Coil Technology | Without built-in suppressor module |
|---|---|
| Control Circuit Voltage Limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C) |
| Inrush Power In VA | 160 VA 60 Hz cos phi 0.75 (at 20 °C); 160 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in Power Consumption In VA | 15 VA 60 Hz cos phi 0.3 (at 20 °C); 15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat Dissipation | 4…5 W at 50/60 Hz |
Environment2
| Ambient Air Temperature For Operation | -5…60 °C |
|---|---|
| Net Weight | 0.07 kg |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.6 cm |
| Package 1 Width | 5.7 cm |
| Package 1 Length | 9.7 cm |
| Package 1 Weight | 123.0 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 30 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.048 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
