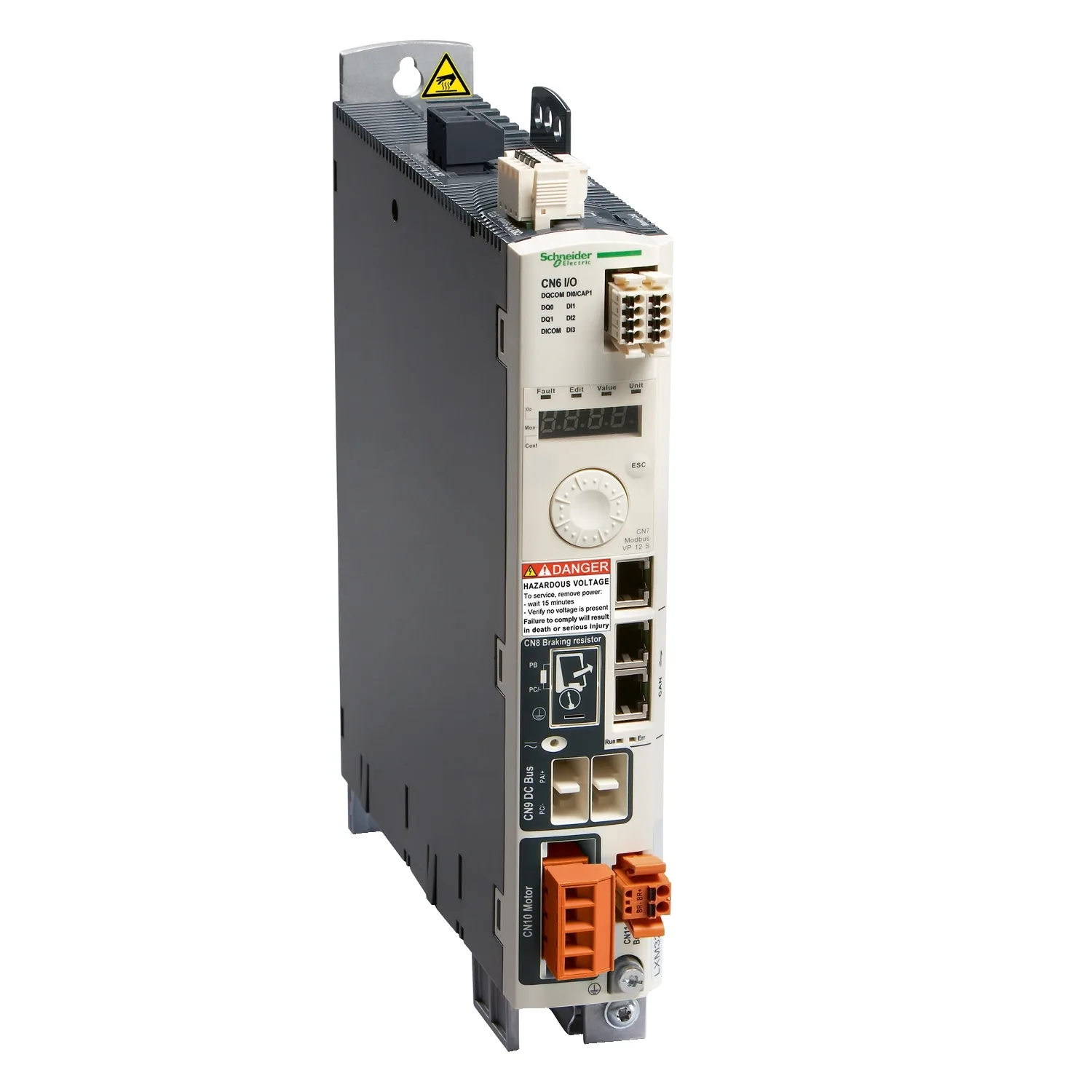

Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 3 kW
Schneider LXM32AD30N4, Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 3 kW. Category: Lexium 32 & Motors. Request a quote for price and lead time.
- Reference:LXM32AD30N4
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:1,894.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Lexium 32
- Device Short Name
- LXM32A
- Product Or Component Type
- Motion servo drive
- Format Of The Drive
- Book
Product Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 10A at 8kHz and a continuous power of 5600W at 400V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 2.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
Key Features
- "Lexium 32 range provides the drive and motor combinations for right power, performance and functionality"
- "Three book-size servo drive models and two servo motor families plus a full range of intelligent options"
- "Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance"
- "A speed bandwidth of 1,600Hz provides outstanding response"
- "Lexium 32 offers a host of features for rapid installation and maintenance e g removable, colour-coded connectors"
Technical Specifications
Main15
| Range Of Product | Lexium 32 |
|---|---|
| Device Short Name | LXM32A |
| Product Or Component Type | Motion servo drive |
| Format Of The Drive | Book |
| Network Number Of Phases | Three phase; Three phase |
| [Us] Rated Supply Voltage | 200...240 V - 15...10 %; 380...480 V - 15...10 % |
| Supply Voltage Limits | 170…264 V; 323…528 V |
| Supply Frequency | 50/60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| EMC Filter | Integrated |
| Continuous Output Current | 10 A at 8 kHz |
| Output Current 3s Peak | 30 A at 208 V for 5 s; 30 A at 480 V for 5 s |
| Continuous Power | 2800 W at 208 V; 5600 W at 400 V; 5600 W at 480 V |
| Nominal Power | 2 kW at 208 V 8 kHz; 3 kW at 400 V 8 kHz; 3 kW at 480 V 8 kHz |
| Line Current | 9.2 A 59 % at 208 V, with external line choke of 1 mH; 11.1 A 77 % at 400 V, with external line choke of 1 mH; 9.6 A 85 % at 480 V, with external line choke of 1 mH; 9.8 A 128 % at 208 V, without line choke; 8.3 A 148 % at 400 V, without line choke; 7 A 152 % at 480 V, without line choke |
Complementary40
| Switching Frequency | 8 kHz |
|---|---|
| Overvoltage Category | III |
| Maximum Leakage Current | 30 mA |
| Output Voltage | <= power supply voltage |
| Electrical Isolation | Between power and control |
| Type Of Cable | Single-strand IEC cable (temperature: 50 °C) copper 90 °C XLPE/EPR |
| Electrical Connection | Terminal, clamping capacity: 3 mm², 12 AWG (CN8); Terminal, clamping capacity: 5 mm², 10 AWG (CN1); Terminal, clamping capacity: 5 mm², 10 AWG (CN10) |
| Tightening Torque | CN8: 0.5 N.m; CN1: 0.7 N.m; CN10: 0.7 N.m |
| Discrete Input Number | 1 capture discrete input(s); 2 safety discrete input(s); 4 logic discrete input(s) |
| Discrete Input Type | Capture (CAP terminals); Logic (DI terminals); Safety (compliment of STO_A, compliment of STO_B terminals) |
| Sampling Duration | DI: 0.25 ms discrete |
| Discrete Input Voltage | 24 V DC for capture; 24 V DC for logic; 24 V DC for safety |
| Discrete Input Logic | Positive (compliment of STO_A, compliment of STO_B) at State 0: 15 V conforming to EN/IEC 61131-2 type 1; Positive (DI) at State 0: > 19 V at State 1: < 9 V conforming to EN/IEC 61131-2 type 1; Positive or negative (DI) at State 0: 15 V conforming to EN/IEC 61131-2 type 1 |
| Response Time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete Output Number | 2 |
| Discrete Output Type | Logic output(s) (DO)24 V DC |
| Discrete Output Voltage | <= 30 V DC |
| Discrete Output Logic | Positive or negative (DO) conforming to EN/IEC 61131-2 |
| Contact Bounce Time | <= 1 ms for compliment of STO_A, compliment of STO_B; 2 µs for CAP; 0.25 µs...1.5 ms for DI |
| Braking Current | 50 mA |
| Response Time On Output | 250 µs (DO) for discrete output(s) |
| Control Signal Type | Servo motor encoder feedback |
| Protection Type | Against reverse polarity: inputs signal; Against short-circuits: outputs signal |
| Safety Function | STO (safe torque off), integrated |
| Safety Level | SIL 3 conforming to EN/IEC 61508; PL = e conforming to ISO 13849-1 |
| Communication Interface | CANmotion, integrated; CANopen, integrated |
| Connector Type | RJ45 (labelled CN4 or CN5) for CANmotion; RJ45 (labelled CN4 or CN5) for CANopen |
| Method Of Access | Slave |
| Transmission Rate | 1 Mbps for bus length of 4 m for CANopen, CANmotion; 125 kbps for bus length of 500 m for CANopen, CANmotion; 250 kbps for bus length of 250 m for CANopen, CANmotion; 50 kbps for bus length of 1000 m for CANopen, CANmotion; 500 kbps for bus length of 100 m for CANopen, CANmotion |
| Number Of Addresses | 1…127 for CANopen, CANmotion |
| Communication Service | 1 receive SDO for CANmotion; 1 transmit SDO for CANmotion; 2 PDOs conforming to DSP 402 for CANmotion; 2 SDOs receive for CANopen; 2 SDOs send for CANopen; 4 configurable mapping PDOs for CANopen; CANopen device profile drives and motion control for CANopen, CANmotion; Emergency for CANopen, CANmotion; Event-triggered, time-triggered, remotely requested,sync (cyclic), sync(acyclic) for CANopen; No |
| Status LED | 1 LED (red) servo drive voltage; 1 LED error; 1 LED RUN |
| Signalling Function | Display of faults 7 segments |
| Marking | CE |
| Operating Position | Vertical +/- 10 degree |
| Product Compatibility | Servo motor BMH (100 mm, 3 motor stacks); Servo motor BMH (140 mm, 1 motor stacks); Servo motor BSH (100 mm, 3 motor stacks); Servo motor BSH (100 mm, 4 motor stacks); Servo motor BSH (140 mm, 1 motor stacks) |
| Width | 68 mm |
| Height | 270 mm |
| Depth | 237 mm |
| Net Weight | 2.6 kg |
Environment13
| Electromagnetic Compatibility | Conducted EMC, class A group 1 conforming to EN 55011; Conducted EMC, class A group 2 conforming to EN 55011; Conducted EMC, environment 2 category C3 conforming to EN/IEC 61800-3; Conducted EMC, category C2 conforming to EN/IEC 61800-3; Conducted EMC, environments 1 and 2 conforming to EN/IEC 61800-3; Electrostatic discharge immunity test, level 3 conforming to EN/IEC 61000-4-2; Susceptibility to |
|---|---|
| Standards | EN/IEC 61800-3; EN/IEC 61800-5-1 |
| Product Certifications | UL; CSA; TÜV |
| IP Degree Of Protection | IP20 conforming to EN/IEC 60529; IP20 conforming to EN/IEC 61800-5-1 |
| Vibration Resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock Resistance | 15 gn for 11 ms conforming to EN/IEC 60028-2-27 |
| Pollution Degree | 2 conforming to EN/IEC 61800-5-1 |
| Environmental Characteristic | Classes 3C1 conforming to IEC 60721-3-3 |
| Relative Humidity | Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3 |
| Ambient Air Temperature For Operation | 0…50 °C conforming to UL |
| Ambient Air Temperature For Storage | -25…70 °C |
| Type Of Cooling | Integrated fan |
| Operating Altitude | <= 1000 m without derating; > 1000...3000 m with conditions |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 28.000 cm |
| Package 1 Length | 33.000 cm |
| Package 1 Weight | 3.290 kg |
Logistical informations1
| Country Of Origin | ID |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
