METSECT5MC050 - Current Transformer - MC type, 32mm 500 A

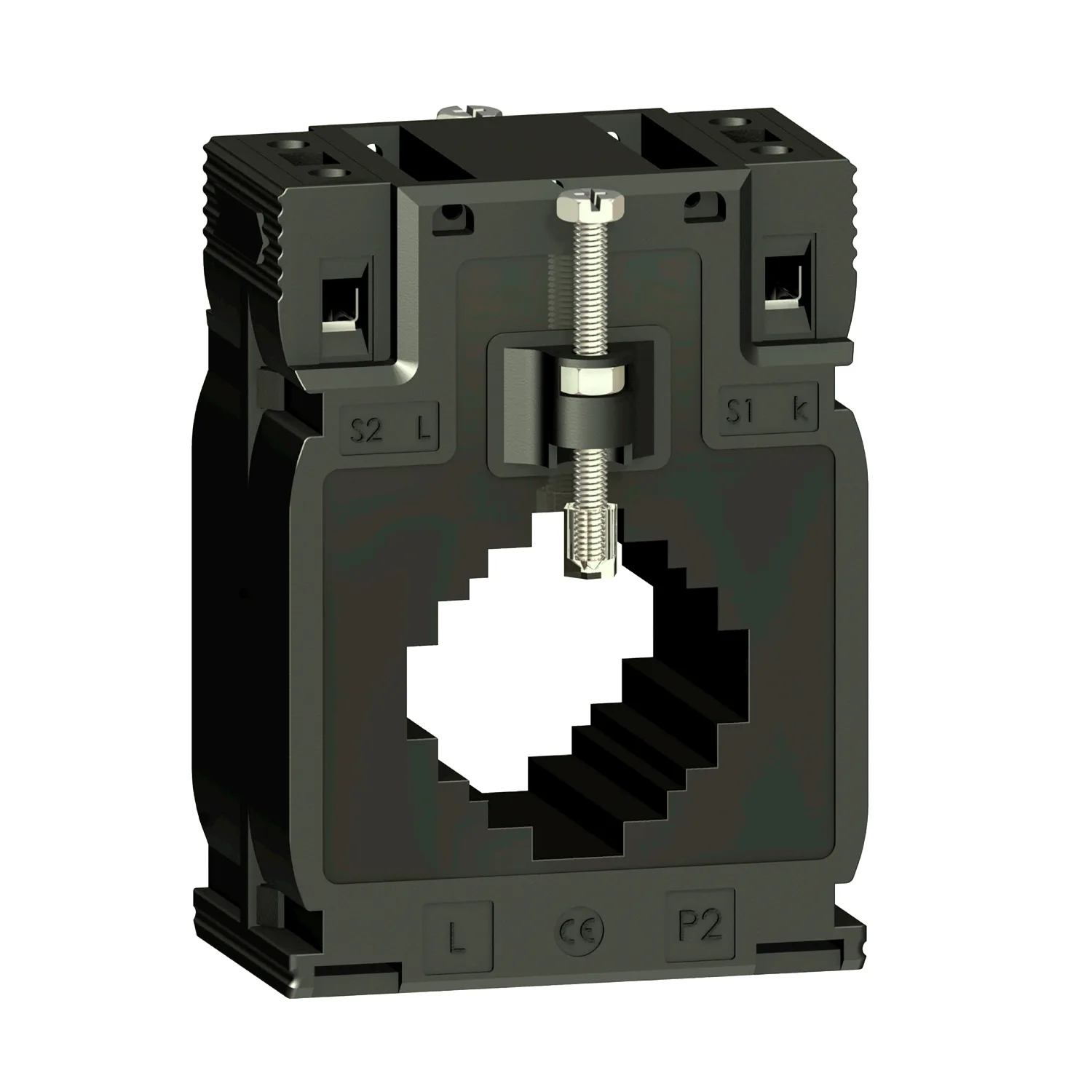

Schneider METSECT5MC050, Current Transformer - MC type, 32mm 500 A. Category: Current transformer T1. Request a quote for price and lead time.
- Reference:METSECT5MC050
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:42.50 EUR (Request a quote)
Key Specifications
- Range
- PowerLogic
- Product Or Component Type
- Current transformer
- Product Name
- CT
- Secondary Current
- 5 A
Product Description
This current transformer, tropicalised for busbar and cable, has a line rated current of 500 A and a secondary current rating of 5 A. This current transformer do have a 41 mm x 41 mm opening. Compatible with a triple output for bar: 40.5 mm x 10.5 mm or 32.5 mm x 20.5 mm or 25.5 mm x 25.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 10 VA, class 1 maximum power: 12 VA.
Key Features
- "Solid core IEC current transformers for varied application"
- "compact size suitable for different sizes of conductors"
- "tropicalized rating for harsh environmental condition"
- "Well adpated CT as the accuracy class is better than rated accuracy"
- "multiple secondary terminal options for different mounting profile"
Technical Specifications
Main6
| Range | PowerLogic |
|---|---|
| Product Or Component Type | Current transformer |
| Product Name | CT |
| Secondary Current | 5 A |
| Accuracy Class | Class 0.5 at 10 VA; Class 1 at 12 VA |
| [In] Rated Current | 500 A |
Complementary19
| Current Transformer Type | Tropicalised for busbar and cable; Solid core |
|---|---|
| Current Transformer Ratio | 500/5 |
| [Ith] Conventional Free Air Thermal Current | 30 kA |
| Dynamic Withstand Current | 2.5 Ith |
| Maximum Safety Factor | 5 |
| [Ue] Rated Operational Voltage | < 720 V AC 50/60 Hz |
| [Ui] Rated Insulation Voltage | 3 kV 50 Hz for 1 minute |
| Mounting Mode | By screws; Insulated locking screw; Clip-on |
| Mounting Support | Busbar; Mounting plate; DIN rail |
| Width | Outside: 70 mm; Inner: 41 mm |
| Height | Outside: 95 mm; Inner: 41 mm |
| Depth | Frame : 45 mm; Total : 65 mm |
| Diameter | 32 mm |
| Net Weight | 0.429 kg |
| [Uimp] Rated Impulse Withstand Voltage | 3 kV |
| Electrical Insulation Class | Class B |
| Cable Outer Diameter | 32 mm |
| Opening Of Bars | 40.5 x 10.5; 25.5 x 25.5; 32.5 x 20.5 |
| Sealing | Without |
Environment5
| Standards | VDE 0414; IEC 61869-2 |
|---|---|
| Product Certifications | CE; EAC |
| IP Degree Of Protection | IP20 |
| Relative Humidity | 0…95 % |
| Ambient Air Temperature For Operation | -25…60 °C |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 9 cm |
| Package 1 Length | 11.5 cm |
| Package 1 Weight | 413 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 25 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 10.77 kg |
Logistical informations1
| Country Of Origin | TN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
