Schneider

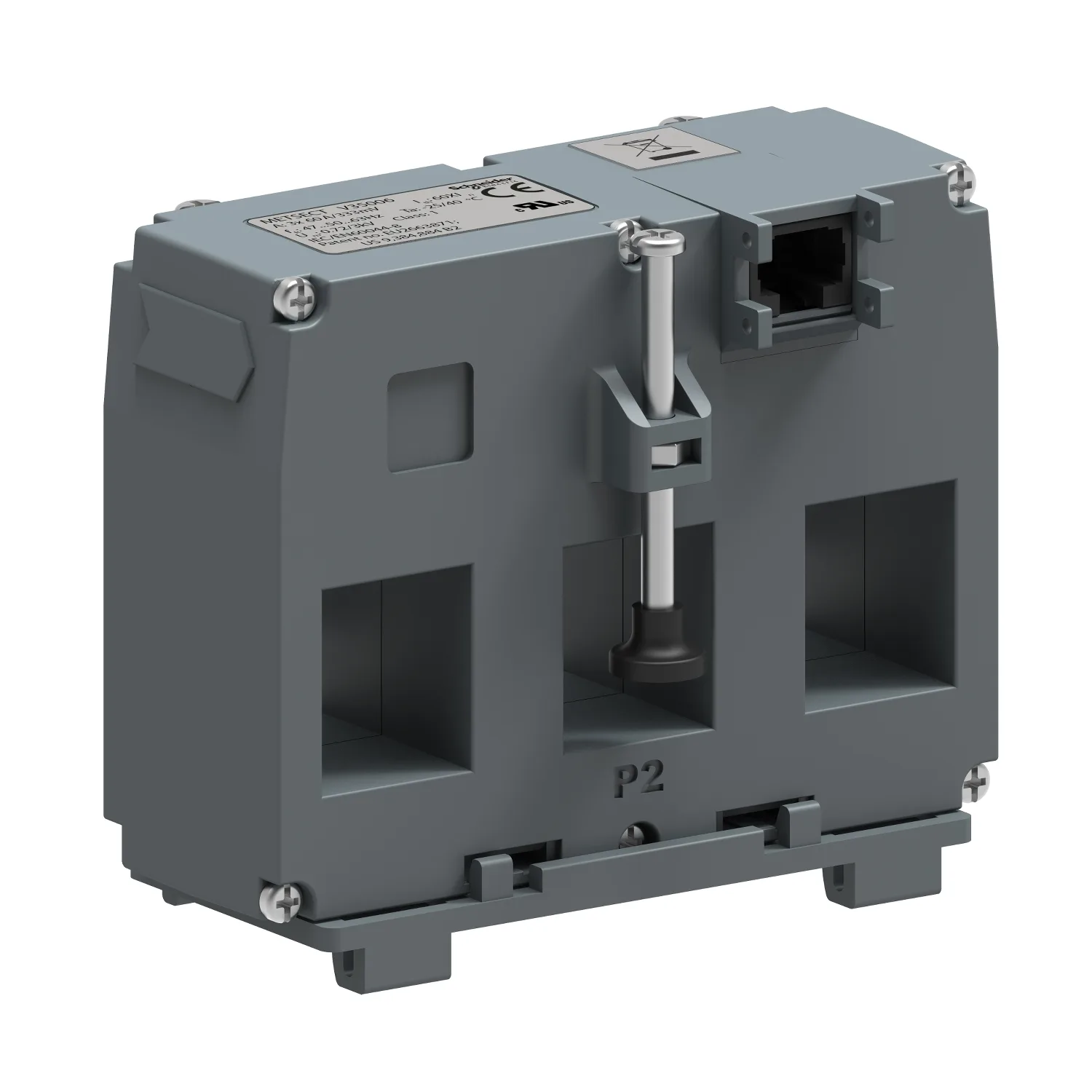

METSECTV35006 - LVCT 1/3V 3in1 RJ45 Current Transformer - 35mm, 60A
Schneider METSECTV35006, LVCT 1/3V 3in1 RJ45 Current Transformer - 35mm, 60A. Category: EasyLogic™ PM22xxR Quick Click Power Meters. Request a quote for price and lead time.
- Reference:METSECTV35006
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:135.90 EUR (Request a quote)
Key Specifications
- Range
- PowerLogic
- Product Or Component Type
- Current transformer
- Accessory / Separate Part Category
- Measurement accessory
- Current Transformer Type
- Triple solid core
Product Description
Low-voltage, 3-in-1 Quick Click solid-core current transformer for cable and busbar measurement. It is rated for a 60 A circuit with 35 mm distance between centers. The CT block conventiently connects to PM22xxR and PM53xxR Series energy meters with a single RJ45 cable. Creating a simple and efficient installation solution which is ideal for panel builders.
Key Features
- Solid core 3 in 1 LVCT of varied rating
- 3 CTs mounted in single block for standard bus bar size
- RJ-45 cable for interfacing between power meter and CT
- Prevent wiring errors and associated rework costs
- Plug and play CTs compatible for Schneider power meters
Technical Specifications
Main6
| Range | PowerLogic |
|---|---|
| Product Or Component Type | Current transformer |
| Accessory / Separate Part Category | Measurement accessory |
| Range Compatibility | EasyLogic EasyLogic PM2200 PM2210R; EasyLogic EasyLogic PM2200 PM2220R; PowerLogic PowerLogic PM5000 PM5310R; PowerLogic PowerLogic PM5000 PM5320R |
| Current Transformer Type | Triple solid core |
| Output Voltage | 0.333 V |
Complementary9
| [In] Rated Current | 60 A |
|---|---|
| Network Frequency | 50 Hz; 60 Hz |
| Measurement Accuracy | +/- 0.5 % |
| Width | 105 mm |
| Height | 80 mm |
| Depth | Body : 38 mm; Total : 54 mm |
| Distance Between Centers | 35 mm |
| Opening Of Bars | 25 x 21 |
| Net Weight | 550 g |
Environment2
| Standards | EN 60044-8; EN 61869-2; UL 61010; IEC 61010 |
|---|---|
| Product Certifications | CE; UL |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.2 cm |
| Package 1 Width | 10.0 cm |
| Package 1 Length | 15.0 cm |
| Package 1 Weight | 482.0 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 27 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 13.5 kg |
Logistical informations1
| Country Of Origin | GB |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
