METSEPM2210 - PM2210 LCD POP
Schneider METSEPM2210, PM2210 LCD POP. Category: PM2000 series. Request a quote for price and lead time.
- Reference:METSEPM2210
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:251.00 EUR (Request a quote)
Key Specifications
- Range
- EasyLogic
- Product Name
- EasyLogic PM2200
- Product Or Component Type
- Power meter
- Device Short Name
- PM2210
Product Description

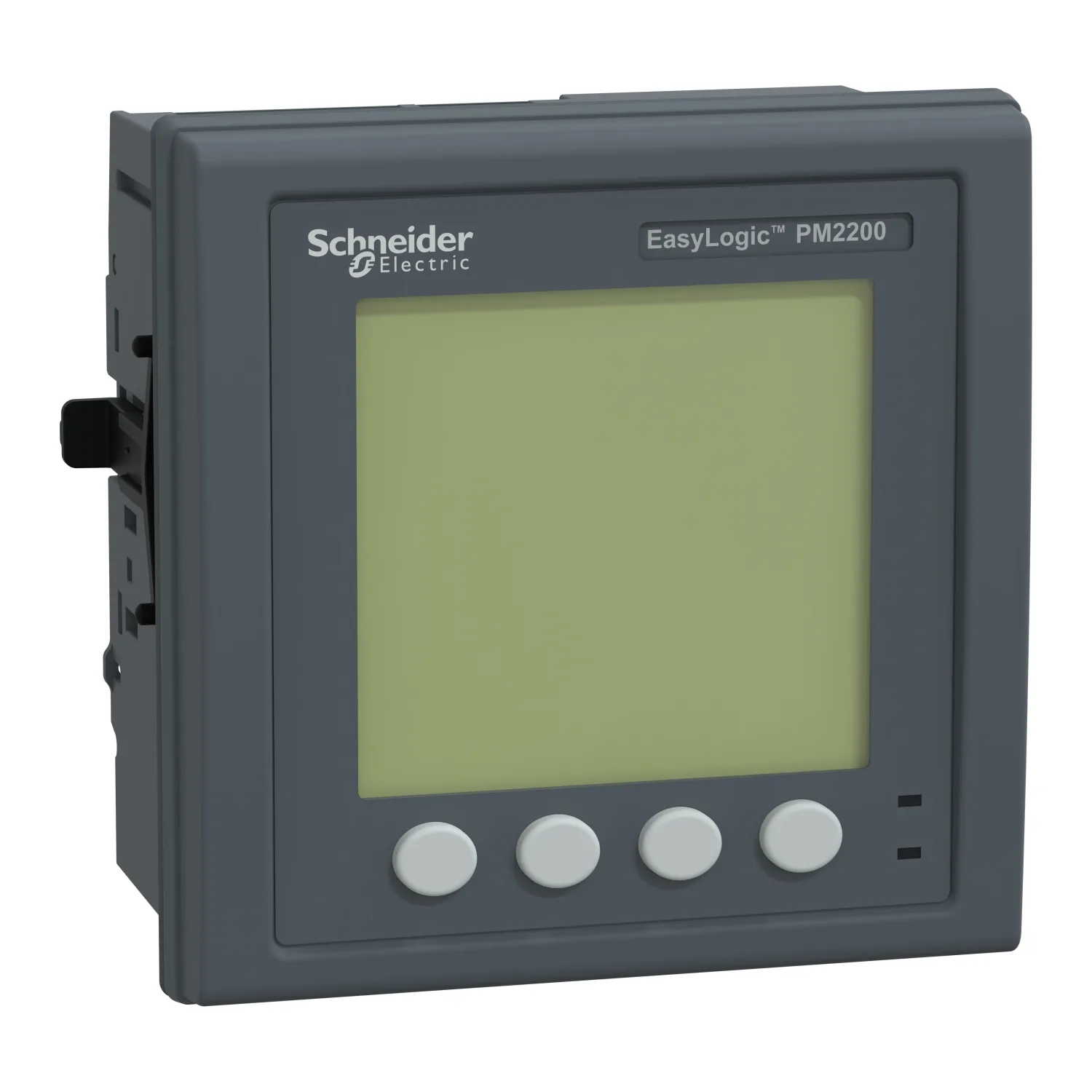

This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having backlit LCD display of 128 by 128 pixels. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion for both current and volrage on per phase basis. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. The meter also has one digital pulse output for any energy parameters congigurable to different energy scaling. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).
Key Features
- "Bill checking to verify that you are only charged for the energy you use"
- "Aggregation of energy consumption and cost allocation within the same facility"
- "Energy cost and usage analysis to optimise energy usage"
- "Metering of electrical parameters to understand your electrical distribution system"
Technical Specifications
Main4
| Range | EasyLogic |
|---|---|
| Product Name | EasyLogic PM2200 |
| Product Or Component Type | Power meter |
| Device Short Name | PM2210 |
Complementary48
| Device Application | Sub billing; Power monitoring |
|---|---|
| Power Quality Analysis | total harmonic distortion |
| Type Of Measurement | Apparent power min/max, total; Active and reactive power min/max, total; Current min/max, avg; Voltage min/max, avg; Frequency min/max, avg; Total current harmonic distortion THD (I) per phase; Total voltage harmonic distortion THD (U) per phase; Power factor min/max, avg; Apparent energy total; Active and reactive energy total |
| Metering Type | Voltage U, U21, U32, U13, V, V1, V2, V3; Unbalance current; Calculated neutral current; Apparent power S, S1, S2, S3; Peak demand currents; Current I, I1, I2, I3; Active, reactive, apparent energy (signed, four quadrant); Active power P, P1, P2, P3; Reactive power Q, Q1, Q2, Q3; Peak demand power PM, QM, SM; Demand power P, Q, S |
| Accuracy Class | Class 1 active energy conforming to IEC 62053-21; Class 1 reactive energy conforming to IEC 62053-24 |
| Measurement Accuracy | Apparent power +/- 1 %; Active energy +/- 1 %; Reactive energy +/- 1 %; Active power +/- 1 %; Voltage +/- 0.5 %; Power factor +/- 0.01; Current +/- 0.5 %; Frequency +/- 0.05 % |
| Measurement Current | 5…6000 mA |
| Measurement Voltage | 35…480 V AC 50/60 Hz between phases; 20…277 V AC 50/60 Hz between phase and neutral; 480…999000 V AC 50/60 Hz with external VT |
| Frequency Measurement Range | 45…65 Hz |
| [Us] Rated Supply Voltage | 44...277 V AC 45...65 Hz +/- 10 %; 44...277 V DC +/- 10 % |
| Network Frequency | 60 Hz; 50 Hz |
| Ride-through Time | 100 ms 120 V AC typical; 400 ms 230 V AC typical; 50 ms 125 V DC typical |
| [In] Rated Current | 1 A; 5 A |
| Maximum Power Consumption In VA | 6 VA at 277 V AC |
| Maximum Power Consumption In W | 3.3 W (power lines (AC)); 2 W at 277 V (power lines (DC)) |
| Input Impedance | Current (impedance <= 0.3 mOhm); Voltage (impedance > 5 MOhm) |
| Tamperproof Of Settings | Protected by access code |
| Display Type | Backlit LCD |
| Display Colour | Monochrome |
| Display Resolution | 128 x 128 pixels |
| Demand Intervals | Configurable from 1 to 60 min |
| Information Displayed | Demand current (past value); Demand current (present value); Demand power (past value); Demand power (present value); Voltage; Current; Frequency; Energy consumption; Harmonic distortion; Power factor; Active power; Apparent power; Reactive power; Unbalanced in %; Harmonic amplitude |
| Control Type | 4 x button |
| Local Signalling | Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh); Green LED: module operating (RUN) |
| Number Of Inputs | 0 |
| Number Of Outputs | 1 pulse |
| POP Parameter | Pulse: 20 ms (5...40 V DC, 20 mA max)1...9999000 pulse/ k_h (kWh, kVAh, kVARh) |
| Impulse Duration | 20 ms |
| Communication Port Protocol | POP |
| Sampling Rate | 64 samples/cycle |
| Cybersecurity | Enable/disable communication ports |
| Communication Service | Remote monitoring |
| User Language | German; English; Chinese; Russian; Spanish; Portuguese; French |
| Product Certifications | CE conforming to IEC 61010-1; CULus conforming to UL 61010-1; CULus conforming to CSA C22.2 No 61010-1; RCM; EAC; C-Tick |
| Mounting Mode | Clip-on |
| Mounting Position | Vertical |
| Mounting Support | Framework |
| Provided Equipment | 1 x installation guide |
| Measurement Category | Category III 480 V; Category II 480…600 V |
| Electrical Insulation Class | Class II; Double insulation |
| Flame Retardance | V-0 conforming to UL 94 |
| Connections - Terminals | Current transformer: screw connection (bottom) 6; Voltage inputs: screw connection (top) 4 |
| Material | Polycarbonate |
| Width | 96 mm |
| Depth | Total : 76.09 mm; Embedded : 61.64 mm |
| Height | 96 mm |
| Net Weight | 300 g |
| Compatibility Code | PM2210 |
Environment9
| Service Life | 7 year(s) |
|---|---|
| IP Degree Of Protection | IP54 front: conforming to IEC 60529; IP30 body: conforming to IEC 60529 |
| Relative Humidity | 5…95 % at 50 °C |
| Pollution Degree | 2 |
| Ambient Air Temperature For Operation | -10…60 °C |
| Ambient Air Temperature For Storage | -25…70 °C |
| Operating Altitude | <= 2000 m |
| Electromagnetic Compatibility | Electrostatic discharge conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test conforming to IEC 61000-4-4; Surge immunity test conforming to IEC 61000-4-5; Conducted RF disturbances conforming to IEC 61000-4-6; Magnetic field at power frequency conforming to IEC 61000-4-8; Voltage dips an |
| Overvoltage Category | III |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 12.500 cm |
| Package 1 Weight | 353.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 18 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.970 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 144 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 65.760 kg |
Logistical informations1
| Country Of Origin | IN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
