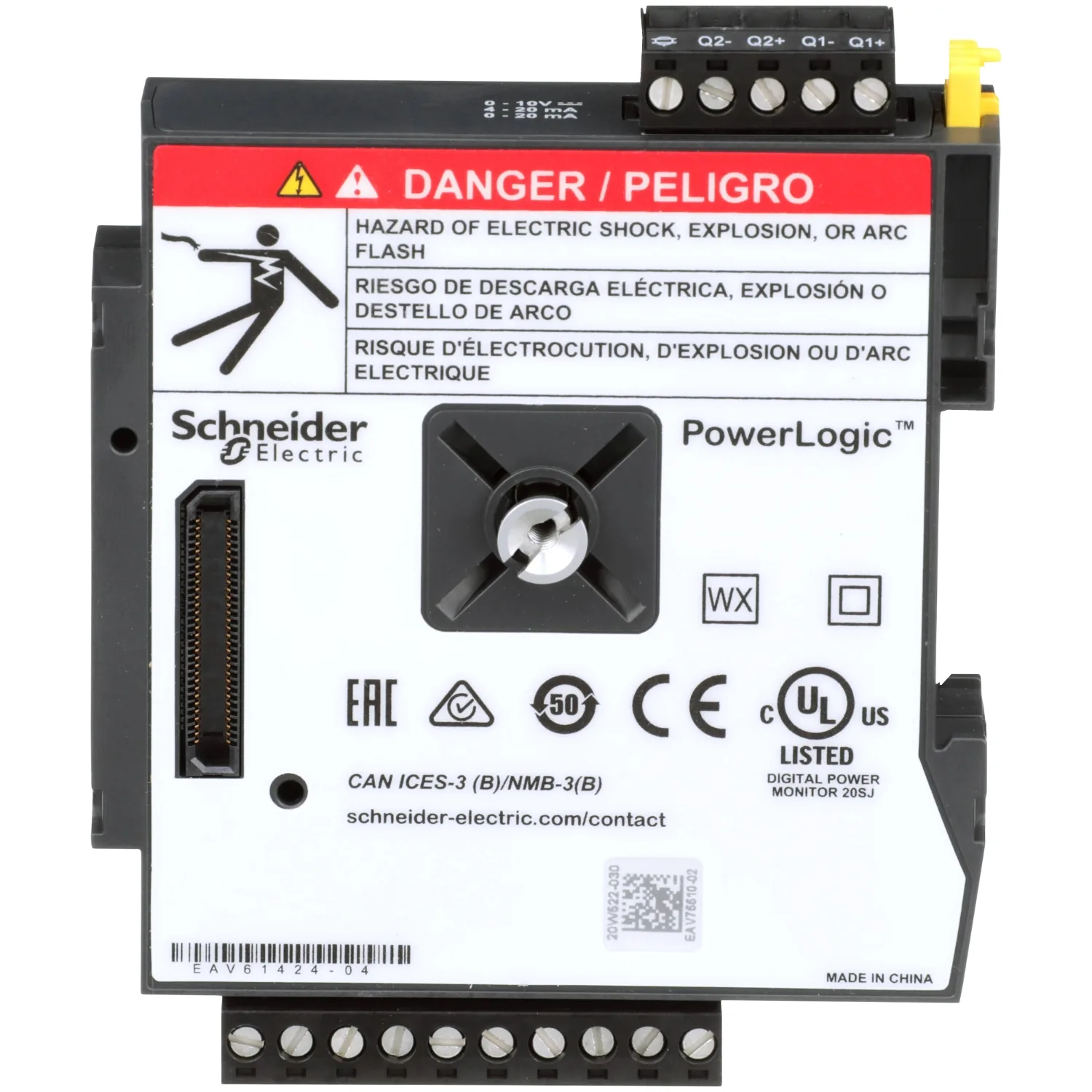

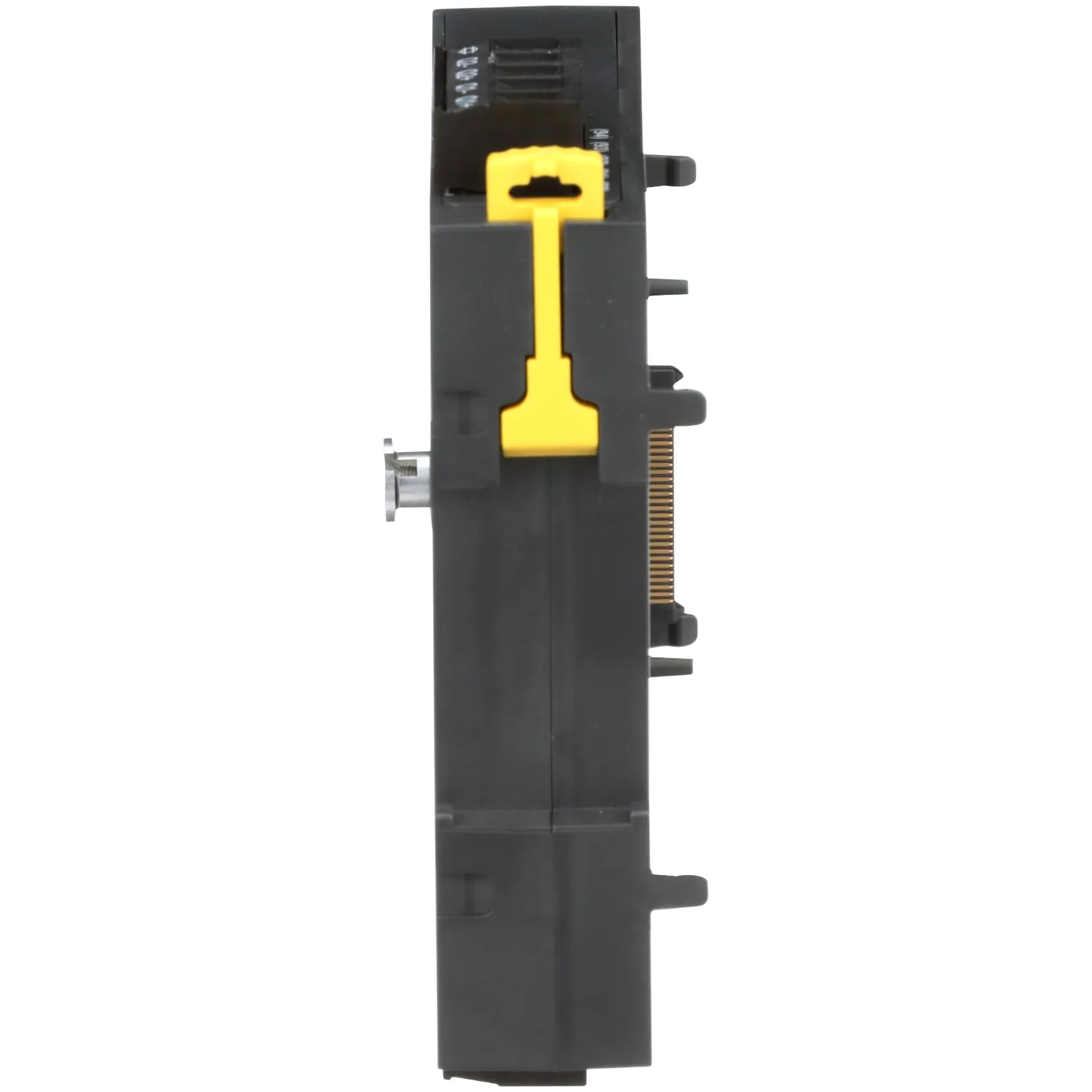

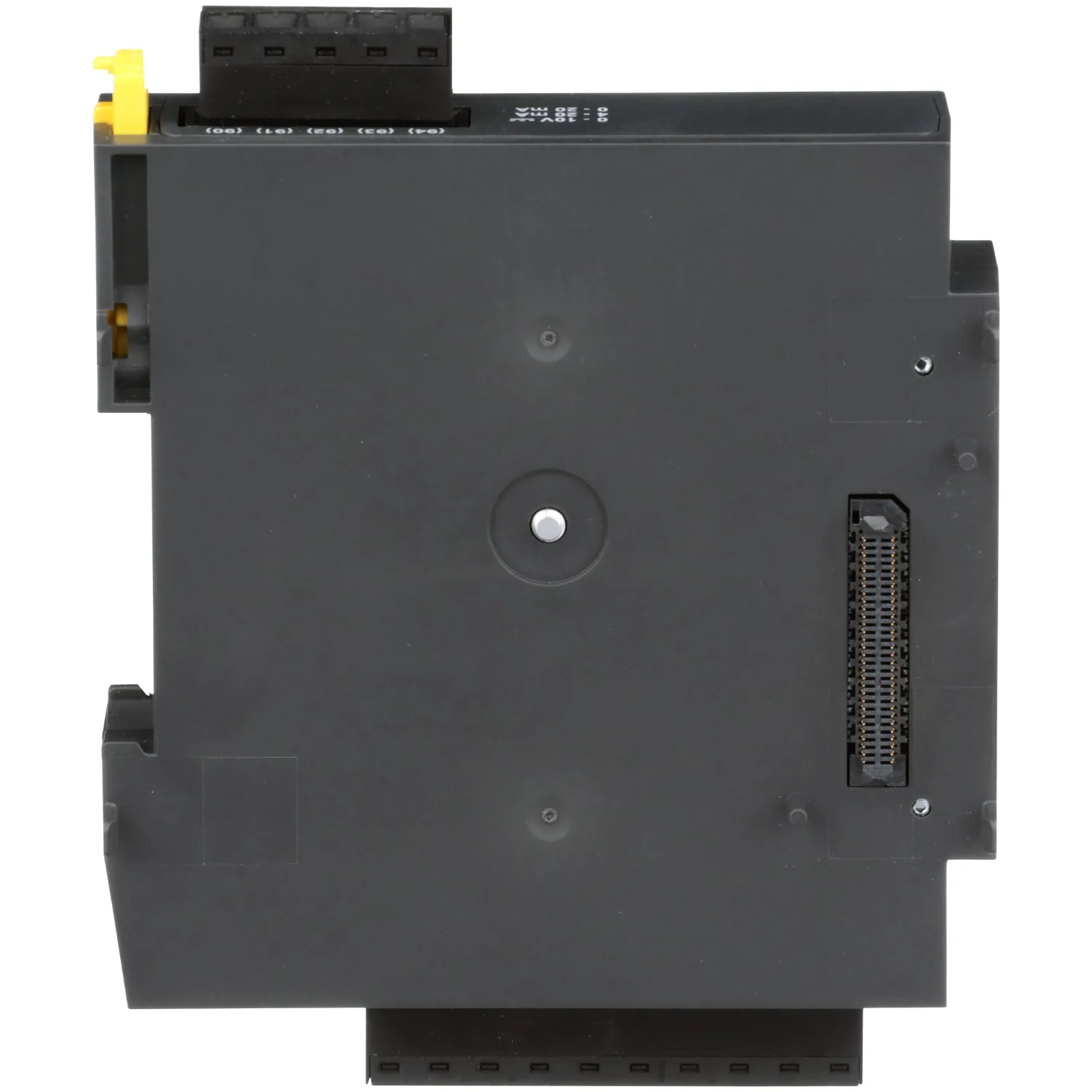

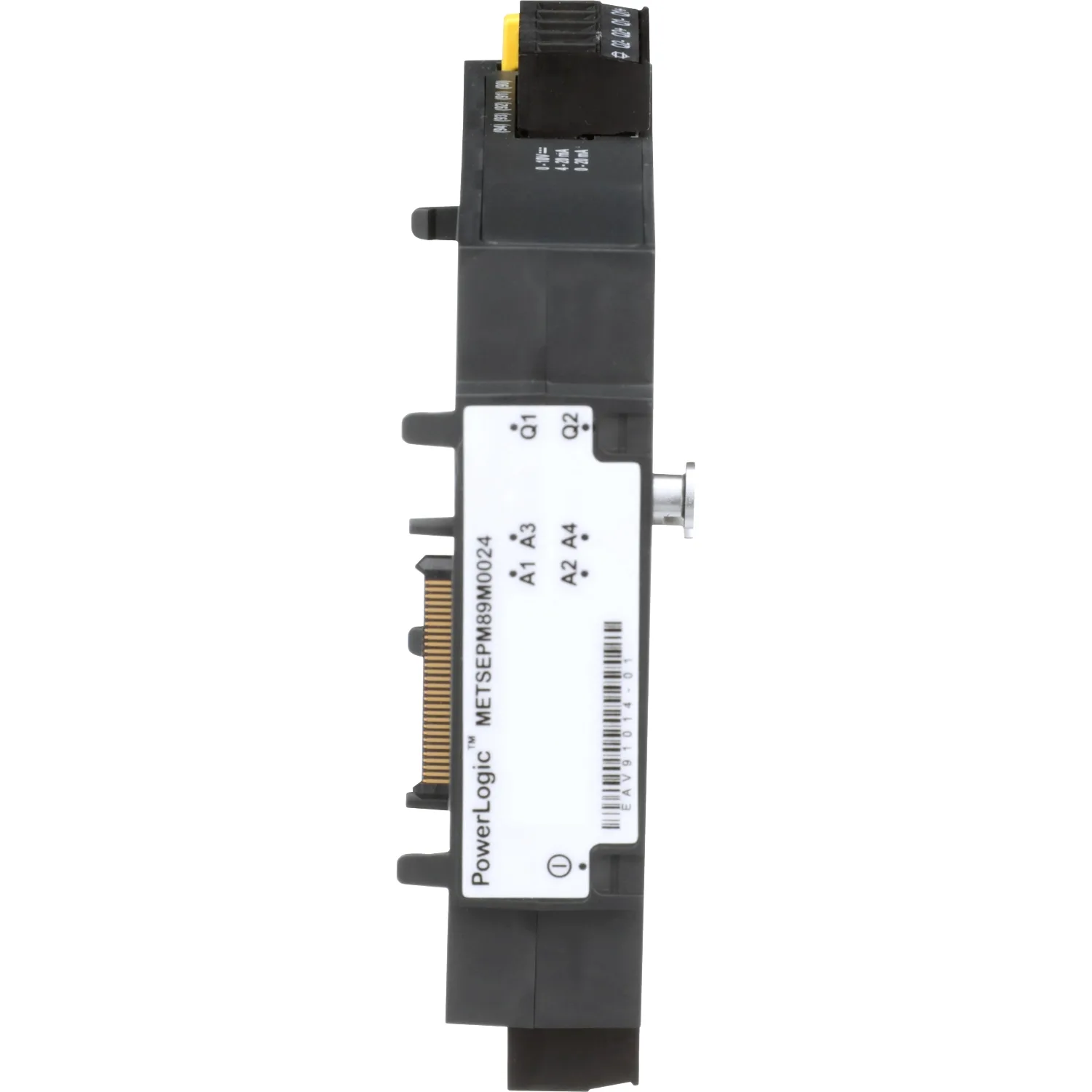

METSEPM89M0024 - PM8000/ION7400 I/O module, 4 AI, 2 AO
Schneider METSEPM89M0024, PM8000/ION7400 I/O module, 4 AI, 2 AO. Category: PowerLogic™ PM8000 Power Quality Meters. Request a quote for price and lead time.
- Reference:METSEPM89M0024
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:REQUEST A QUOTE
Key Specifications
- Range
- PowerLogic
- Product Or Component Type
- I/O module
- Device Application
- Optional expansion module
Product Description
Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional analog inputs and analog outputs. This analog module provides 4 analog inputs that support 0 to 20mA, 4 to 20mA and 0 to 30V. Plus 2 analog outputs to interface with BMS and other systems. The analog outputs support 0 to 20mA, 4 to 20mA and 0 to 10V. Analog inputs and outputs are sampled by the host meter at a 1/2 cycle (8-10ms) rate. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.
Key Features
- "Expands meter field controlling and monitoring ability"
- "Easily mount on the meter base"
- "Configurable through ION-SETUP"
- "No auxiliary power required, as it is powered from the base meter"
- "Compact and cost effective"
Technical Specifications
Main4
| Range | PowerLogic |
|---|---|
| Product Or Component Type | I/O module |
| Device Application | Optional expansion module |
| Range Compatibility | PowerLogic PowerLogic PM8000; PowerLogic PowerLogic ION7400; PowerLogic PowerLogic ION9000 |
Complementary6
| Number Of Outputs | 2 analog, 0-20 mA or 4-20 mA or 0...10 V |
|---|---|
| Number Of Inputs | 4 analog 0...20 mA/4...20 mA 0...30 V |
| Width | 22 mm |
| Depth | 90.5 mm |
| Height | 90.5 mm |
| Net Weight | 140 g |
Environment3
| Ambient Air Temperature For Operation | -25…70 °C |
|---|---|
| Ambient Air Temperature For Storage | -40…85 °C |
| IP Degree Of Protection | IP30 conforming to IEC 60529 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 6.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 220.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.755 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
