Schneider

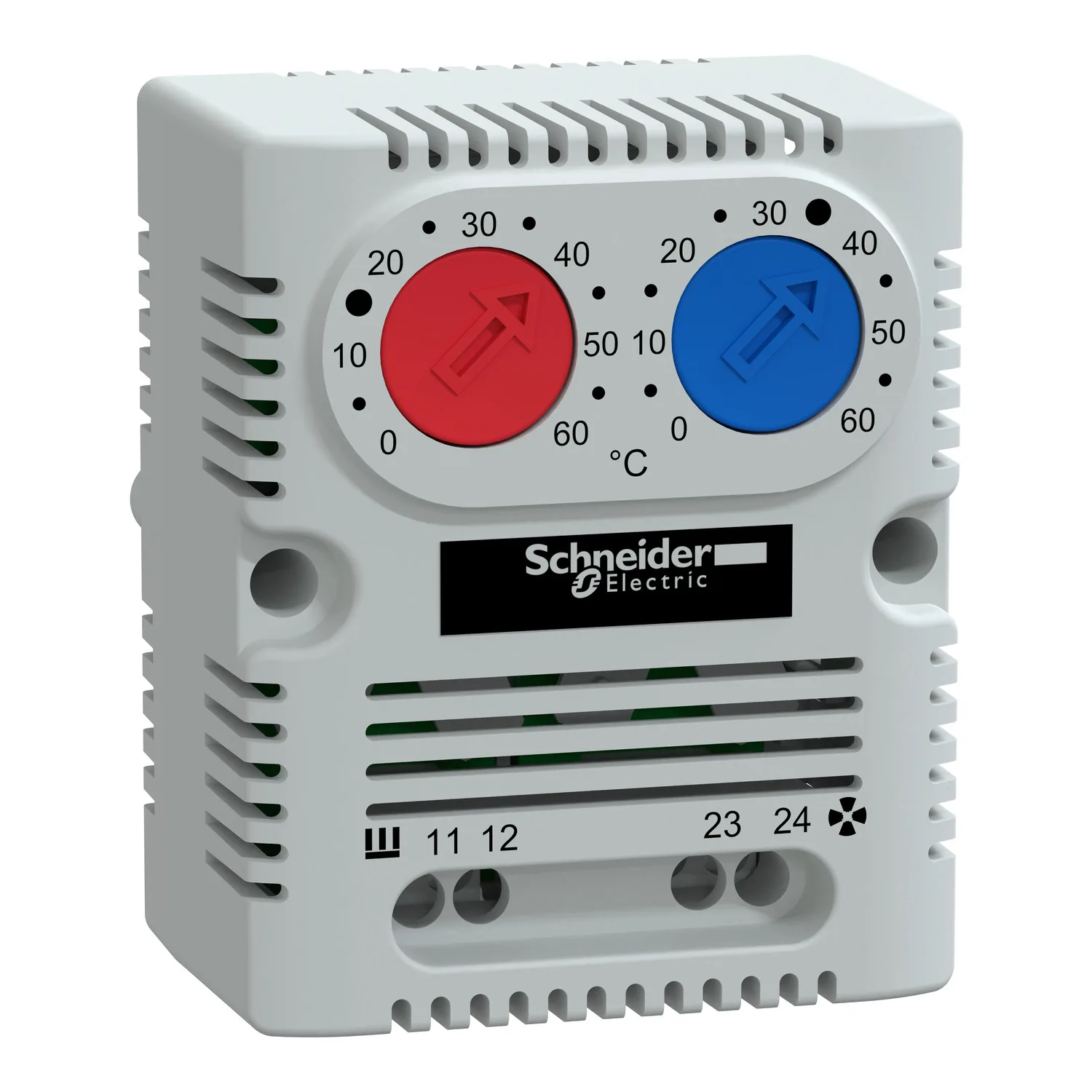

NSYCCOTHD - Dual thermostat (NO - NC) (°C)
Schneider NSYCCOTHD, Dual thermostat (NO - NC) (°C). Category: ClimaSys CC. Request a quote for price and lead time.
- Reference:NSYCCOTHD
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:34.40 EUR (Request a quote)
Key Specifications
- Range
- ClimaSys
- Product Name
- ClimaSys CC
- Product Or Component Type
- Double thermostat
- Temperature Setting Range
- 0…60 °C
Product Description
ClimaSys CC Double thermostat. 250V AC. 68 x 56 x 44 mm. Sensor Bimetal with 1 NO/NC contact type. 1 heating function and 1 ventilation function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.
Key Features
- "Temperature setting range : 0 - 60°C"
- "Sensor type Bimetal - 100000 cycles"
- "Multi mounting mode : DIN rail, mounting plate, cross rails"
- "Electrical connection 4 terminals, clamping capacity : 2.5 mm²"
- "Ext Dimensions : 68 x 56 x 44 mm."
Technical Specifications
Main5
| Range | ClimaSys |
|---|---|
| Product Name | ClimaSys CC |
| Product Or Component Type | Double thermostat |
| Temperature Setting Range | 0…60 °C |
| Information Displayed | Temperature in °C |
Complementary21
| Input Voltage | 250 V |
|---|---|
| Sensor Type | Bimetal |
| Contacts Type And Composition | 1 NO/NC |
| Contact Resistance | 10 mOhm |
| Service Life In Cycles | 100000 cycles |
| Maximum Switching Capacity | 2 A 120...250 V AC inductive pf: 0.6; 10 A 250 V AC resistive; 15 A 120 V AC resistive; 30 W DC |
| Electrical Connection | 4 terminals, clamping capacity: 2.5 mm² |
| Mounting Mode | Clipped |
| Height | External: 68 mm |
| Width | External: 56 mm |
| Depth | External : 44 mm |
| Net Weight | 40 g |
| Mounting Location | Spacial upright; On mounting plate; 35 mm DIN rail; Cross rails |
| Ambient Air Temperature For Operation | -20…80 °C |
| IP Degree Of Protection | IP20 |
| Hysteresis | 7 K +/- 0.4K |
| Number Of Outputs | 1 heating function; 1 ventilation function |
| Material | PC |
| Colour | Light grey |
| Flame Retardance | Self-extinguishing conforming to UL94 (material V0) |
| Product Certifications | UL |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 6.000 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 104.000 g |
| Unit Type Of Package 2 | P12 |
| Number Of Units In Package 2 | 1500 |
| Package 2 Height | 119.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 200.000 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
