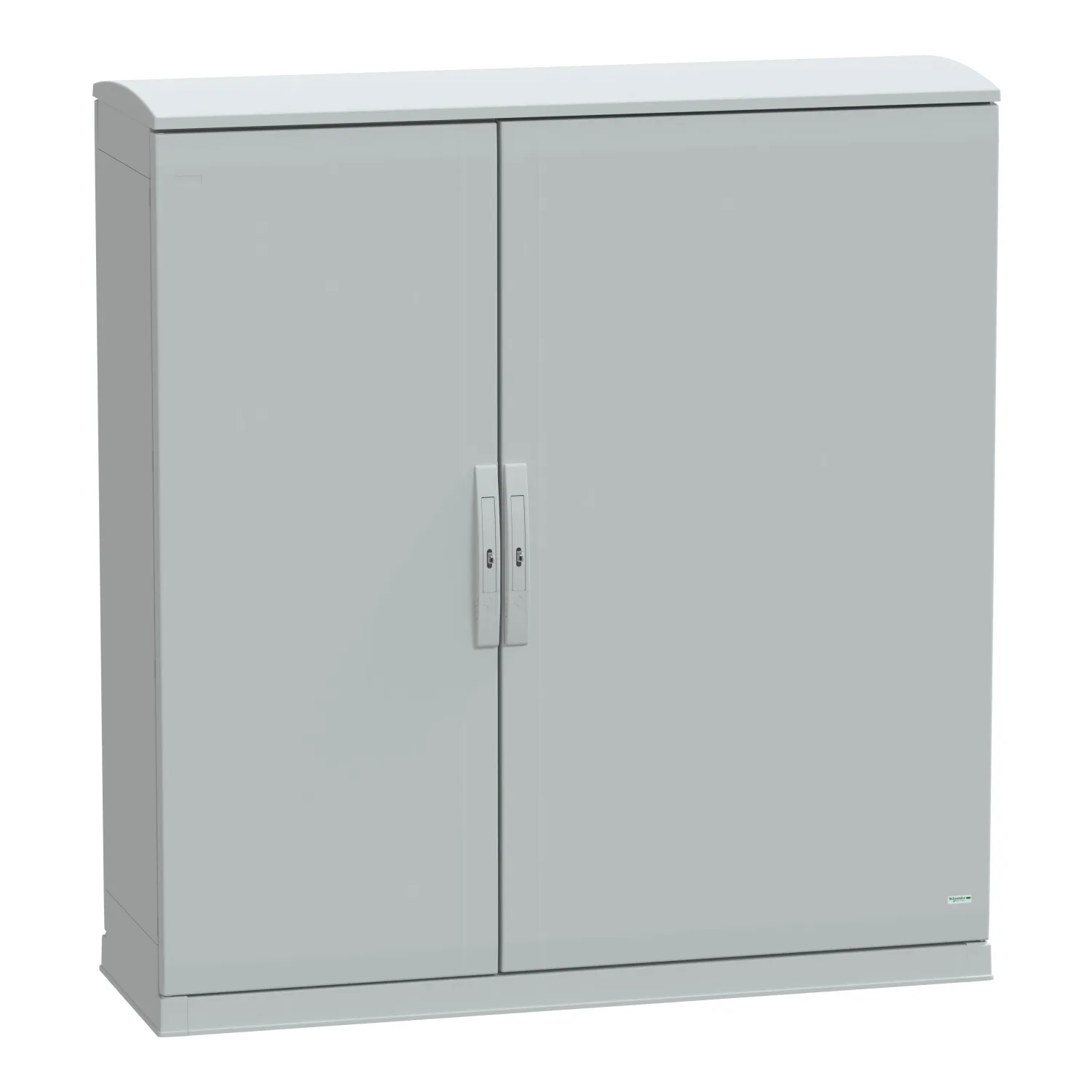

NSYPHDZT12124P - Outdoor HD enclosure 1250x1250x420mm polycarbonate
Schneider NSYPHDZT12124P, Outdoor HD enclosure 1250x1250x420mm polycarbonate. Category: PanelSeT for outdoors operation. Request a quote for price and lead time.
- Reference:NSYPHDZT12124P
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:3,982.00 EUR (Request a quote)
Key Specifications
- Range
- PanelSeT
- Product
- PHD
- Application
- Outdoor heavy duty
- Enclosure Type
- Multi-purpose
Product Description
High performance enclosure for outdoor installation H 1343 W 1250 D 420, IP55, full door
Technical Specifications
Main13
| Range | PanelSeT |
|---|---|
| Product | PHD |
| Application | Outdoor heavy duty |
| Certification | UL conforming to UL 508 A 2007; Bureau Veritas conforming to IEC 61969-3 2011; Bureau Veritas conforming to IEC 61439-5 2010; DEKRA conforming to IEC 62208 2011 |
| Enclosure Type | Multi-purpose |
| Category | Suitable enclosure |
| Version | PHDZT |
| Enclosure Height With Canopy | 1343 mm |
| Canopy Height | 38 mm |
| Enclosure Width | 1250 mm |
| Enclosure Depth | 420 mm |
| Enclosure Mounting | Floor-standing |
| Device Composition | 1 body in polyester double reinforced with fibreglass; 2 doors in polyester double reinforced with fibreglass in side by side; 1 document pocket in plastic A4 format; 1 canopy in polyester reinforced with fibreglass; 2 cable gland plate in aluminium; 2 door retainer in steel with anti-corrosive coating |
Complementary12
| Body Type | Sealed assembled body |
|---|---|
| Door Type | Plain |
| Number Of Doors | 2 door(s) |
| Door Opening Side | Right and left (120 °) |
| Lock Type | 4 points lock, handle with 1242E key lock and padlock door |
| Accessibility For Operation | Front; Bottom |
| Maximum Lifting Load | 500 kg |
| Removable Parts | Door by hinges; Canopy by fixing element; Cable gland plate by fixing element |
| Material | Polyester double reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 61969-3; IEC 62208; UL 508 A; IEC 61439-5 |
| Electrical Insulation Class | Class II conforming to IEC 61439-1 2011 |
Environment9
| IP Degree Of Protection | IP55 conforming to IEC 60529 |
|---|---|
| IK Degree Of Protection | IK10 conforming to IEC 62262 (plain door) |
| Mechanical Robustness | Vandal-proof conforming to EN/IEC 61439-5 version 2010 |
| Fire Resistance | 960 °C conforming to IEC 62208 |
| Ambient Air Temperature For Operation | -45…80 °C conforming to IEC 61969-3 class 1 |
| Ambient Air Temperature For Storage | -25…40 °C |
| Corrosion Withstand | 90…100 % conforming to ISO 12944 C4H |
| Environmental Withstand | Solar radiation: class 1 up to 1120 W/m² conforming to IEC 61969-3:2011; Surrounding air withstand: class 1 up to 180 km/h conforming to IEC 61969-3:2011; Ultraviolet degradation test: class 1 conforming to ISO 4892-2:2013; Formation of ice and frost: class 1 conforming to IEC 61969-3:2011; Fauna and flora withstand: class 1 conforming to IEC 61969-3:2011; : class 1 conforming to IEC 61969-3:2011 |
| Thermal Management Options | Fan: 1500 W for a maximum noise level of 60 dB; With external cooling 4000 W; Natural: 1257 W at -25 °C; Natural: 550 W at 20 °C; Natural: 235 W at 40 °C; According to cooling architecture 1500 W |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 135.000 cm |
| Package 1 Width | 127.000 cm |
| Package 1 Length | 44.500 cm |
| Package 1 Weight | 70.300 kg |
| Unit Type Of Package 2 | PAL |
| Number Of Units In Package 2 | 2 |
| Package 2 Height | 148.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 127.000 cm |
| Package 2 Weight | 152.600 kg |
Logistical informations1
| Country Of Origin | ES |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
