NSYPLM108G - 7035 WM PLM 1056x852x350

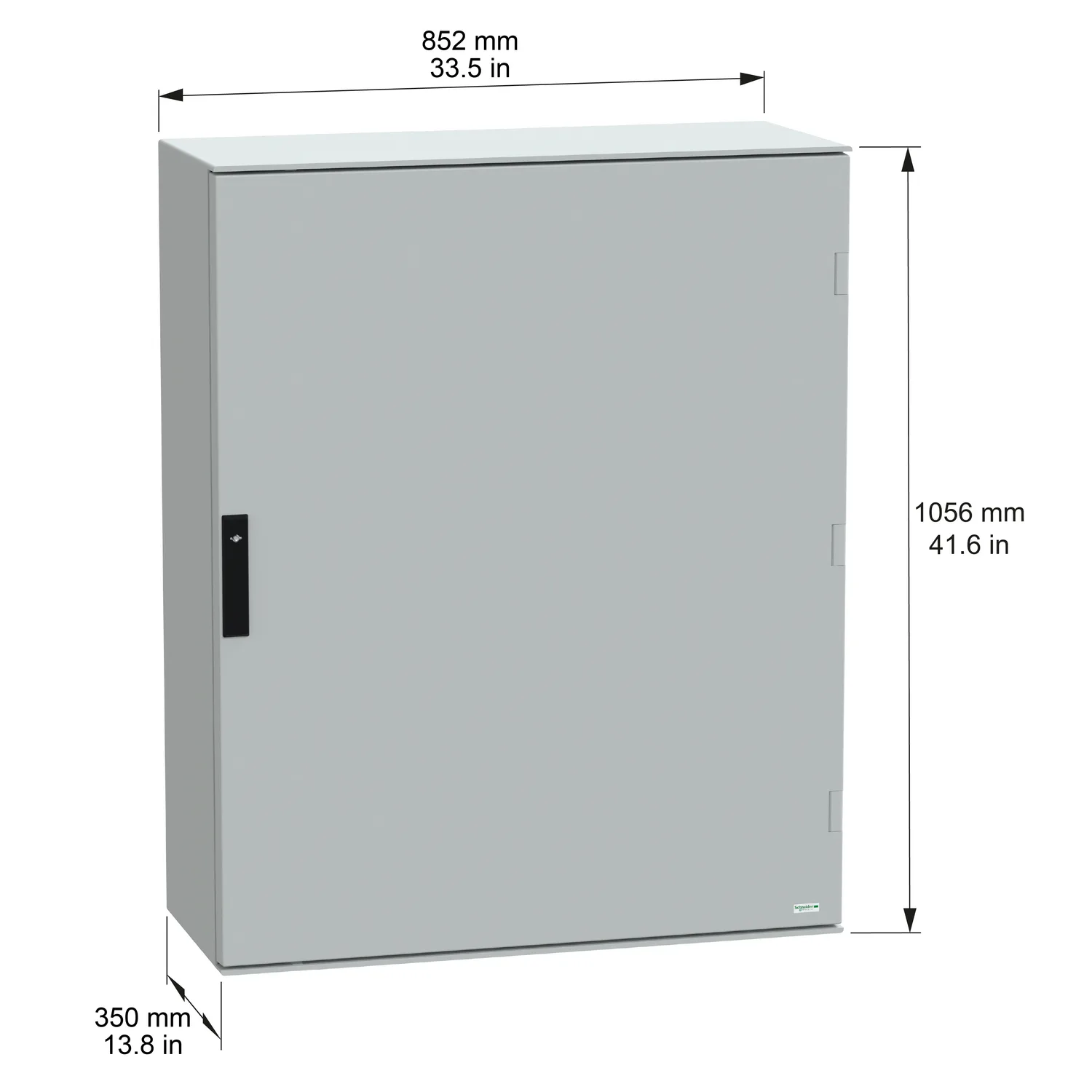

This PanelSeT PLM (formerly PanelSeT PLM) is a wall-mounted enclosure that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 1056 mm, 852 mm, and 350 mm, respectively. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The enclosure consists of one body, one door, and one lock. The door is plain, and the lock is a 4 points lock with a handle that has a 5 mm double bar insert. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance. The enclosure is also fire resistant up to 960 °C (IEC 62208) and meets NEMA classification 13 and 4X standards, as well as IEC 62208.

Key Features

• "Durable polyester reinforced enclosure for use in rugged environments."
• "High protection against dust and water with an IP66 rating."
• "Resistant to impacts, ensuring equipment safety with an IK10 rating."
• "Class II electrical insulation provides protection against electric shocks."
• "4 point lock ensures secure access to the enclosure contents."
