NSYPLSP5454G - 7035 Opaque polyester PLS box 54x54x18
Schneider NSYPLSP5454G, 7035 Opaque polyester PLS box 54x54x18. Category: PanelSeT PLS. Request a quote for price and lead time.
- Reference:NSYPLSP5454G
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:275.00 EUR (Request a quote)
Key Specifications
- Range
- PanelSeT
- Product Name
- PanelSeT PLS
- Device Short Name
- PLS
- Enclosure Type
- Multi-purpose
Product Description

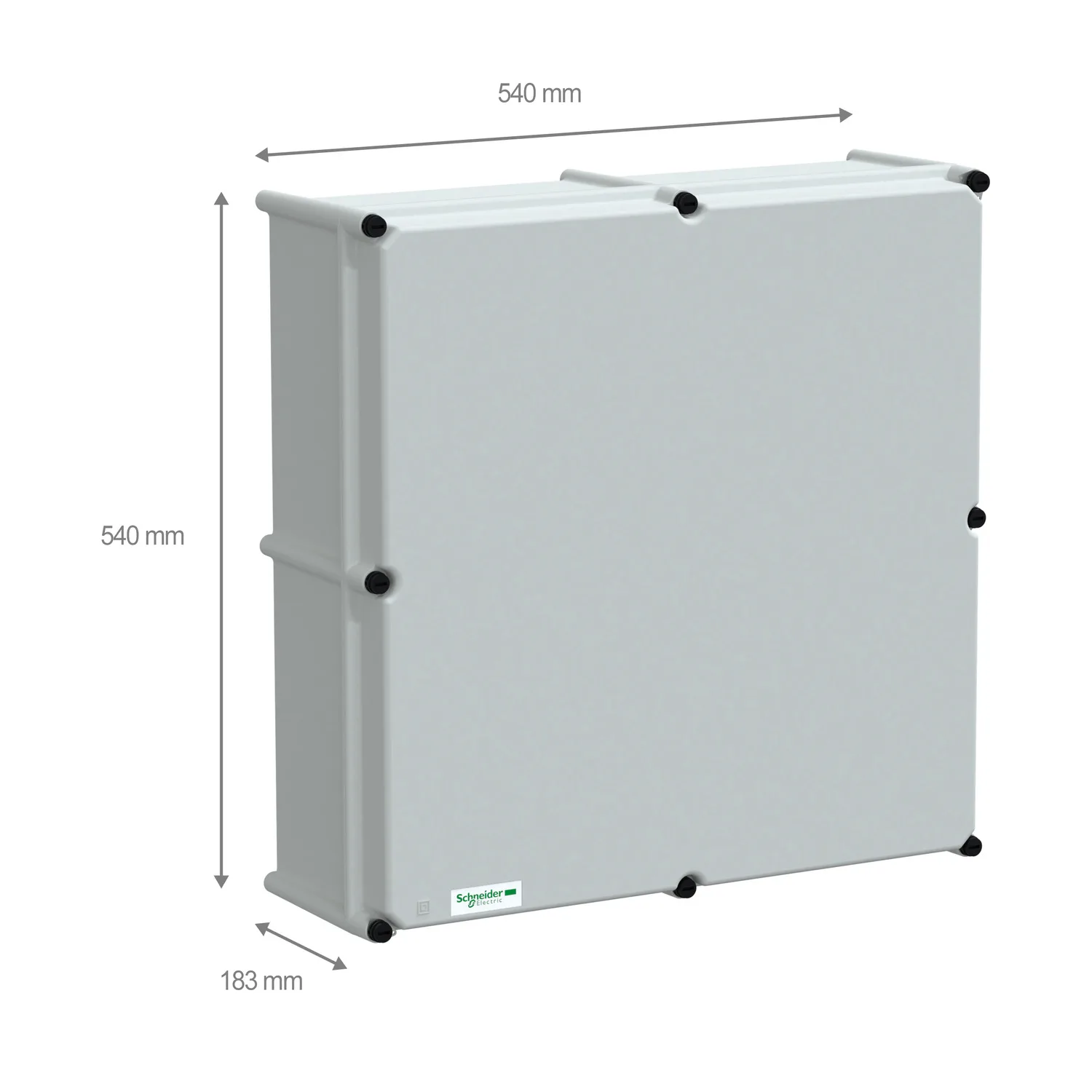

Thalassa PLS box polyester rear with opaque polyester cover. 540 x 540 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. Low plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear and cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
Key Features
- Modular design allowing flexible configuration
- Ideal for scalable industrial installations
- Robust protection against dust, water and harsh industrial conditions
- Class II electrical insulation for safe operation
- Polyester opaque cover which provides protection against UV
Technical Specifications
Main13
| Range | PanelSeT |
|---|---|
| Product Name | PanelSeT PLS |
| Device Short Name | PLS |
| Enclosure Type | Multi-purpose |
| Category | Insulating modular box |
| Nominal Height | 540 mm |
| Nominal Width | 540 mm |
| Nominal Depth | 180 mm |
| Enclosure Mounting | Wall mounted |
| Device Composition | 1 cover: on enclosure; 1 rear part: on enclosure; locking screws |
| Body Type | One piece moulded |
| Type Of Front Cover | Low plain cover |
| Lock Type | Slot screw |
Complementary5
| Removable Parts | Cover locking screw |
|---|---|
| Material | Rear: polyester reinforced with fibreglass; Cover: polyester reinforced with fibreglass |
| Colour | Body: grey (RAL 7035) |
| Standards | NEMA classification 13; NEMA 4X; IEC 62208 |
| Product Certifications | UL |
Environment5
| Electrical Insulation Class | Class II |
|---|---|
| IP Degree Of Protection | IP66 conforming to IEC 60529 |
| IK Degree Of Protection | IK09 conforming to IEC 62262 |
| Fire Resistance | 960 °C conforming to IEC 62208 |
| Ambient Air Temperature For Storage | -30…70 °C |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 19.000 cm |
| Package 1 Width | 55.000 cm |
| Package 1 Length | 55.000 cm |
| Package 1 Weight | 6.634 kg |
| Unit Type Of Package 2 | PAM |
| Number Of Units In Package 2 | 30 |
| Package 2 Height | 184.500 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 212.000 kg |
Logistical informations1
| Country Of Origin | ES |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
