NTSDAO0205K - Edge I/O NTS 2 Digital Outputs, Triac, 1A, 100-240V AC, Kit
Schneider NTSDAO0205K, Edge I/O NTS 2 Digital Outputs, Triac, 1A, 100-240V AC, Kit. Category: Modicon Edge I/O NTS. Request a quote for price and lead time.
- Reference:NTSDAO0205K
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:186.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Modicon Edge I/O NTS
- Product Or Component Type
- Discrete output module kit
- Kit Composition
- NTSDAO0205 module; NTSXBA0100H base
- Mandatory Accessory
- NTSXTB12_1_H terminal block
Product Description

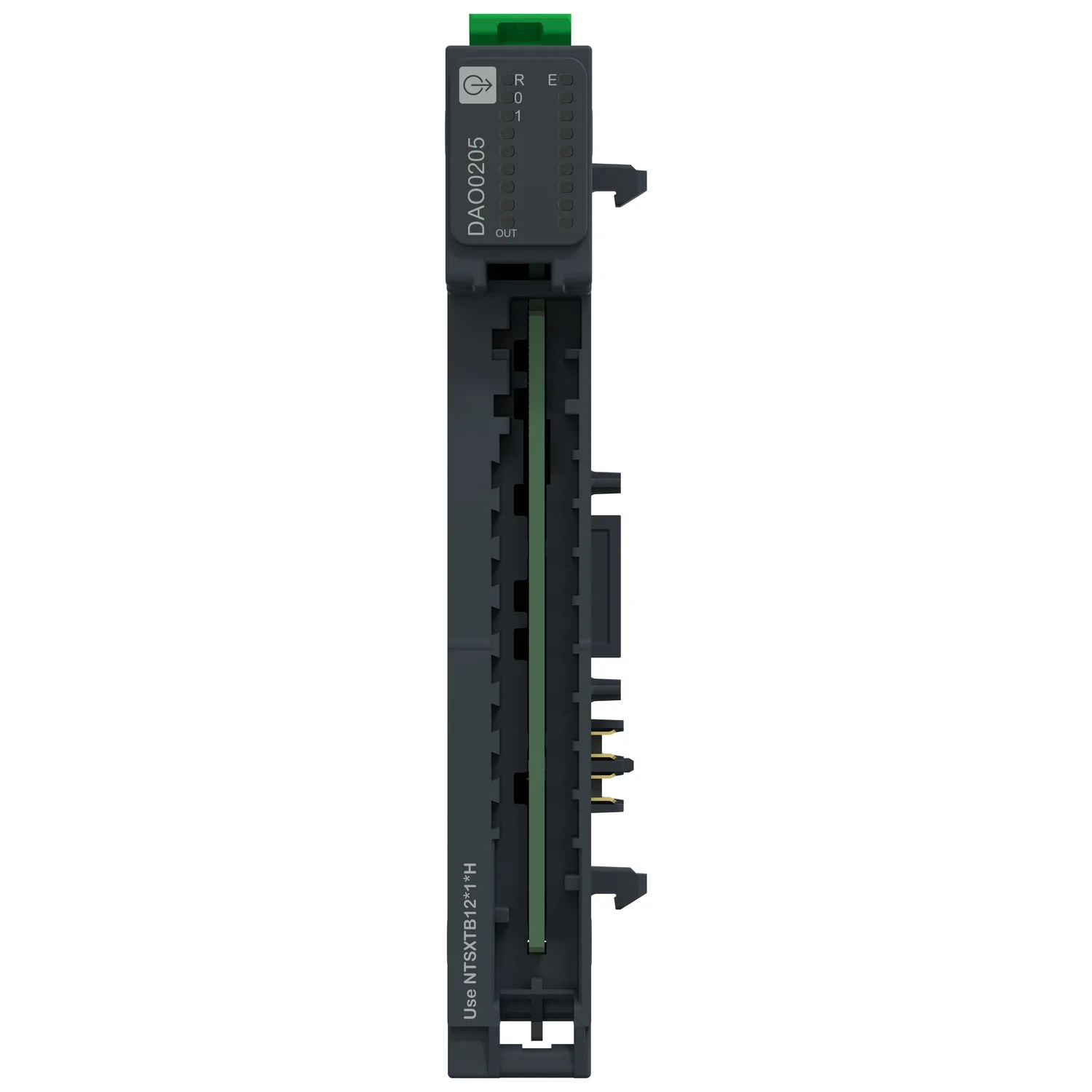

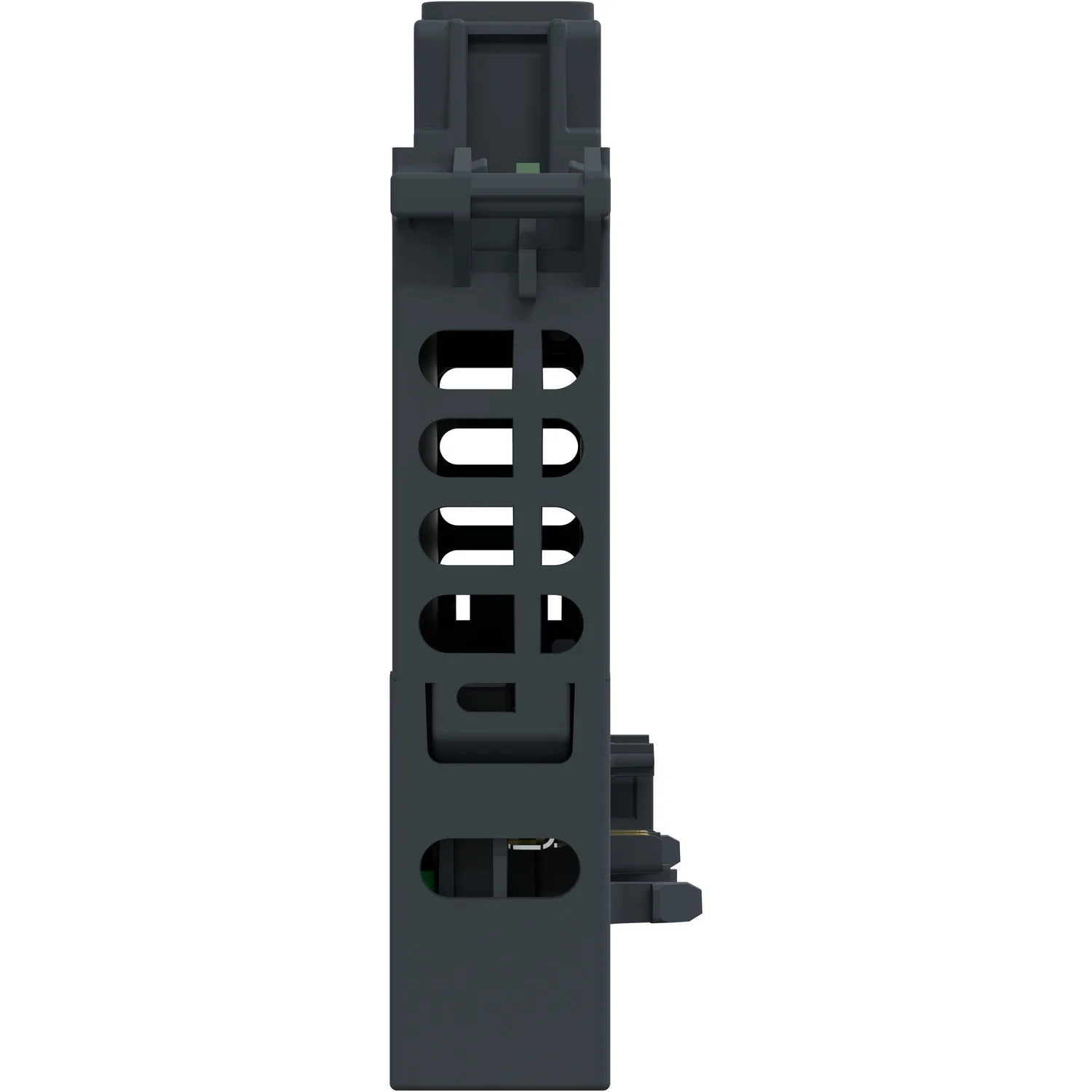

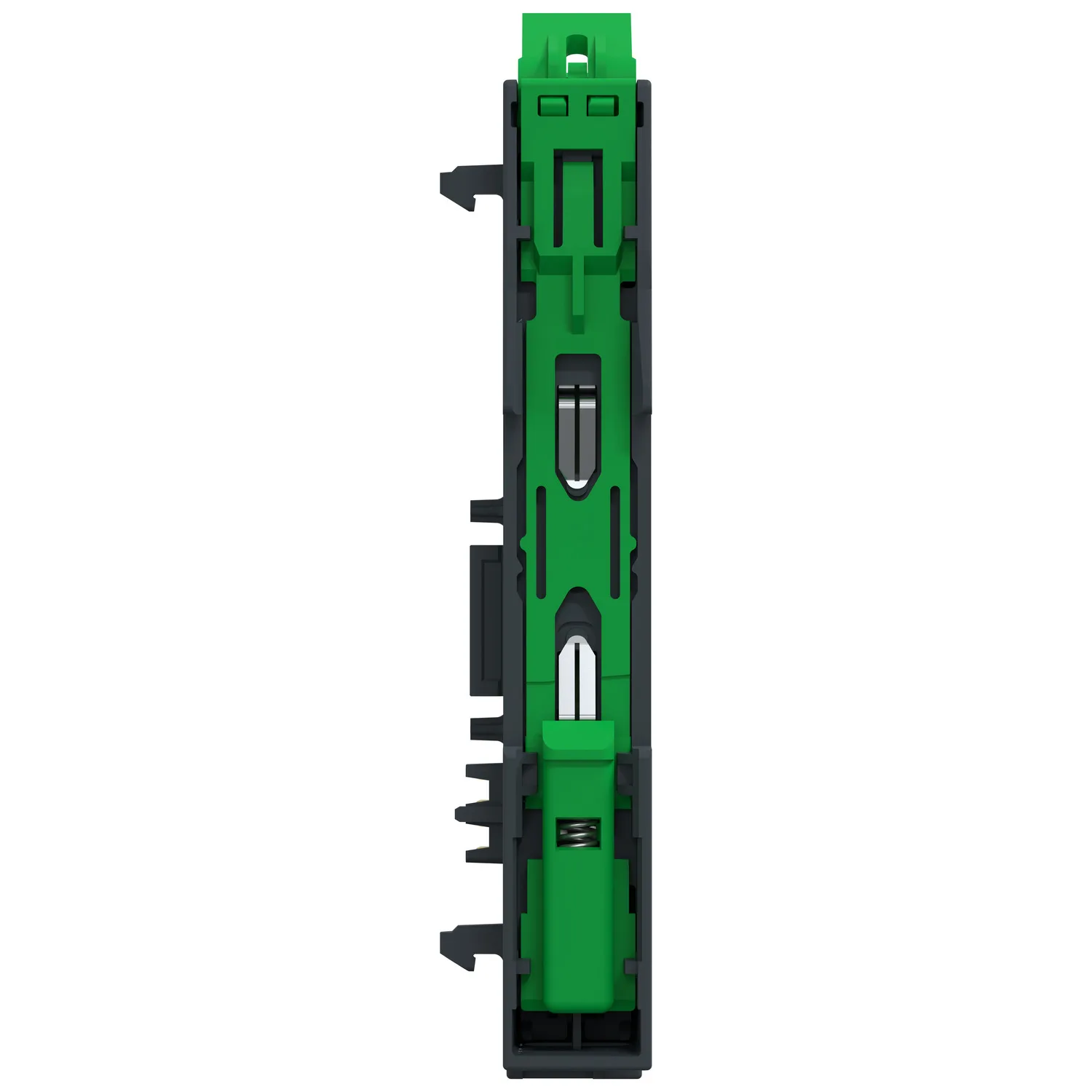

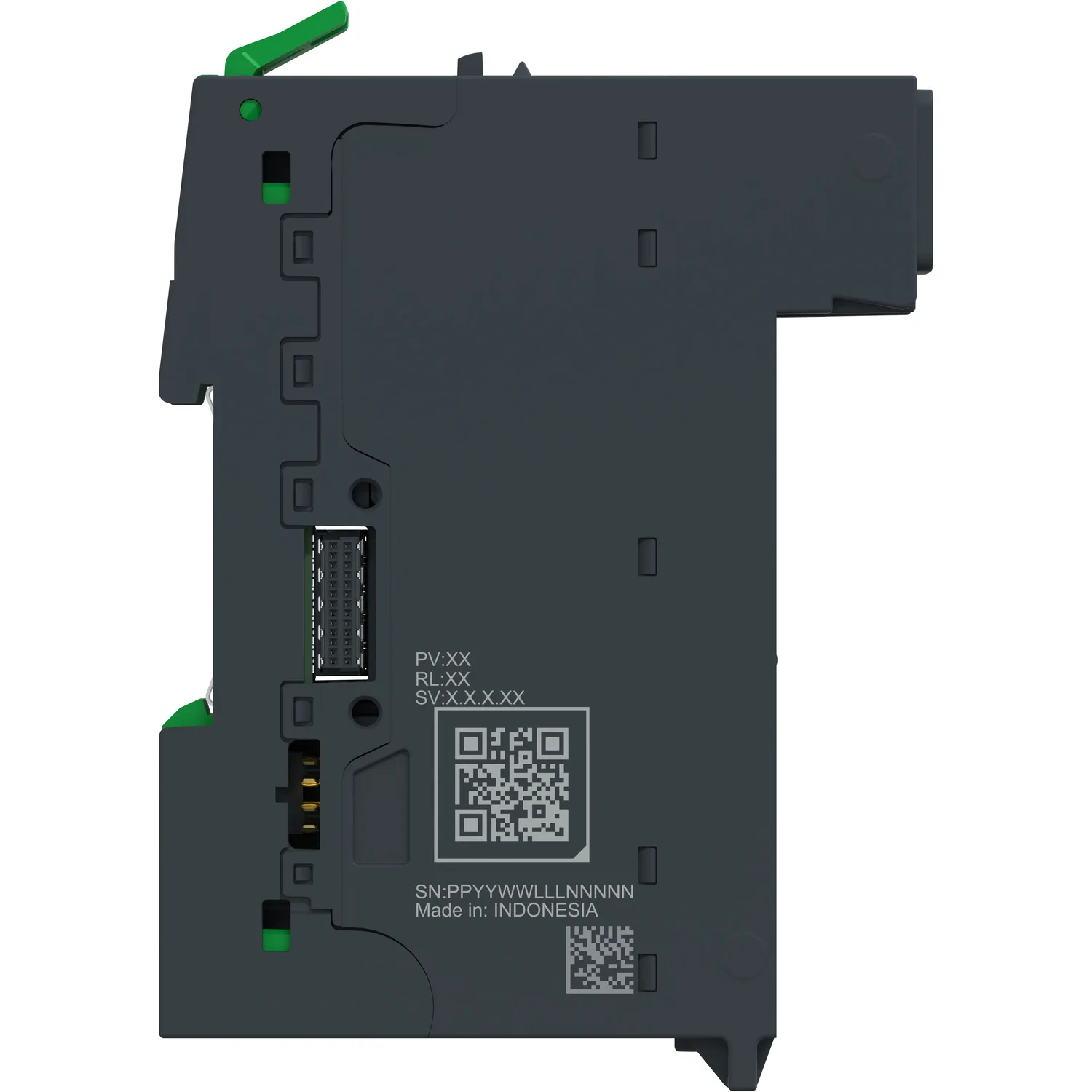

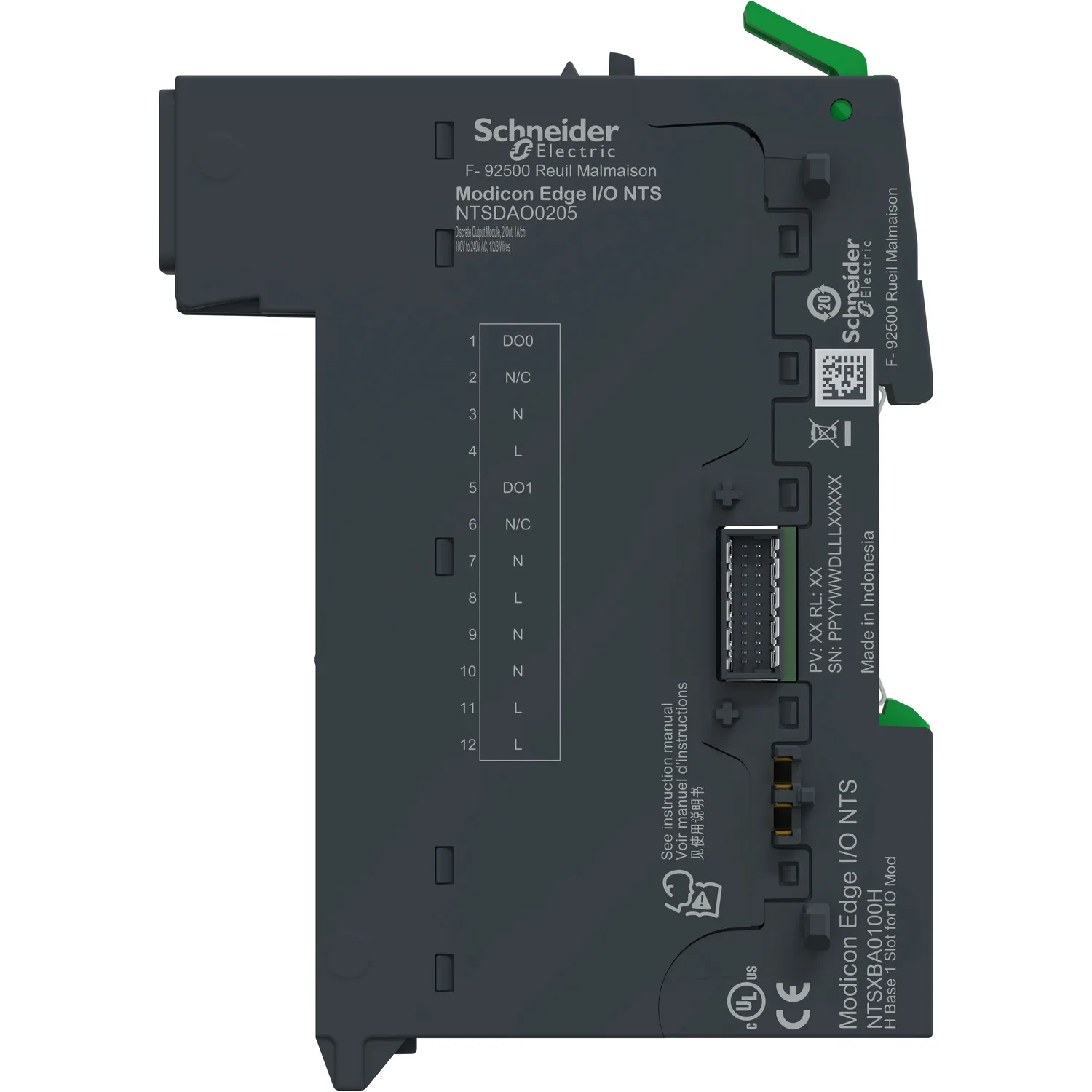

This discrete output kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a discrete output module. It features 2 discrete outputs that operate between 100V to 240VAC, with a current capacity of 2A, with a source logic, with a 1-2-3-wire connection. It is used to send control signals to various devices based on the system's logic. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Key Features
- Device genuineness (Manufacturer certificate)
- Hot-swapable module
- Save time and less time to market
- Reduce cost and unplanned downtime
- Increase flexibility
Technical Specifications
Main11
| Range Of Product | Modicon Edge I/O NTS |
|---|---|
| Product Or Component Type | Discrete output module kit |
| Kit Composition | NTSDAO0205 module; NTSXBA0100H base |
| Mandatory Accessory | NTSXTB12_1_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262; Modicon M580; Third party |
| Device Application | Industrial application |
| Discrete Output Number | 2 |
| Group Of Output Channels | 1 group |
| Discrete Output Voltage | 80...264 V AC |
| Operating Mode | Asynchronous |
Complementary24
| Discrete Output Number | 2 triac |
|---|---|
| Output Wiring Mode | 1, 2 or 3 wires |
| Discrete Output Frequency | 47...63 Hz |
| Response Time On Output | 0.5 ms turn-on; 0.5 ms turn-off |
| Maximum Leakage Current | 2.5 mA 240 V AC; 2 mA 120 V AC |
| Maximum Voltage Drop | <1.55 V for AC |
| Paralleling Of Outputs | Yes for logic links; Yes for redundant control of load |
| Output Protection Type | RC snubber suppression per channel |
| Output Diagnostic | External power supply error per channel |
| Power Supply Type | Bus power from power supply bus (24 Vdc); Field power from external power supply (100...240 Vac) |
| Rated Operational Voltage Limits | 85...264 V AC 47...63 Hz |
| Typical Current Consumption | 30 mA at 24 V DC on the Bus current; 0 mA at 24 V DC on the internal field current |
| Electrical Connection | Screw/spring terminal block |
| Power Dissipation In W | 2.36 W maximum at 24 V DC |
| Isolation Between Channels And Bus | 3000 V AC |
| Isolation Between Channels And Ground | 3000 V AC |
| Hot Swapping Fallback | Yes |
| Local Signalling | 1 LED (green) for module operating (RUN); 1 LED per channel (green) for channel diagnostic; 1 LED (red) for module error (ERR) |
| Housing Colour | Grey |
| Mounting Support | Top hat type TH35-7.5 rail conforming to IEC 60715; Top hat type TH35-15 rail conforming to IEC 60715 |
| Height | 116.6 mm |
| Width | 15 mm |
| Depth | 81 mm |
| Net Weight | 0.073 kg |
Environment13
| IP Degree Of Protection | IP20 |
|---|---|
| Marking | CE; UKCA; CULus; RCM |
| Product Certifications | CE; UKCA; CULus; RCM; Merchant Navy - EU RO MR (pending); EAC (pending); ATEX Zone 2 (pending); IECEx zone 2 (pending); CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2; EN 61010-2-201; UL 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G; EN/IEC 60079-0; EN 50155; EN 50121-4; EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility; 2014/34/EU - ATEX directive; 2014/35/EU |
| Ambient Air Temperature For Operation | -20…60 °C |
| Ambient Air Temperature For Storage | -40…85 °C |
| Relative Humidity | 5…95 % without condensation |
| Operating Altitude | 0...2000 m without derating; 2000...5000 m with derating |
| Pollution Degree | 2 |
| Environmental Characteristic | Gas resistant C3 and G2 |
| Vibration Resistance | 1 g without accessory; 2 g with accessory |
| Shock Resistance | 15 g for 11 ms (with and without accessory) |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 101.000 g |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 16 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.908 kg |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
