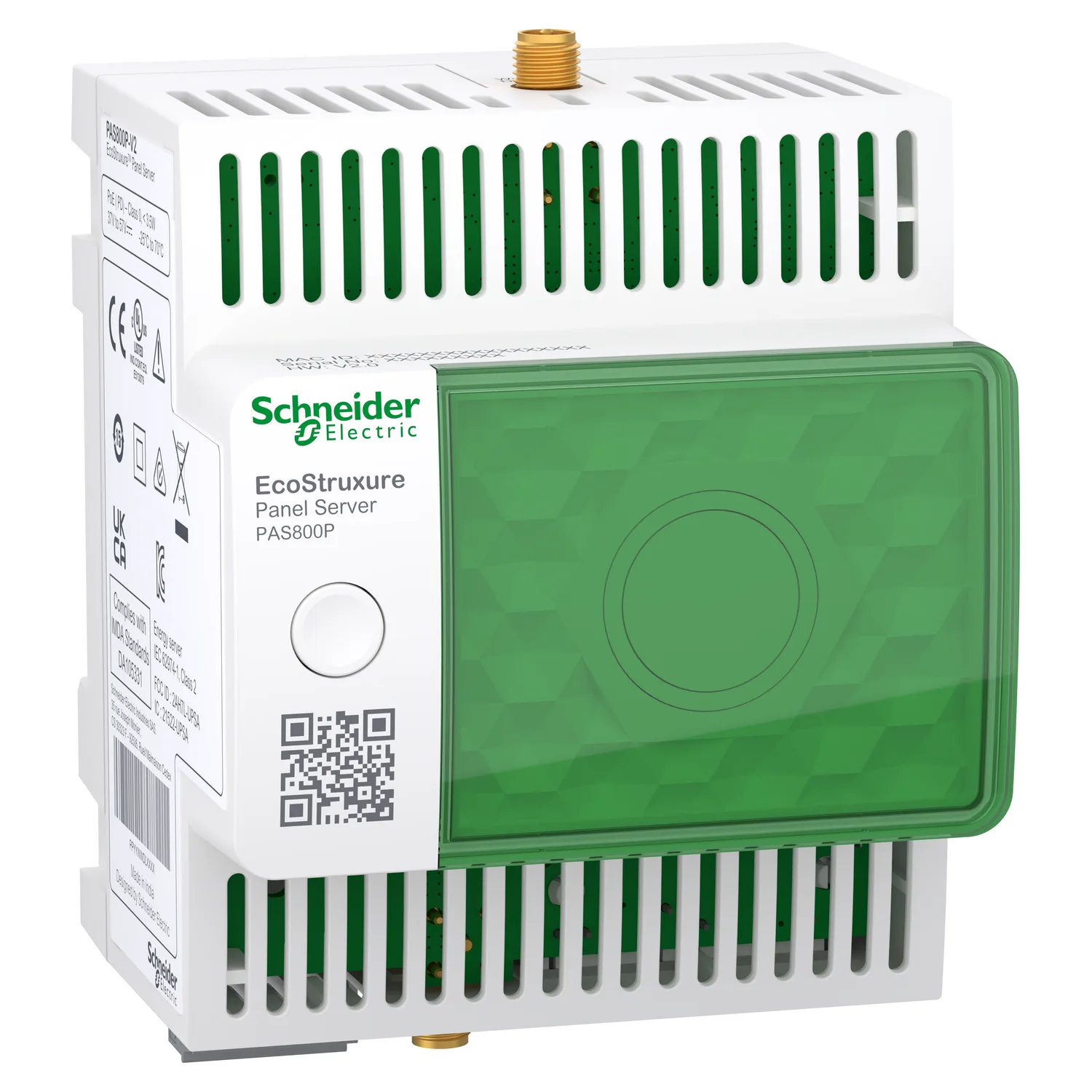

PAS800P - EcoStruxure Panel Server - advanced datalogger, energy server, POE
Schneider PAS800P, EcoStruxure Panel Server - advanced datalogger, energy server, POE. Category: EcoStruxure™ Panel Server. Request a quote for price and lead time.
- Reference:PAS800P
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:1,146.00 EUR (Request a quote)
Key Specifications
- Range
- EcoStruxure
- Product Name
- Panel Server Advanced
- Product Or Component Type
- Gateway
- Device Short Name
- PAS800P
Product Description
EcoStruxure Panel Server is a gateway, providing connection of wired or wireless smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including Power Meters and Protection devices from Schneider-Electric and third parties. Three years data-logger with user friendly web-pages offering energy dashboarding, trending analysis of the measurements and view of logged alarms. Simple troubleshooting of the system through embedded web-pages with advanced diagnostic information and logs. Easy commissioning through embedded web-pages or with EcoStruxure Power Commission on your laptop, or mobile, that will offer commissioning reports and advanced features. Product dimensions are as follows: width 72 millimeters, depth 70,2 millimeters and height 93 millimeters. PoE Power Supply 3.5W max. -25°C to +70°C Operating temperature. Up to 93% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC62974-1, Marine certification, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IP40 front face nose and IP30 on others faces. Two 10/100 Base-T Ethernet RJ45 connectors. Modbus RS485 open-style connector. Two connectors for Wi-Fi external antenna and wireless devices external antenna. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Energy Hub, Asset Advisor and Resource Advisor.
Key Features
- Compact data concentrator for integration of wireless smart IoT, and modbus devices in energy monitoring systems
- Native energy monitoring, and dashboarding capabilities through intuitive webpages
- Seamless commissioning with EcoStruxure Power Commission on laptop or on mobile
- Operation efficiency for energy data transfer to local scada or cloud application
- Enhanced cybersecurity with IEC 62443-4-1 Secure Development Lifecycle
Technical Specifications
Main7
| Range | EcoStruxure |
|---|---|
| Product Name | Panel Server Advanced |
| Product Or Component Type | Gateway |
| Device Short Name | PAS800P |
| Device Application | Gateway & energy server; Data logger |
| [Us] Rated Supply Voltage | PoE |
| Communication Gateway | Ethernet TCP/IP to wireless devices; Ethernet/serial |
Complementary34
| Product Compatibility | Wireless access point |
|---|---|
| Maximum Power Consumption In W | 3.5 W via PoE |
| Communication Network Type | Wi-Fi infrastructure5 GHz; Wi-Fi infrastructure2.4 GHz; Ethernet 10/100BASE-T; Ethernet PPPoE (Point-to-Point Protocol over Ethernet); Wi-Fi access point2.4 GHz; Wireless IEEE 802.15.4; Modbus RTU Modbus RTU client even/odd or none parity 1.2...115.2 kbit/s |
| Communication Port Protocol | Modbus TCP; DHCP; HTTPS; NTP/SNTP; IPv4; IPv6; TCP/IP |
| Communication Port Support | 2 RJ45: ETHERNET; Screw terminal block: RS485 |
| Number Of Server Device(s) | 32 Modbus RTU product(s); 128 Modbus TCP/IP product(s); 40 wireless (IEEE 802.15.4) product(s) - mixed; 85 wireless (IEEE 802.15.4) product(s) - depending on configuration |
| Number Of Devices | 64 Modbus TCP/IP |
| Memory Capacity | HW V2: 64 GB eMMC; HW V1: 32 GB eMMC; HW V1: 512 MB NAND |
| Number Of Inputs | 0 |
| Connections - Terminals | Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s); Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s) |
| Tightening Torque | Communication: 0.25 N.m; Power supply: 0.6 N.m |
| Wire Stripping Length | Power supply: 7 mm; Communication: 7 mm |
| Number Of Connectors | 2 screw connector for Wi-Fi and IEEE 802.15.4 |
| Connector Type | connector(s)1 x RP-SMA Wi-Fi for antenna bottom; connector(s)1 x RP-SMA IEEE 802.15.4 for antenna top |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Product Certifications | CE; cULus; CB; RCM; UKCA; FCC; IC; DNV Marine; ANSI RF; IACS E10 |
| Standards | IEC 61010; IEC 61010-1; IEC 61010-2-201; UL 61010; UL 61010-1; UL 61010-2-201; EN 61010-1; EN 61010-2-201; CAN/CSA C22.2 No. 61010-1-12; CAN/CSA C22.2 No. 61010-2-201; IEC 62974-1; IEC 61326-1; EN 61326-1; ETSI EN 301 489-1; ETSI EN 301 489-17; EN 301-893; EN 55032; CISPR 11; ETSI EN 300 328; IEEE 802.15.4; IEEE 802.11a/b/g/n; IEEE 802.3 af/at; FCC CFR 47 part 15 class A; EN 62311; IEC 62311; IEC |
| Depth | 70.2 mm |
| Height | 93 mm |
| Width | 72 mm |
| Net Weight | 184 g |
| Data Recording | Historical dashboarding and trending; 3 years data logs |
| Data Buffer For Data Publication (cloud, SFTP, HTTPS) Depending On Network | 3 month(s) |
| Function Available | Embedded web page for configuration and upgrade; Diagnosis capabilities; Diagnostic report; Diagnostics on communication; Embedded data logger; Event Logger; Energy management; With integrated web server; Firmware update; Configurable event; Backup/restore configuration; CSV export |
| Product Specific Application | Wireless Schneider Electric devices ecosystem |
| Topology | Separated Ethernet network; Switched Ethernet network |
| Web Services | HTTPS server; SFTP publication (CSV / JSON); HTTPS publication (CSV / JSON); Alarm notification by e-mail |
| Communication Service | Device Profile for Web Services (DPWS); Modbus TCP client; Modbus TCP server; SNTP client; DHCP client; Web server (energy & operation efficiency); RSTP |
| Commissioning Interface | EcoStruxure Power Commission desktop; EcoStruxure Power Commission Mobile (through Wi-Fi Access point); EcoStruxure Power Commission web (for third party device integration); Web page |
| Realtime Clock | With RTC-battery set; With user calibration |
| Time Synchronisation Protocol | NTP; SNTP |
| Range Compatibility | EcoStruxure Facility Expert; EcoStruxure Building Operation; EcoStruxure Power Operation; EcoStruxure Power Monitoring Expert; EcoStruxure Asset Advisor; EcoStruxure Energy Hub; EcoStruxure Resource Advisor; Third party SCADA |
| Communication Iinterface | Modbus and wireless (IEEE802.15.4) product |
Environment6
| Relative Humidity | 5…95 % |
|---|---|
| IP Degree Of Protection | IP40 (front face); IP20 (casing) |
| Ambient Air Temperature For Operation | -25…70 °C |
| Ambient Air Temperature For Storage | -40…85 °C |
| Pollution Degree | 2 |
| Operating Altitude | < 2000 m |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.8 cm |
| Package 1 Width | 9 cm |
| Package 1 Length | 11.2 cm |
| Package 1 Weight | 276 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 27 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 8.106 kg |
Logistical informations1
| Country Of Origin | IN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
