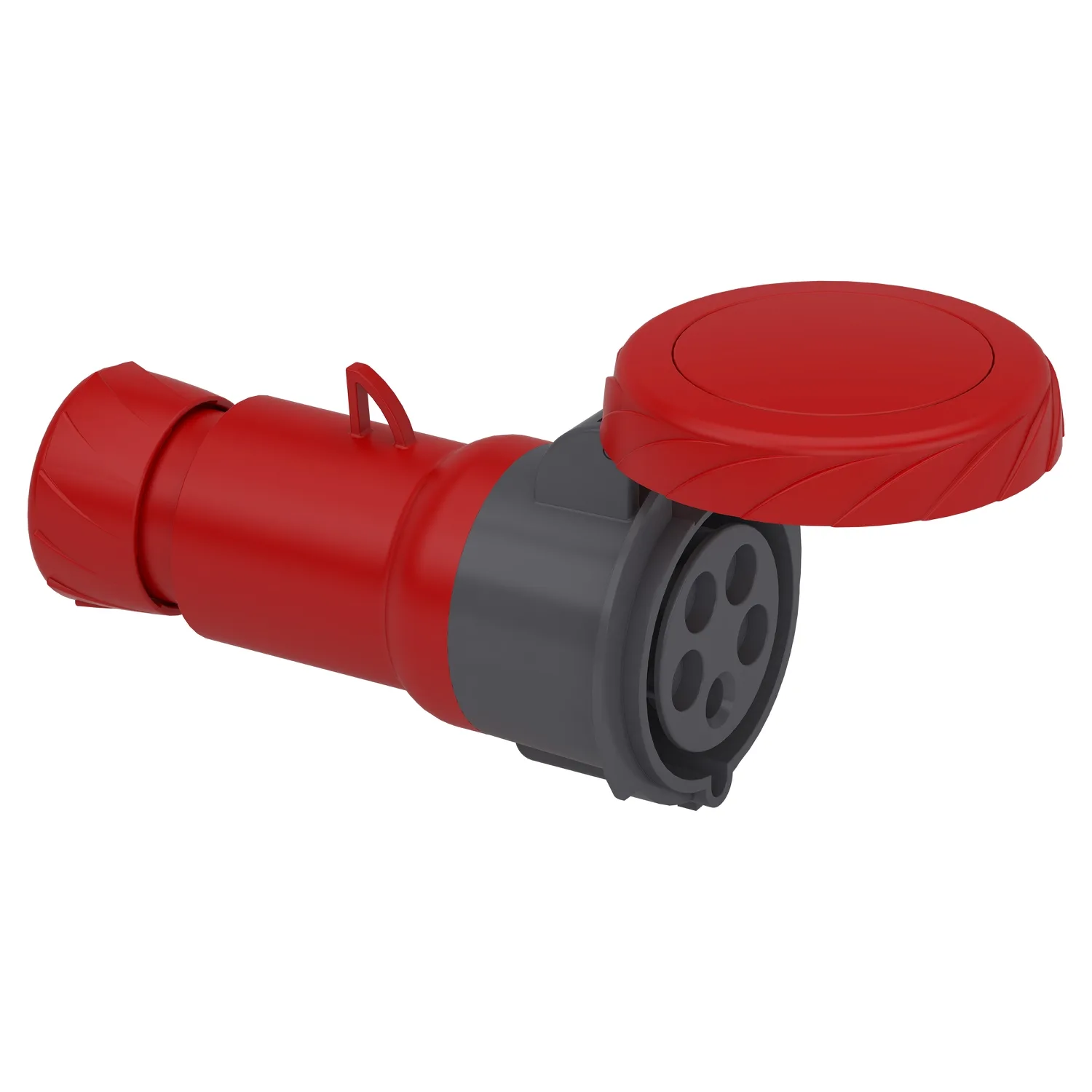

PKF32M735 - 5x32A, three-phase, 3P+N+T, IP67, SCREW, Connector
Schneider PKF32M735, 5x32A, three-phase, 3P+N+T, IP67, SCREW, Connector. Category: Mureva PK. Request a quote for price and lead time.
- Reference:PKF32M735
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:36.10 EUR (Request a quote)
Key Specifications
- Range
- Mureva
- Product Or Component Type
- Wander socket
- Device Short Name
- Mureva socket
- Plug, Socket Category
- Low voltage
Product Description
This Pratika industrial wander socket with captive screws connection is straight. It has 3P+N+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 104mm x (H) 104mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5mm to 21mm for 2.5mm² to 10mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Key Features
- Fire safety thanks to self-extinguishing polymer material and 850 °C fire resistance
- High protection with IP67 and IK08 ratings ensuring durability in harsh environments once socket mounted
- Easy and flexible installation
- Ideal for temporary installations
- High mechanical durability
Technical Specifications
Main7
| Range | Mureva |
|---|---|
| Product Or Component Type | Wander socket |
| Device Short Name | Mureva socket |
| Plug, Socket Category | Low voltage |
| Poles Description | 3P + N + E |
| Network Type | AC |
| Outlet Standard | Industrial |
Complementary18
| Plug, Socket, Control Station Shape | Straight |
|---|---|
| [In] Rated Current | 32 A |
| [Ue] Rated Operational Voltage | 380...415 V |
| Network Frequency | 50/60 Hz |
| Ground Lug Clockwise Position | 6 h |
| Plug, Socket Material | Housing: self-extinguishing engineering polymer |
| Contacts Material | Sleeves: brass |
| Connections - Terminals | Captive screws |
| Cable Cross Section | 2.5…10 mm² |
| Cable Outer Diameter | 11.5…21 mm |
| Cable Entry | Cable gland |
| Thread Type | Pg 21 |
| Net Weight | 0.356 kg |
| Height | 104 mm |
| Width | 104 mm |
| Depth | 173 mm |
| Colour | Grey (RAL 7035) |
| Voltage Colour | Red |
Environment6
| Standards | IEC 60309-1; IEC 60309-2 |
|---|---|
| IP Degree Of Protection | IP67 conforming to IEC 60529 |
| IK Degree Of Protection | IK08 conforming to EN 62262 |
| Fire Resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative Humidity | 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C |
| Ambient Air Temperature For Operation | 35 °C ( 86400 s ); -25…40 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 18.500 cm |
| Package 1 Weight | 325.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 6 |
| Package 2 Height | 17.000 cm |
| Package 2 Width | 26.500 cm |
| Package 2 Length | 26.500 cm |
| Package 2 Weight | 2.092 kg |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 12 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.581 kg |
Logistical informations1
| Country Of Origin | IT |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
