Schneider
PKX32M435 - 5x32A, three-phase, 3P+N+T, IP44, QUICK, Straight Plug
Schneider PKX32M435, 5x32A, three-phase, 3P+N+T, IP44, QUICK, Straight Plug. Category: Mureva PK. Request a quote for price and lead time.
- Reference:PKX32M435
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:28.00 EUR (Request a quote)
Key Specifications
- Range
- Mureva
- Product Or Component Type
- Wander plug
- Device Short Name
- Mureva plug
- Plug, Socket Category
- Low voltage
Product Description

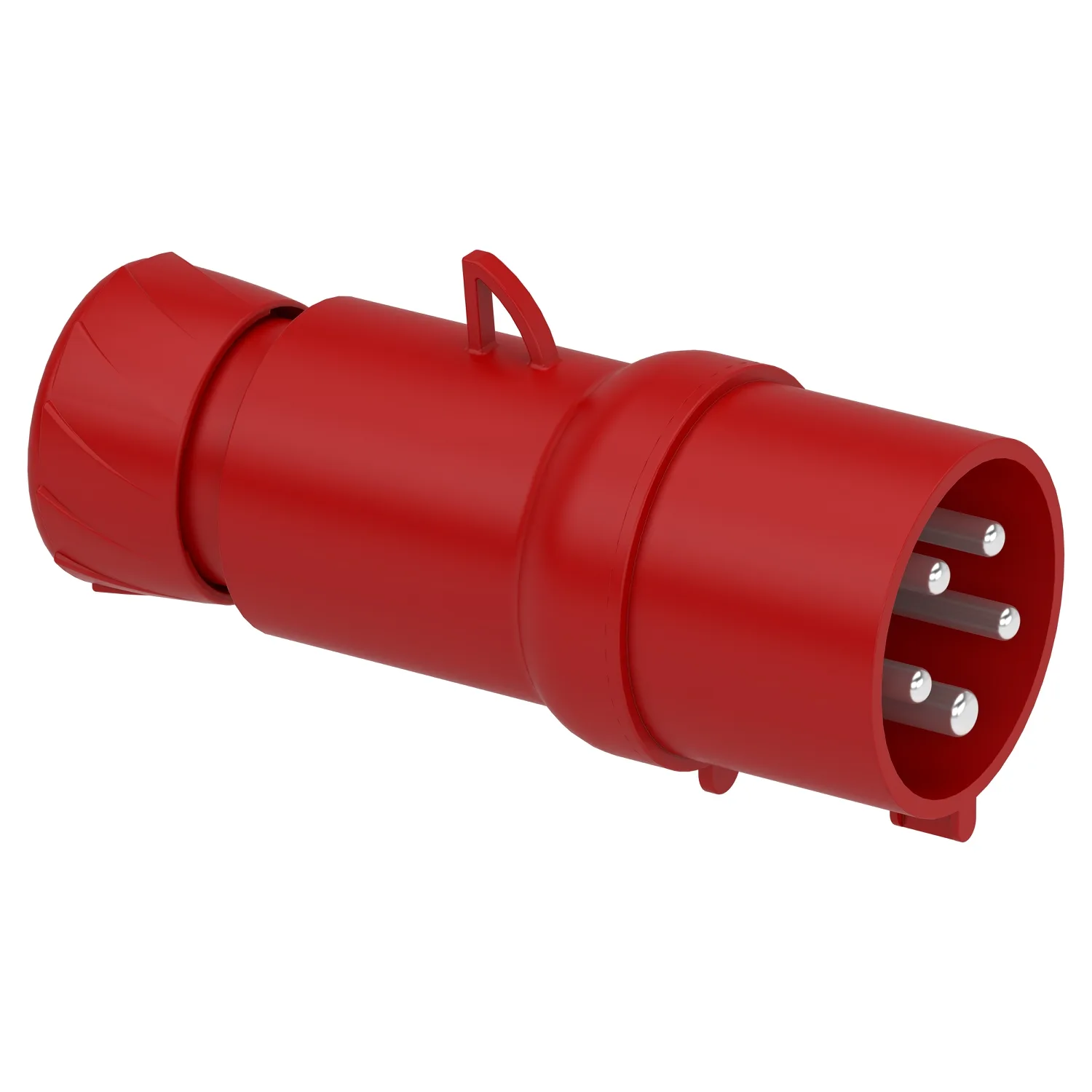

This Mureva PK wander plug with fast connection connection is straight. It has 3P+N+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 86mm x (H) 160mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A are 2.5mm² to 6mm². The color of the socket is red to easily identify the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Key Features
- Fire safety thanks to self-extinguishing polymer material and 850 °C fire resistance
- High protection with IP44 and IK08 ratings ensuring durability in harsh environments once mounted
- Easy and flexible installation thanks to its design supplying fixed or movable equipment by a flexible cable
- Ideal for temporary installations
- High mechanical durability
Technical Specifications
Main7
| Range | Mureva |
|---|---|
| Product Or Component Type | Wander plug |
| Device Short Name | Mureva plug |
| Plug, Socket Category | Low voltage |
| Poles Description | 3P + N + E |
| Network Type | AC |
| Outlet Standard | Industrial |
Complementary18
| Plug, Socket, Control Station Shape | Straight |
|---|---|
| [In] Rated Current | 32 A |
| [Ue] Rated Operational Voltage | 380...415 V |
| Network Frequency | 50/60 Hz |
| Ground Lug Clockwise Position | 6 h |
| Plug, Socket Material | Housing: self-extinguishing engineering polymer |
| Contacts Material | Sleeves: brass |
| Connections - Terminals | Fast connection |
| Cable Cross Section | 2.5…6 mm² |
| Cable Outer Diameter | 11.5…21 mm |
| Cable Entry | Cable gland; Fair lead |
| Thread Type | Pg 21 |
| Net Weight | 0.278 kg |
| Height | 160 mm |
| Width | 86 mm |
| Depth | 86 mm |
| Colour | Grey (RAL 7035) |
| Voltage Colour | Red |
Environment7
| Standards | IEC 60309-1; IEC 60309-2 |
|---|---|
| IP Degree Of Protection | IP44 conforming to IEC 60529 |
| IK Degree Of Protection | IK08 conforming to EN 62262 |
| Fire Resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative Humidity | 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C |
| Operating Altitude | 2000 m |
| Ambient Air Temperature For Operation | 35 °C ( 86400 s ); -25…40 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 269.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 16.500 cm |
| Package 2 Width | 26.500 cm |
| Package 2 Length | 26.500 cm |
| Package 2 Weight | 2.913 kg |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 20 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 6.287 kg |
Logistical informations1
| Country Of Origin | IT |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
