PKY16F434 - 4x16A, three-phase, 3P+T, IP44, QUICK CONNECTION, Angled Panel Mounting Plug
Schneider PKY16F434, 4x16A, three-phase, 3P+T, IP44, QUICK CONNECTION, Angled Panel Mounting Plug. Category: Mureva PK. Request a quote for price and lead time.
- Reference:PKY16F434
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:19.50 EUR (Request a quote)
Key Specifications
- Range
- Mureva
- Product Or Component Type
- Socket
- Device Short Name
- Mureva socket
- Plug, Socket Category
- Low voltage
Product Description

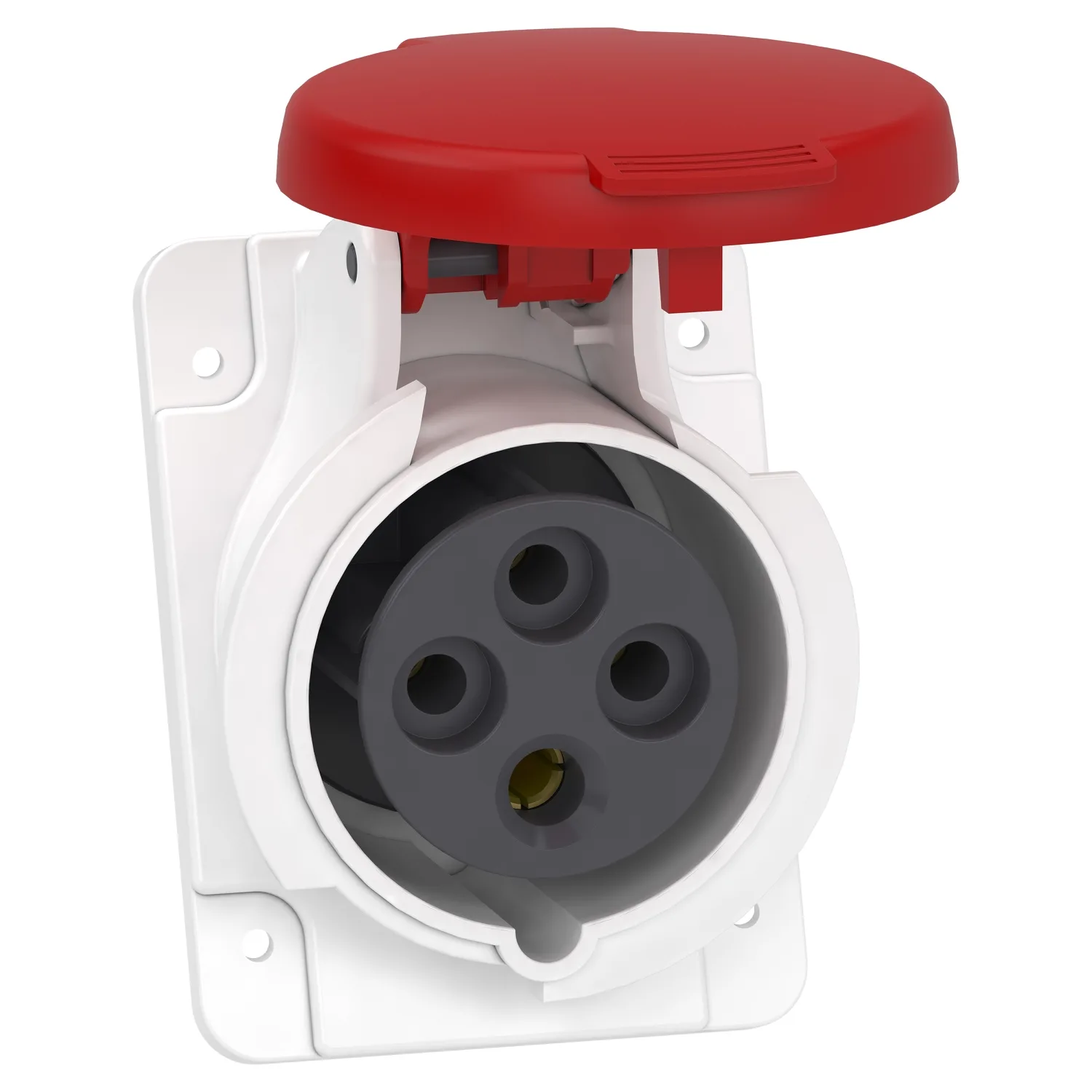

This Mureva PK socket with fast connection connection is angled panel mounted. It has 3P+E poles, rated current is 16A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 65mm x (H) 85mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 2.5mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Key Features
- Fire safety thanks to self-extinguishing polymer material and 850 °C fire resistance
- High protection with IP44 and IK08 ratings ensuring durability in harsh environments once socket mounted
- Possibility to be mounted on plate, panel or machine to supply appliance with wander plugs
- Space optimization and cable management
- Flexibility for different installation constraints
Technical Specifications
Main7
| Range | Mureva |
|---|---|
| Product Or Component Type | Socket |
| Device Short Name | Mureva socket |
| Plug, Socket Category | Low voltage |
| Poles Description | 3P + E |
| Network Type | AC |
| Outlet Standard | Industrial |
Complementary17
| Mounting Mode | Panel-mounted |
|---|---|
| Plug, Socket, Control Station Shape | Angled |
| [In] Rated Current | 16 A |
| [Ue] Rated Operational Voltage | 380...415 V |
| Network Frequency | 50/60 Hz |
| Ground Lug Clockwise Position | 6 h |
| Plug, Socket Material | Housing: self-extinguishing engineering polymer |
| Contacts Material | Sleeves: brass |
| Connections - Terminals | Fast connection |
| Cable Cross Section | 1…2.5 mm² |
| Net Weight | 0.164 kg |
| Base Dimension | 65 x 85 mm |
| Height | 85 mm |
| Width | 65 mm |
| Depth | 105 mm |
| Colour | Grey (RAL 7035) |
| Voltage Colour | Red |
Environment6
| Standards | IEC 60309-2; IEC 60309-1 |
|---|---|
| IP Degree Of Protection | IP44 conforming to IEC 60529 |
| IK Degree Of Protection | IK08 conforming to EN 62262 |
| Fire Resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative Humidity | 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C |
| Ambient Air Temperature For Operation | 35 °C ( 86400 s ) |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 9.200 cm |
| Package 1 Width | 6.500 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 144.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 12.000 cm |
| Package 2 Width | 26.400 cm |
| Package 2 Length | 26.800 cm |
| Package 2 Weight | 1.597 kg |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 30 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.279 kg |
Logistical informations1
| Country Of Origin | IT |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
