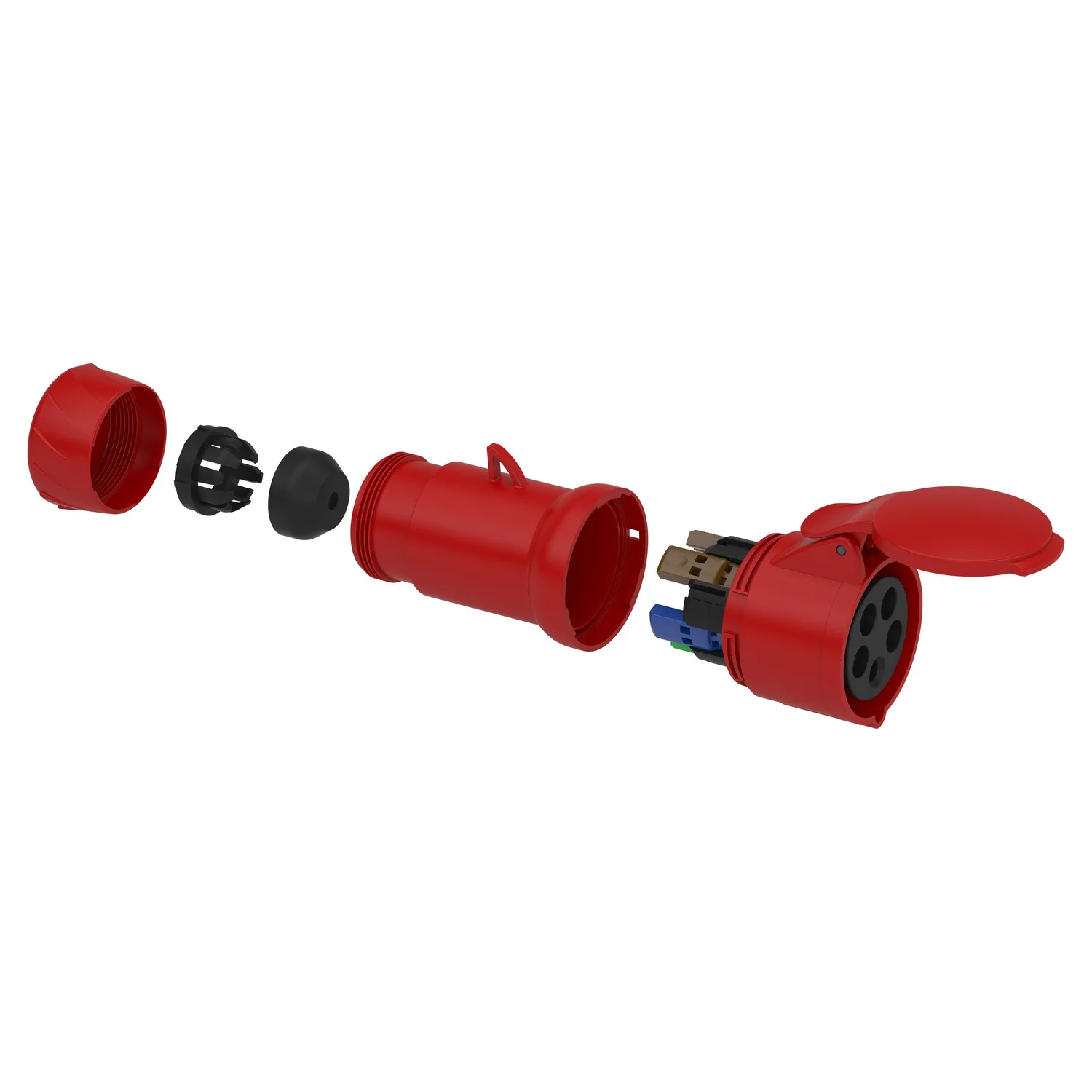

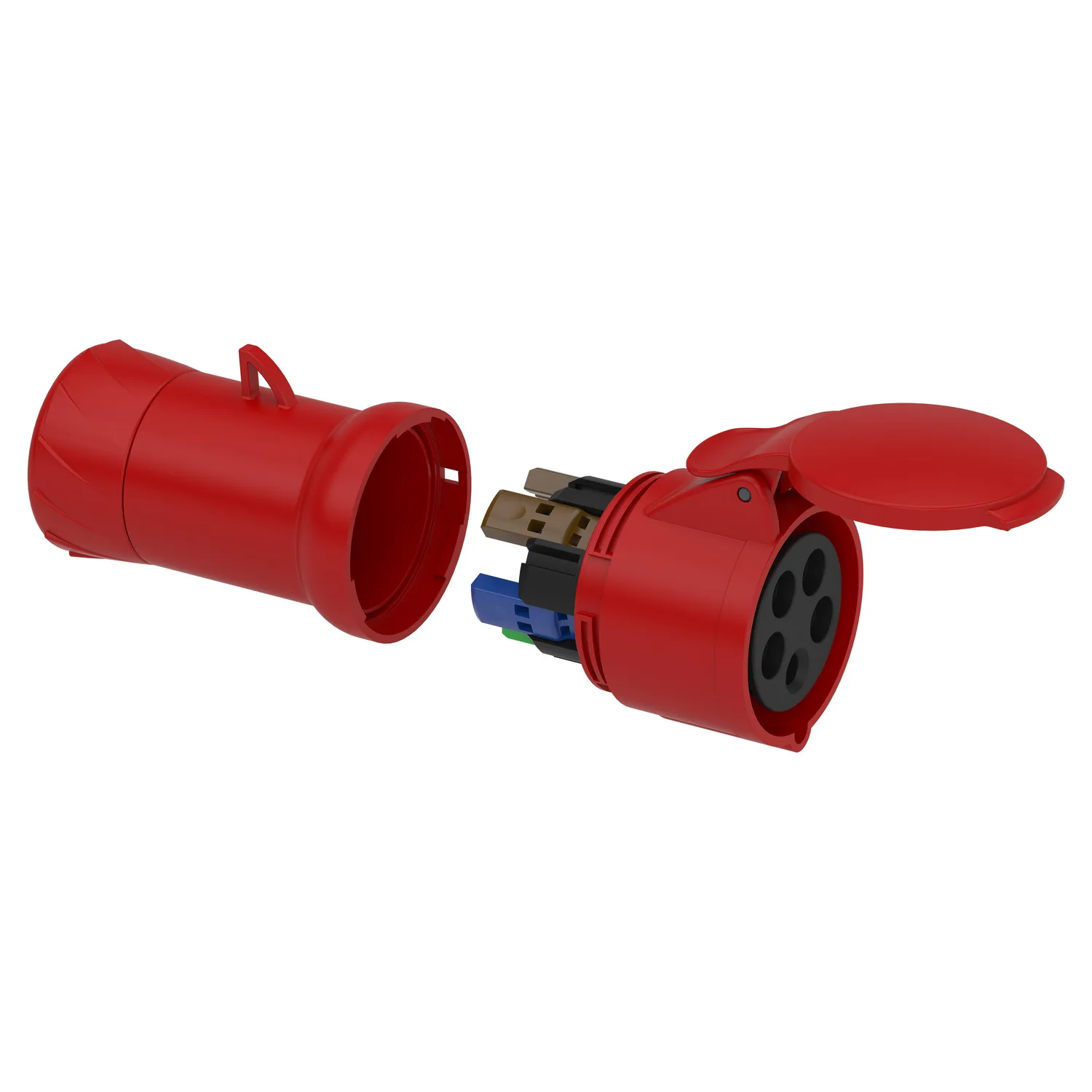

PKY16M435 - 5x16A, three-phase, 3P+N+T, IP44, FAST, Extension socket
Schneider PKY16M435, 5x16A, three-phase, 3P+N+T, IP44, FAST, Extension socket. Category: Mureva PK. Request a quote for price and lead time.
- Reference:PKY16M435
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:25.00 EUR (Request a quote)
Key Specifications
- Range
- Mureva
- Product Or Component Type
- Wander socket
- Device Short Name
- Mureva fast
- Plug, Socket Category
- Low voltage
Product Description

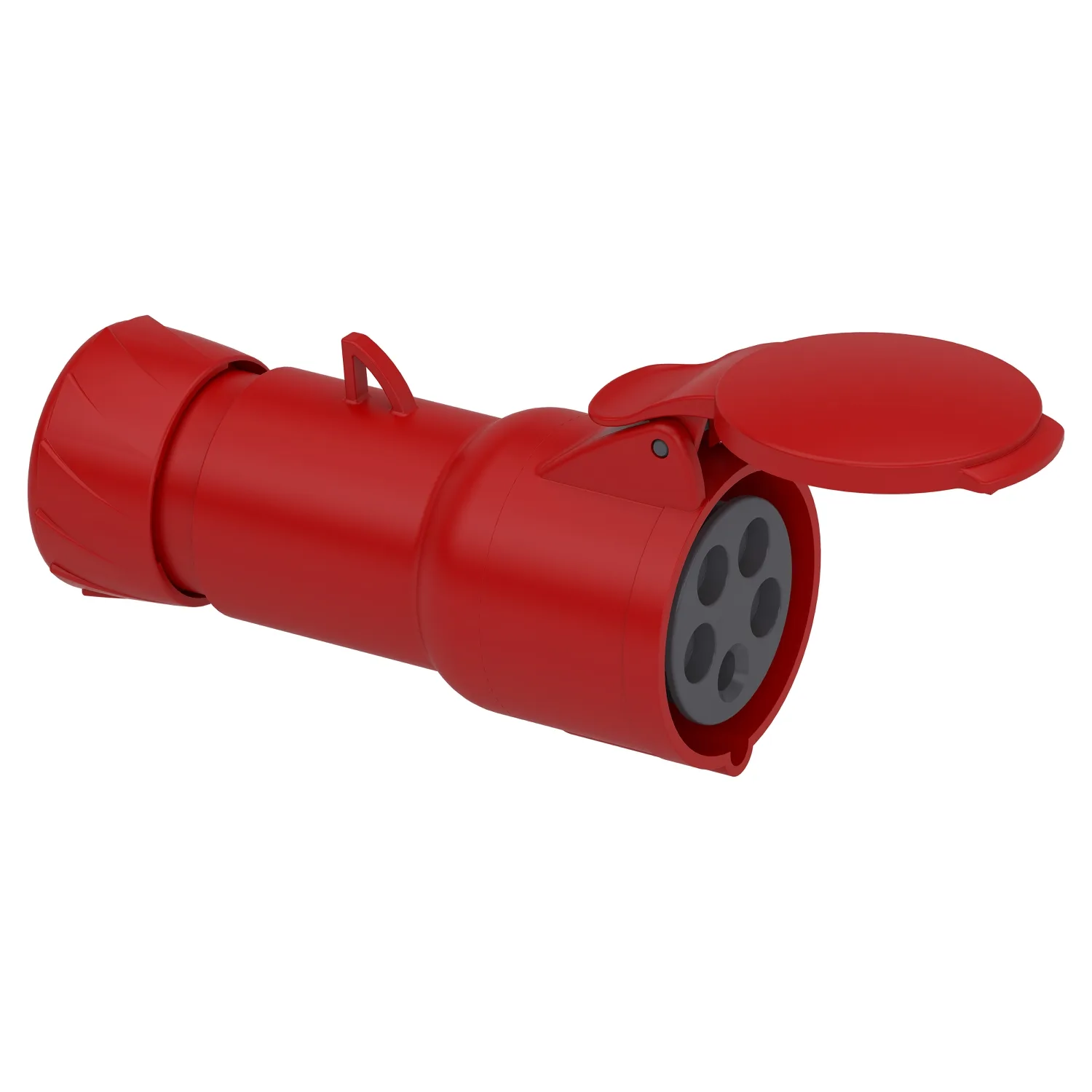

This Pratika industrial wander socket with fast connection connection is straight. It has 3P+N+E poles, rated current is 16A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 97mm x (H) 97mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A are 1mm² to 2.5mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Technical Specifications
Main7
| Range | Mureva |
|---|---|
| Product Or Component Type | Wander socket |
| Device Short Name | Mureva fast |
| Plug, Socket Category | Low voltage |
| Poles Description | 3P + N + E |
| Network Type | AC |
| Outlet Standard | Industrial |
Complementary18
| Plug, Socket, Control Station Shape | Straight |
|---|---|
| [In] Rated Current | 16 A |
| [Ue] Rated Operational Voltage | 380...415 V |
| Network Frequency | 50/60 Hz |
| Ground Lug Clockwise Position | 6 h |
| Plug, Socket Material | Housing: self-extinguishing engineering polymer |
| Contacts Material | Sleeves: brass |
| Connections - Terminals | Fast connection |
| Cable Cross Section | 1…2.5 mm² |
| Cable Outer Diameter | 8…15 mm |
| Cable Entry | Fair lead; Cable gland |
| Thread Type | Pg 21 |
| Net Weight | 0.241 kg |
| Height | 97 mm |
| Width | 97 mm |
| Depth | 153 mm |
| Colour | Grey (RAL 7035) |
| Voltage Colour | Red |
Environment6
| Standards | IEC 60309-2; IEC 60309-1 |
|---|---|
| IP Degree Of Protection | IP44 conforming to IEC 60529 |
| IK Degree Of Protection | IK08 conforming to EN 62262 |
| Fire Resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative Humidity | 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C |
| Ambient Air Temperature For Operation | 35 °C ( 86400 s ); -25…40 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 6.200 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 16.300 cm |
| Package 1 Weight | 216.200 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 17.000 cm |
| Package 2 Width | 27.000 cm |
| Package 2 Length | 27.000 cm |
| Package 2 Weight | 2.295 kg |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 20 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.724 kg |
Logistical informations1
| Country Of Origin | IT |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
