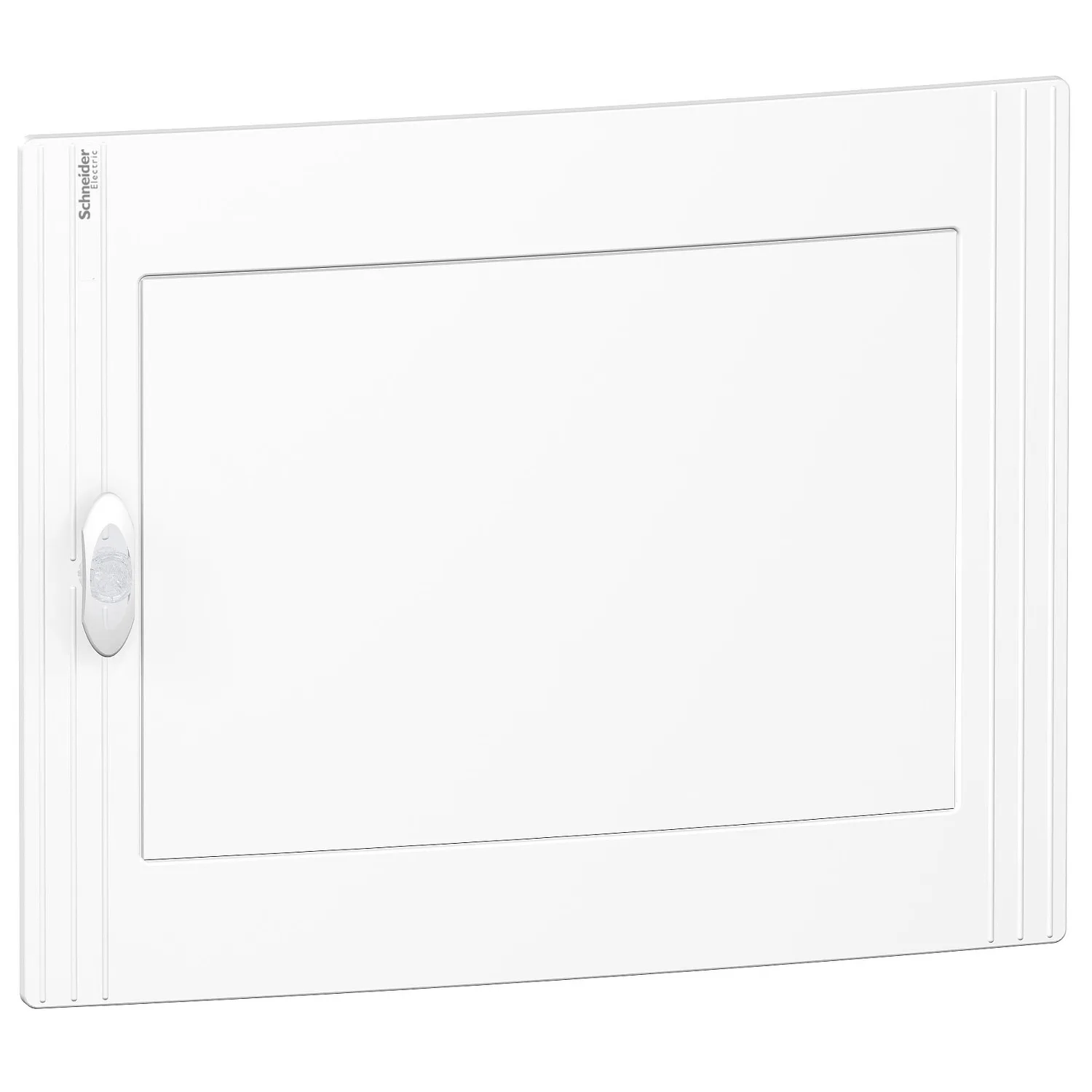

Pragma plain door - for enclosure - 1 x 24 modules
Schneider PRA16124, Pragma plain door - for enclosure - 1 x 24 modules. Category: Pragma (new). Not for sale; no price or quote is offered for this product.
- Reference:PRA16124
- Manufacturer / Brand:Schneider
Key Specifications
- Range
- Pragma
- Product Or Component Type
- Door
- Accessory / Separate Part Category
- Enclosure accessories
- Market Segment
- Residential; Small commercial
Product Description
This Pragma product is a plain door for enclosure. It is designed to be compliant with an enclosure with 1 row of 24 modules of 18mm. The IP degree of protection is IP40. The door is composed of an edge in metal with a colourness glass.The color of the edge is white (RAL9016). It is intended for new or renovated installation in residential. The door can be installed on surface mounting or flush mounting enclosure. It can be opened on the right or left side of the enclosure. The door can be closed with a lock (key number to be stated). The total dimensions are (W) 550mm x (H) 300mm x (D) 20mm. Its resistance to flames and to abnormal heat is 750°C. The operating temperature is from -25°C to 60°C. The storage temperature is from -25°C to 60°C.
Technical Specifications
Main4
| Range | Pragma |
|---|---|
| Product Or Component Type | Door |
| Accessory / Separate Part Category | Enclosure accessories |
| Market Segment | Residential; Small commercial |
Complementary14
| Enclosure Mounting | Flush; Surface |
|---|---|
| Key Number | Number to be stated |
| Type Of Front Cover | Plain |
| Door Opening Side | Right or left |
| Number Of Horizontal Rows | 1 |
| 9 Mm Pitches | 48 |
| Number Of 18 Mm Modules Per Row | 24 |
| Total Number Of 18 Mm Modules | 24 |
| Installation Description | Surface mounting; Flush mounting |
| Enclosure Material | Metal |
| Width | 550 mm |
| Height | 300 mm |
| Depth | 20 mm |
| Colour | White (RAL 9016) |
Environment5
| Fire Resistance | 750 °C |
|---|---|
| IP Degree Of Protection | IP40 |
| IK Degree Of Protection | IK09 |
| Ambient Air Temperature For Operation | -25…60 °C |
| Ambient Air Temperature For Storage | -25…60 °C |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 65.000 cm |
| Package 1 Length | 39.000 cm |
| Package 1 Weight | 3.310 kg |
| Unit Type Of Package 2 | P12 |
| Number Of Units In Package 2 | 43 |
| Package 2 Height | 120.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 154.330 kg |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
