Schneider

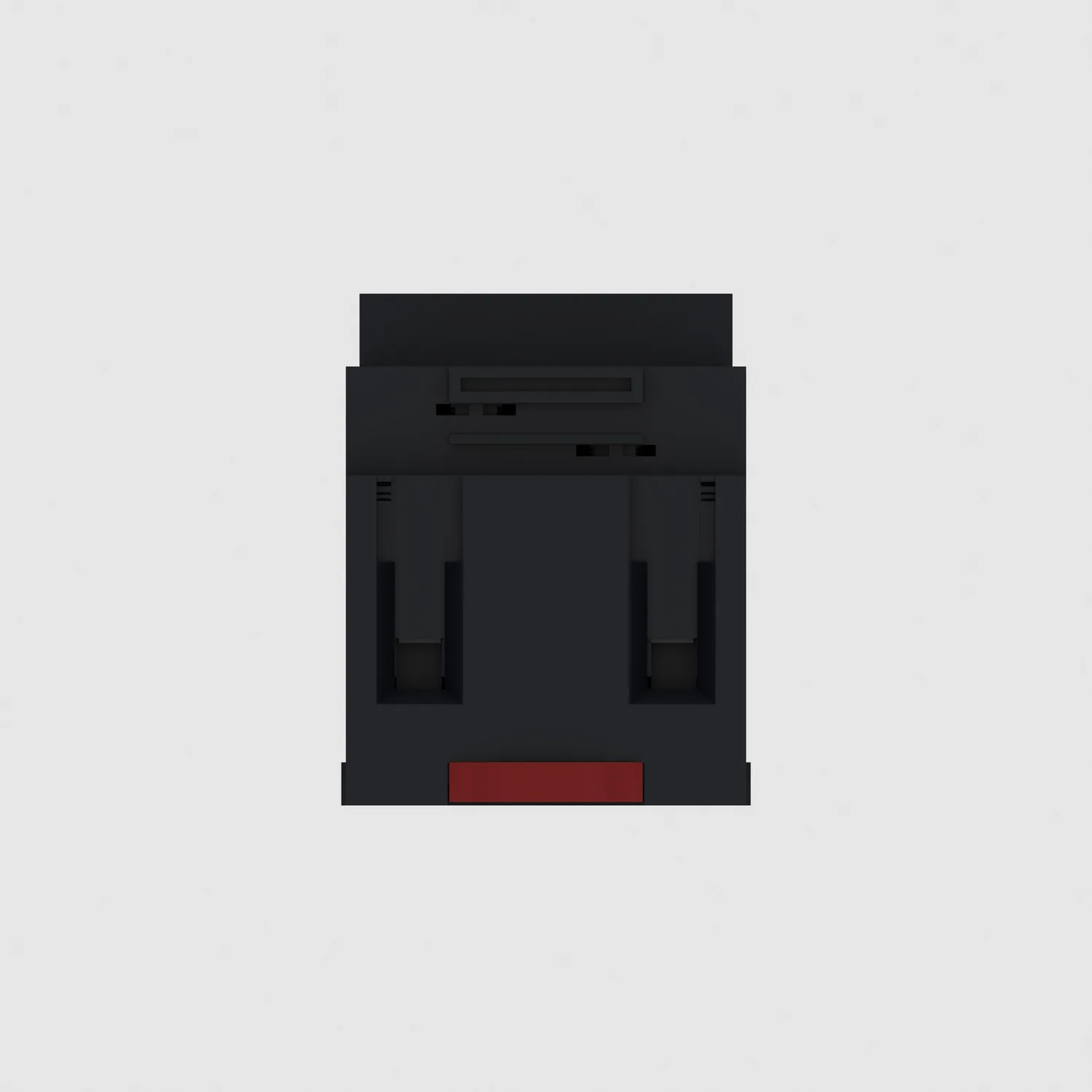

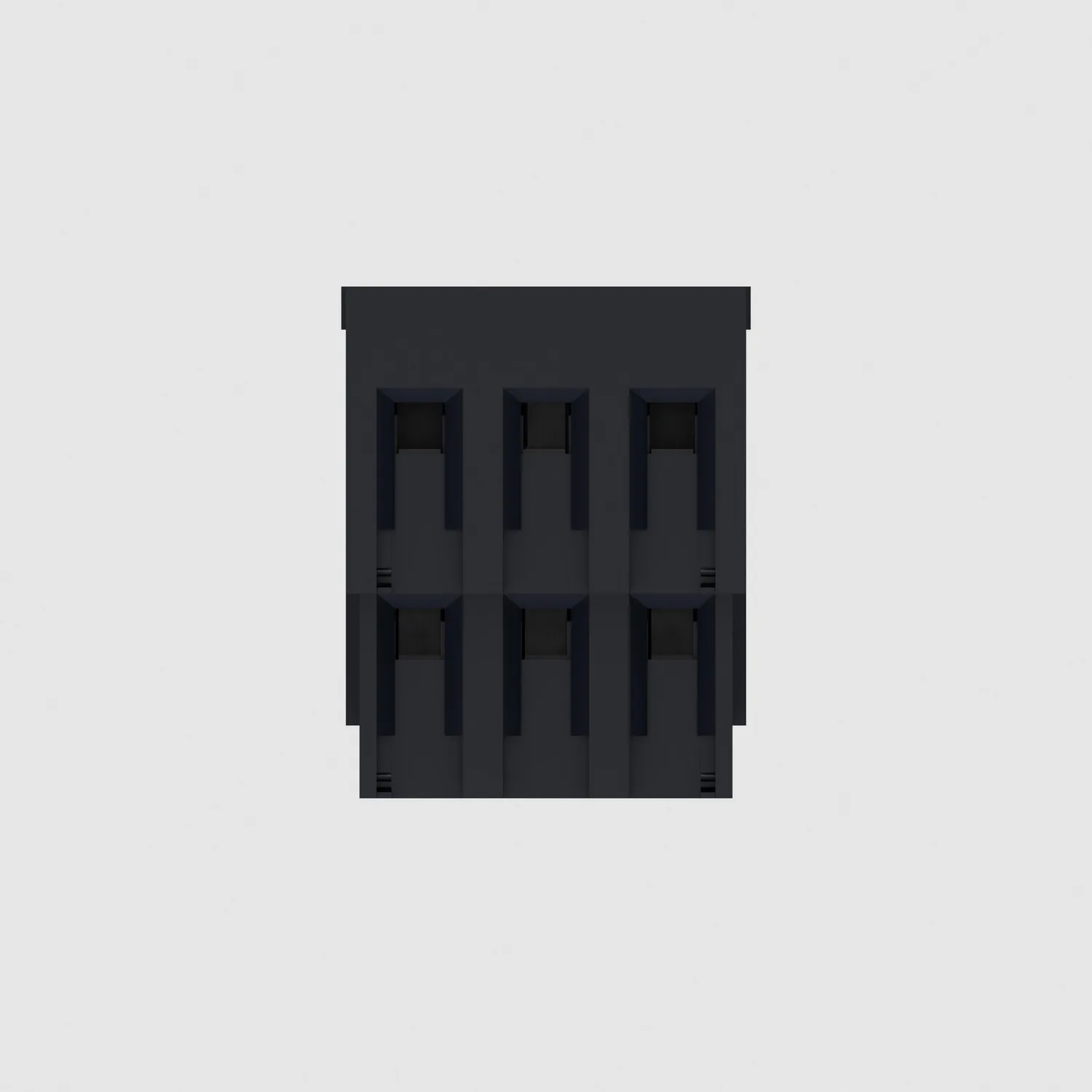

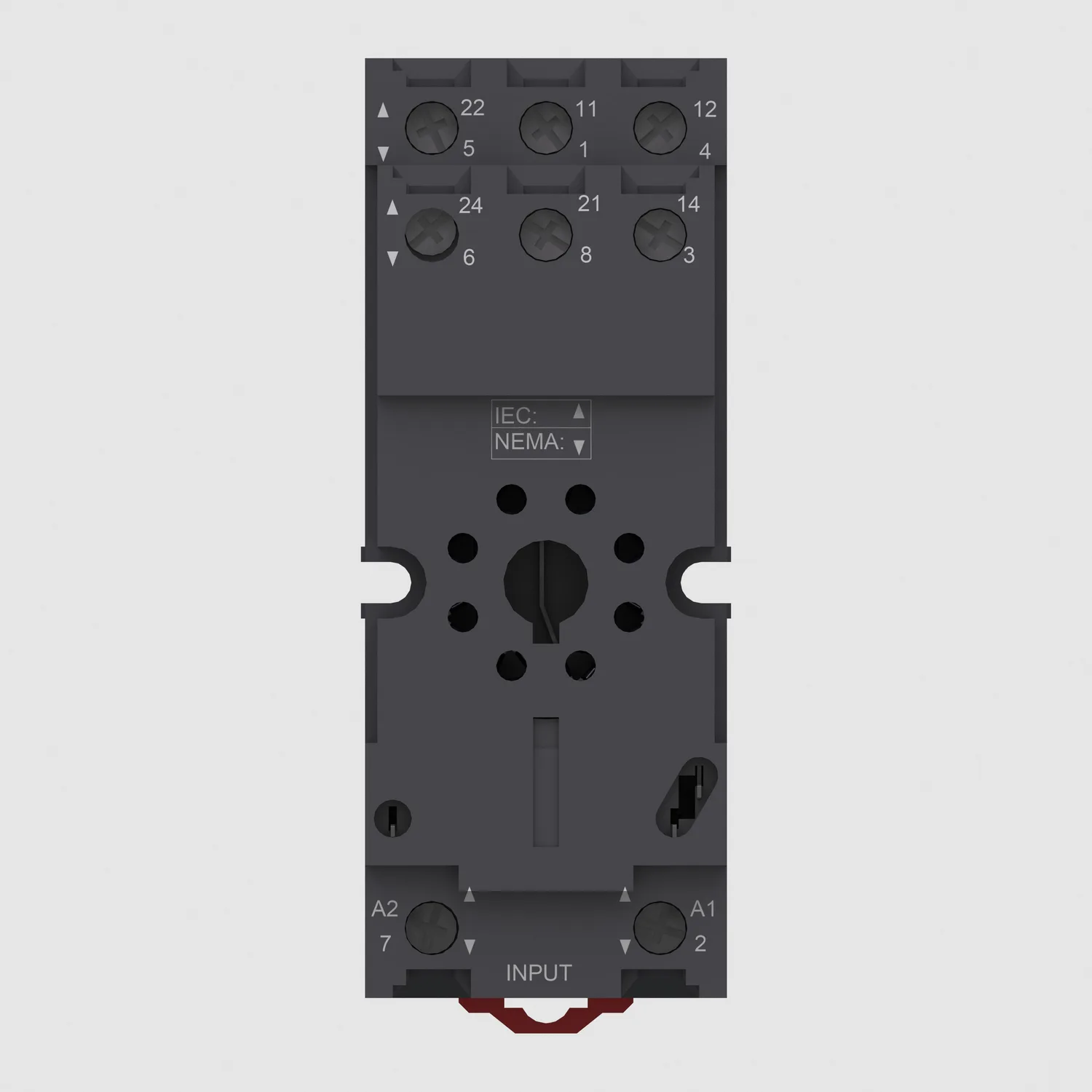

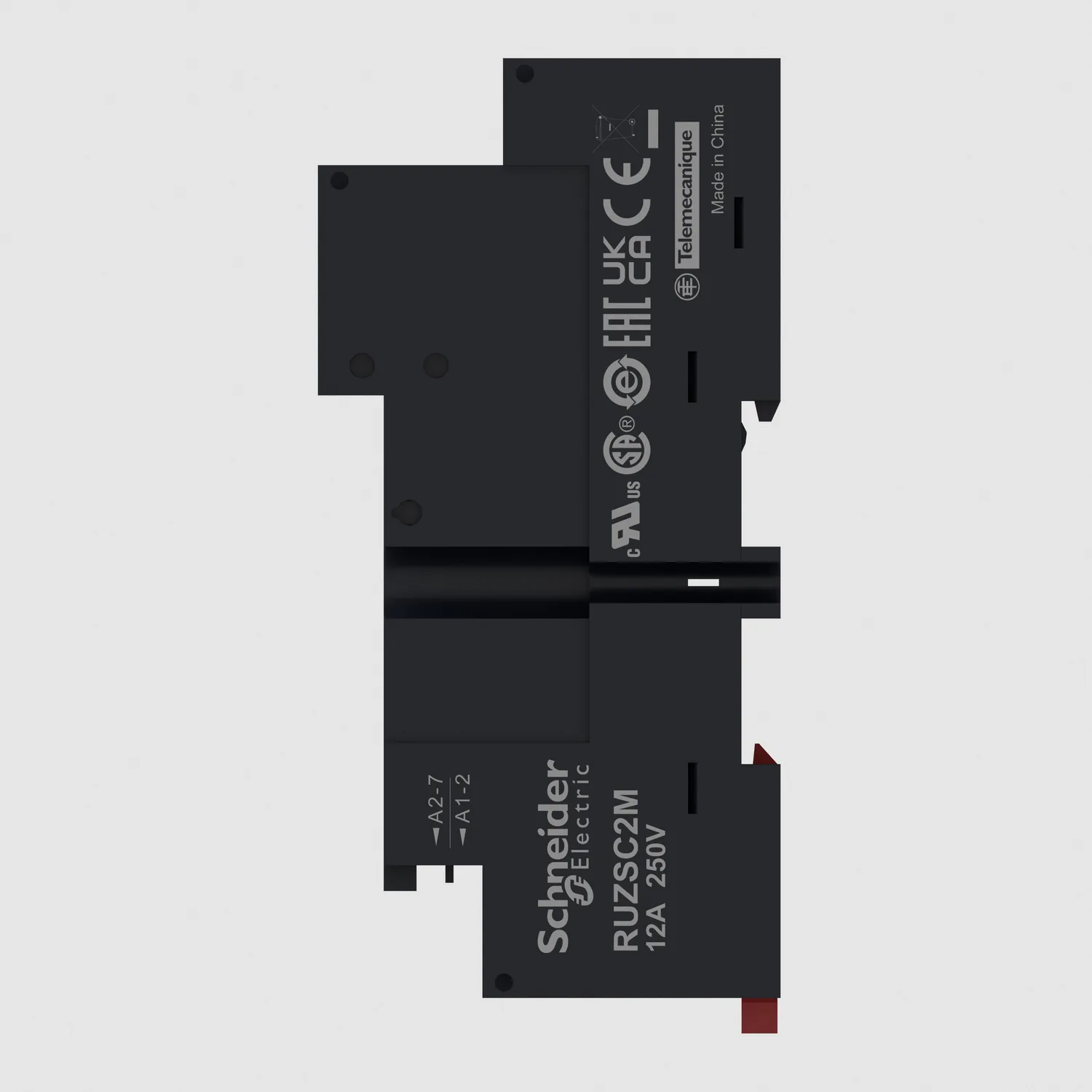

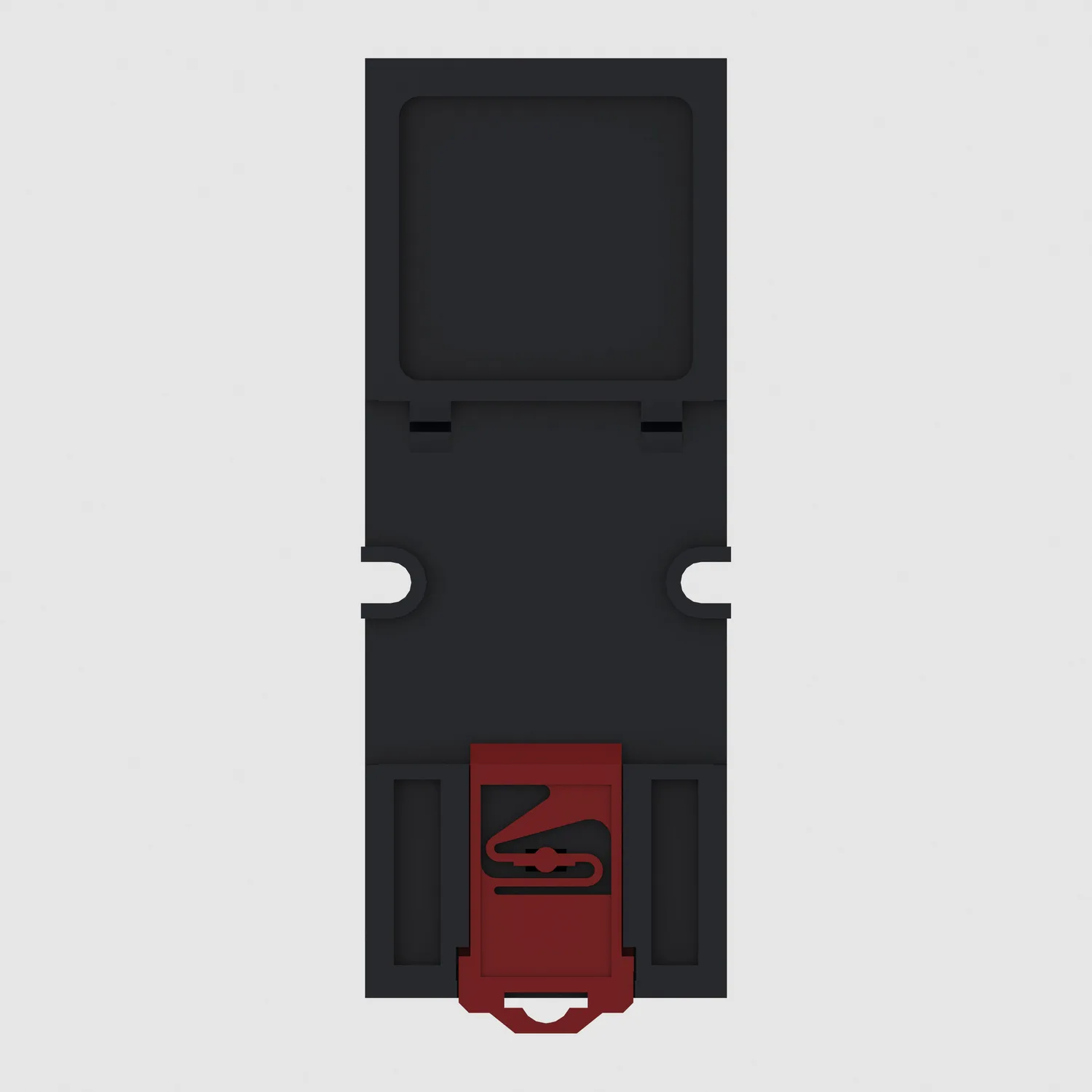

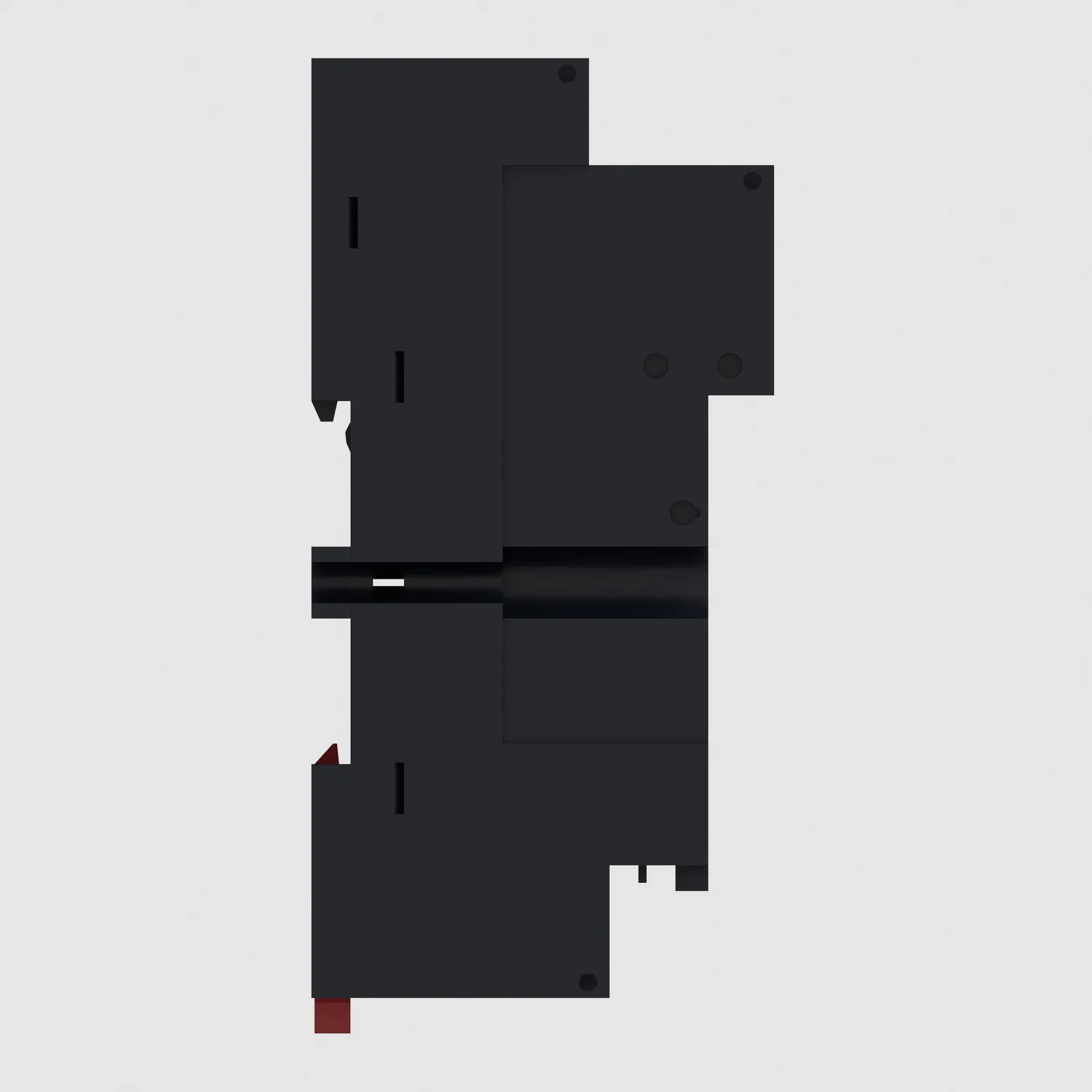

Socket; PIN: 8; for DIN rail mounting; screw terminals; plastic
Not for sale
Schneider RUZSC2M, Socket; PIN: 8; for DIN rail mounting; screw terminals; plastic. Category: Harmony Electromechanical Relays. Not for sale; no price or quote is offered for this product.
- Reference:RUZSC2M
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Harmony Electromechanical Relays
- Device Short Name
- RUZ
- Product Or Component Type
- Socket
- Product Compatibility
- Plug-in relay RUM with 2 C/O contact
Product Description
This Harmony RUM plug-in socket is rated for 250 V AC and has an output rating of 12 A. The socket is compatible with interface plug-in relays from the Harmony RUM range. It is compatible with plug-in control relays and supports connection through the relay socket. The socket supports DIN rail installation and is available with multiple contact configurations. It is suitable for hard-wired logic systems used with industrial programmable logic controllers. • Compatible with Harmony RUM relays
Key Features
- Supports reliable relay connections
- DIN rail mounting simplifies installation
- Multiple contact configurations available
- Ideal for PLC control systems
Technical Specifications
Main7
| Range Of Product | Harmony Electromechanical Relays |
|---|---|
| Device Short Name | RUZ |
| Product Or Component Type | Socket |
| Product Compatibility | Plug-in relay RUM with 2 C/O contact |
| [Ith] Conventional Free Air Thermal Current | 12 A |
| [Ue] Rated Operational Voltage | < 250 V |
| Contacts Type And Composition | 2 C/O |
Complementary11
| Connections - Terminals | Connector, 1 x 0.25...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Connector, 2 x 0.25...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Connector, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Connector, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end |
|---|---|
| Shape Of Pin | Cylindrical |
| Tightening Torque | < 1 N.m for M3.5 screw(s) |
| Fixing Mode | By screw (panel); Clip-on (35 mm symmetrical DIN rail) |
| Contact Terminal Arrangement | Separate |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Sale Per Indivisible Quantity | 10 |
| Width | 36 mm |
| Net Weight | 0.095 kg |
Environment6
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
|---|---|
| Standards | IEC 61984 |
| Product Certifications | UL; CSA |
| Marking | CE |
| Ambient Air Temperature For Storage | -40…85 °C |
| Ambient Air Temperature For Operation | -40…55 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 10.500 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 18.000 cm |
| Package 1 Weight | 68.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 10.100 cm |
| Package 2 Width | 9.200 cm |
| Package 2 Length | 18.200 cm |
| Package 2 Weight | 729.000 g |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 160 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 12.036 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
