Schneider

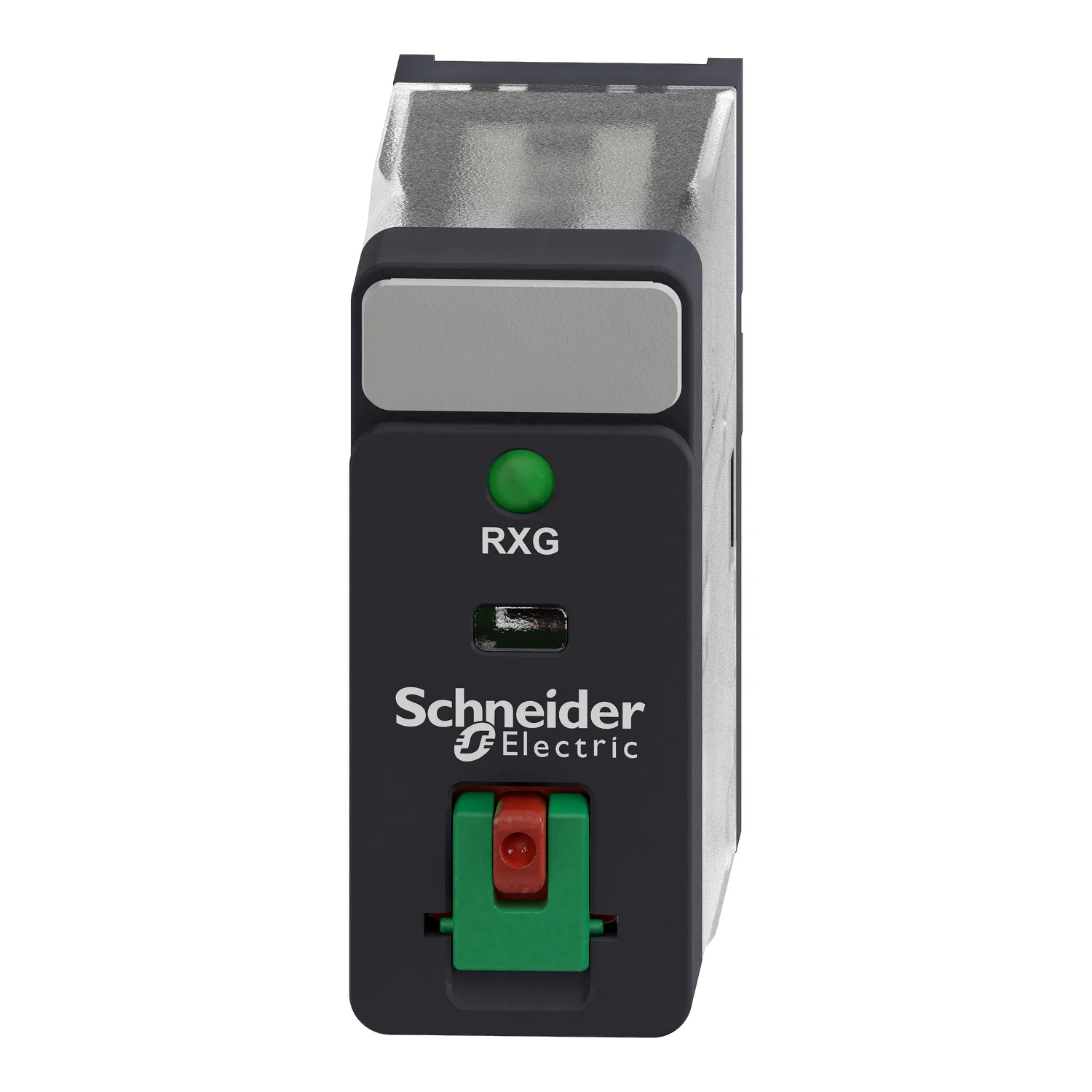

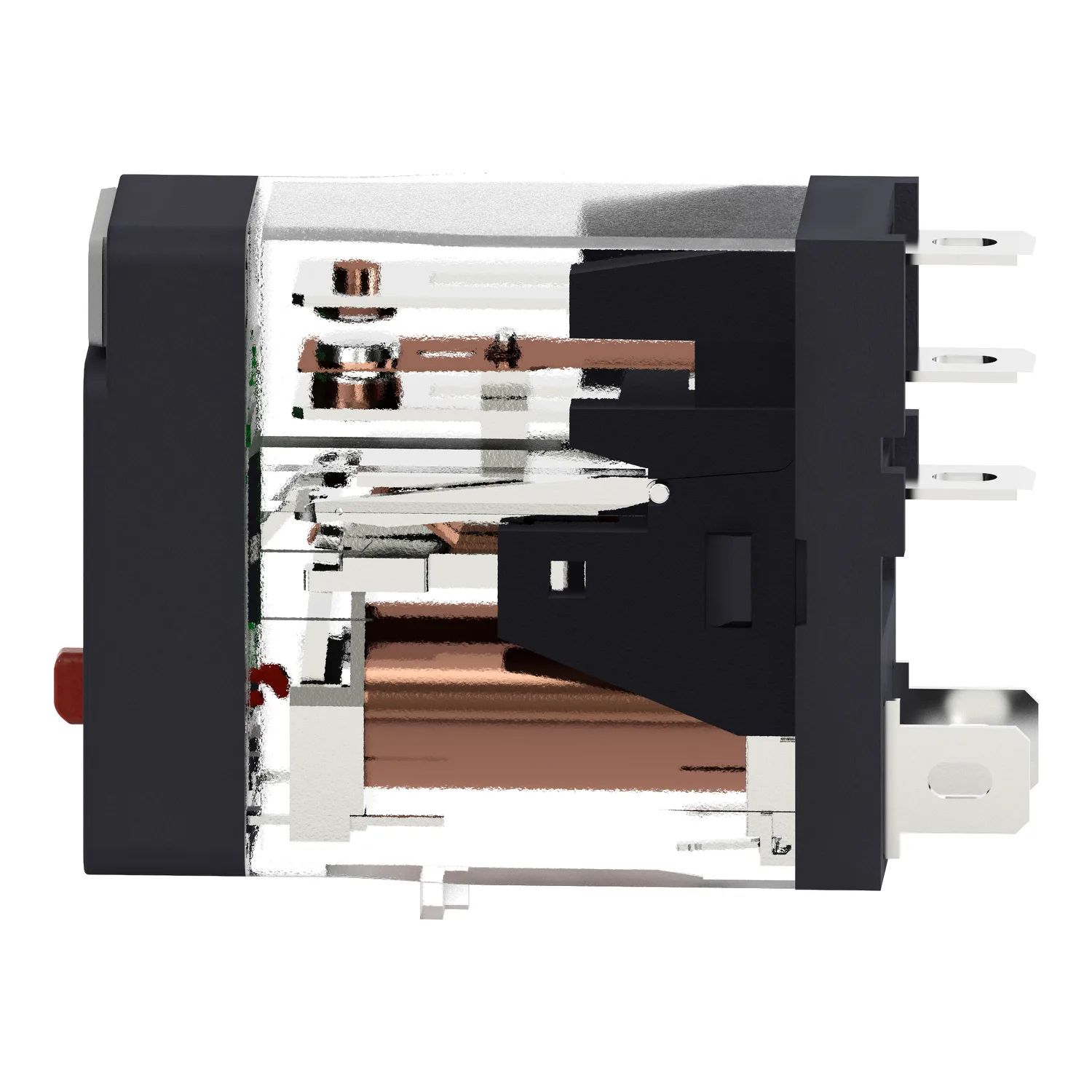

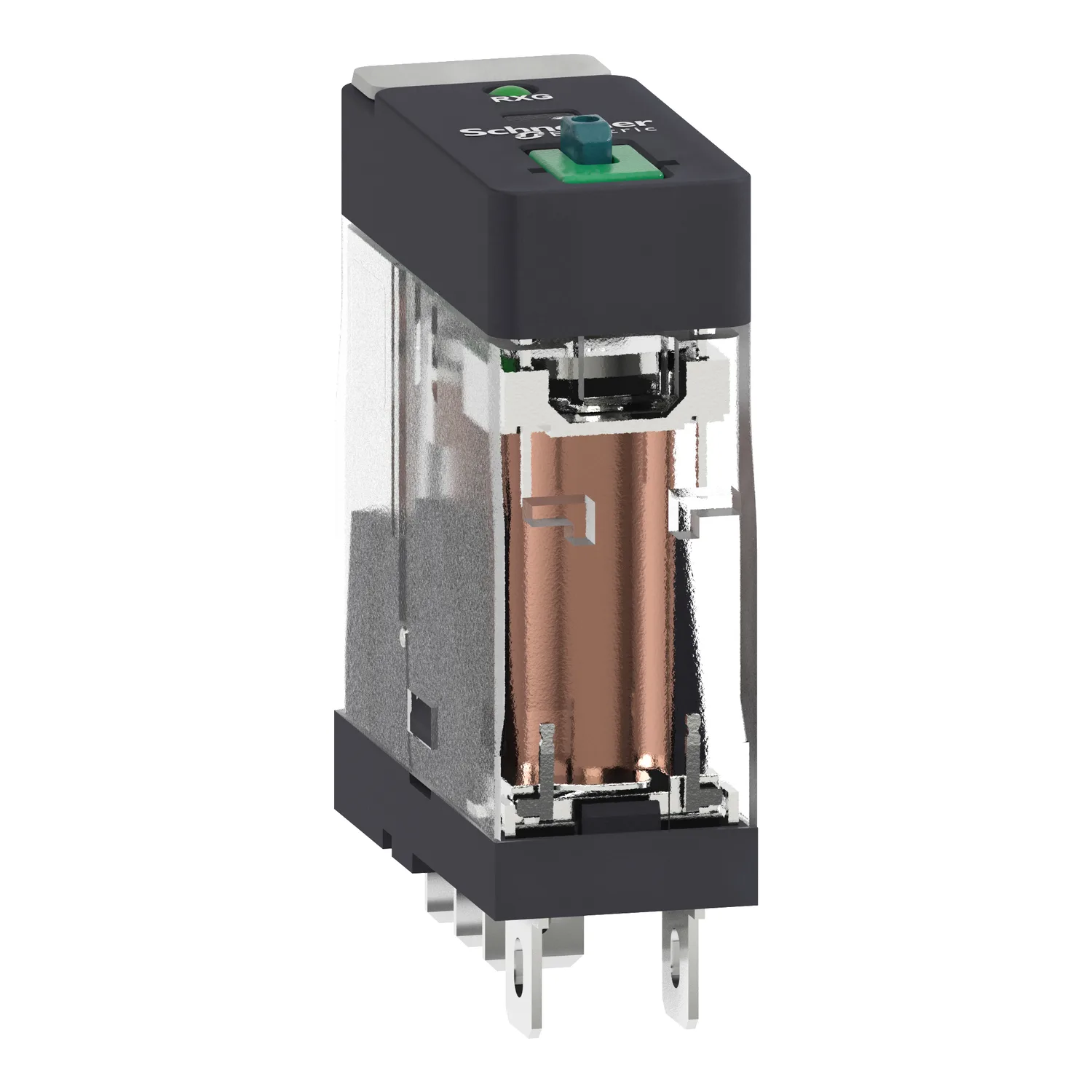

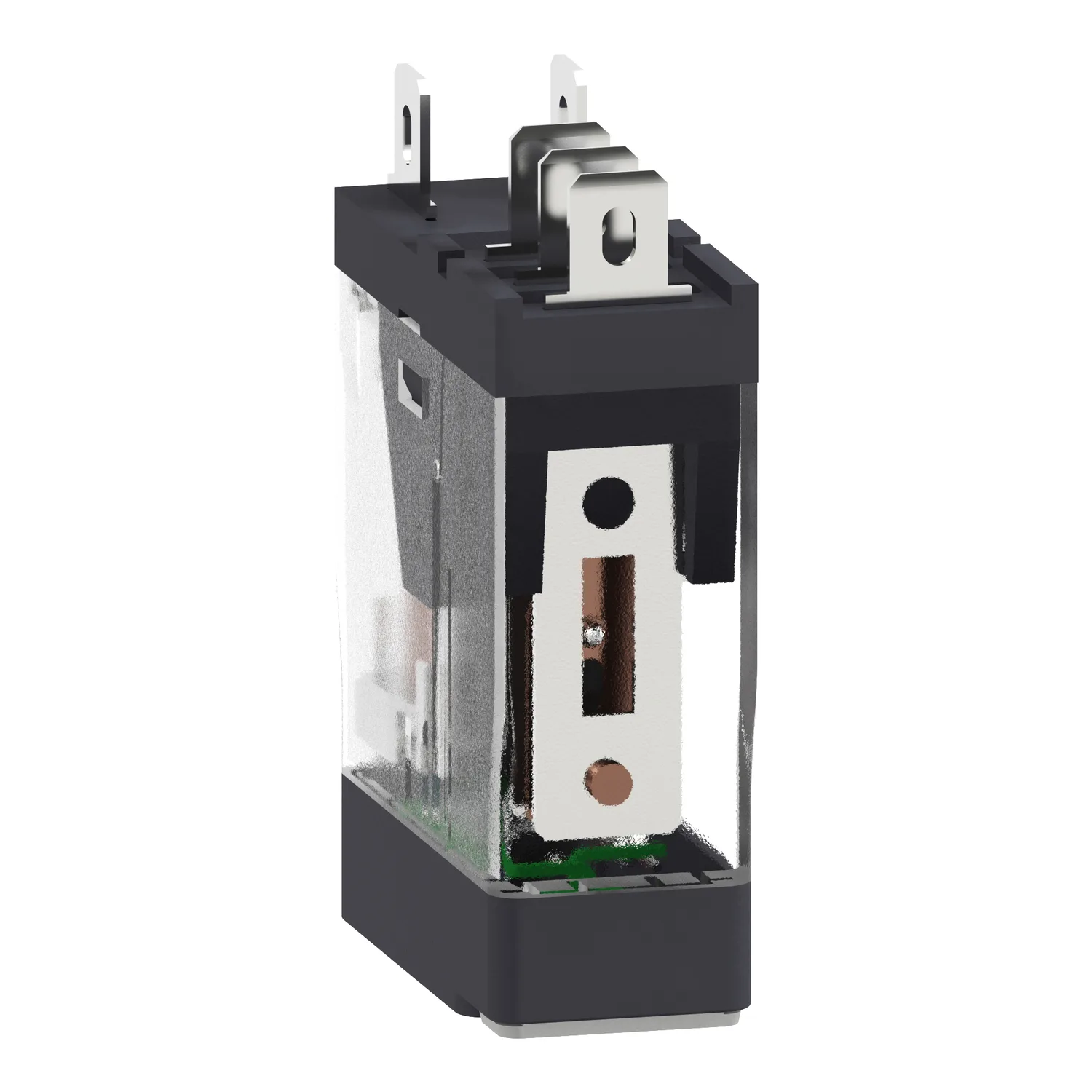

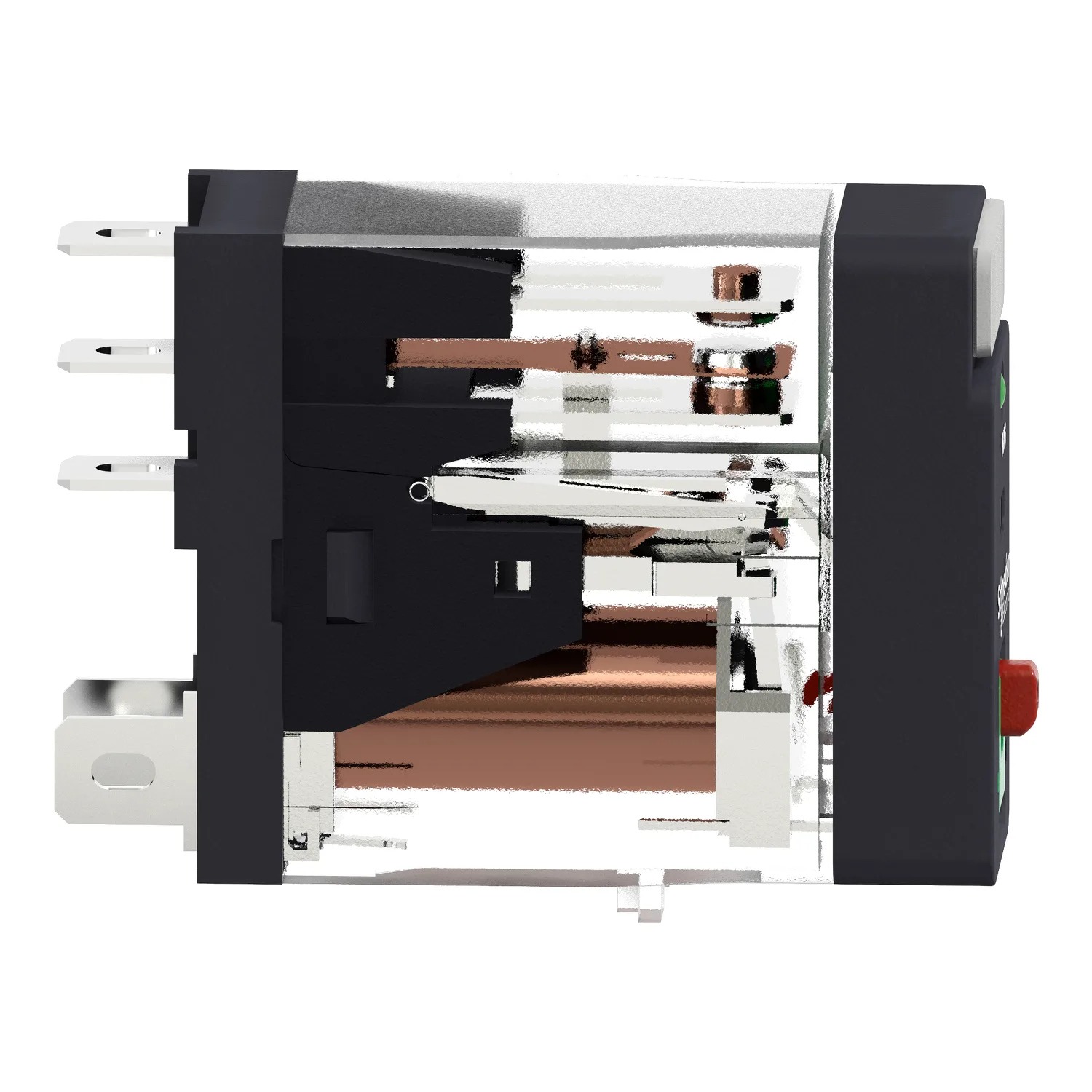

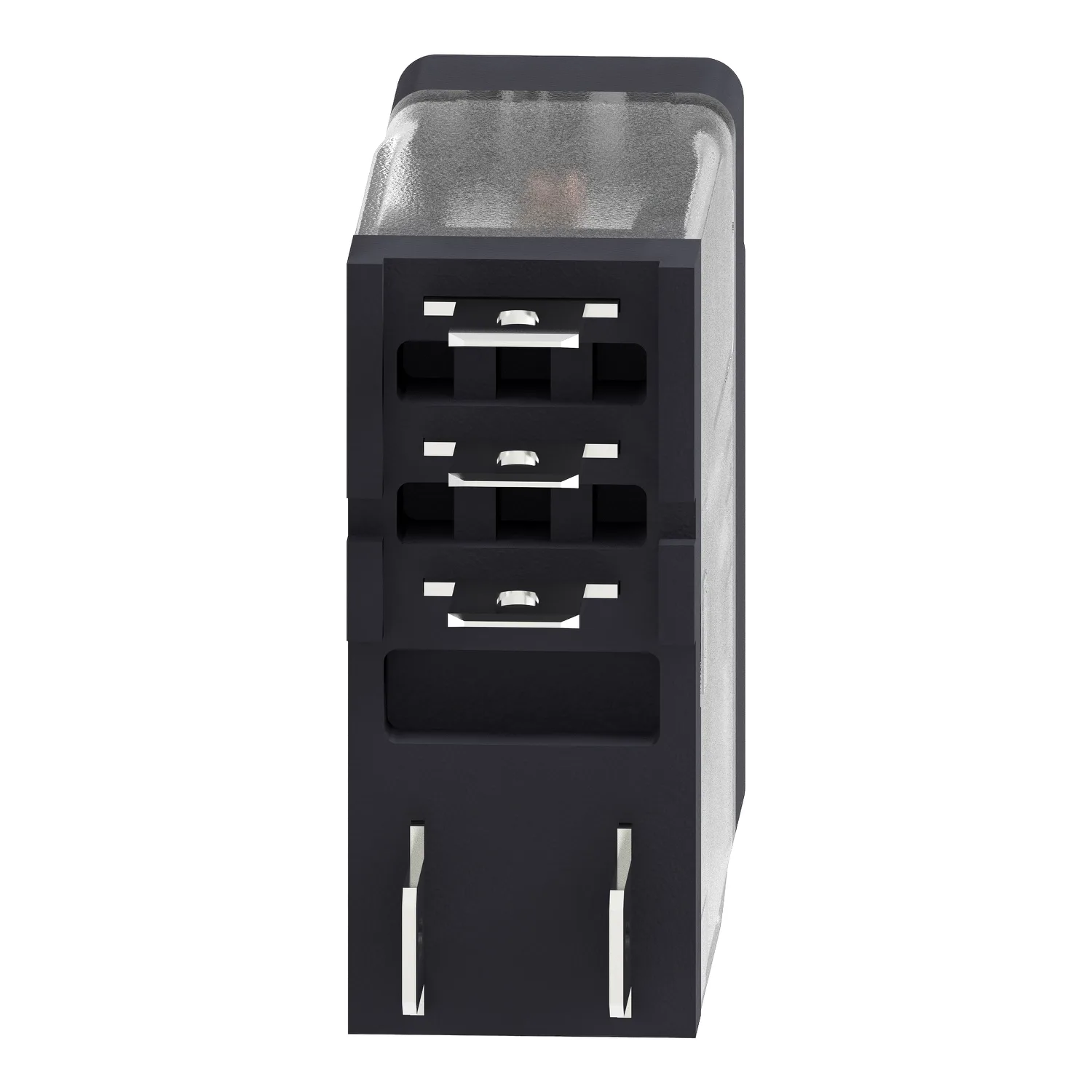

RXG12BD - 24 V DC Interface Relays (RXG)
Schneider RXG12BD, 24 V DC Interface Relays (RXG). Category: Harmony Electromechanical Relays. Request a quote for price and lead time.
- Reference:RXG12BD
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:14.80 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- RXG series
- Product Or Component Type
- Plug-in relay
- Relay Type
- Interface relay
Product Description
- "This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A."
- "It has large choice of number of contacts for high rated current use."
- "It also offers lockable test button and LED indicator."
- "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width."
- "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
- "Status display with LED, clearly signal both in the day and night."
Key Features
- "Help to reduce the size of enclosures enabling it to be mount nearly everywhere"
- "Provides economical solution for the implementation of many switching functions with large number of contacts"
- "It is flexibility design for space-saving with 16mm width"
- "Latest interface relay with single-step loackable testing function for user securey confident"
- "Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs"
Technical Specifications
Main8
| Range Of Product | Harmony Electromechanical Relays |
|---|---|
| Series Name | RXG series |
| Product Or Component Type | Plug-in relay |
| Relay Type | Interface relay |
| Contacts Type And Composition | 1 C/O |
| [Uc] Control Circuit Voltage | 24 V DC |
| [Ithe] Conventional Enclosed Thermal Current | 10 A at -40…55 °C |
| Local Signalling | Flag |
Complementary31
| Status LED | With |
|---|---|
| Electrical Durability | 100000 cycles for NO resistive load at 55 °C; 100000 cycles for NC resistive load at 55 °C |
| [Ui] Rated Insulation Voltage | 250 V conforming to IEC; 300 V conforming to CSA; 300 V conforming to UL |
| Removable Legend | With |
| Maximum Switching Voltage | 250 V AC; 30 V DC |
| Drop-out Voltage Threshold | >= 0.1 Uc DC |
| [Ie] Rated Operational Current | 10 A at 30 V (DC) conforming to UL; 10 A at 30 V (DC) conforming to IEC; 10 A at 250 V (AC) conforming to UL; 10 A at 250 V (AC) conforming to IEC |
| Load Current | 10 A at 250 V AC |
| Minimum Switching Capacity | 500 mW at 100 mA, 5 V DC |
| Maximum Switching Capacity | 2500 VA |
| Control Type | Lockable test button |
| Average Resistance | 1100 Ohm at 23 °C +/- 10 % |
| Contact Resistance | 100 mOhm |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Electrical Insulation Class | Class F |
| Mechanical Durability | 10000000 cycles |
| Safety Reliability Data | B10d = 100000 |
| Operating Rate | <= 1800 cycles/hour under load; <= 18000 cycles/hour no-load |
| Utilisation Coefficient | 20 % |
| Operating Time | 20 ms |
| Reset Time | 20 ms |
| Dielectric Strength | 1000 V AC between contacts with micro disconnection; 5000 V AC between coil and contact with reinforced insulation; 1300 V AC terminals and case with basic insulation |
| [Uimp] Rated Impulse Withstand Voltage | 1200 V AC between contacts with micro disconnection; 6000 V between coil and contact with reinforced insulation; 1500 V between terminals and case with basic insulation |
| Overvoltage Category | III |
| Protection Category | RT I |
| Pollution Degree | 2 |
| Test Levels | Level A group mounting |
| Device Presentation | Complete product |
| Contacts Material | Silver alloy (AgSnO2In2O3) |
| Shape Of Pin | Flat (faston type) |
| Net Weight | 0.02 kg |
Environment7
| Standards | IEC 61810-1; CSA C22.2 No 14; UL 508 |
|---|---|
| Product Certifications | CSA; CE; EAC; UL; DNV |
| Ambient Air Temperature For Storage | -40…85 °C |
| Ambient Air Temperature For Operation | -40…70 °C |
| IP Degree Of Protection | IP40 |
| Relative Humidity | 10…85 % |
| Vibration Resistance | 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation; 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 1.800 cm |
| Package 1 Width | 2.800 cm |
| Package 1 Length | 4.100 cm |
| Package 1 Weight | 20.000 g |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
