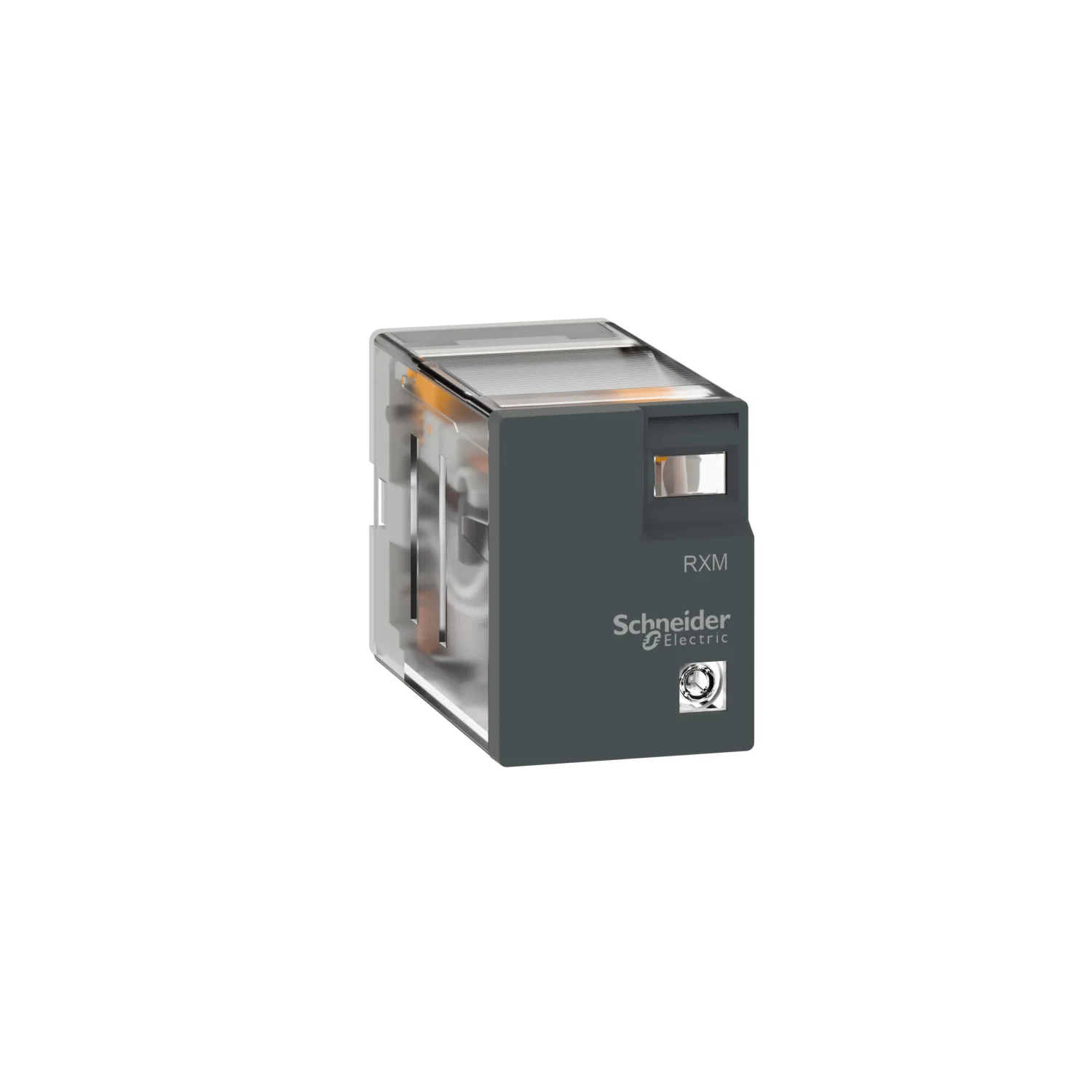

RXM4LB1P7 - 230 V AC, Miniature Relays (RXM)
Schneider RXM4LB1P7, 230 V AC, Miniature Relays (RXM). Category: Harmony Electromechanical Relays. Request a quote for price and lead time.
- Reference:RXM4LB1P7
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:9.40 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- RXM series
- Product Or Component Type
- Plug-in relay
- Relay Type
- Miniature relay
Product Description
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 3A, control circuit voltage of 230 V AC 50/60 Hz. It also offers a mechanical indicator where an orange flag indicates the relay contact status. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Conforms to international standard and certifications like IEC, CE. RXM relay need to be used with a RXZE socket RXZE1M4C. To protect against vibrations, metal clamp RXZ410 can be added to the socket. It is sold in lots of 10 and reference includes relay only. The RXMLB plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (5A), 4 CO (3A) contacts.
Key Features
- "Fit to customer needs coverage of most general control panel application"
- "Convenient to use Easy status readiness trough mechanical indicator & LED"
- "Safe to perform product reliability compliance with industrial standard and eco-design"
- "Easy to select simple selection and wide availability"
- "Mechanical indicator for contact status"
Technical Specifications
Main7
| Range Of Product | Harmony Electromechanical Relays |
|---|---|
| Series Name | RXM series |
| Product Or Component Type | Plug-in relay |
| Relay Type | Miniature relay |
| Contacts Type And Composition | 4 C/O |
| [Uc] Control Circuit Voltage | 230 V AC 50/60 Hz |
| [Ithe] Conventional Enclosed Thermal Current | 3 A at -40…55 °C |
Complementary27
| Status LED | Without |
|---|---|
| Control Type | Without lockable test button |
| [Ie] Rated Operational Current | 1.5 A at 28 V (DC) NC conforming to IEC; 1.5 A at 250 V (AC) NC conforming to IEC; 3 A at 28 V (DC) NO conforming to IEC; 3 A at 250 V (AC) NO conforming to IEC; 3 A at 24 V (DC) NO conforming to IEC; 3 A at 220 V (AC) NO conforming to IEC; 3 A at 28 V (DC) conforming to UL; 3 A at 250 V (AC) conforming to UL |
| Minimum Switching Capacity | 25 mW subject to switching frequency, environment or expected reliability level etc |
| Rated Operational Voltage Limits | 184...253 V AC |
| [Ui] Rated Insulation Voltage | 250 V conforming to IEC |
| Maximum Switching Voltage | 250 V AC; 28 V DC |
| Drop-out Voltage Threshold | >= 0.15 Uc AC |
| Load Current | 3 A at 250 V AC; 3 A at 28 V DC |
| Maximum Switching Capacity | 750 VA AC; 84 W DC |
| Minimum Switching Current | 5 mA subject to switching frequency, environment or expected reliability level etc |
| Minimum Switching Voltage | 5 V subject to switching frequency, environment or expected reliability level etc |
| Average Resistance | 16500 Ohm at 23 °C +/- 15 % |
| Mechanical Durability | 20000000 cycles |
| Electrical Durability | 200000 cycles resistive load 23 °C; 100000 cycles resistive load at 55 °C |
| Safety Reliability Data | B10d = 100000 |
| Operating Rate | <= 1200 cycles/hour under load; <= 18000 cycles/hour no-load |
| Utilisation Coefficient | 20 % |
| Dielectric Strength | 2000 V AC between coil and contact with basic insulation; 2000 V AC between poles with basic insulation; 1000 V AC between contacts with micro disconnection |
| Protection Category | RT I |
| Pollution Degree | 2 |
| Operating Position | Any position |
| Test Levels | Level A group mounting |
| Sale Per Indivisible Quantity | 10 |
| Contacts Material | Silver alloy (Ag/Ni) |
| Shape Of Pin | Flat (faston type) |
| Net Weight | 0.032 kg |
Environment4
| Standards | IEC 61810-1 (iss. 2); CE; UL 508 |
|---|---|
| Ambient Air Temperature For Storage | -40…85 °C |
| Vibration Resistance | 3 gn, amplitude = +/- 1 mm (f = 10…50 Hz)operating conforming to IEC 60068-2-6; 6 gn, amplitude = +/- 1 mm (f = 10…50 Hz)not operating conforming to IEC 60068-2-6 |
| Shock Resistance | 30 gn for not operating conforming to IEC 60068-2-27; 10 gn for in operation conforming to IEC 60068-2-27 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 2.1 cm |
| Package 1 Width | 2.7 cm |
| Package 1 Length | 4.5 cm |
| Package 1 Weight | 33.0 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 3 cm |
| Package 2 Width | 11.5 cm |
| Package 2 Length | 10 cm |
| Package 2 Weight | 390 g |
| Unit Type Of Package 3 | S02 |
| Number Of Units In Package 3 | 270 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 10.985 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
