Schneider
Automation module: extension; IN: 6; OUT: 4; OUT 1: relay; 24VDC

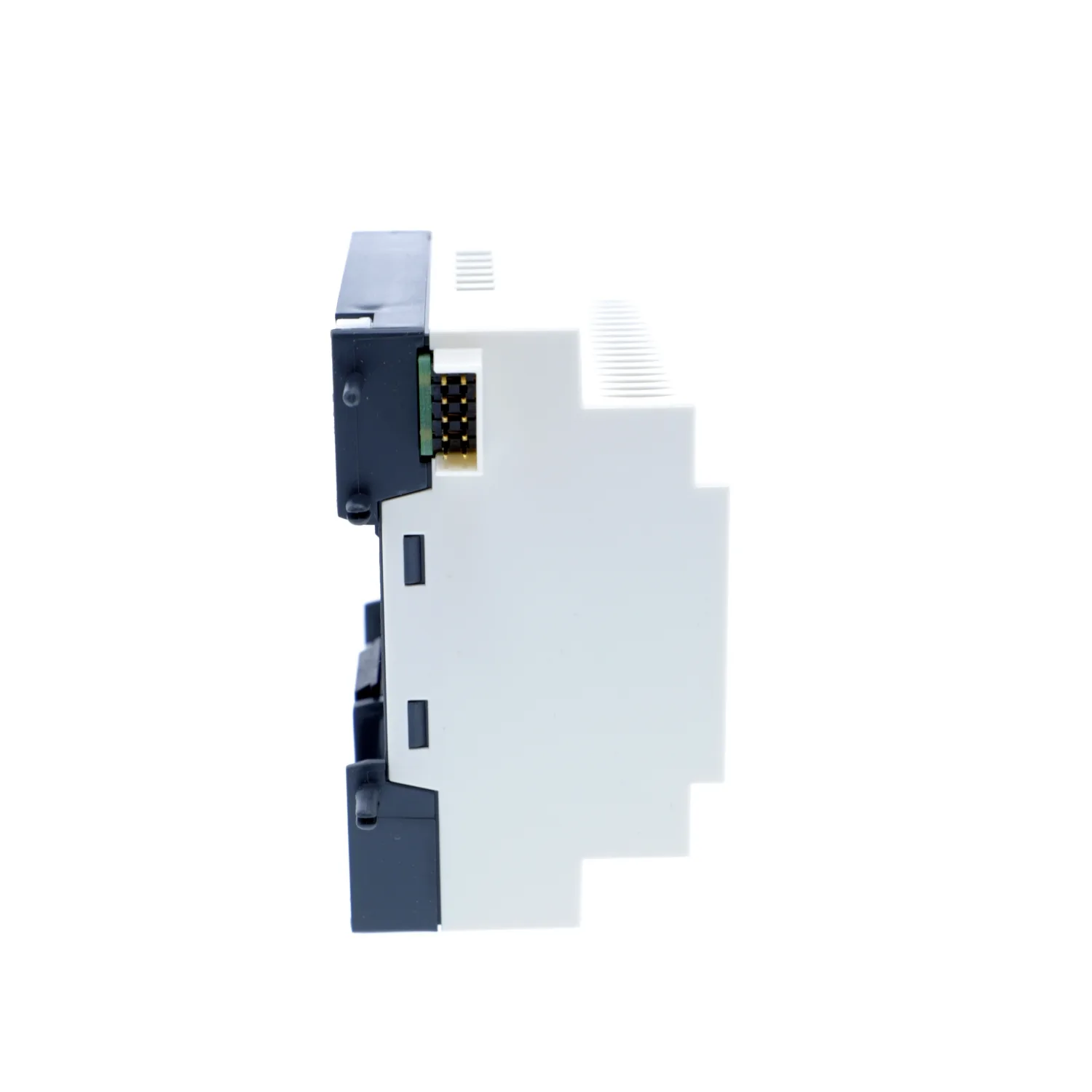

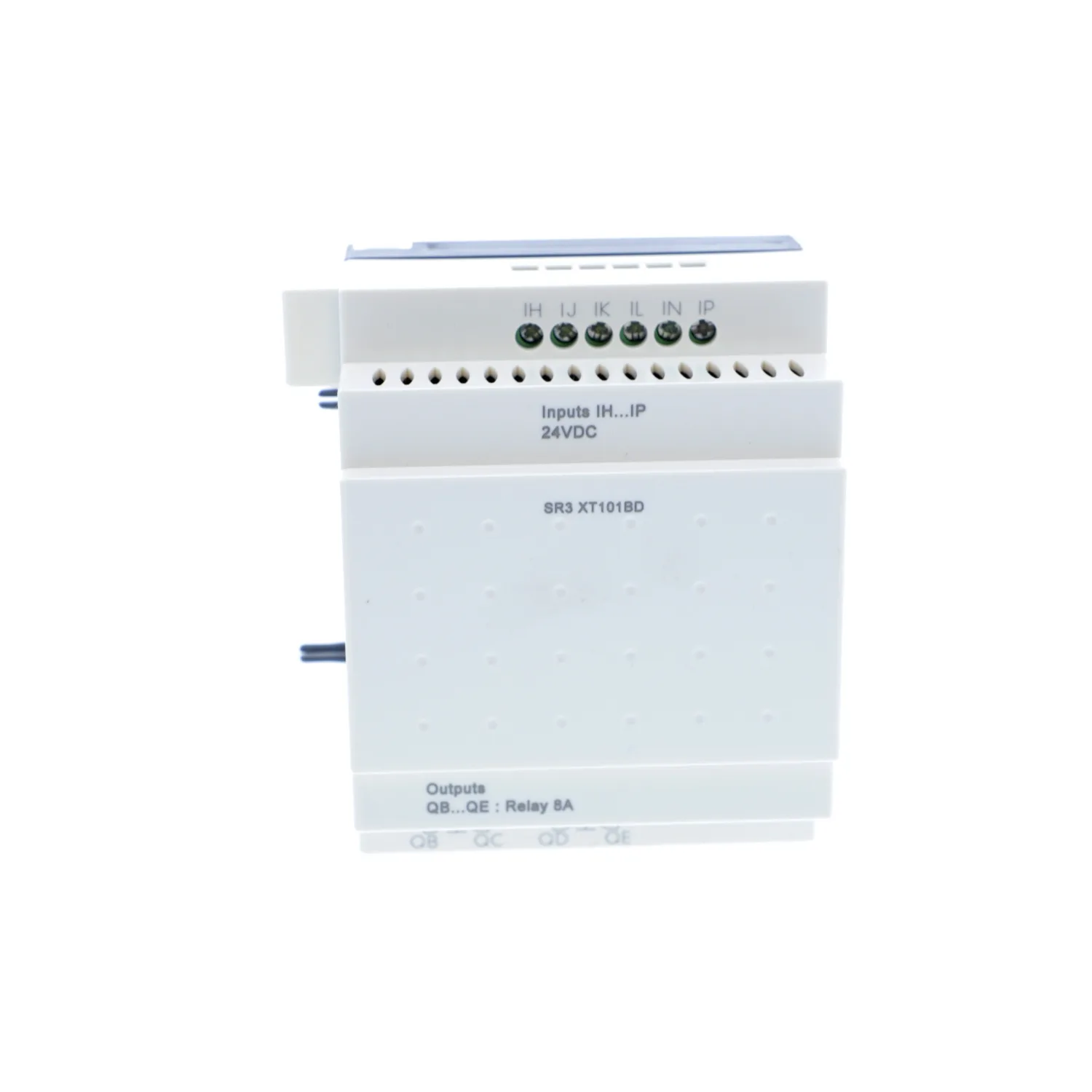

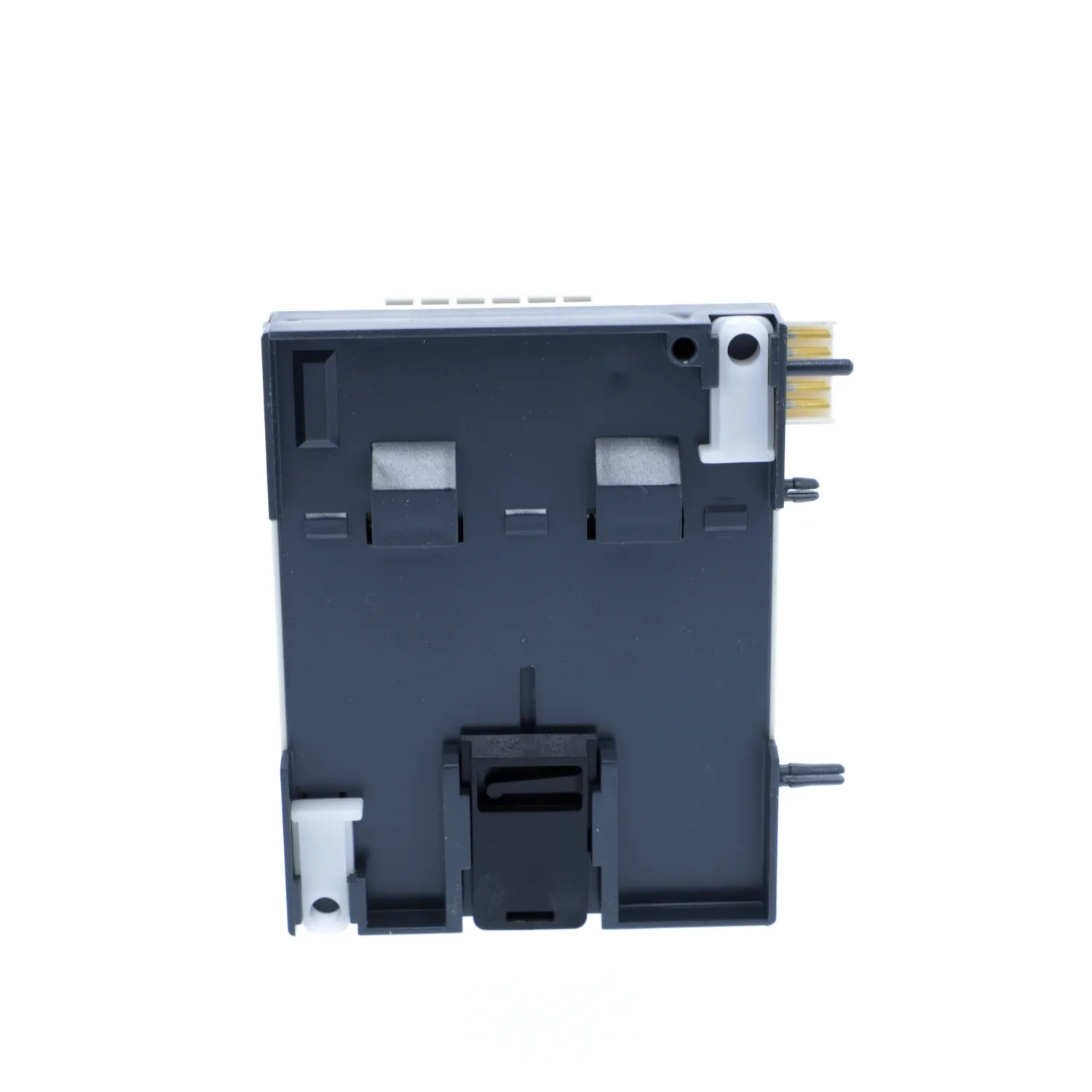

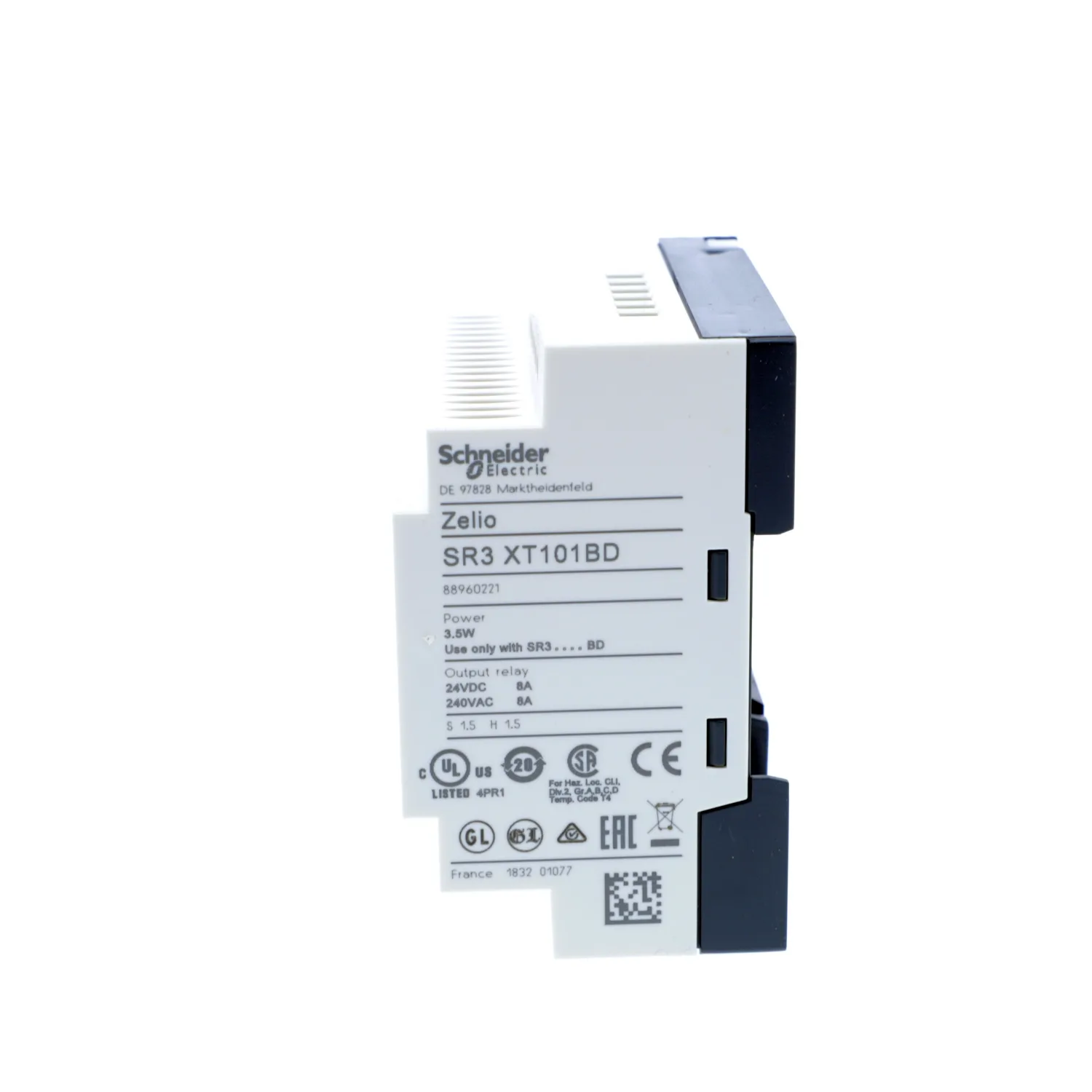

Schneider SR3XT101BD, Automation module: extension; IN: 6; OUT: 4; OUT 1: relay; 24VDC. Category: Smart Relays - Zelio Logic. In stock.
- Reference:SR3XT101BD
- Manufacturer / Brand:Schneider
- Availability:In stock (2 pcs) ✅
- Price:168.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Zelio Logic
- Product Or Component Type
- Discrete I/O extension module
Product Description
This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 24V direct current. It has 10 inputs / outputs contact with screw-clamp terminals. It enables simple ladder programming, adapted for non-specialists.
Key Features
- "Simple ladder programming, adapted for non-specialists"
- "Discovery package, coming with Zelio Soft programming software: the simplest way to learn and use this relay"
- "Built-in EEPROM flash memory for data backup up to 10 years: easy-to-recover after a power shortage or incident"
- "More I/O than SR2 model, for larger applications"
Technical Specifications
Main2
| Range Of Product | Zelio Logic |
|---|---|
| Product Or Component Type | Discrete I/O extension module |
Complementary33
| Number Or Control Scheme Lines | 120 with ladder programming |
|---|---|
| Cycle Time | 6…90 ms |
| Backup Time | 10 years at 25 °C |
| Clock Drift | 12 min/year at 0…55 °C |
| Checks | Program memory on each power up |
| [Us] Rated Supply Voltage | 24 V DC |
| Supply Voltage Limits | 19.2…30 V |
| Reverse Polarity Protection | With |
| Discrete Input Number | 6 conforming to IEC 61131-2 Type 1 |
| Discrete Input Type | Resistive |
| Discrete Input Voltage | 24 V DC |
| Discrete Input Current | 4 mA |
| Counting Frequency | 1 kHz for discrete input |
| Voltage State 1 Guaranteed | >= 15 V for I1...IA and IH...IR discrete input circuit; >= 15 V for IB...IG used as discrete input circuit |
| Voltage State 0 Guaranteed | <= 5 V for I1...IA and IH...IR discrete input circuit; <= 5 V for IB...IG used as discrete input circuit |
| Current State 1 Guaranteed | >= 1.2 mA (IB...IG used as discrete input circuit); >= 2.2 mA (I1...IA and IH...IR discrete input circuit) |
| Current State 0 Guaranteed | <= 0.5 mA (IB...IG used as discrete input circuit); <= 0.75 mA (I1...IA and IH...IR discrete input circuit) |
| Input Compatibility | 3-wire proximity sensors PNP for discrete input |
| Input Impedance | 12 kOhm for IB...IG used as discrete input circuit; 7.4 kOhm for I1...IA and IH...IR discrete input circuit |
| Number Of Outputs | 4 relay |
| Output Voltage Limits | 24...250 V AC (relay output); 5...30 V DC (relay output) |
| Contacts Type And Composition | NO for relay output |
| Output Thermal Current | 8 A for all 4 outputs for relay output |
| Electrical Durability | AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1; AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1; DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1; DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 |
| Switching Capacity In MA | >= 10 mA at 12 V (relay output) |
| Operating Rate In Hz | 0.1 Hz (at Ie) for relay output; 10 Hz (no load) for relay output |
| Mechanical Durability | 10000000 cycles for relay output |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Response Time | 10 ms (from state 0 to state 1) for relay output; 5 ms (from state 1 to state 0) for relay output |
| Connections - Terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) semi-solid; Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) solid; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) solid |
| Tightening Torque | 0.5 N.m |
| Overvoltage Category | III conforming to IEC 60664-1 |
| Net Weight | 0.2 kg |
Environment11
| Product Certifications | GL; C-Tick; UL; GOST; CSA |
|---|---|
| Standards | IEC 61000-4-4 level 3; IEC 61000-4-2 level 3; IEC 61000-4-3; IEC 61000-4-12; IEC 61000-4-11; IEC 60068-2-6 Fc; IEC 60068-2-27 Ea; IEC 61000-4-6 level 3; IEC 61000-4-5 |
| IP Degree Of Protection | IP20 (terminal block) conforming to IEC 60529; IP40 (front panel) conforming to IEC 60529 |
| Environmental Characteristic | EMC directive conforming to IEC 61000-6-2; EMC directive conforming to IEC 61000-6-3; EMC directive conforming to IEC 61000-6-4; EMC directive conforming to IEC 61131-2 zone B; Low voltage directive conforming to IEC 61131-2 |
| Disturbance Radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Pollution Degree | 2 conforming to IEC 61131-2 |
| Ambient Air Temperature For Operation | -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2; -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient Air Temperature For Storage | -40…70 °C |
| Operating Altitude | 2000 m |
| Maximum Altitude Transport | 3048 m |
| Relative Humidity | 95 % without condensation or dripping water |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 9.100 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 181.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 30 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.923 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
