Schneider

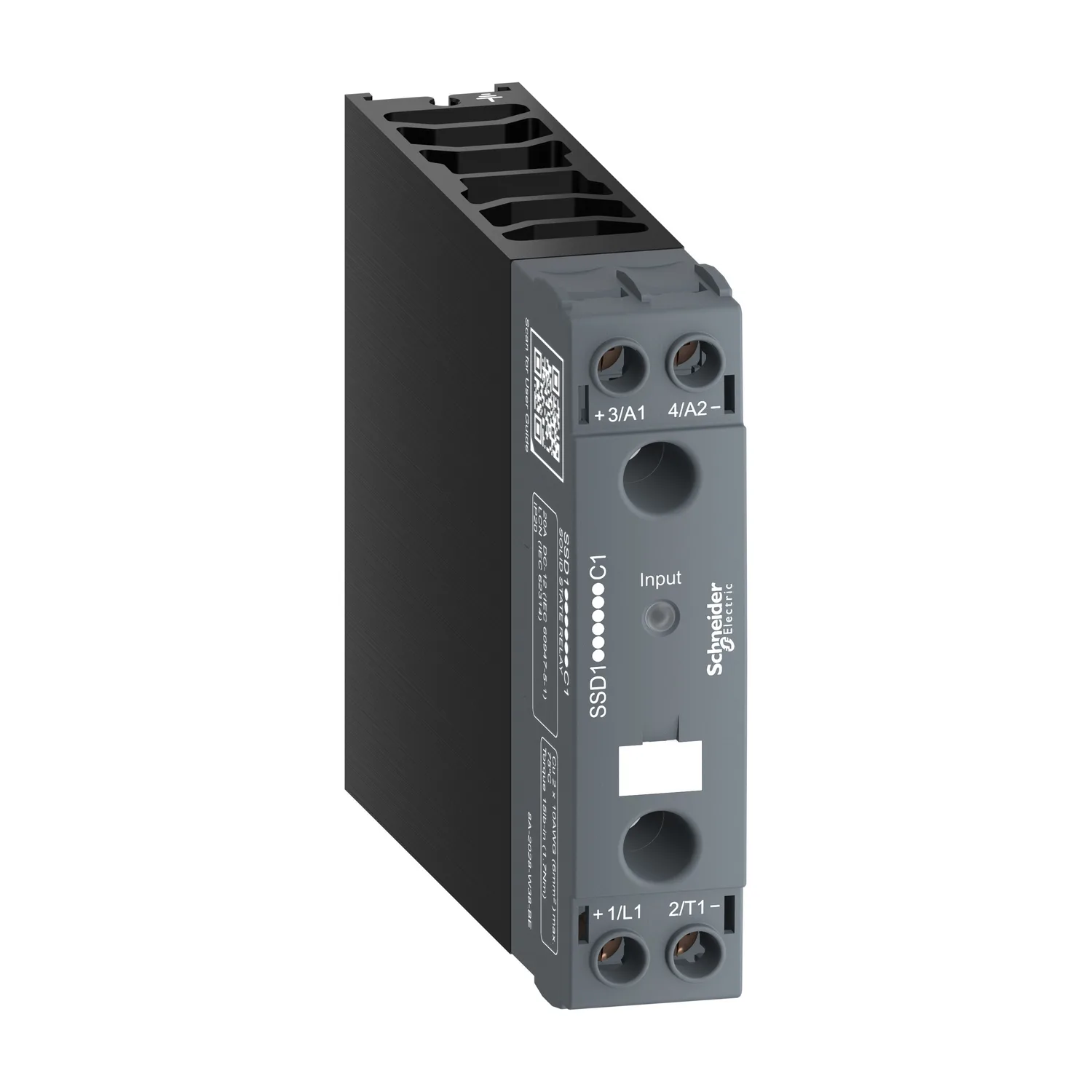

SSD1A335BDC1 - Solid State Relay
Schneider SSD1A335BDC1, Solid State Relay. Category: Harmony Solid State Relays. Request a quote for price and lead time.
- Reference:SSD1A335BDC1
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:166.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony Solid State Relays
- Product Or Component Type
- Modular DIN rail relay
- Device Short Name
- SSD1
- Number Of Channels
- 1
Product Description
- <STRONG>Can you tell me about the SSD1 modular DIN rail relay and what makes it unique?</STRONG><BR>
- This single-phase solid state DIN rail mounted relay has a IP20 built-in heat sink and a built-in transient overvoltage protection.
- <BR><BR><STRONG>What are the key technical specifications of the SSD1 modular DIN rail relay?</STRONG><BR>
- This is a 35A power rated relay with relay type configuration and zero voltage switching.It is controlled with a 4VDC to 32VDC input, has a rated load voltage of 48VAC to 600VAC.
- Besides the existing standard screw connection for input and output, SSD models provide more wiring options like the spring or screw pluggable input connectors.
- It also has a LED input voltage status indicator and clip-in legend for easy identification.
- It weighs 0.3 kg and its dimensions are 22.5 mm wide, 117.0 mm deep, 95.0 mm high.
- This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch.
- This relay conforms to international standards like IEC 62314, IEC 60947-4-3, UL 508 and CAN CSA 22.2 No.14-18
- <BR><BR><STRONG>What benefits does the Harmony Solid State Relays range offer?</STRONG><BR>
- This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony Solid State Relays range.
- It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications.
Key Features
- Solid state relays allow the use of high current rating models in a compact size
- DIN rail mount relays are available in both Relay and Contactor type configurations
- This relay conforms to international standards like IEC 62314, IEC 60947-5-1, UL 508 and CAN CSA 22.2 No.14-18
- Fast and precision controlled relays with high switching frequency and silent swithcing with no moving parts
- Resistant to shock and vibration
Technical Specifications
Main9
| Range Of Product | Harmony Solid State Relays |
|---|---|
| Product Or Component Type | Modular DIN rail relay |
| Device Short Name | SSD1 |
| Number Of Channels | 1 |
| Number Of Phases | 1 phase |
| Product Configuration Type | Relay configuration |
| Mounting Support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Rated Current | 35 A |
| Output Switching Mode | Zero voltage switching |
Complementary39
| Operating Frequency | 47...440 Hz |
|---|---|
| Rated Duty | Uninterrupted |
| Output Voltage | 48...600 V AC |
| Control Circuit Voltage | 4...32 V DC |
| Tightening Torque | 1.5...1.7 N.m for control input; 13...15 lb.in for control input; 1.5...1.7 N.m for load output; 13...15 lb.in for load output |
| Connections - Terminals | screw terminals, clamping connection capacity:1...6 mm², 18 AWG...10 AWG for input; screw terminals, clamping connection capacity:1...6 mm², 18 AWG...10 AWG for output |
| Dielectric Strength | 4 kV AC for input/output circuit; 4 kV AC for input or output to case |
| Rated Impulse Withstand Voltage | 6 kV for input/output circuit; 6 kV for input or output to case |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Local Signalling | LED (green) for control voltage |
| Pick-up Voltage | 4 V DC turn-on |
| Drop-out Voltage | 1 V DC turn-off |
| Input Current Range | 5…15 mA |
| Solid State Switching Type | Zero voltage switching |
| Load Current | 0.2…35 A |
| Transient Overvoltage | 1200 V |
| Inrush Current | 1200 A at 60 Hz |
| Maximum Voltage Drop | <1.3 V on-state |
| Motor Controller Rating | 1.5 kW/2 hp at 120 V AC; 3.73 kW/5 hp at 240 V AC; 7.46 kW/10 hp at 480 V AC |
| Electromagnetic Compatibility | Electrostatic discharge 6 kV criteria B contact discharge conforming to IEC 61000-4-2; Electrostatic discharge 8 kV criteria B air discharge conforming to IEC 61000-4-2; Conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6; Electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4; Electrical fast trans |
| Device Form Designation | Form 5 semiconductor output DOL contactor |
| Maximum I²t For Fusing | 7200 A².s for 10 ms; 6588 A².s for 8.33 ms |
| Maximum Leakage Current | 1 mA off-state |
| DV/dt | 500 V/µs off-state at maximum rated voltage |
| Response Time | 0.5 cycle (turn-on); 0.5 cycle (turn-off) |
| Power Factor | 0.5 with maximum load |
| Short Circuit Protection Coordination | Type 1; Type 2 |
| Overvoltage Category | III |
| Width | 22.5 mm |
| Height | 95.0 mm |
| Depth | 117.0 mm |
| Test Button | Without test button |
| Net Weight | 0.3 kg |
| Device Presentation | Complete product |
| Protection Device Type | TVS |
| Load Category | LCA |
| Rated Frequency (fr) | 47...440 Hz |
| Utilisation Category | AC-51 35 A conforming to IEC 60947-4-3 |
| [Ui] Rated Insulation Voltage | 600 V |
Environment8
| Flammability Rating | V-0 conforming to UL 94 |
|---|---|
| Vibration Resistance | 0.75 mm (f = 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 15 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27; 15 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27 |
| Pollution Degree | 2 |
| Standards | IEC 60947-4-3; IEC 62314; CSA C22.2 No 14-18; UL 508 |
| IP Degree Of Protection | IP20 |
| Ambient Air Temperature For Operation | -40…80 °C |
| Ambient Air Temperature For Storage | -40…100 °C |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 2.500 cm |
| Package 1 Width | 9.300 cm |
| Package 1 Length | 14.000 cm |
| Package 1 Weight | 320.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.100 kg |
Logistical informations1
| Country Of Origin | MX |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
